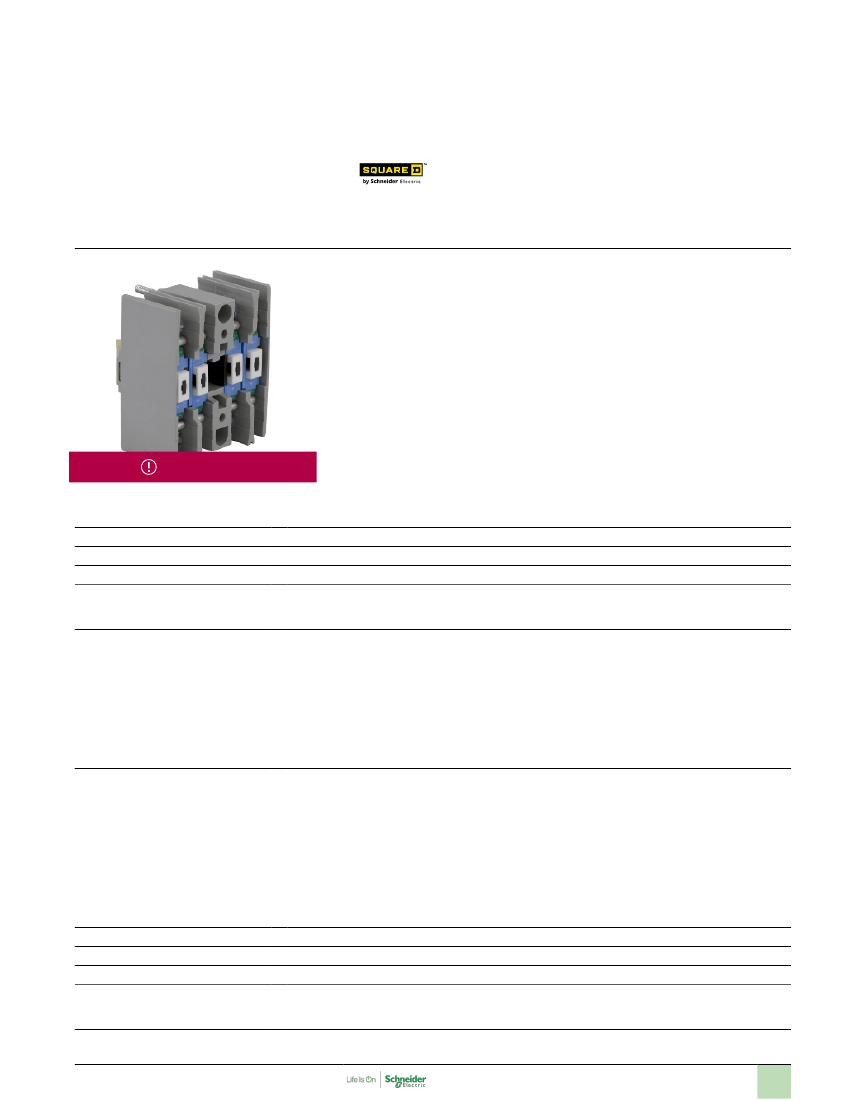

Product data sheet

Characteristics

8501XB40Y414

NEMA Control Relay Adder Deck with 4 NO

Contacts - Ring Tongue Connectors

Price* : 98.00 USD

8501XB40Y414 has not been replaced. Please contact your

customer care center for more information.

Discontinued

Main

Range of product

Relay type

Product or component type

8501X

Control relay

Adder deck

Complementary

Rated breaking capacity

6 A at: 120 V AC for: inductive load control circuit per UL 508

3 A at: 240 V AC for: inductive load control circuit per UL 508

1.5 A at: 480 V AC for: inductive load control circuit per UL 508

1.2 A at: 600 V AC for: inductive load control circuit per UL 508

10 A at: <= 600 V AC for: resistive load control circuit per UL 508

1.1 A at: 125 V DC for: inductive load control circuit per UL 508

0.55 A at: 250 V DC for: inductive load control circuit per UL 508

0.2 A at: 301...600 V DC for: inductive load control circuit per UL 508

4 A at: 125 V DC for: resistive load control circuit per UL 508

0.8 A at: 250 V DC for: resistive load control circuit per UL 508

60 A at: 120 V AC for: inductive load control circuit per UL 508

30 A at: 240 V AC for: inductive load control circuit per UL 508

15 A at: 480 V AC for: inductive load control circuit per UL 508

12 A at: 600 V AC for: inductive load control circuit per UL 508

10 A at: <= 600 V AC for: resistive load control circuit per UL 508

1.1 A at: 125 V DC for: inductive load control circuit per UL 508

0.55 A at: 250 V DC for: inductive load control circuit per UL 508

0.2 A at: 301...600 V DC for: inductive load control circuit per UL 508

4 A at: 125 V DC for: inductive load control circuit per UL 508

0.8 A at: 250 V DC for: resistive load control circuit per UL 508

4 NO 4 standard contact cartridges

Ring tongue

AWG 18...AWG 12 copper

1.02...1.36 N.m control circuit screw terminals

[Icm] rated short-circuit making

capacity

Contacts type and composition

Electrical connection

AWG gauge

Tightening torque

Environment

Product certifications

Dec 19, 2018

UL recognized E78403 CCN NKCR2
