Basic information of LM324N amplifier:
LM324N is an OPERATIONAL AMPLIFIER. Commonly used packaging methods are PLASTIC, DIP-14

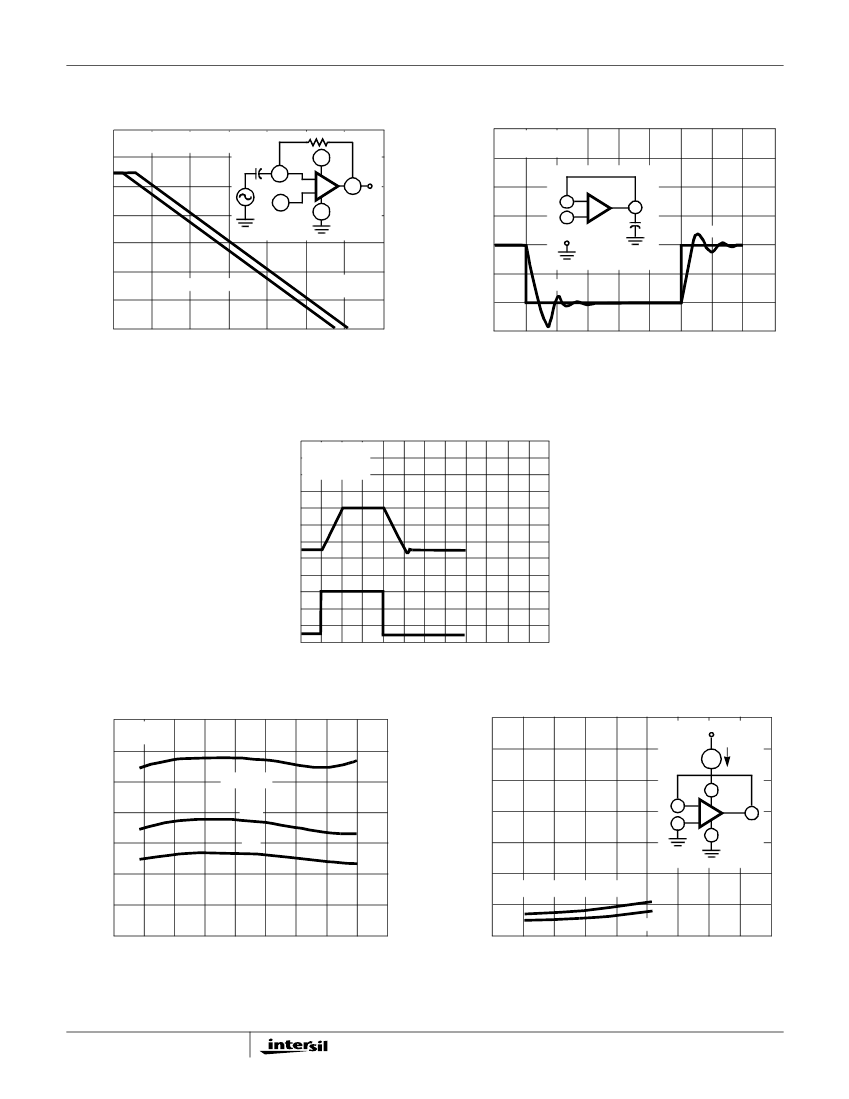

LM324N amplifier core information:
The minimum operating temperature of the LM324N is and the maximum operating temperature is 70 °C. Maximum bias current at 25°C: 0.25 µA Maximum average bias current is 0.5 µA
The maximum slew rate of LM324N given by the manufacturer is 2 mA. Its minimum voltage gain is 15000. When the op amp is used in closed loop, at a certain closed-loop gain (usually 1 or 2, 10, etc.), the frequency when the LM324N gain becomes 0.707 times the low-frequency gain is 1000 kHz.
The nominal supply voltage of the LM324N is 5 V. The power supply range is: 5/30 V. The input offset voltage of the LM324N is 9000 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)
Related dimensions of LM324N:
The width of LM324N is: 7.62 mm and the length is 19.17 mm. LM324N has 14 terminals. Its terminal position type is: DUAL. Terminal pitch is 2.54 mm. Total pins: 14
LM324N amplifier additional information:
LM324N adopts the VOLTAGE-FEEDBACK architecture. It does not belong to the low offset class of amplifiers. The frequency compensation status of LM324N is: YES. Its temperature grade is: COMMERCIAL. It is a micropower amplifier.
The LM324N is not Rohs certified. The corresponding JESD-30 code is: R-PDIP-T14. The corresponding JESD-609 code is: e0. The packaging code of LM324N is: DIP. The materials used in the LM324N package are mostly PLASTIC/EPOXY.
The package shape is RECTANGULAR. The LM324N package pin format is: IN-LINE. Its terminal form is: THROUGH-HOLE. The maximum seat height is 5.33 mm.
Basic information of LM324N amplifier:
LM324N is an OPERATIONAL AMPLIFIER. Commonly used packaging methods are PLASTIC, DIP-14
LM324N amplifier core information:
The minimum operating temperature of the LM324N is and the maximum operating temperature is 70 °C. Maximum bias current at 25°C: 0.25 µA Maximum average bias current is 0.5 µA
The maximum slew rate of LM324N given by the manufacturer is 2 mA. Its minimum voltage gain is 15000. When the op amp is used in closed loop, at a certain closed-loop gain (usually 1 or 2, 10, etc.), the frequency when the LM324N gain becomes 0.707 times the low-frequency gain is 1000 kHz.
The nominal supply voltage of the LM324N is 5 V. The power supply range is: 5/30 V. The input offset voltage of the LM324N is 9000 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)
Related dimensions of LM324N:
The width of LM324N is: 7.62 mm and the length is 19.17 mm. LM324N has 14 terminals. Its terminal position type is: DUAL. Terminal pitch is 2.54 mm. Total pins: 14
LM324N amplifier additional information:
LM324N adopts the VOLTAGE-FEEDBACK architecture. It does not belong to the low offset class of amplifiers. The frequency compensation status of LM324N is: YES. Its temperature grade is: COMMERCIAL. It is a micropower amplifier.
The LM324N is not Rohs certified. The corresponding JESD-30 code is: R-PDIP-T14. The corresponding JESD-609 code is: e0. The packaging code of LM324N is: DIP. The materials used in the LM324N package are mostly PLASTIC/EPOXY.
The package shape is RECTANGULAR. The LM324N package pin format is: IN-LINE. Its terminal form is: THROUGH-HOLE. The maximum seat height is 5.33 mm.
| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | Renesas Electronics Corporation |
| Parts packaging code | DIP |
| package instruction | PLASTIC, DIP-14 |
| Contacts | 14 |
| Reach Compliance Code | not_compliant |
| ECCN code | EAR99 |
| Is Samacsys | N |
| Amplifier type | OPERATIONAL AMPLIFIER |
| Architecture | VOLTAGE-FEEDBACK |
| Maximum average bias current (IIB) | 0.5 µA |
| Maximum bias current (IIB) at 25C | 0.25 µA |
| Nominal Common Mode Rejection Ratio | 70 dB |
| frequency compensation | YES |
| Maximum input offset voltage | 9000 µV |
| JESD-30 code | R-PDIP-T14 |
| JESD-609 code | e0 |
| length | 19.17 mm |
| low-dissonance | NO |
| micropower | YES |
| Number of functions | 4 |
| Number of terminals | 14 |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | DIP |
| Encapsulate equivalent code | DIP14,.3 |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| power supply | 5/30 V |
| Certification status | Not Qualified |
| Maximum seat height | 5.33 mm |
| Maximum slew rate | 2 mA |
| Supply voltage upper limit | 32 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | NO |
| technology | BIPOLAR |
| Temperature level | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Nominal Uniform Gain Bandwidth | 1000 kHz |
| Minimum voltage gain | 15000 |
| width | 7.62 mm |
| Base Number Matches | 1 |
| LM324N | LM2902M | LM2902N | |
|---|---|---|---|
| Description | QUAD OP-AMP, 9000uV OFFSET-MAX, 1MHz BAND WIDTH, PDIP14, PLASTIC, DIP-14 | QUAD OP-AMP, 10000uV OFFSET-MAX, 1MHz BAND WIDTH, PDSO14, PLASTIC, MS-012AB, SOIC-14 | QUAD OP-AMP, 10000uV OFFSET-MAX, 1MHz BAND WIDTH, PDIP14, PLASTIC, DIP-14 |
| Is it Rohs certified? | incompatible | incompatible | incompatible |
| Maker | Renesas Electronics Corporation | Renesas Electronics Corporation | Renesas Electronics Corporation |
| Parts packaging code | DIP | SOIC | DIP |
| package instruction | PLASTIC, DIP-14 | PLASTIC, MS-012AB, SOIC-14 | DIP, DIP14,.3 |
| Contacts | 14 | 14 | 14 |
| Reach Compliance Code | not_compliant | not_compliant | not_compliant |
| ECCN code | EAR99 | EAR99 | EAR99 |
| Amplifier type | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER |
| Architecture | VOLTAGE-FEEDBACK | VOLTAGE-FEEDBACK | VOLTAGE-FEEDBACK |
| Maximum average bias current (IIB) | 0.5 µA | 0.5 µA | 0.5 µA |
| Maximum bias current (IIB) at 25C | 0.25 µA | 0.5 µA | 0.5 µA |
| frequency compensation | YES | YES | YES |
| Maximum input offset voltage | 9000 µV | 10000 µV | 10000 µV |
| JESD-30 code | R-PDIP-T14 | R-PDSO-G14 | R-PDIP-T14 |
| JESD-609 code | e0 | e0 | e0 |
| length | 19.17 mm | 8.65 mm | 19.17 mm |
| low-dissonance | NO | NO | NO |
| micropower | YES | YES | YES |
| Number of functions | 4 | 4 | 4 |
| Number of terminals | 14 | 14 | 14 |
| Maximum operating temperature | 70 °C | 85 °C | 85 °C |
| Minimum operating temperature | - | -40 °C | -40 °C |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | DIP | SOP | DIP |
| Encapsulate equivalent code | DIP14,.3 | SOP14,.25 | DIP14,.3 |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | SMALL OUTLINE | IN-LINE |
| power supply | 5/30 V | 5/26 V | 5/26 V |
| Certification status | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 5.33 mm | 1.75 mm | 5.33 mm |
| Maximum slew rate | 2 mA | 3 mA | 3 mA |
| Supply voltage upper limit | 32 V | 32 V | 32 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V |
| surface mount | NO | YES | NO |
| technology | BIPOLAR | BIPOLAR | BIPOLAR |
| Temperature level | COMMERCIAL | INDUSTRIAL | INDUSTRIAL |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE | GULL WING | THROUGH-HOLE |
| Terminal pitch | 2.54 mm | 1.27 mm | 2.54 mm |
| Terminal location | DUAL | DUAL | DUAL |
| Nominal Uniform Gain Bandwidth | 1000 kHz | 1000 kHz | 1000 kHz |
| width | 7.62 mm | 3.9 mm | 7.62 mm |
| Is Samacsys | N | N | - |
| Base Number Matches | 1 | 1 | - |
| Peak Reflow Temperature (Celsius) | - | NOT SPECIFIED | NOT SPECIFIED |
| Maximum time at peak reflow temperature | - | NOT SPECIFIED | NOT SPECIFIED |
| Part Number | Manufacturer | Description |
|---|---|---|
| LM324N/NOPB | Texas Instruments(德州仪器) | |
| LM324N | Texas Instruments(德州仪器) | 增益带宽积（GBP）：- 放大器组数：4 运放类型：General Purpose 各通道功耗：1mA 压摆率（SR）：- 电源电压：3V ~ 32V, ±1.5V ~ 16V 四路运算放大器 |
| CA324E | Rochester Electronics | QUAD OP-AMP, 7000uV OFFSET-MAX, 1MHz BAND WIDTH, PDIP14 |
| LM324NG | ON Semiconductor(安森美) | 增益带宽积（GBP）：1MHz 放大器组数：4 运放类型：General Purpose 各通道功耗：1.4mA 压摆率（SR）：0.6 V/us 电源电压：3V ~ 32V, ±1.5V ~ 16V 单电源供电 四通道 运放 |
| NCV2902DTBR2G | ON Semiconductor(安森美) | 增益带宽积（GBP）：1MHz 放大器组数：4 运放类型：General Purpose 各通道功耗：- 压摆率（SR）：0.6 V/us 电源电压：3V ~ 32V, ±1.5V ~ 16V 4路 |
| LM324DR2G | ON Semiconductor(安森美) | 增益带宽积（GBP）：1MHz 放大器组数：4 运放类型：General Purpose 各通道功耗：1.4mA 压摆率（SR）：0.6 V/us 电源电压：3V ~ 32V, ±1.5V ~ 16V LM Series 0.6 V/us 32 V SMT Single Supply Quad Operational Amplifier - SOIC-14 |
| LM324DR2 | Rochester Electronics | QUAD OP-AMP, 7000uV OFFSET-MAX, 1MHz BAND WIDTH, PDSO14, SOIC-14 |
| LM324D | Texas Instruments(德州仪器) | Quadruple Operational Amplifier 14-SOIC 0 to 70 |
| LM324SNG | ON Semiconductor(安森美) | 增益带宽积（GBP）：- 放大器组数：4 运放类型：General Purpose 各通道功耗：- 压摆率（SR）：- 电源电压：3V ~ 32V |
| LM324DG | ON Semiconductor(安森美) | Operational Amplifiers - Op Amps 3-32V Quad 5mV VIO Commercial Temp |
