HI-SINCERITY
MICROELECTRONICS CORP.
Spec. No. : HL200706
Issued Date : 2007.04.01
Revised Date : 2009.03.24
Page No. : 1/3
HSR220 thru HSR2100
Schottky Barrier Rectifiers
(Reverse Voltage 20 to 100V, Forward Current 2A)
Features
•
Low Forward Voltage Drop
•
High Current Capability
•
High Reliability
•
High Surge Current Capability
DO-41
Mechanical Data
•
Cases: DO-41 molded plastic
•
Epoxy: UL 94V-0 rate flame retardant
•
Lead: Axial leads, solderable per MIL-STD-202, Method 208 guaranteed
•
Polarity: Color band denotes cathode end
•
High temperature soldering guaranteed: 250°C/10seconds/.375”(9.5mm) lead lengths at 5lbs.,(2.3kg) tension
•
Weight: 0.35gram
Maximum Ratings & Electrical Characteristics
Ratings at 25°C ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load. For capacitive load. Derate current by 20%.
Ratings
Repetitive Peak Reverse Voltage
Surge Peak Reverse Voltage
DC Blocking Voltage
Average Forward Rectified Current (T
A
=75 C)
Peak Forward Surge Current, 50Hz Half
o
Sine-wave (T
A
=25 C)
Repetitive Peak Forward C (f>15Hz)
Instantaneous Forward Voltage
Leakage Current (T
J
=25 C, V
R
=V
RRM
)
Leakage Current (T
J
=100 C, V
R
=V
RRM
)
Typical Junction Capacitance
Rating for Fusing, t<10ms (T
A
=25 C)
Thermal Resistance Junction to Ambient Air
Thermal Resistance Junction to Lead
Operating Junction Temperature Range
Storage Temperature Range
ESD Protection Voltage
o
o
o
o
Symbol
V
RRM
V
RSM
V
DC
I
FAV
I
FSM
I
FRM
V
F
I
R
C
J
it
R
θ
JA
R
θ
JL
T
J
T
STG
V
ESD
2
HSR
220
20
14
20
HSR
230
30
21
30
HSR
240
40
28
40
HSR
250
50
35
50
2
50
12
HSR
260
60
42
60
HSR
280
80
57
80
HSR
2100
100
71
100
Unit
V
V
V
A
A
A
0.48
0.52
0.1
10
170
12.5
30
15
0.65
0.8
V
mA
mA
pF
As
°C/W
°C/W
°C
°C
KV
2
-65 to +125
-65 to +150
12
HSR220 thru HSR2100
HSMC Product Specification
HI-SINCERITY
MICROELECTRONICS CORP.

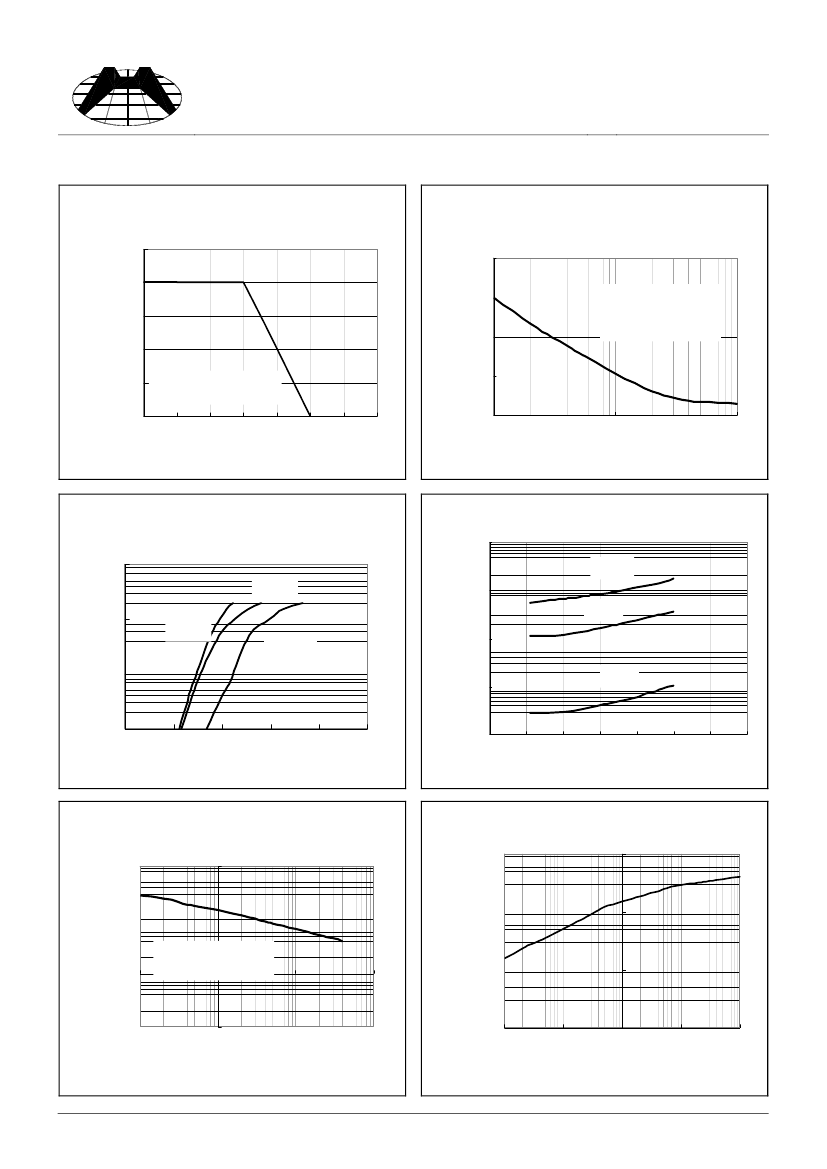

Characteristics Curve
Forward Current Derating Curve
Spec. No. : HL200706
Issued Date : 2007.04.01
Revised Date : 2009.03.24
Page No. : 2/3
Maximum Non-repetitive Peak
Forward Surge Current
80
2.5
Average Forwa
Current(A)
Peak Forward Su r
Current(A)
2
1.5
1
0.5
0
0
25
50
75
100
125
150
175
Resistive or Inductive Load
0.375” (9.5mm) lead length
60
40
20
0
1
TJ=TJ max. 8.3ms
single half sine-wave
(JEDEC Method)
10
100
Lead Temperature(℃)
Number of Cycles at 60Hz
Typical Instantaneous
Forward Characteristics Per Leg
Typical Reverse Characteristics
10
10
IF,Forward Curren
50-60V
I nsta ntan eous Rev e
Curr ent( mA)
T
j=125
℃
1
1
20-40V
80-100V
T
℃
j=75
0.1
0.1
0.01
T
℃
j=25
0.01
0.0
0.2
0.4
0.6
0.8
VF,Forward Voltage(V)
1.0
0.001
0
20
40
60
80
100
120
140
Percent of Rated Peak Reverse Voltage(%)
Typical Junction Capacitance
1000
Junction Capacitance
Typical Transient Thermal Impedance
100
Transient Therm
Impedance(℃/W
10
100
100
10
10
TJ=25oC, f=1MHz
Vs
ig=50mVp-p
1
1
0.1
1
0.1
0.01
0.1
1
10
100
Reverse Voltage(V)
t,Pulse Duration(sec.)
HSR220 thru HSR2100
HSMC Product Specification
HI-SINCERITY
MICROELECTRONICS CORP.
DO-41 Dimension
Marking:
Pb Free Mark
Control Code
Date Code
Pb-Free: "
.
"
Normal: None
(Note)
Spec. No. : HL200706
Issued Date : 2007.04.01
Revised Date : 2009.03.24
Page No. : 3/3
DIM
A
B
C
Min.
0.71
25.40
4.10
25.40
2.00
Max.
0.86
-
5.20
-
2.70
Unit: mm
E
A
B
C
D
HSR 2
Product Series
Marking around the
surface of cylinder
20,30,40,50,60,80,100
D
E
Note:
Green label is used for pb-free packing
2-Lead DO-41 Molded Plastic Package
HSMC Package Code: L
Important Notice:
•
All rights are reserved. Reproduction in whole or in part is prohibited without the prior written approval of HSMC.
•
HSMC reserves the right to make changes to its products without notice.
•
HSMC semiconductor products are not warranted to be suitable for use in Life-Support Applications, or systems.
•
HSMC assumes no liability for any consequence of customer product design, infringement of patents, or application assistance.
Head Office And Factory:
•
Head Office
(Hi-Sincerity Microelectronics Corp.): 10F.,No. 61, Sec. 2, Chung-Shan N. Rd. Taipei Taiwan R.O.C.
Tel: 886-2-25212056 Fax: 886-2-25632712
•
Factory 1:
No. 38, Kuang Fu S. Rd., Fu-Kou Hsin-Chu Industrial Park Hsin-Chu Taiwan. R.O.C
Tel: 886-3-5983621~5 Fax: 886-3-5982931
HSR220 thru HSR2100
HSMC Product Specification
