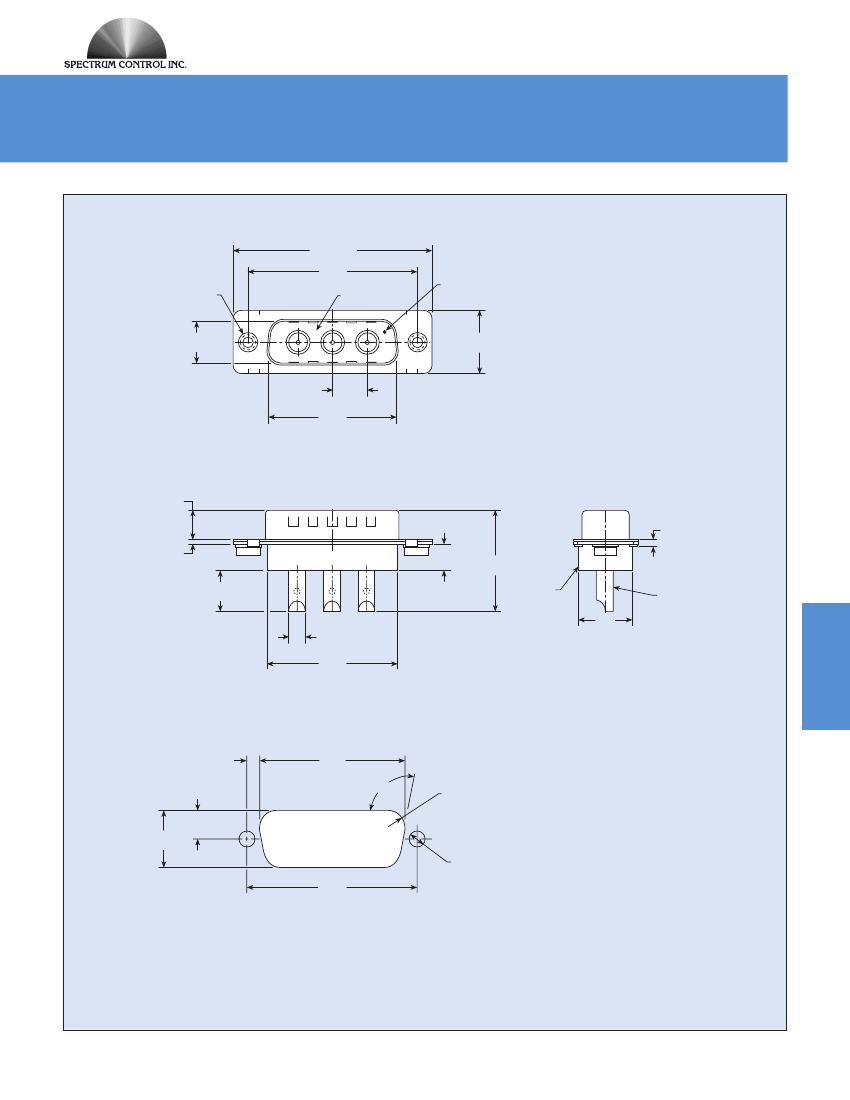

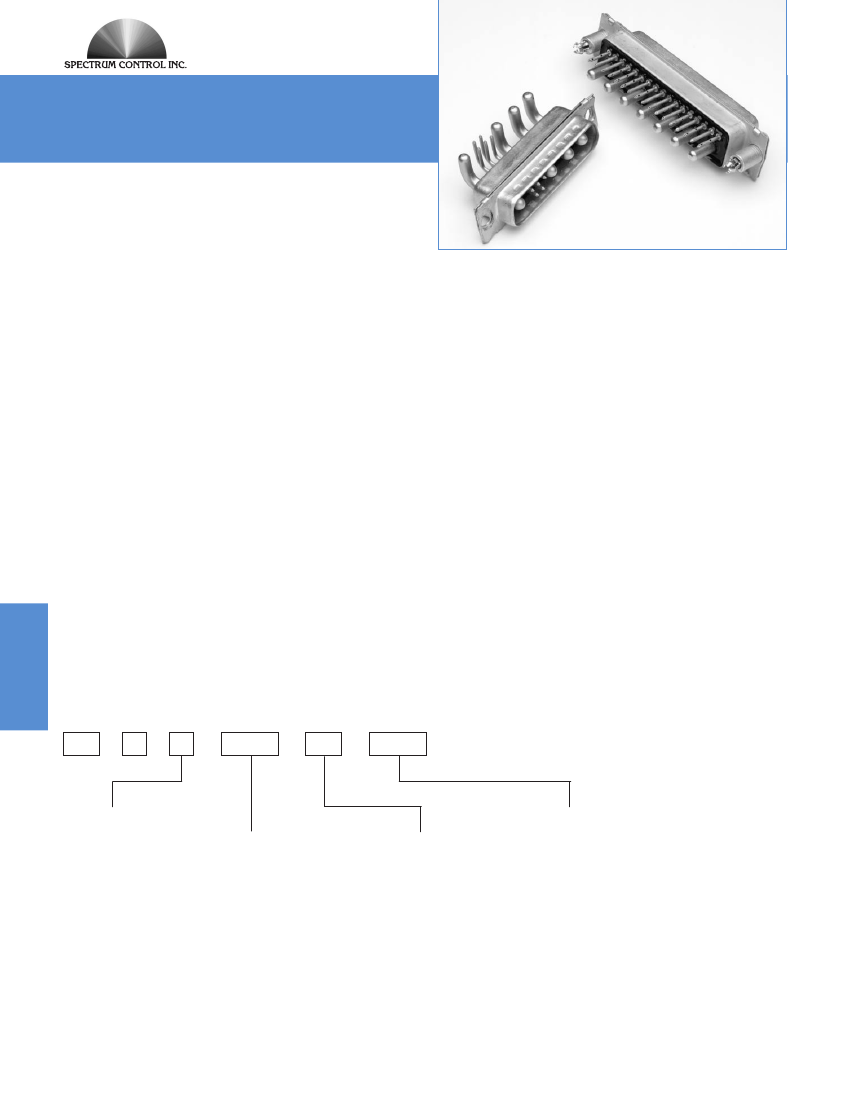

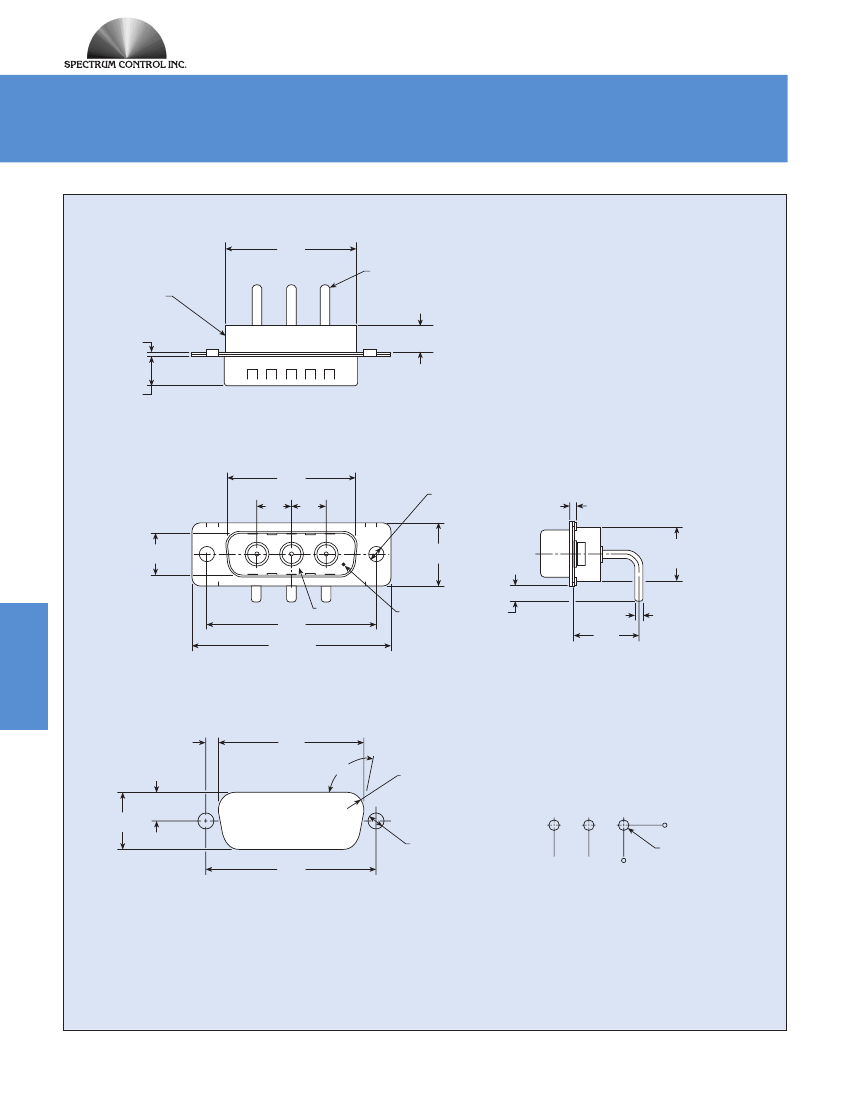

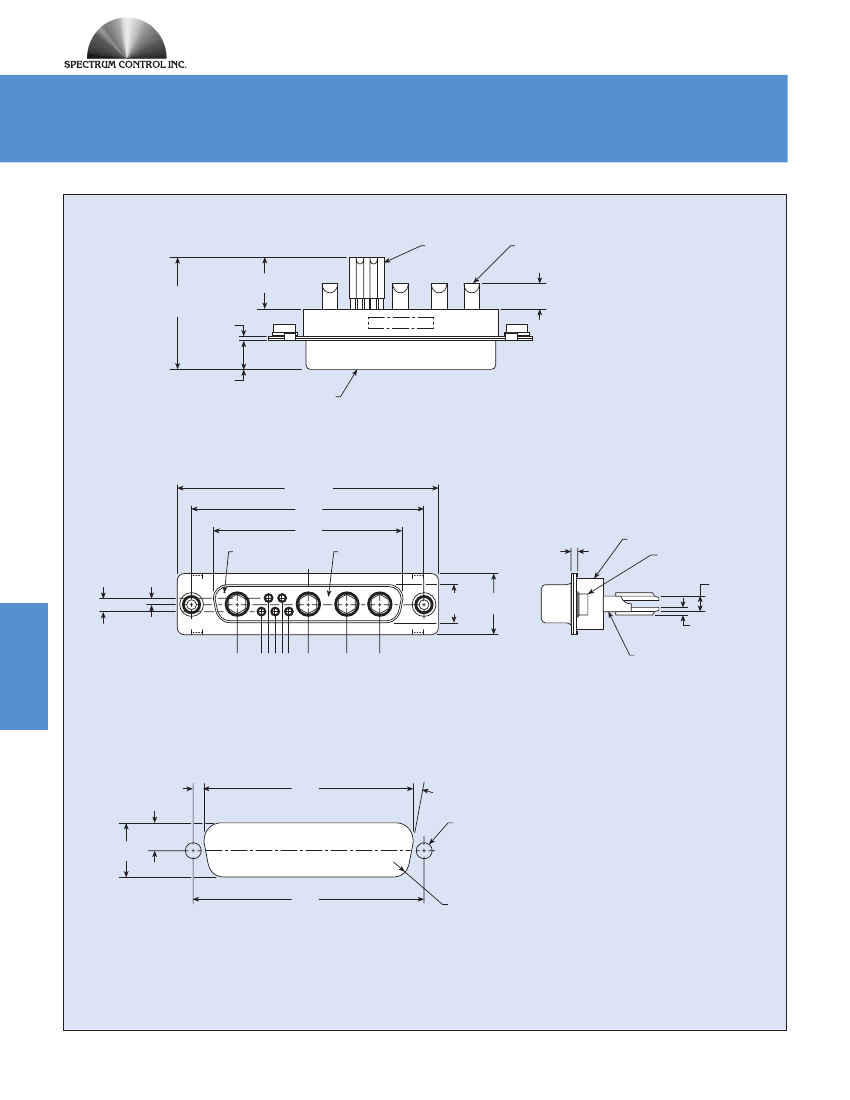

Filtered Combo
D-Subminiature Connectors
Spectrum’s line of filtered combo D-subs provide high
insertion loss with tubular capacitive filtering. These
connectors are available with 20 Amp power contacts,
40 Amp power contacts, 50 ohm coaxial contacts or
75 ohm coaxial contacts. Configurations include male
and female versions with straight PC terminals, right
angle PC terminals or solder cup terminals. Standard
D-sub shell sizes provide intermateability with unfiltered
connectors. High strength epoxy potting protects
ceramic elements.
Capacitive filtering is available in 470, 820, 1000
and 1500 pF. Additional capacitance ranges and configu-
rations can be provided upon request. Please consult
factory for more information.
Mechanical Specifications
Shell
. . . . . . . . . . . . . . . . Steel, tin plated
Power Contacts
. . . . . . . . . Brass, gold plated .000030 in.
(.000762 µm)
minimum
Signal Contacts
. . . . . . . . . Pin: brass, gold plated
. . . . . . . . . . . . . . . . . . . .
.000030 in.
(.000762 µm)
min.
. . . . . . . . . . . . . . . . . . . .
Socket: copper alloy, gold plated
.000030 in.
(.000762 µm)
min.
Insulator
. . . . . . . . . . . . . Glass-filled polyester,
. . . . . . . . . . . . . . . . . . . .
flammability UL94V-0
Operating Temperature.
. . . -55°C to +125°C
Capacitors
. . . . . . . . . . . . Proprietary barium titanate
. . . . . . . . . . . . . . . . . . . .
ceramic formulations
Applications
I
I
I
I
I
Telecommunications base station equipment
Switching and transmission equipment
Power supplies
Industrial equipment
Computer work stations
Electrical Specifications
Operating Voltage
. . . . . . . 200 VDC
Current Rating*
. . . . . . . . 40 Amp
Insulation Resistance
. . . . . 1 Gohm at 100 VDC
Capacitance
. . . . . . . . . . . 470, 820, 1000, 1500, or
. . . . . . . . . . . . . . . . . . . .
4000 pF (FT only) ± 20%
. . . . . . . . . . . . . . . . . . . .
(10 - 5000 pF available for
. . . . . . . . . . . . . . . . . . . .
signal pins, consult factory for
. . . . . . . . . . . . . . . . . . . .
part number on values above
. . . . . . . . . . . . . . . . . . . .
1500 pF and below 470 pF)
Dielectric Withstanding
Voltage.
. . . . . . . . . . . . . . 600 VDC
*30 Amp available. Consult factory.
Ordering Information
Example:
563A03W3101GBL9
Filtered Connectors
56
3
A
03W3
101
GBL9
A:
Pin - PCB Power
B:
Pin - Right Angle Power
C:
Pin - Solder Cup Power
D:
Pin - PCB Coax
E:
Pin - Right Angle Coax
F:
Pin - Solder Cup Coax
G:
Socket - PCB Power
H:
Socket - Right Angle Power
J:
Socket - Solder Cup Power
K:
Socket - PCB Coax
L:
Socket - Right Angle Coax
M:
Socket - Solder Cup Coax
N:
Custom Combination
Options
Contact
Arrangement
03W3
05W5
09W4
24W7
=
=
=
=
3W3
5W5
9W4
24W7
Capacitance
Value
101
102
103
104
=
=
=
=
470 pF
820 pF
1000 pF
1500 pF
See options descriptions on page 169 add suffix ending
LI
= 4-40 UNC inserts
LIM
= Metric M3.0 self-locking threads
GB
= Metal bracket provides ground connection,
includes 4-40 self-locking threads (for right
angle mount only)
GBL
= Grounded board lock (right angle)
GBL6
= for .062" boards (straight PCB mount)
GBL9
= for .093" boards (straight PCB mount
50G
= 50 µ
(1.27 µm)
gold plating
S
= Solder dipped tails
JS
= Jackscrew mounting
For option combinations, consult factory.
