07-3173T000004 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> 07-3173T000004

07-3173T000004: DescriptionRotary Coded Switch; CategoryMechanical and electronic products switch; File Size1MB，12 Pages; ManufacturerElma Electronic Inc; Environmental Compliance

Download Datasheet Parametric View All

07-3173T000004 Overview

Rotary Coded Switch

07-3173T000004 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compli
ECCN code	EAR99
JESD-609 code	e3
Manufacturer's serial number	07
Switch type	ROTARY CODED SWITCH
Terminal surface	Tin (Sn)
Base Number Matches	1

Preview

Download Datasheet

View All

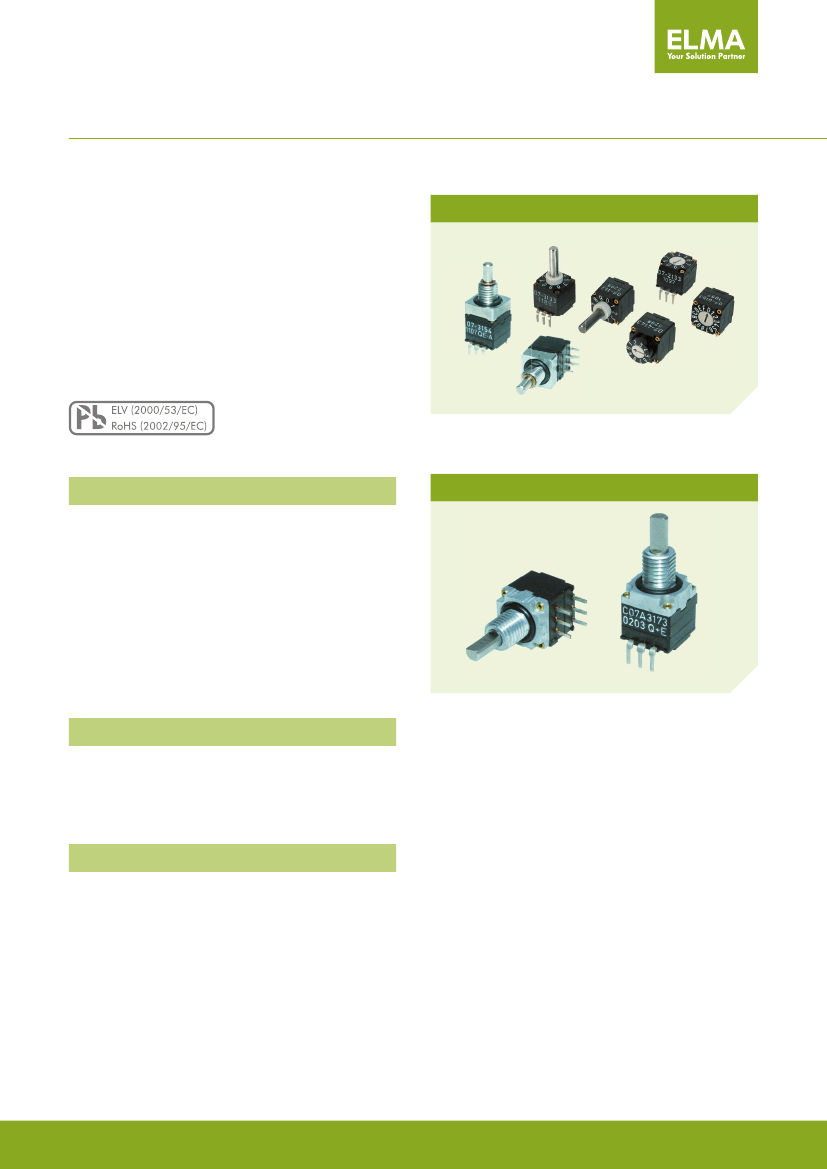

DATA SHEET

CODED SWITCHES

TYPE 07 & C07A

MAIN FEATURES

COST EFFECTIVE

2 to 16 positions BCD, Hex or Gray coding

Switching mode: Shorting or non-shorting

For rugged environments

Switching torque up to 3.5 Ncm

Gold plated contacts

THT (reﬂow version on request)

Washable (sealed contact system)

Optional IP68 front panel sealing (up to 5 bar)

Operating temperature range: -40 to +85°C

Various options and customizations

›

TYPE 07

PRODUCT VARIETY

■

TYPE C07A

(THREADED BUSHING & COMPACT SIZE)

Vertical or horizontal mounting

Bushing style

BCD, Hex or Gray coding

Shorting or non-shorting

Number of positions

Switching torque BCD: 2.2 or 3.5 Ncm

Switching torque Hex & Gray: 3.2 or 3.5 Ncm

With end-stop or endless rotating

Front panel sealing IP60 or IP68

Various shaft styles and lengths

POSSIBLE CUSTOMIZATIONS

■

Shaft dimension and shape

Bushing, mounting

Switching torque

Others

TYPICAL APPLICATIONS

■

Frequency and channel selection for two way radios

Target aiming devices

Aircraft transponders

Medical equipments

Industrial automation

www.elma.com

1/12
