TA1318AFG Overview

SYNC Processor, Frequency Counter IC for TV Component Signals

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Parts packaging code	SSOP
package instruction	SSOP, SOP30,.4,40
Contacts	30
Reach Compliance Code	unknow
Commercial integrated circuit types	CONSUMER CIRCUIT
JESD-30 code	R-PDSO-G30
length	15.4 mm
Number of functions	1
Number of terminals	30
Maximum operating temperature	65 °C
Minimum operating temperature	-20 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Encapsulate equivalent code	SOP30,.4,40
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	9 V
Certification status	Not Qualified
Maximum seat height	2.7 mm
Maximum supply voltage (Vsup)	9.5 V
Minimum supply voltage (Vsup)	8.5 V
surface mount	YES
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	1 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.5 mm
Base Number Matches	1

TA1318AFG

TOSHIBA Bipolar Linear Integrated Circuit Silicon Monolithic

TA1318AFG

SYNC Processor, Frequency Counter IC for TV Component Signals

TA1318AFG is a sync processor for TV component signals.

TA1318AFG provides sync and frequency counter processing

for external input signals.

These functions are integrated in a 30 pin SSOP-type plastic

package.

TA1318AFG provides I

C bus interface, so various functions

and controls are adjustable via the bus.

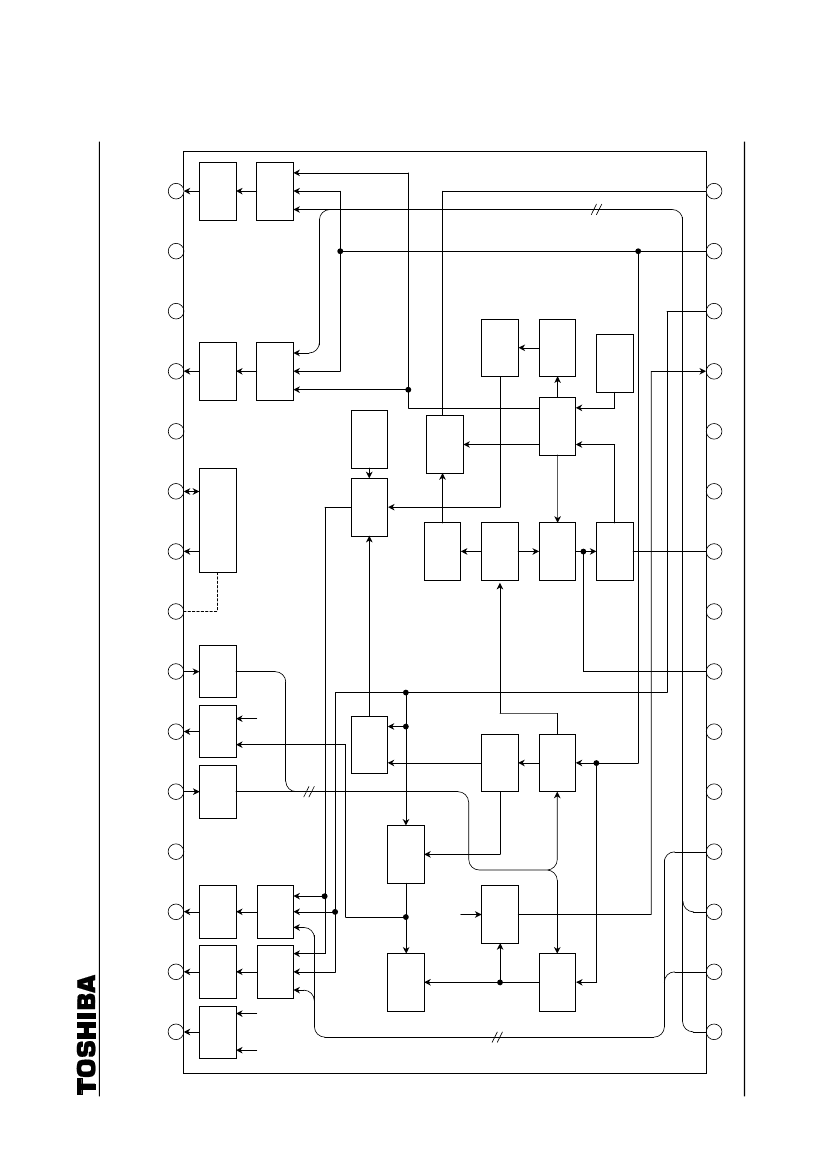

Features

•

Horizontal synchronization circuit (15.75 kHz, 31.5 kHz, 33.75

kHz, 45 kHz)

Horizontal and vertical frequency counter

Horizontal PLL

Accepts 2-level and 3-level sync

Accepts both negative and positive HD and VD

Clamp pulse output

HD, VD output (polarity inverter)

Separated sync output

Mask for the copy guard signal

Weight: 0.63 g (typ.)

Vertical synchronization circuit (525I, 525P, 625I, 750P, 1125I, 1125P, PAL 100 Hz, NTSC 120 Hz)

2006-02-27
