ITEM
1
2
Q'TY
1
1
PART NUMBER
FLP-LC-IR
FLPS1022-X.XXX
PART DESCRIPTION
HOLDER CAP, FLEXIBLE LIGHT-PIPE, IR
LIGHT PIPE CABLE, CUT LENGTH IN INCHES
REV.
DESCRIPTION
DATE
APPROVED
B
C
D
E
Engineering Update w/o Changes
Dimensioning Update w/o Changes
Updated Fiber In BOM
Added Note 2
03/08/04
01/05/05
11/14/12
10/06/16
M. C.
M. C.
T. Y.
J. C.
*L
0.030 [0.8mm]
FLP-LC-IR 1
0.145 [3.7mm]
2 FLPS1022-X.XXX
0.230 [5.8mm]
Ø.165 [Ø4.2mm]
+.003
Ø.128-.002
"L"
0.750" ~ 16.000"
16.100" ~ 40.000"
40.100" ~ 80.000"
80.100" ~ 3,940.0"
Tolerance
±0.050"
±0.150"
±0.300"
±0.5%
Recommended Mounting Holes
STANDARD TOLERANCE
( UNLESS OTHERWISE SPECIFIED )
DECIMALS
ANGULAR
®
NOTE:
1. ALLOWABLE CUT LENGTH IS UP TO 3 DECIMAL PLACES.
2. MINIMUM BEND RADIUS OF FLEXIBLE LIGHT PIPE: 0.87" [22mm].
.X
.XX
.XXX
DESIGNED:
± .1
± .02
± .010
X°
± 1°
4 THOMAS, IRVINE, CA. 92618
TEL: (949) 951-8808
FAX: (949) 951-3974
TITLE:
DATE:

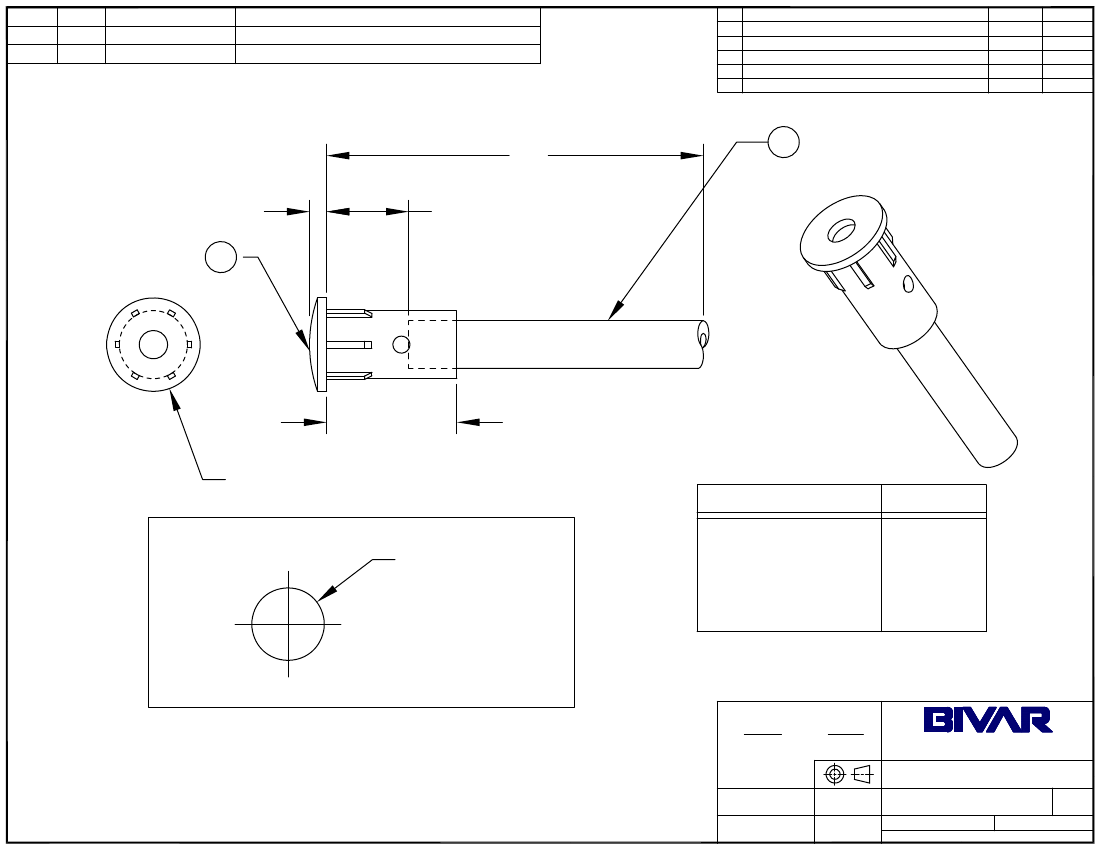

LENS CAP / FLP ASSEMBLY,
INFRARED ROUND
REVISION:
D. Green
CHECKED:
03/24/03
DATE:
PART NO:
LC-IR-XX.X
E
M. Chen
03/24/03
CAGE CODE : 32559
SHEET #
1
OF
1
CAD GENERATED DOCUMENT, DO NOT MEASURE DRAWING.
