The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
No deformation of components affecting performance.
Manual soldering: 350ç for 3 seconds
Note 1: Includes temperature rise caused by current flow.
Note 2: The term "storage" refers to products stored for long period of time prior to mounting and use. Operating Temperature Range and
Humidity range covers non conducting condition of installed connectors in storage, shipment or during transportation.
Note 3. Information contained in this catalog represents general requirements for this Series. Contact us for the drawings and specifications for
a specific part number shown.

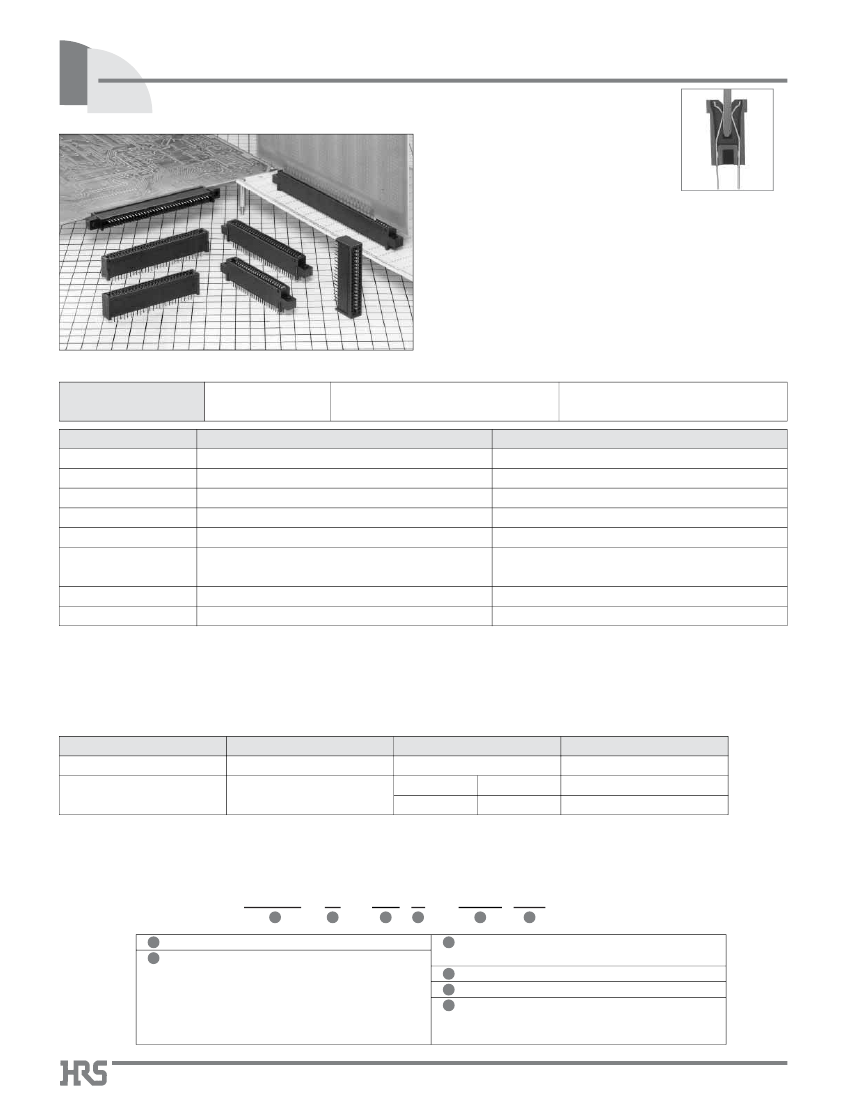

■Material
Parts
Insulator
Contact
Material
PBT
Copper alloy
Finish
Black
Contact area
Lead area
Selective gold plated
Tin plated
Remarks
UL94V-0
---------------
---------------
■Ordering
Information
CR22
1
1
2
A - 50 D - 2.54 DS
2
3
4
5
6
3
Number of contacts : 20, 30, 34, 36, 44, 50, 60, 62,
4
5
6
68, 72, 80, 100, 120
Contact alignment : D
:
Double side
Contact pitch
: 2.54mm
Contact type
DS : Straight type
DSA : Right angle type
Series Name
: CR22
Blank
: With Mounting hole
A : Without mounting hole
B : Card Edge 7.62mm type with mounting hole
C : Card Edge 7.62mm type without mounting hole
D : VERSA bus type with mounting hole
E : VERSA bus type without mounting hole
A2
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose
Connector
CR22 Series●2.54mm Pitch Card Edge
sales representative.

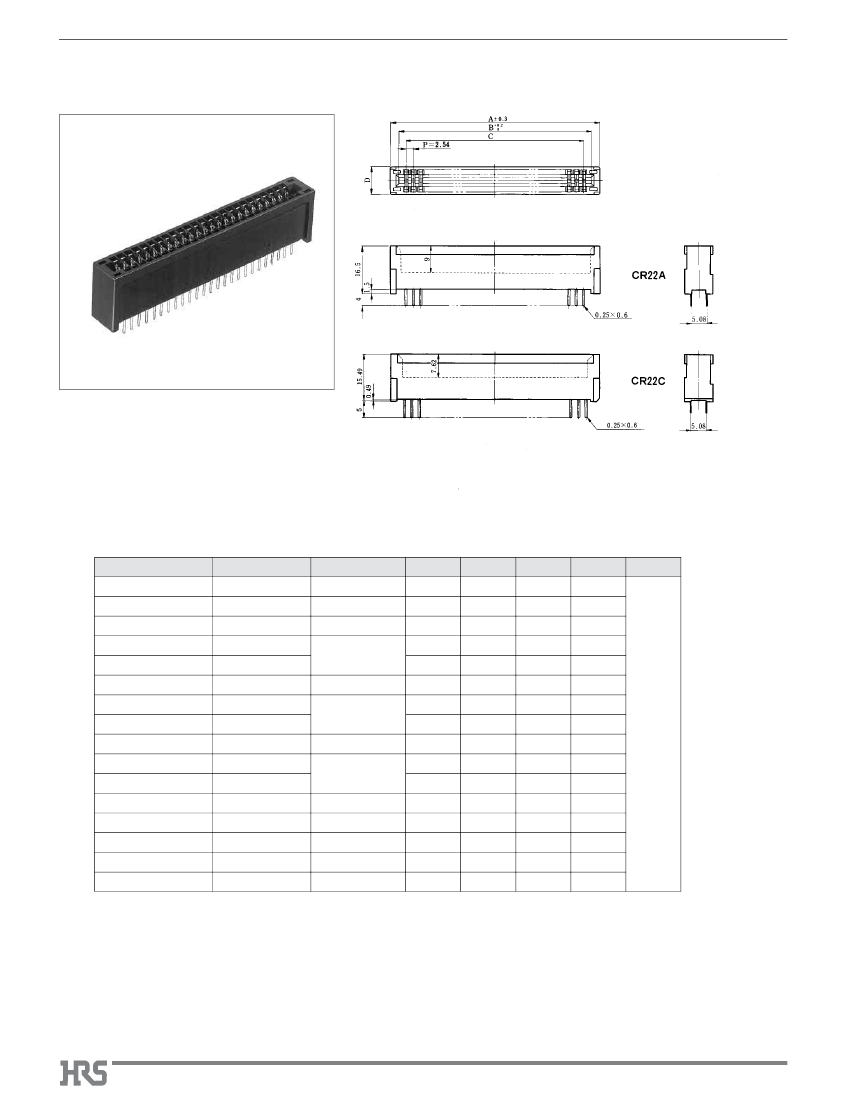

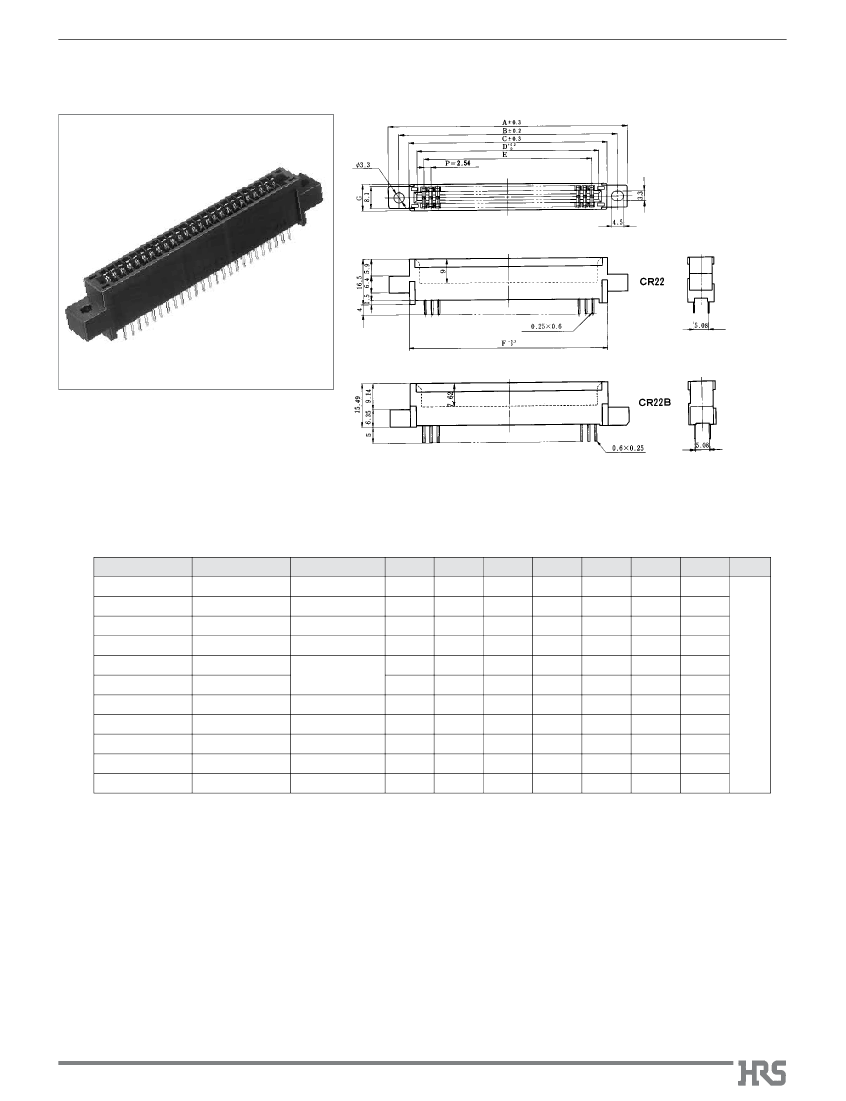

■Straight
Through hole Type
May.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Nov.1.2016 Copyright 2016 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Unit: mm
Part Number
CL No.
Number of Contacts
20
30
34
44
50
68
72
80
100
120
A
49.04
61.74
66.82
79.52
87.14
84.71
110.00
115.08
125.24
150.64
176.04
B
41.44
54.14
59.22
71.92
79.54
78.11
102.40
107.48
117.64
143.04
168.44
C
34.04
46.74
51.82
64.52
72.14
70.10
95.00
100.08
110.24
135.64
161.04
D
27.94
40.64
45.72
58.42
66.04
66.04
88.90
93.98
104.14
129.54
154.75
E
22.86
35.56
40.64
53.34
60.96
60.96
83.82
88.90
99.06
124.46
149.86
F
34.04
46.74
51.82
64.52
72.14
70.10
95.00
100.08
110.24
135.64
161.04
G
9.5
9.5
9.5
9.5
9.5
9.4
9.5
9.5
9.5
9.5
10
YES
RoHS
CR22 - 20D-2.54DS(70) CL522-0063-9-70
CR22 - 30D-2.54DS(70) CL522-0009-3-70
CR22 - 34D-2.54DS(70) CL522-0011-5-70
CR22 - 44D-2.54DS(70) CL522-0001-1-70
CR22 - 50D-2.54DS(70) CL522-0003-7-70
CR22B- 50D-2.54DS(70) CL522-0047-2-70
CR22 - 68D-2.54DS(70) CL522-0017-1-70
CR22 - 72D-2.54DS(70) CL522-0019-7-70
CR22 - 80D-2.54DS(70) CL522-0049-8-70
CR22 -100D-2.54DS(70) CL522-0005-2-70
Note CR22D-120D-2.54DS(70) CL522-0053-5-70
Note : The 120 contacts type differs in configuration.
A3
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued
Connector
the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
CR22 Series●2.54mm Pitch Card Edge
soon. Please check
■Straight
Through hole Type
May.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Nov.1.2016 Copyright 2016 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Unit: mm
Part Number
CL No.
Number of Contacts
20
30
34
36
44
50
60
62
68
72
80
100
120
A
34.04
46.74
51.82
54.36
52.32
64.52
72.14
70.10
84.84
87.38
85.34
95.00
100.08
110.24
135.64
161.04
B
27.94
40.64
45.72
48.26
48.26
58.42
66.04
66.04
78.74
81.28
81.28
88.90
93.98
104.14
129.54
154.75
C
22.86
35.56
40.64
43.18
43.18
53.34
60.96
60.96
73.66
76.20
76.20
83.82
88.90
99.06
124.46
149.86
D
9.5
9.5
9.5
9.5
9.4
9.5
9.5
9.4
9.5
9.5
9.4
9.5
9.5
9.5
9.5
10
YES
RoHS
CR22A- 20D-2.54DS(70)
CL522-0064-1-70
CR22A- 30D-2.54DS(70)
CL522-0010-2-70
CR22A- 34D-2.54DS(70)
CL522-0012-8-70
CR22A- 36D-2.54DS(70)
CL522-0008-0-70
CR22C- 36D-2.54DS(70)
CL522-0072-0-70
CR22A- 44D-2.54DS(70)
CL522-0002-4-70
CR22A- 50D-2.54DS(70)
CL522-0004-0-70
CR22C- 50D-2.54DS(70)
CL522-0048-5-70
CR22A- 60D-2.54DS(70)
CL522-0014-3-70
CR22A- 62D-2.54DS(70)
CL522-0016-9-70
CR22C- 62D-2.54DS(70)
CL522-0060-0-70
CR22A- 68D-2.54DS(70)
CL522-0018-4-70
CR22A- 72D-2.54DS(70)
CL522-0020-6-70
CR22A- 80D-2.54DS(70)
CL522-0050-7-70
CR22A-100D-2.54DS(70)
CL522-0006-5-70
Note
CR22E-120D-2.54DS(70)
CL522-0054-8-70
Note : The 120 contacts type differs in configuration.
A4
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose
Connector
CR22 Series●2.54mm Pitch Card Edge
sales representative.

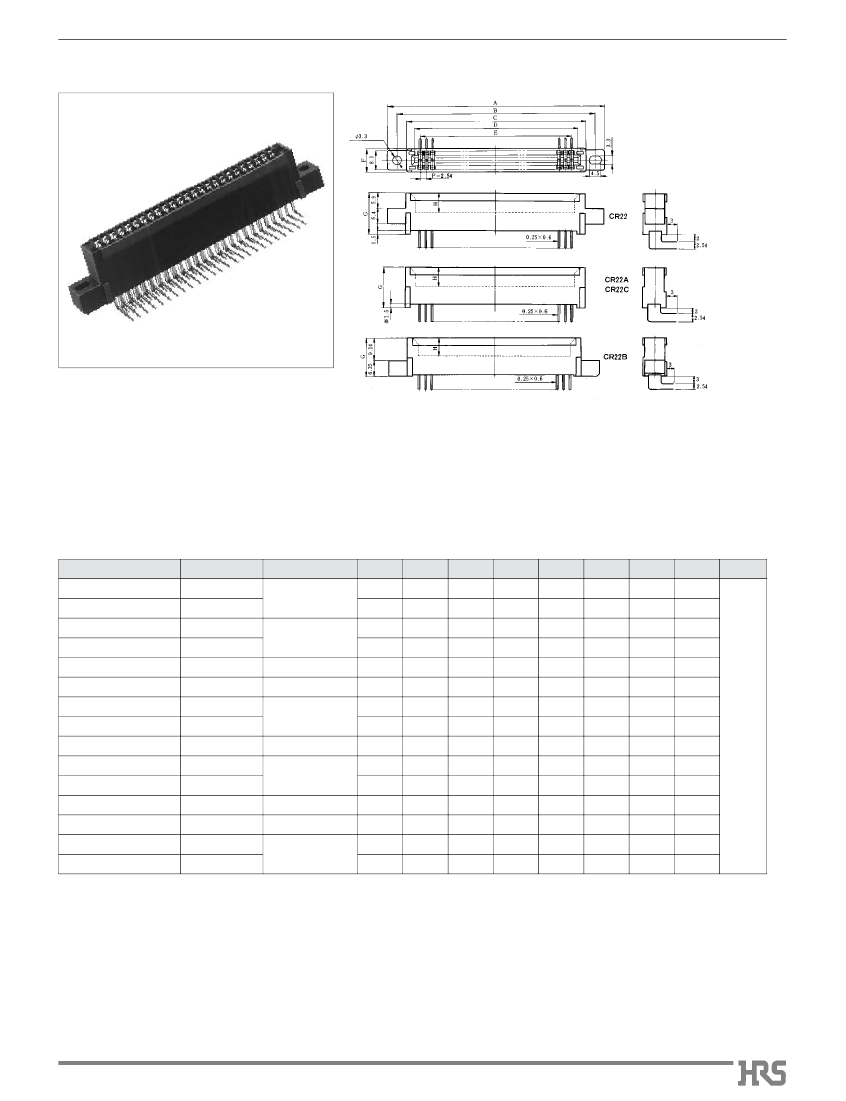

■Right
Angle Through hole Type
Note : Mounting hole of CR22D
is design symmetry
May.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Nov.1.2016 Copyright 2016 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Unit: mm
Part Number
CL No.
Number of Contacts
30
A
61.74
---------
66.82
---------
69.36
---------
87.14
84.71
99.84
102.38
---------
110.00
115.08
150.64
---------
B
54.14
---------
59.22
---------
61.76
---------
79.54
78.11
92.24
94.78
---------
102.40
107.48
143.04
---------
C
46.74
46.74
51.82
51.82
54.36
64.52
72.14
70.10
84.84
87.38
87.38
95.00
100.08
135.64
135.64
D
40.64
40.64
45.72
45.72
48.26
58.42
66.04
66.04
78.74
81.28
81.28
88.90
93.98
129.54
129.54
E
35.56
35.56
40.64
40.64
43.18
53.34
60.96
60.96
73.66
76.20
76.20
83.82
88.90
124.46
124.46
F
9.5
9.5
9.5
9.5
9.5
9.5
9.5
9.4
9.5
9.5
9.5
9.5
9.5
9.5
9.5
G
16.5
16.5
16.5
16.5
16.5
16.5
16.5
15.49
16.5
16.5
16.5
16.5
16.5
16.5
16.5
H
9
9
9
9
9
9
9
7.62
9
9
9
9
9
9
9
YES
RoHS
CR22 - 30D-2.54DSA(70)
CL522-0023-4-70
CR22A- 30D-2.54DSA(70)
CL522-0034-0-70
CR22 - 34D-2.54DSA(70)
CL522-0024-7-70
CR22A- 34D-2.54DSA(70)
CL522-0035-3-70
CR22 - 36D-2.54DSA(70)
CL522-0025-0-70
CR22A- 44D-2.54DSA(70)
CL522-0037-9-70
CR22 - 50D-2.54DSA(70)
CL522-0027-5-70
CR22B- 50D-2.54DSA(70)
CL522-0045-7-70
CR22 - 60D-2.54DSA(70)
CL522-0028-8-70
CR22 - 62D-2.54DSA(70)
CL522-0029-0-70
CR22A- 62D-2.54DSA(70)
CL522-0040-3-70
CR22 - 68D-2.54DSA(70)
CL522-0030-0-70
CR22 - 72D-2.54DSA(70)
CL522-0031-2-70
CR22 -100D-2.54DSA(70)
CL522-0033-8-70
CR22A-100D-2.54DSA(70)
CL522-0044-4-70
34
36
44
50
60
62
68
72
100
A5
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued
Connector
the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
CR22 Series●2.54mm Pitch Card Edge
soon. Please check

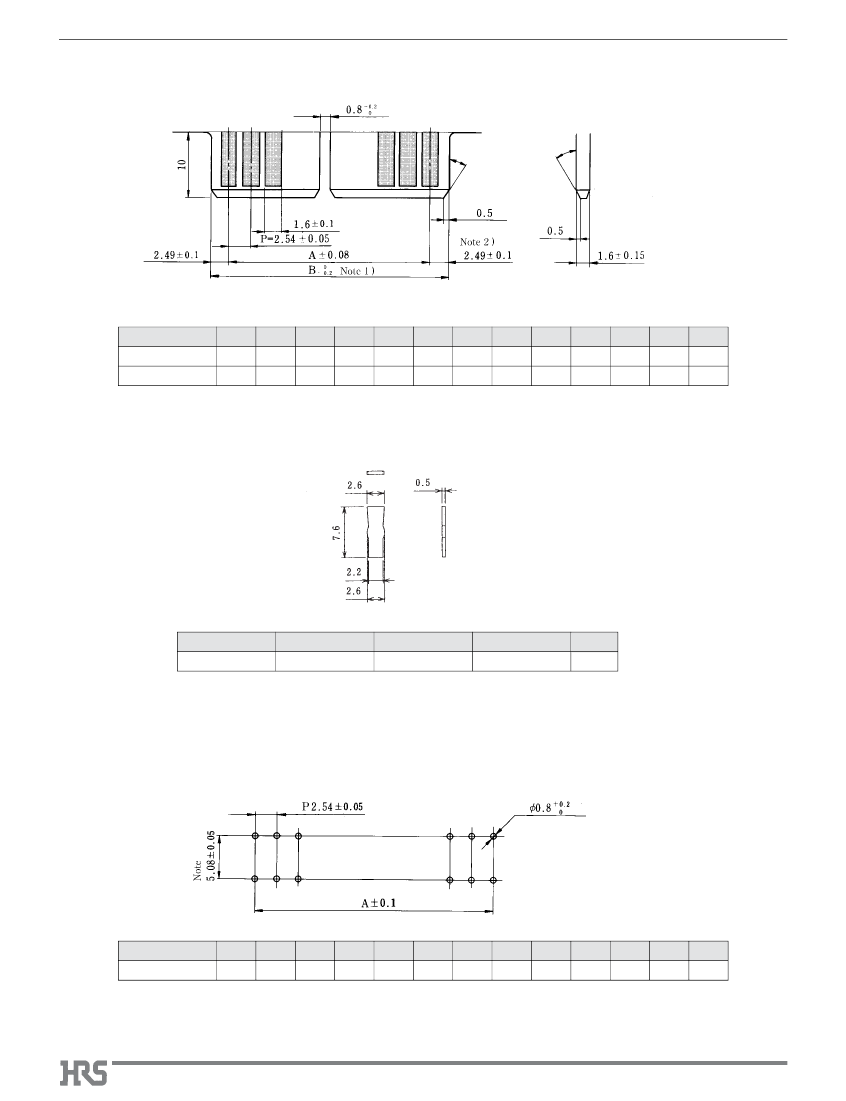

BPCB
Dimensions
30 to 45°
30 to 45°
May.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Nov.1.2016 Copyright 2016 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
0
Note 1. The 120 contacts type indicates 154.69
–0.25
.
Note 2. The 120 contacts type indicates 2.415.
Unit: mm
Number of Contacts
A
B
12
22.86
27.84
30
35.56
40.54
34
40.64
45.62
36
43.18
48.16
44
53.34
58.32
50
60.96
65.94
60
73.66
78.64
62
76.20
81.18
68
83.82
88.80
72
88.90
80
100
120
99.06 124.46 149.86
93.88 104.04 129.44 154.69
■Polarizing
Key
CR13-GPIN(A)
Part Number
CR13-GPIN(A)
CL No.
513-0010-1
Material
Polyacetal
Color
White
RoHS
YES
Note: Using the polarizing key prevents mis-insertion in the printed board.
To use the polarizing key, insert the polarizing key so as to hit the mold bottom.
■PCB
mounting pattern
:
Unit: mm
Number of Contacts
A
12
22.86
30
35.56
34
40.64
36
43.18
44
53.34
50
60.96
60
73.66
62
76.2
68
83.82
72
88.9
80
100
120
99.06 124.46 149.86
Note : The contact DSA type indicates 2.54mm±0.05.
