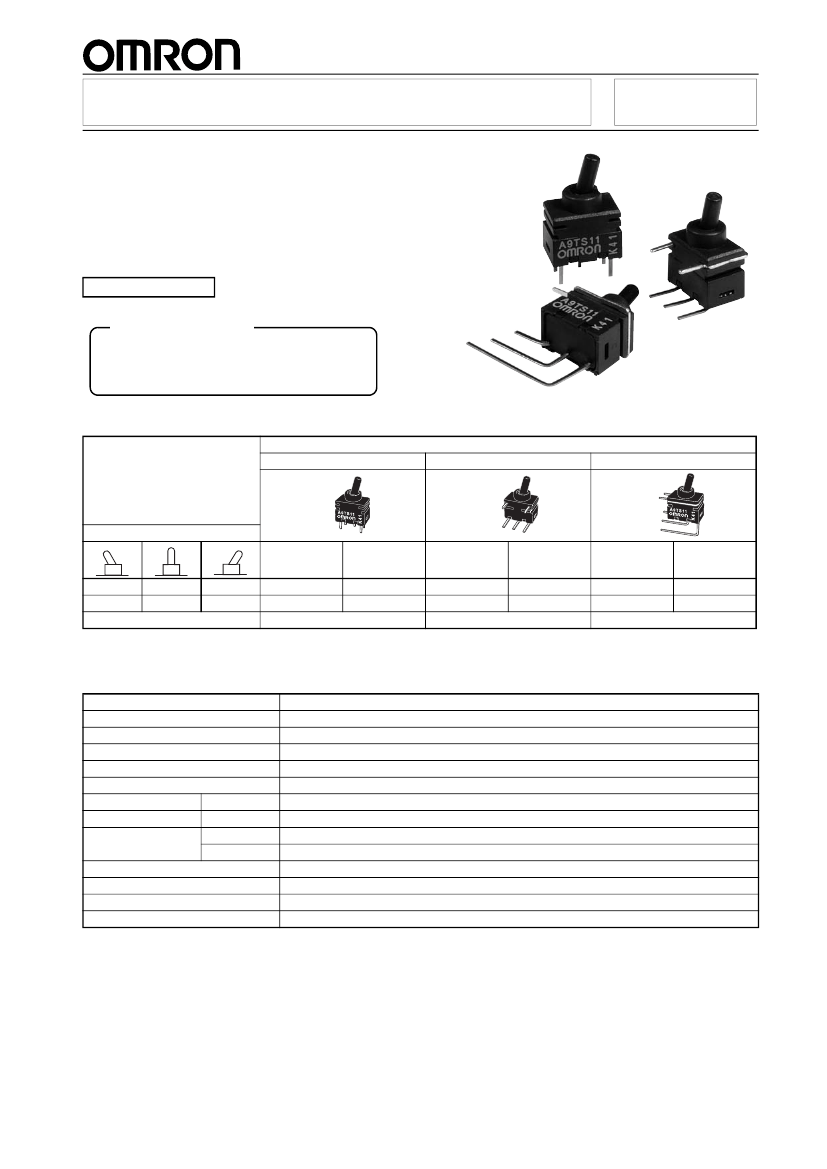

Ultra subminiature Toggle Switch
Ultra subminiature size.
•
Gold-plated clip contact ensure high reliability.
•
The sealed bottom prevents flux penetration.
•
Washable, equivalent to IP64 (IEC-60529).
•
A9TS is smaller than A9T.
Height: A9T 17mm A9TS 11mm (35% smaller than A9T)
RoHS Compliant
Typical Applications
Security Control Boards
Electric Power Instrumentation
Program Controllers
A9TS
■
List of Models
Actuator Shape
Terminal Shape
DIP Terminal
Standard
Right Angle Terminal
Vertical Mount Terminal
Switching Functions
SPDT
ON
ON
Note:
−
OFF
Quantity per tray
1.
Lever do not stop at "-" position.
2.
Switching Functions show the view from the side of Type and Brand name marking.
■
ON
ON
A9TS11-0011
A9TS12-0011
DPDT
A9TS21-0011
A9TS22-0011
SPDT
A9TS11-0012
A9TS12-0012
25
DPDT
A9TS21-0012
A9TS22-0012
SPDT
A9TS11-0013
A9TS12-0013
50
DPDT
A9TS21-0013
A9TS22-0013
100
Ratings/Characteristics
14 mA at 28 VAC/DC, 0.1
μA
(minimum current) at 20 mVAC/DC
−20 °C
to +80
°C
60% RH max. (with no icing or condensation)
45 to 85% RH (at +5 to +35
°C)
500 MΩ min. (at 500 VDC with insulation tester)
80 mΩ max.
500 VAC for 1min between terminals, between terminals and ground
Malfunction
Malfunction
Mechanical
Electrical
10 to 55 Hz, 1.5-mm double amplitude
500 m/s
2
min.
50,000 operations min.
50,000 operations min.
IEC IP64
Possible
4.9 N max.
0.3 g
Rating (resistive load)
Ambient operating temperature
Ambient operating humidity
Insulation resistance
Contact resistance (initial value)
Dielectric strength
Vibration resistance
Shock resistance
Durability
Degree of protection
Washing
Operating forcse
Weight
1

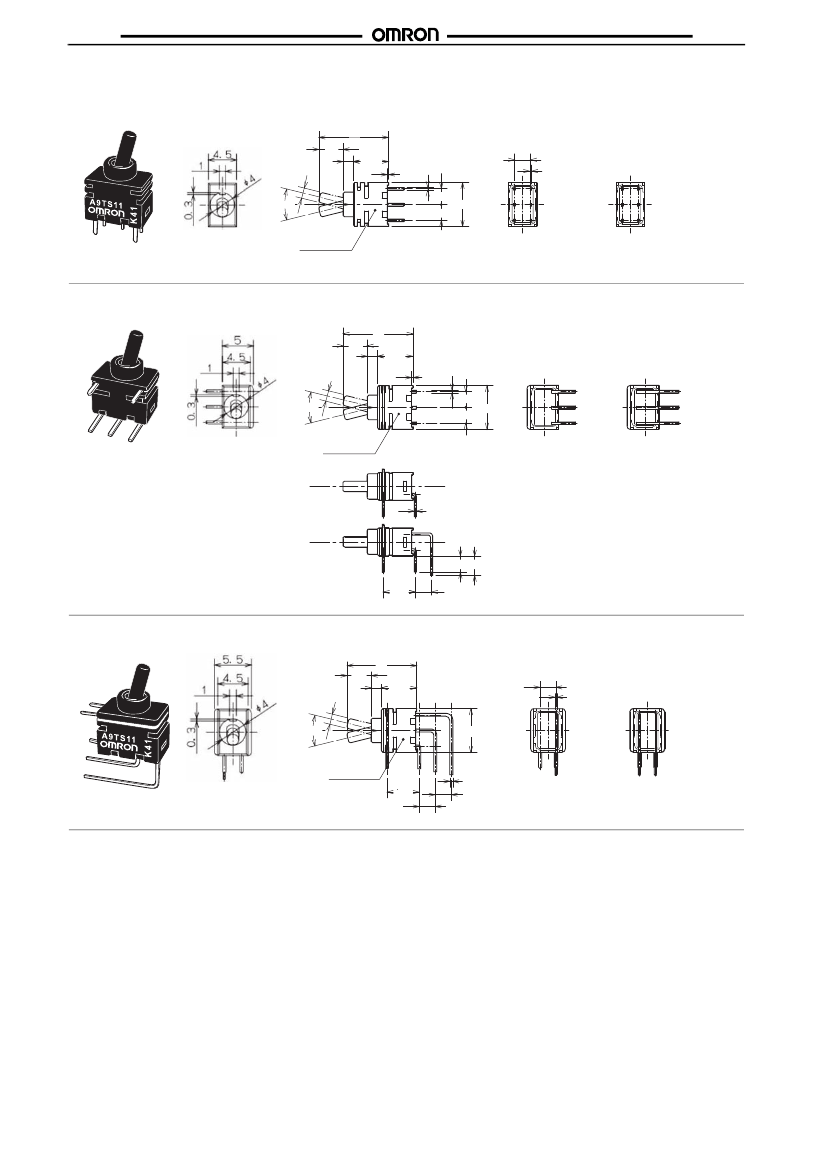

A9TS
■
Safety Precautions
Be sure to read the Safety precautions common to all PCB-mount Manual Switch for correct use.
●
Cautions
Use the switch within the rated voltage and current ranges,
otherwise the Switch may have a shortened life expectancy,
radiate heat,or burn out. This particularly applies to the
instantaneous voltages and currents when switching.
●
Hardling
Do not apply excessive operating force to the Switch. Otherwise
the Switch may be damaged or deformed, and the switch
mechanism may malfunction as a result. Apply an operating force
not exceeding 9.8N {1,000gf}. Apply the operating load from the
top of the actuator. Do not apply a load from angle or from side
the actuator. Doing so may deform the Switch contact.
●
Soldering
Observe the following conditions when soldering the Switch.
Automatic Soldering Bath
Soldering temperature: 260
°C
max. (Preheating: 100
°C
120s max.)
Soldering time: 5s max.
Manual Soldering
Soldering temperature: 350
°C
at the tip of the soldering iron.
Soldering time: 3s max.
●
Washing
Apply alcohol based solvents to clean.
Do not clean the Switch immediately after soldering. Wait for at
least five minutes after soldering before cleaning.
Ultrasonic cleaning is not available dip into Switch washing
agents for two minutes maximum.
A9TS
●
Using Flux
Making mistakes in the type of flux or in the amount or method in
which it is applied can cause flux to enter the interior of the
Switch, with adverse effects on Switch performance. Assess the
proper flux, conditions,and methods prior to using it.
●
RoHS Compliant
The "RoHS Compliant" designation indicates that the listed
models do not contain the six hazardous substances covered by
the RoHS Directive.
Reference: The following standards are used to determine
compliance for the six substances.
• Lead:
1,000 ppm max.
• Mercury:
1,000 ppm max.
• Cadmium:
100 ppm max.
• Hexavalent chromium: 1,000 ppm max.
• PBB:
1,000 ppm max.
• PBDF:
1,000 ppm max.
●
Environment for Storage and Use
To prevent discoloration of the terminals and other problems
during storage, do not store the Switch in locations subject to the
following conditions.
1. High temperature or humidity
2. Corrosive gases
3. Direct sunlight
Also, the Switch is not waterproof or splash-resistance.
Do not use the Switch in locations that are subject to contact with
water. Do not subject the Switch to freezing or condensation.
•
Application examples provided in this document are for reference only. In actual applications, confirm equipment functions and safety
before using
the product.
•
Consult your OMRON representative
before using
the product
under
conditions
which
are not described in the manual or applying the product to nuclear control systems, railroad
systems, aviation systems,
vehicles,
combustion systems, medical equipment, amusement machines, safety equipment, and other systems or equipment that may have a serious
influence on lives and property if
used
improperly. Make sure that the ratings and performance characteristics of the product provide a margin of safety for the system or
equipment, and
be
sure to provide the system or equipment
with
double safety mechanisms.
Note: Do not use this document to operate the Unit.
OMRON Corporation
Electronic and Mechanical Components Company
Contact: www.omron.com/ecb
Cat. No. A199-E1-04
1014(0207)(O)
