TB62600FG datasheet, PDF - EEWORLD Datasheet

TB62600FG: Description64BIT SHIFT REGISTER / LATCH DRIVER; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size493KB，15 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric View All

TB62600FG Overview

64BIT SHIFT REGISTER / LATCH DRIVER

Parameter Name	Attribute value
Parts packaging code	QFP
package instruction	QFP,
Contacts	100
Reach Compliance Code	unknow
ECCN code	EAR99
Interface integrated circuit type	REGISTER BASED PERIPHERAL DRIVER
JESD-30 code	R-PQFP-G100
length	20 mm
Number of functions	1
Number of terminals	100
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output current flow direction	SINK
Nominal output peak current	0.062 A
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Package shape	RECTANGULAR
Package form	FLATPACK
Certification status	Not Qualified
Maximum seat height	3.15 mm
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	BICMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	QUAD
Disconnect time	1 µs
connection time	1 µs
width	14 mm
Base Number Matches	1

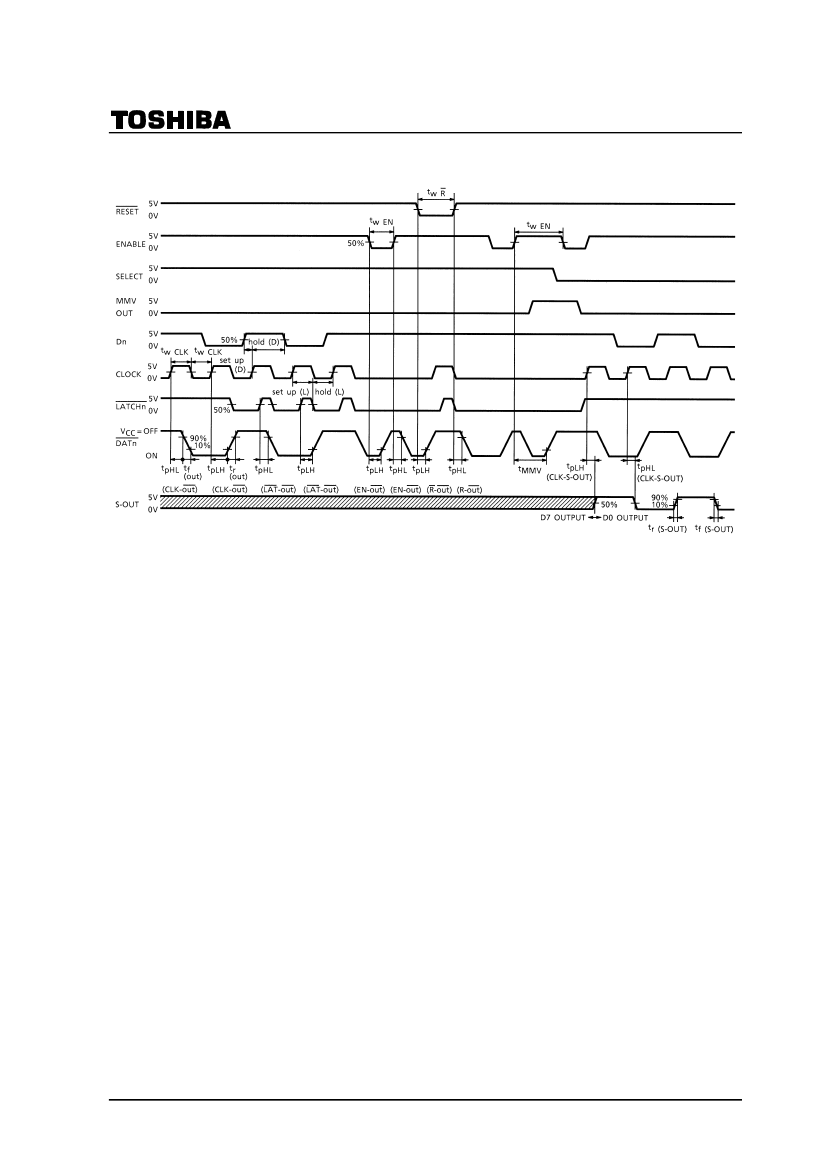

TB62600FG

TOSHIBA Bi−CMOS INTEGRATED CIRCUIT SILICON MONOLITHIC

TB62600FG

64BIT SHIFT REGISTER / LATCH DRIVER

The TB62600FG is specifically designed for 64bit Thermal Head

drivers. And this IC is monolithic integrated circuits designed to

be used together with Bi−CMOS (DMOS) integrated circuit. The

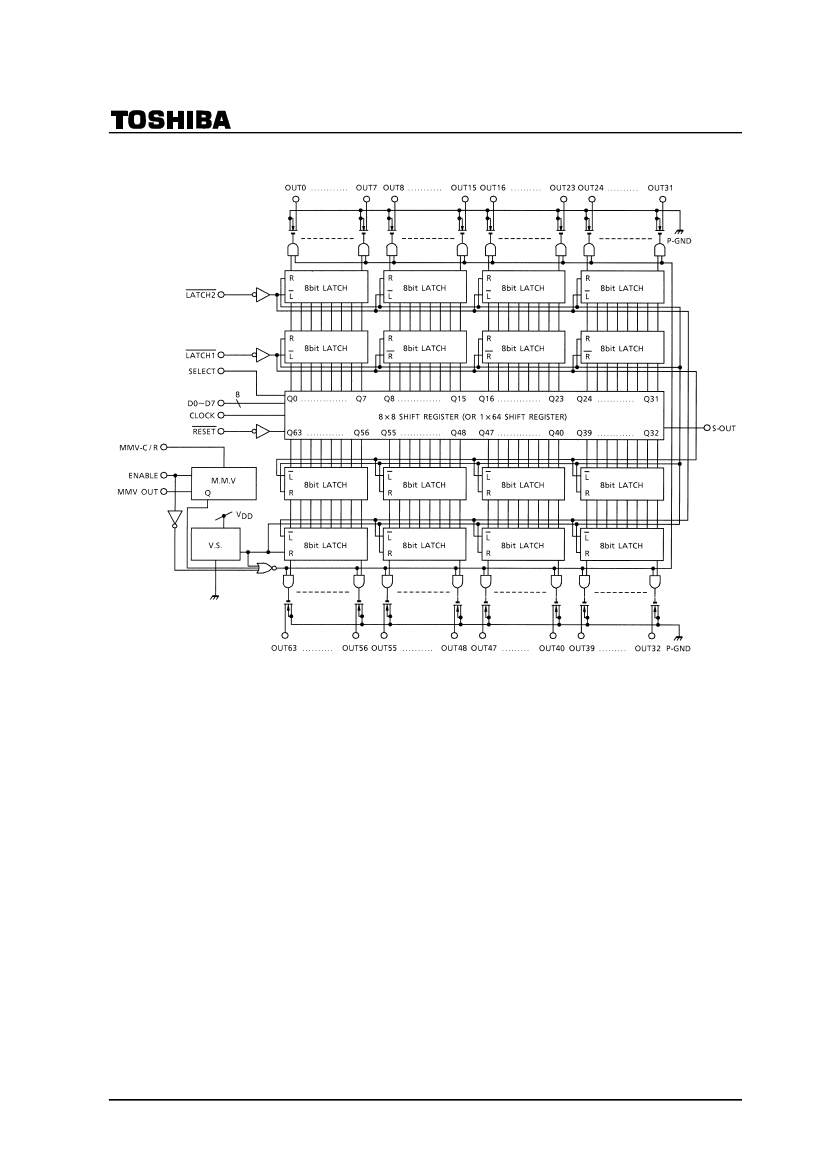

devices consist of a 64bit shift register, dual 64bit latches, and 64

output DMOS structures.

The suffix (G) appended to the part number represents a

Lead(Pb)-Free product.

FEATURE

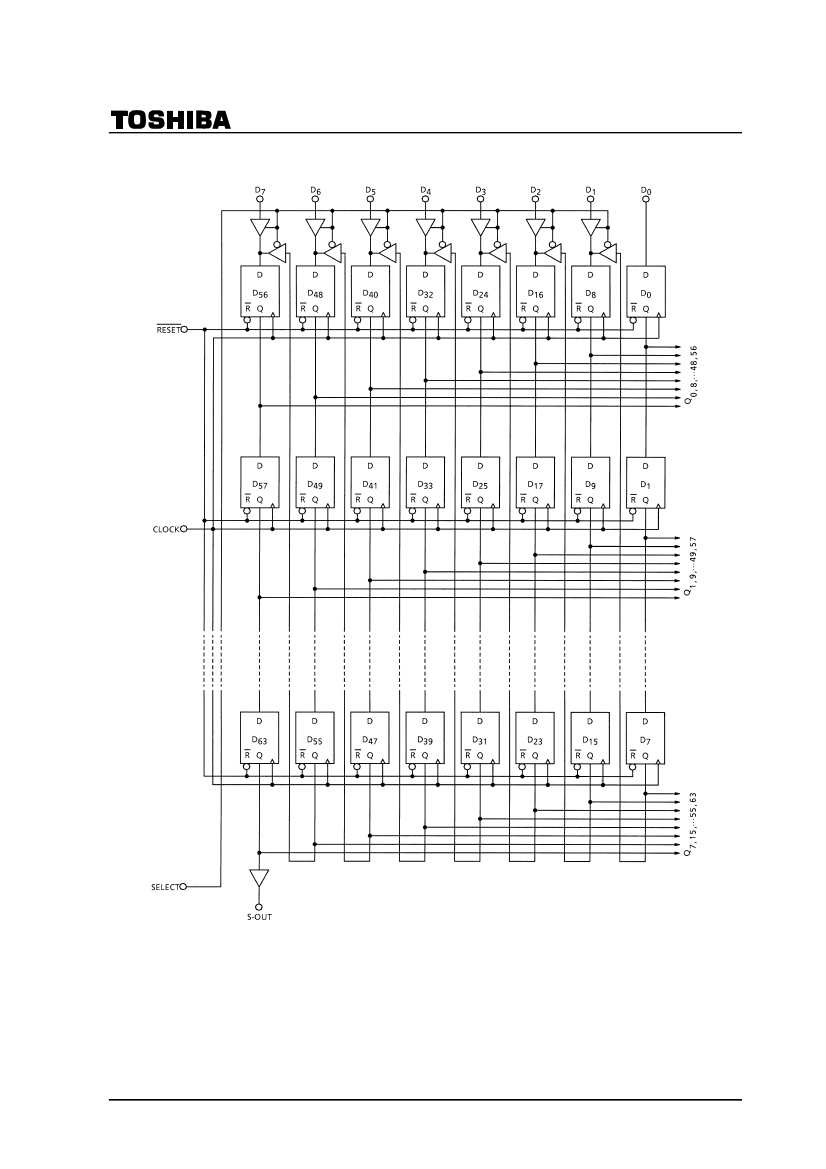

Built−in selection circuit : parallel−in parallel−out (8 × 8) or

serial−in parallel−out (1 × 64)

CMOS compatible inputs

Open−drain DMOS outputs

Low steady−state power consumption

Built−in mono stable multi−viblator for head protection

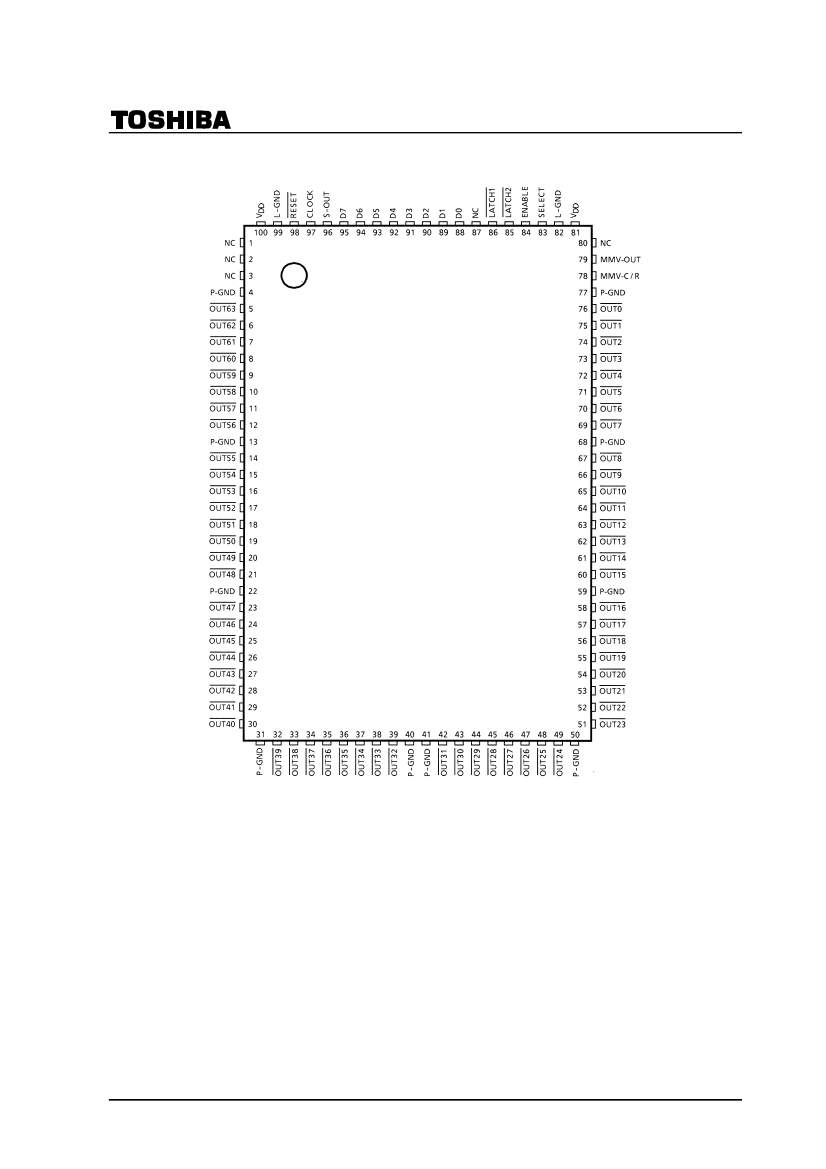

Package : QFP100−P−1420C

Weight: 1.6 g (typ.)

1

2006-08-07
