38CDP7B11M1GT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> 38CDP7B11M1GT

38CDP7B11M1GT: DescriptionPushbutton Switches Pushbutton Switch, snap action, DPDT, threaded, lug, RoHS Compliant; CategoryMechanical and electronic products switch; File Size463KB，5 Pages; ManufacturerGrayhill; Websitehttp://www.grayhill.com; Environmental Compliance

Download Datasheet Parametric View All

38CDP7B11M1GT Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	38CDP7B11M1GT	-	-	View	Buy Now

38CDP7B11M1GT Overview

Pushbutton Switches Pushbutton Switch, snap action, DPDT, threaded, lug, RoHS Compliant

38CDP7B11M1GT Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	18 weeks
Actuator type	STANDARD PLUNGER
body width	11.43 mm
body height	9.93 mm
Body length or diameter	12.7 mm
Contact (AC) maximum rated R load	3A@125VAC
Maximum contact current (AC)	3 A
Maximum contact current (DC)	3 A
Contact (DC) maximum rated R load	3A@28VDC
Maximum contact voltage (AC)	125 V
Maximum contact voltage (DC)	28 V
Electrical life	50000 Cycle(s)
JESD-609 code	e4
Installation features	PANEL MOUNT-THREADED
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
seal	EPOXY TERMINAL SEALED
surface mount	NO
Switch action	MOMENTARY
switch function	DPDT
Switch type	PUSHBUTTON SWITCH
Terminal surface	Gold (Au)
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

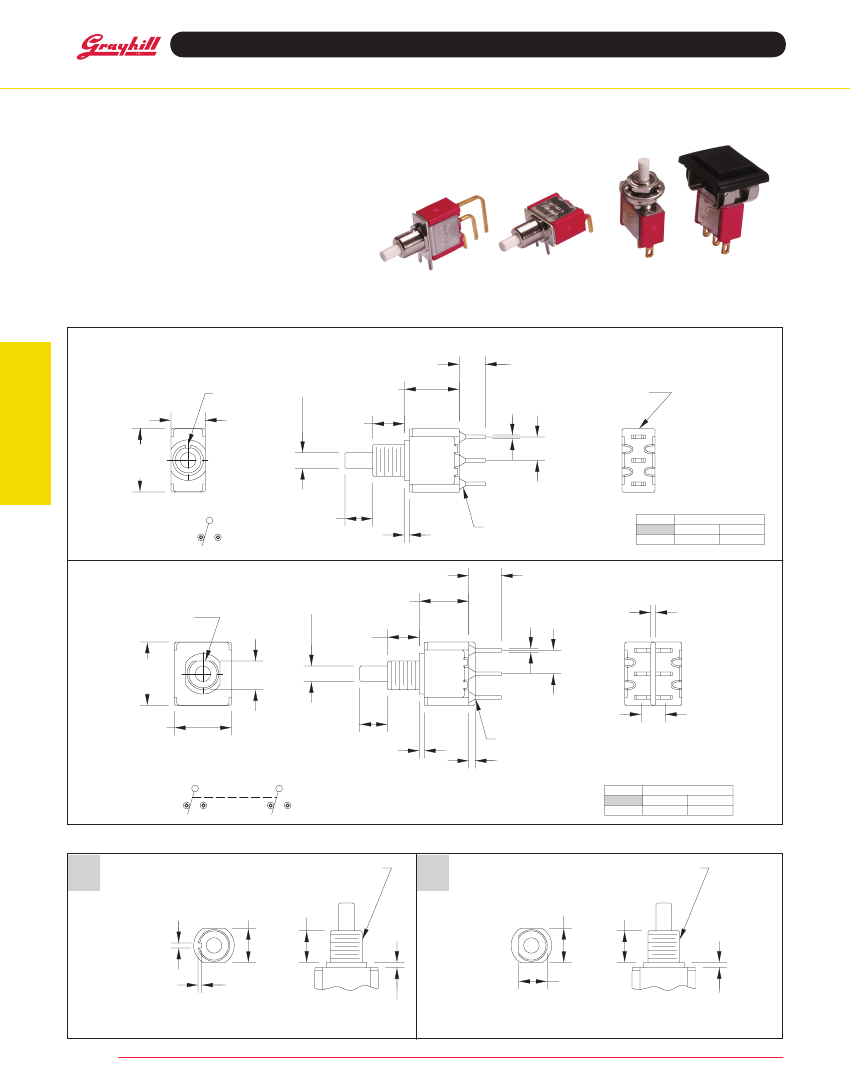

Snap Action Miniature Pushbutton Switches

SerieS 38C

Miniature Pushbutton Switches

FeatureS

•

SPDT and DPDT Circuitry

•

Choice of Bushings, and Terminations

•

Caps and Frames Available

•

UL Recoginized

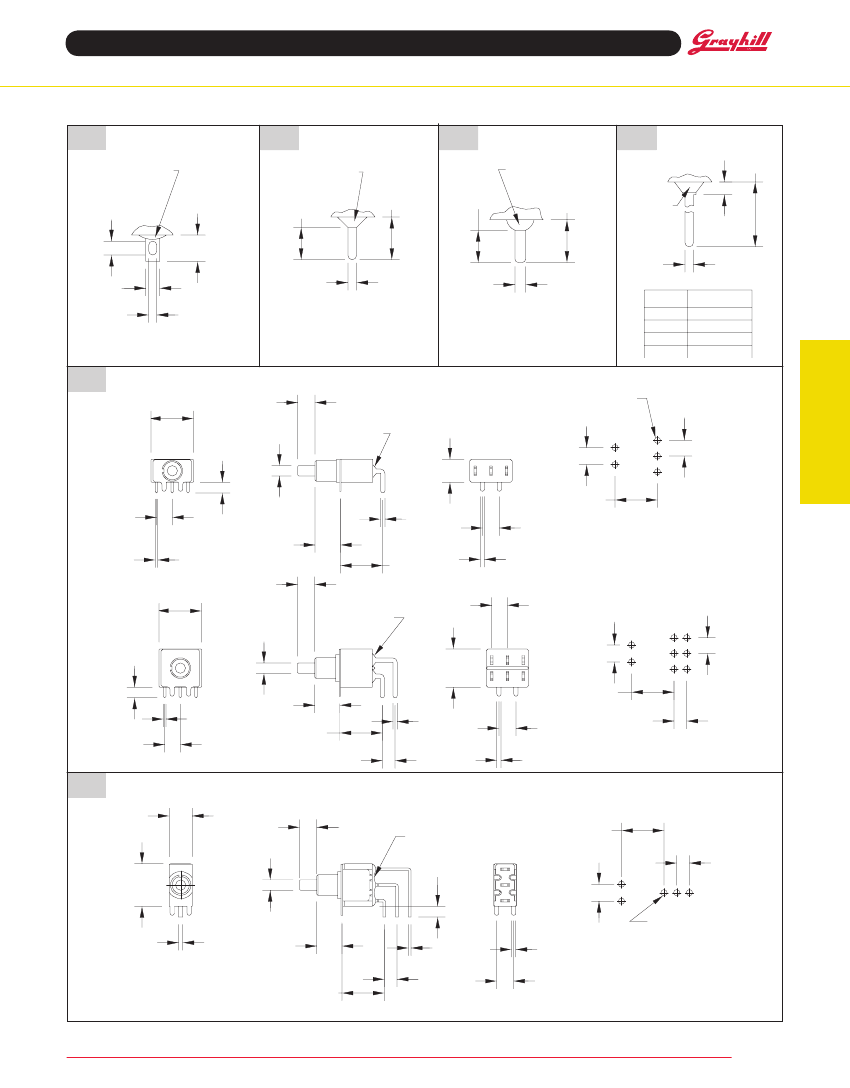

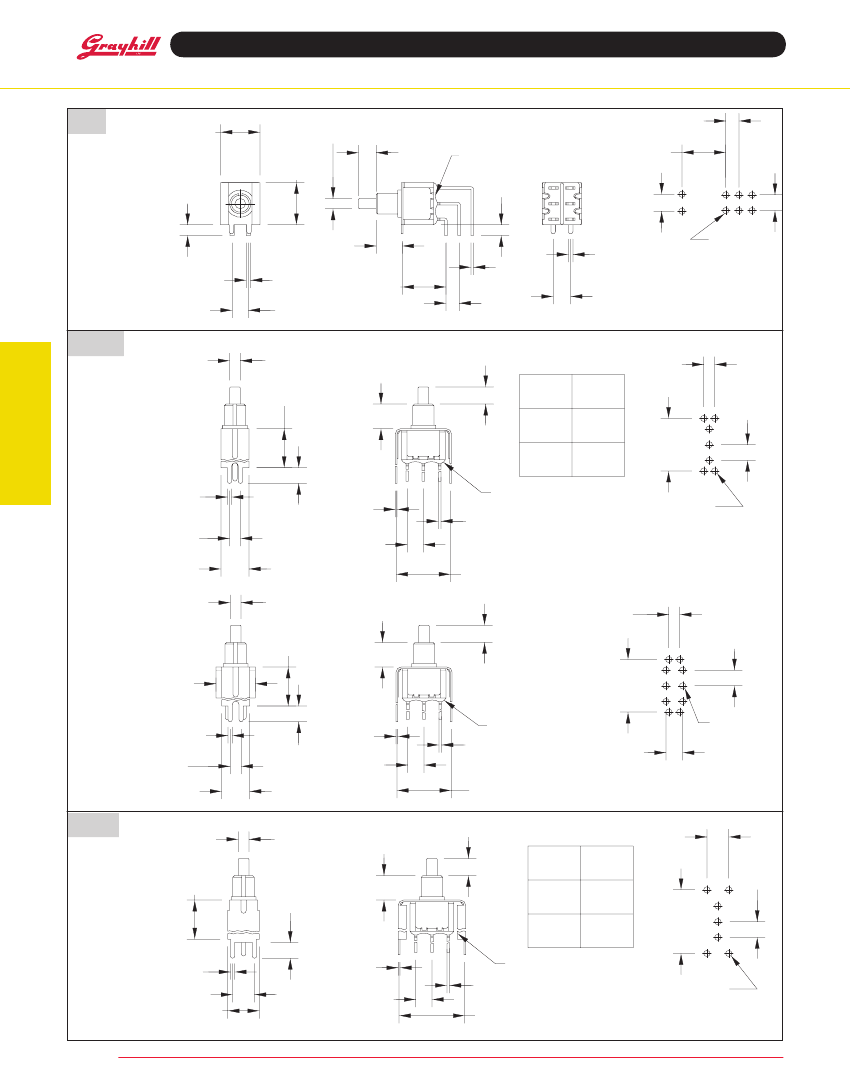

diMenSiOnS

in inches (and millimeters)

SPdt

KEYWAY

.270

(6.86)

.500

(12.7)

.185

(4.70)

NO 2

Ø.122

(Ø3.10)

.431

(10.95)

.250

(6.35)

.205

(5.20)

.030

(0.76)

KEYWAY

THIS SIDE

3 NC

Pushbutton Switches

2 NO

1 COMM.

01COMM.

SCHEMATIC

NC 3

.218

(5.54)

.040

(1.02)

EPOXY SEAL

()=MOMENTARY

MODEL NO.

SP7

TERM. COMM.

SWITCH POSITION

(ON)

1-3

1-2

dPdt

FLAT

.225

(5.72)

Ø.122

(Ø3.10)

.250

(6.35)

.390

(9.93)

.256

(6.50)

.030

(0.76)

.040

(1.02)

3 NC

.500

(12.7)

.185

(4.70)

.040

(1.02)

01COMM.

2 NO

1 COMM.

.450

(11.43)

.218

(5.54)

.190

(4.83)

EPOXY SEAL

.051

(1.30)

MODEL NO.

DP7

SCHEMATIC

NC 3

2 NO

NC 6

5 NO

()=MOMENTARY

TERM. COMM.

SWITCH POSITION

(ON)

1-2, 4-5

1-3, 4-6

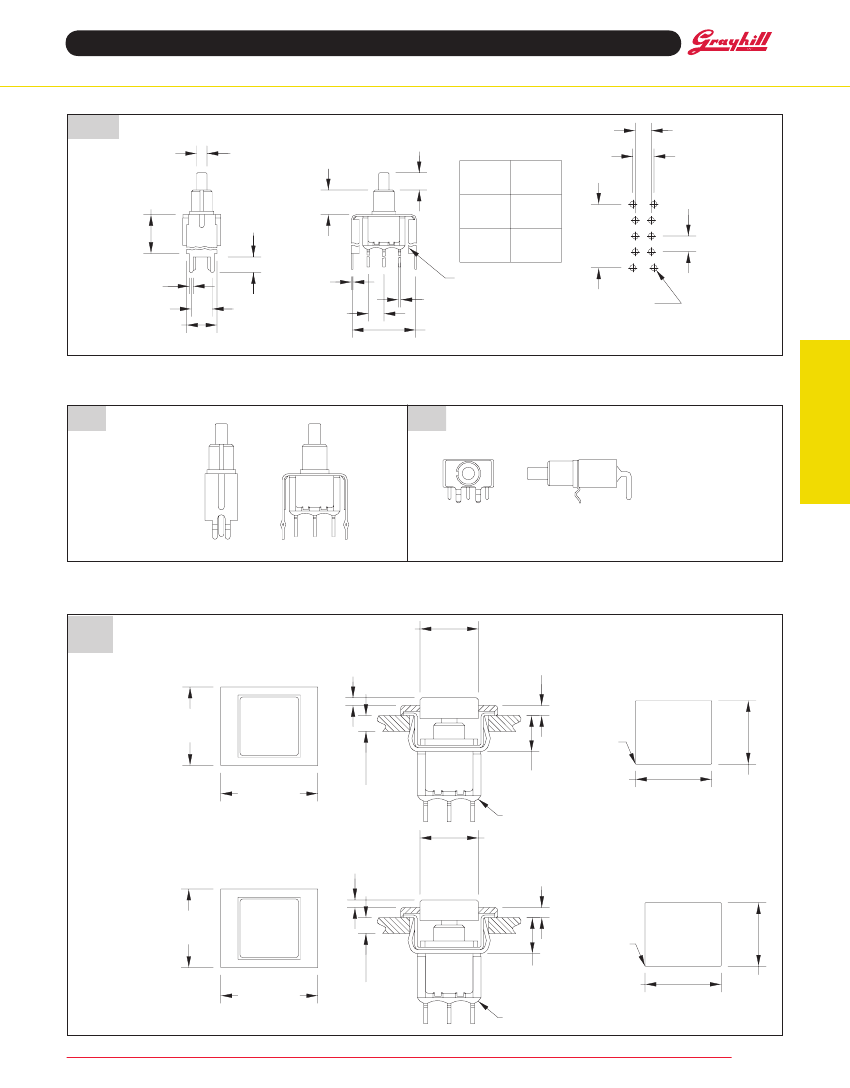

BuSHinG OPtiOnS

in inches (and millimeters)

B10

Thd Std

B20

Non-Thd

.040

(1.02)

.270

(6.90)

1/4-40 UNS-2A

.250

(6.35)

B11

Thd Std

B21

Non-Thd

1/4-40 UNS-2A

.272

(6.90)

.250

(6.35)

.028

(0.72)

.225

(5.72)

.040

(1.02)

.040

(1.02)

Grayhill, Inc. • 561 Hillgrove Avenue • LaGrange, Illinois

60525-5997 • USA • Phone: 708-354-1040 • Fax: 708-354-2820 • www.grayhill.com
