822E-1C-12VDC

Description
Automotive Relays 1FormC SPDT 12V 40A
CategoryTopical application    Mechanical and electrical/engineering/automation
File Size662KB,5 Pages
ManufacturerSong Chuan
Environmental Compliance
Download Datasheet Parametric Compare View All

822E-1C-12VDC Online Shopping

Suppliers Part Number Price MOQ In stock
822E-1C-12VDC - - View Buy Now

822E-1C-12VDC Overview

Automotive Relays 1FormC SPDT 12V 40A

822E-1C-12VDC Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerSong Chuan
Product CategoryAutomotive Relays
RoHSDetails
Coil Voltage12 VDC
Relay Contact Form1 Form C (SPDT-NO, NC)
Contact Current Rating40 A
Coil Resistance90 Ohms
Coil Current133 mA
Switching Voltage14 VDC
Mounting StyleThrough Hole
Contact MaterialSilver Alloy (Ag)
Coil TerminationSolder Pin
Contact FormSPDT (1 Form C)
Power Consumption1.6 W
Factory Pack Quantity50
Unit Weight0.617294 oz

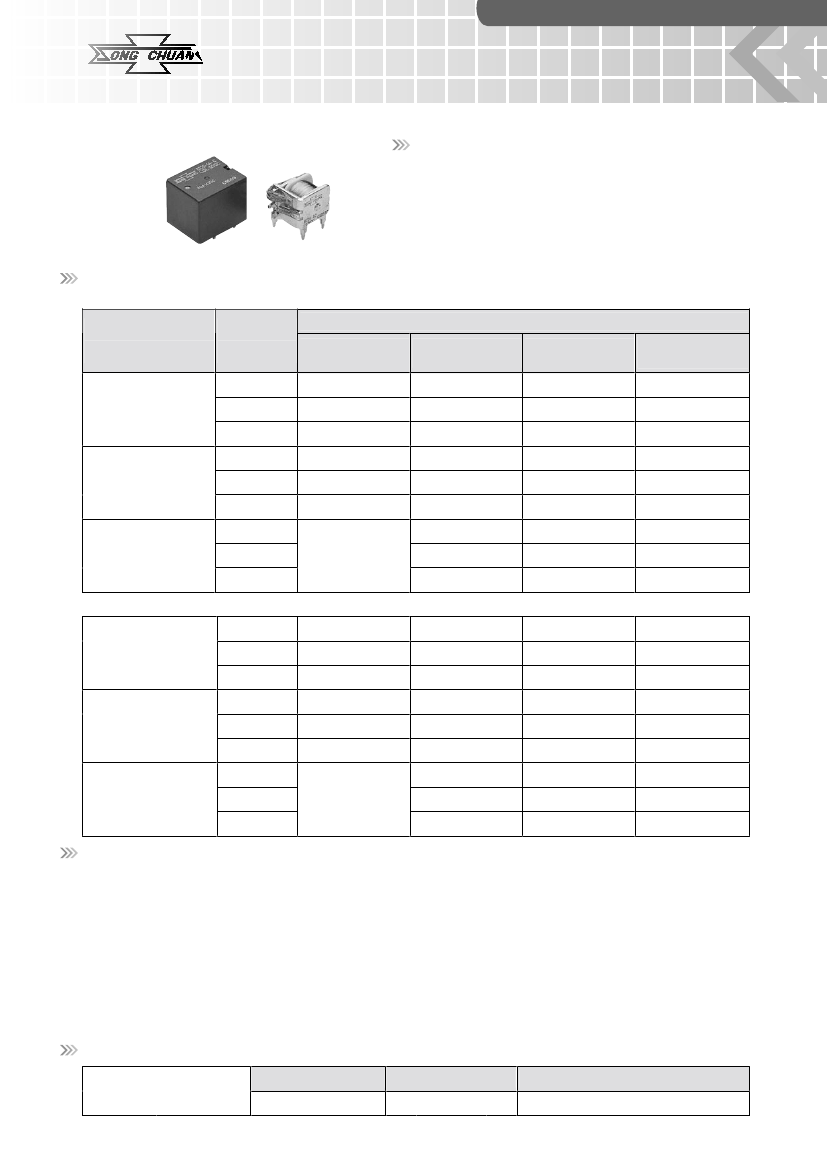

SONG CHUAN
SONG CHUAN
822
Features
□High
power 40A automotive relay.
□USA
& European footprint are both available.
□Open
frame, dust cover, flux-free type, and sealed
washable type are available.
□Offering
SPNC, SPNO, SPDT of contact
configurations.
Type List
Standard type
Terminal
style
PCB terminal
(Footprint for
European)
PCB terminal
(Footprint for USA)
PCB terminal
(Footprint for USA
different terminal)
Contact
form
1A (SPNO)
1B (SPNC)
1C (SPDT)
1A (SPNO)
1B (SPNC)
1C (SPDT)
1A (SPNO)
1B (SPNC)
1C (SPDT)
---------
Open type
822E-1A
822E-1B
822E-1C
822U-1A
822U-1B
822U-1C
Designation (enclosure)
Flux tight
822E-1A-C
822E-1B-C
822E-1C-C
822U-1A-C
822U-1B-C
822U-1C-C
822UA-1A-C
822UA-1B-C
822UA-1C-C
Sealed type
822E-1A-V
822E-1B-V
822E-1C-V
822U-1A-V
822U-1B-V
822U-1C-V
822UA-1A-V
822UA-1B-V
822UA-1C-V
Sealed type
washable
822E-1A-S
822E-1B-S
822E-1C-S
822U-1A-S
822U-1B-S
822U-1C-S
822UA-1A-S
822UA-1B-S
822UA-1C-S
◆High
sensitivity type
PCB terminal
(Footprint for
European)
PCB terminal
(Footprint for USA)
PCB terminal
(Footprint for USA
different terminal)
1A (SPNO)
1B (SPNC)
1C (SPDT)
1A (SPNO)
1B (SPNC)
1C (SPDT)
1A (SPNO)
1B (SPNC)
1C (SPDT)
---------
822EN-1A
822EN-1B
822EN-1C
822UN-1A
822UN-1B
822UN-1C
822EN-1A-C
822EN-1B-C
822EN-1C-C
822UN-1A-C
822UN-1B-C
822UN-1C-C
822UAN-1A-C
822UAN-1B-C
822UAN-1C-C
822EN-1A-V
822EN-1B-V
822EN-1C-V
822UN-1A-V
822UN-1B-V
822UN-1C-V
822UAN-1A-V
822UAN-1B-V
822UAN-1C-V
822EN-1A-S
822EN-1B-S
822EN-1C-S
822UN-1A-S
822UN-1B-S
822UN-1C-S
822UAN-1A-S
822UAN-1B-S
822UAN-1C-S
Ordering Information
822
1
1. 822
2. E
U
UA
E
2
N
3
-
1C
4
-
C
5
4. 1A
1B
1C
5. Blank
C
V
S
-- Single pole normally open
-- Single pole normally close
-- Single pole double throw
-- Open type
-- Flux tight
-- Sealed type
-- Sealed type washable
-- Basic series designation
-- Europe footprint
-- USA footprint
-- USA different terminal
3. Blank -- standard type
N
-- High sensitivity type
Contact Rating
Resistive load
1A
40A 14VDC
1B
30A 14VDC
1C
NC: 20A 14VDC ; NO: 40A 14VDC
261

822E-1C-12VDC Related Products

822E-1C-12VDC 822U-1C-S-12VDC 822U-1A-S-12VDC 822U-1C-S-24VDC 822E-1C-S-24-VDC
Description Automotive Relays 1FormC SPDT 12V 40A Automotive Relays SPDT 40A 12VDC w/case Automotive Relays SPNO 40A Automotive Relays SPDT 40A 24VDC Sealed PC pins Automotive Relays 40A, Automotive Relay
Product Attribute Attribute Value Attribute Value Attribute Value Attribute Value Attribute Value
Manufacturer Song Chuan Song Chuan Song Chuan Song Chuan Song Chuan
Product Category Automotive Relays Automotive Relays Automotive Relays Automotive Relays Automotive Relays
RoHS Details Details Details Details Details
Coil Voltage 12 VDC 12 VDC 12 VDC 24 VDC 24 VDC
Coil Resistance 90 Ohms 90 Ohms 90 Ohms 362 Ohms 362 Ohms
Coil Current 133 mA 133 mA 133 mA 66 mA 66 mA
Mounting Style Through Hole Through Hole Through Hole Through Hole Through Hole
Contact Material Silver Alloy (Ag) Silver Alloy (Ag) Silver Alloy (Ag) Silver Alloy (Ag) Silver Tin Oxide (AgSnO)
Contact Form SPDT (1 Form C) SPDT (1 Form C) SPST (1 Form A) SPDT (1 Form C) SPDT (1 Form C)
Power Consumption 1.6 W 1.2 W 1.2 W 1.2 W 1.6 W
Factory Pack Quantity 50 50 50 50 50
Contact Current Rating 40 A - 40 A - 40 A
Contact Termination - Solder Terminal Solder Terminal Solder Terminal Solder Terminal
Height - 21.5 mm 21.5 mm 21.5 mm 21.8 mm
Length - 26.6 mm 26.6 mm 26.6 mm 26.6 mm
Width - 21.4 mm 21.4 mm 21.4 mm 21.4 mm
