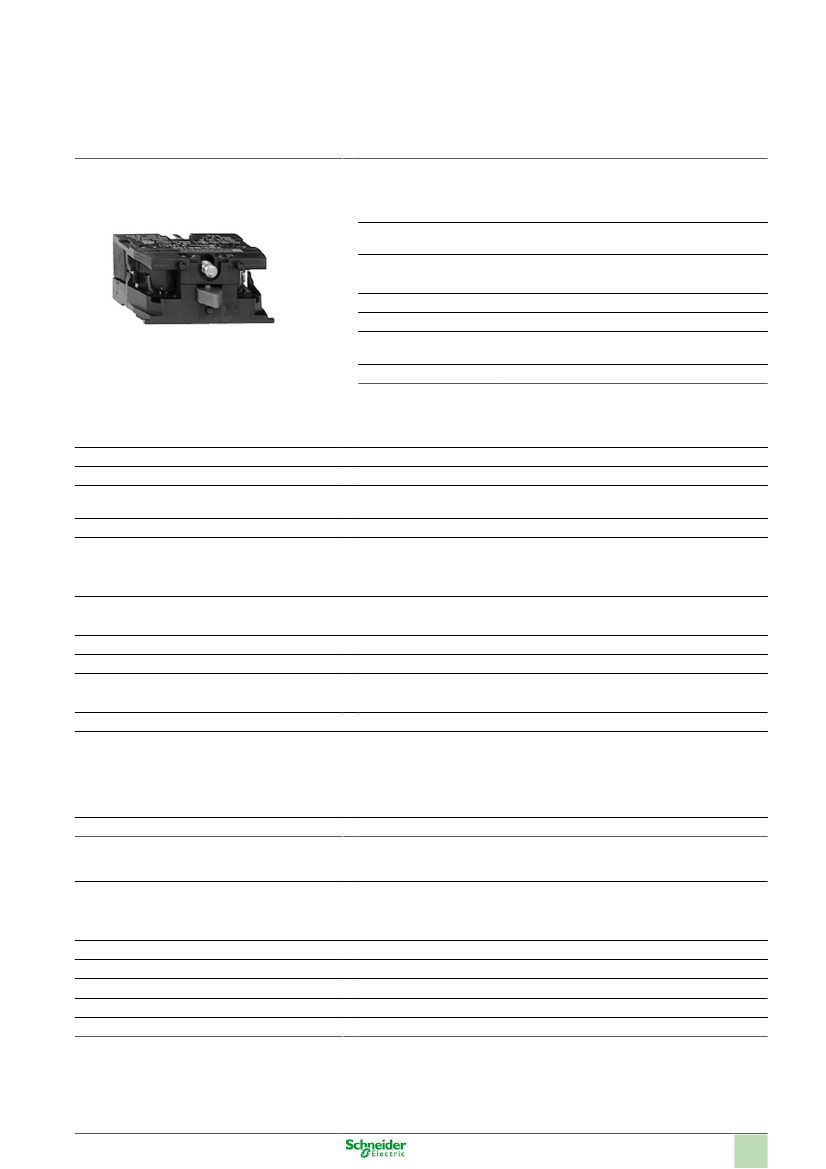

Product data sheet
Characteristics
ZB2BE102
contact block ZB2 - spring return - 1 NC - slow-
break - front mounting
Main
Range of product
Product or component
type
Component name
Electrical circuit type
Contact block type
Type of operator
Contacts type and com-
position
Mounting of block
Harmony XAC
Contact block
ZB2
Control circuit
Single
Spring return
1 NC
Front mounting
The information provided in this documentation contains general descriptions and/or technical characteristics of the performance of the products contained herein.
This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications.
It is the duty of any such user or integrator to perform the appropriate and complete risk analysis, evaluation and testing of the products with respect to the relevant specific application or use thereof.
Neither Schneider Electric Industries SAS nor any of its affiliates or subsidiaries shall be responsible or liable for misuse of the information contained herein.
Complementary
Contact block application
Product compatibility
Connections - terminals
Mechanical durability
Contact code designation
Single speed
XACA
Screw clamps terminals (1 x 2.5 mm²) with or without cable end
Screw clamps terminals (2 x 1.5 mm²) with or without cable end
1000000 cycles
A600 AC-15 , Ue = 240 V , Ie = 3 A conforming to IEC 947-5-1 appendix A
A600 AC-15 , Ue = 600 V , Ie = 1.2 A conforming to IEC 947-5-1 appendix A
Q600 DC-13 , Ue = 600 V , Ie = 0.1 A conforming to IEC 947-5-1 appendix A
Q600 DC-13 , Ue = 250 V , Ie = 0.27 A conforming to IEC 947-5-1 appendix A
10 A
600 V , degree of pollution 3 conforming to IEC 60947-1
6 kV conforming to IEC 60947-1
Slow-break
≤ 25 mOhm
13...15 N
Fuse protection by 10 A gG (gl) cartridge fuse
40 W DC-13 for 1000000 cycles , operating rate: 3600 cyc/h at 120 V , load fac-
tor: 0.5 conforming to IEC 60947-5-1
48 W DC-13 for 1000000 cycles , operating rate: 3600 cyc/h at 48 V , load factor:
0.5 conforming to IEC 60947-5-1
65 W DC-13 for 1000000 cycles , operating rate: 3600 cyc/h at 24 V , load factor:
0.5 conforming to IEC 60947-5-1
0.015 kg
[Ithe] conventional enclosed thermal current
[Ui] rated insulation voltage
[Uimp] rated impulse withstand voltage
Contacts operation
Resistance across terminals
Operating force
Short circuit protection
Rated operational power in W
Product weight
Environment
Standards
CSA C22-2 No 14
EN/IEC 60204-32
EN/IEC 60947-5-1
UL 508
-25...70 °C
-40...70 °C
15 gn (f = 10...500 Hz) conforming to IEC 60068-2-6
100 gn conforming to IEC 60068-2-27
Class II conforming to IEC 61140
Ambient air temperature for operation
Ambient air temperature for storage
Vibration resistance
Shock resistance
Class of protection against electric shock
Feb 8, 2012
1
