97 series crimp type

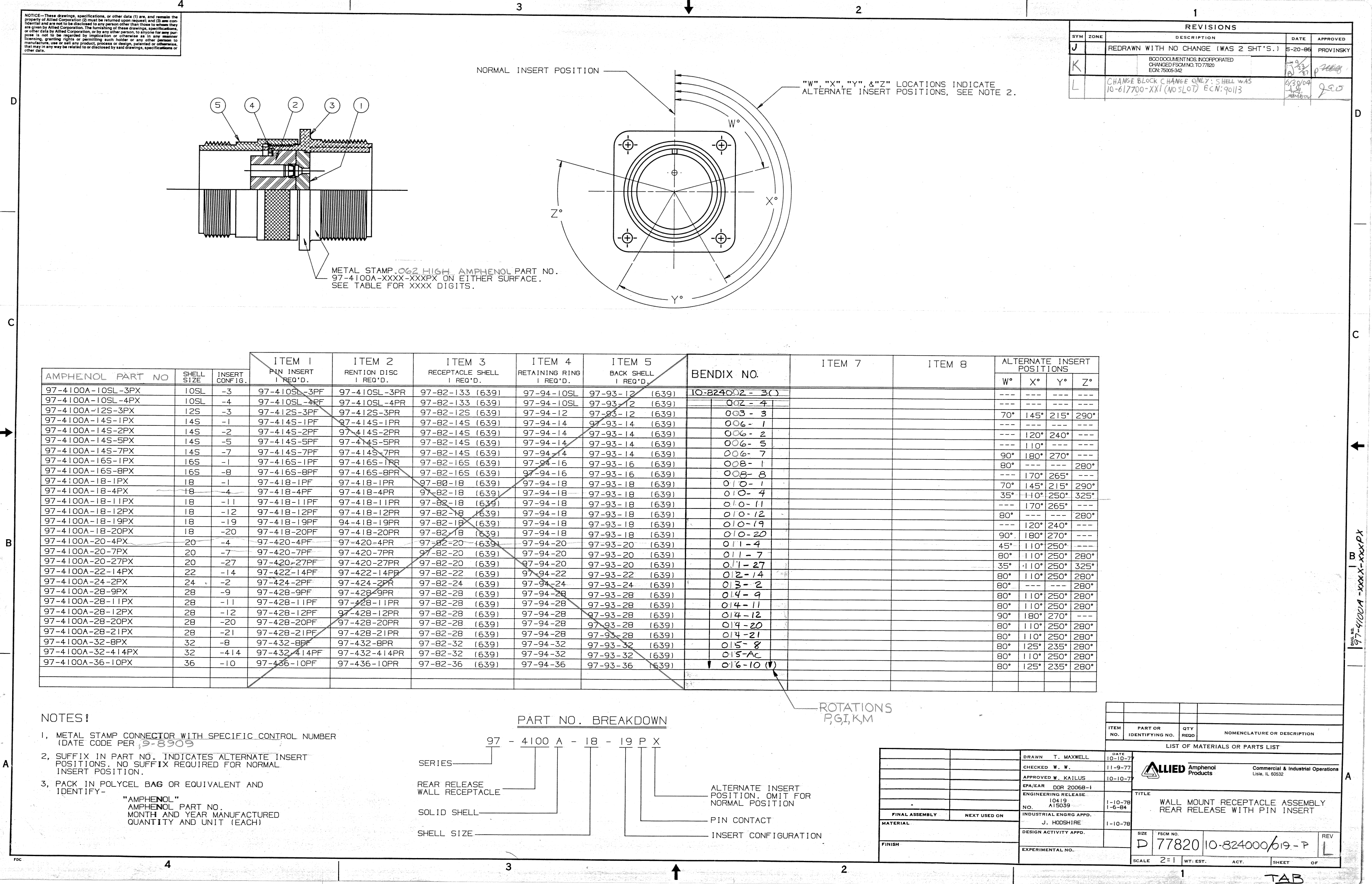

how to order
Example of part number for crimp type connectors is given below.
97
-
4101
A – 28 – 21
S
Y
(621)
Series Number
97 - designates
AMPHENOL 97 Series
Shell Type
4100 Wall Receptacle
4101 Cable Receptacle
4102 Box Receptacle
4106 Straight Plug
4107 Quick Disconnect Plug
4108 Angle Plug
Note: “4” in part number
designates crimp contact rear
release connector
Shell Finish Suffix
Omit for standard O.D.
cadmium finish
(604) Gray anodized
(608) Black anodized
(624) Green zinc alloy
(639) Clear cadmium
(640) Conductive black zinc alloy
(689) Electroless nickel
OR
RoHS Compliant Suffix
(621) Black zinc alloy
plating
U
pheno
l
Am
HS
Ro
E
/2
002
/
95
/
Shell Construction
A - Solid Backshell
B - Split Backshell
Shell Size
10SL, 12S, 14S, 16S, 18, 20,
22, 24, 28, 32, 36
Alternate Insert Positions
Omit for standard position
W, X, Y or Z for alternate positions,
depending on insert (see page 21 for
positions available)
Insert Configuration Number
See insert availability listing - page 21,
and see insert arrangement illustrations -
pages 22 and 23.
Contact Type*
P = Pin
S = Socket
* Contacts are not supplied with connectors, and
must be ordered separately. See following pages
for contact information.
Note:
Accessories for 97 Series Connectors should be
ordered with matching connector plating. See
accessory pages 33-39.
27
