Coupler connector - ST-17S1N8A9004S - 1607649
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Coupler connector, straight, SPEEDCON locking, M17, Number of positions: 17, Type of contact: Socket,
Crimp connection, shielded: yes, Cable diameter: 8 mm...10 mm
Why buy this product
Consistent EMC protection for reliable connection solutions in the industrial environment
Crimping connection: vibration- and temperature-resistant assembly
Flexible use: reliably connect various cable diameters
Key Commercial Data
Packing unit
GTIN
GTIN
Custom tariff number
Note
4046356273589
85366990
Made to Order (non-returnable)
1 STK
Technical data
General
Note
Type of locking
Direction of rotation of contact chamber numbering
Coding
Contact connection method
Type of contacts
Number of positions
Contact diameter of power contacts
Nominal current per power contact at 25°C
Conductor entry
Pg housing screw connection
Order information: Order crimp contacts Ø 0.6 mm separately
SPEEDCON locking
Standard
N
Crimp connection
Socket
17
0.6 mm
3.6 A
8 mm ... 10 mm
none
11/14/2016 Page 1 / 3
https://www.phoenixcontact.com/hq/products/1607649
Coupler connector - ST-17S1N8A9004S - 1607649
Technical data
Ambient conditions
Ambient temperature
Degree of protection
-40 °C ... 125 °C
IP67
Material
Housing material
Insulator material
Gasket and O-ring material
Turned parts: copper zinc alloy (CuZn), die-cast parts: zinc (GD-Zn)
PA 66
FPM
Specifications according to DIN EN 61984:2001
Installation height max.
Nominal / operating voltage of power contacts
Rated surge voltage of power contacts
Overvoltage category of power contacts
Degree of pollution of power contacts
3000 m
60 V
1.5 kV
III
3
Environmental Product Compliance
China RoHS
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”

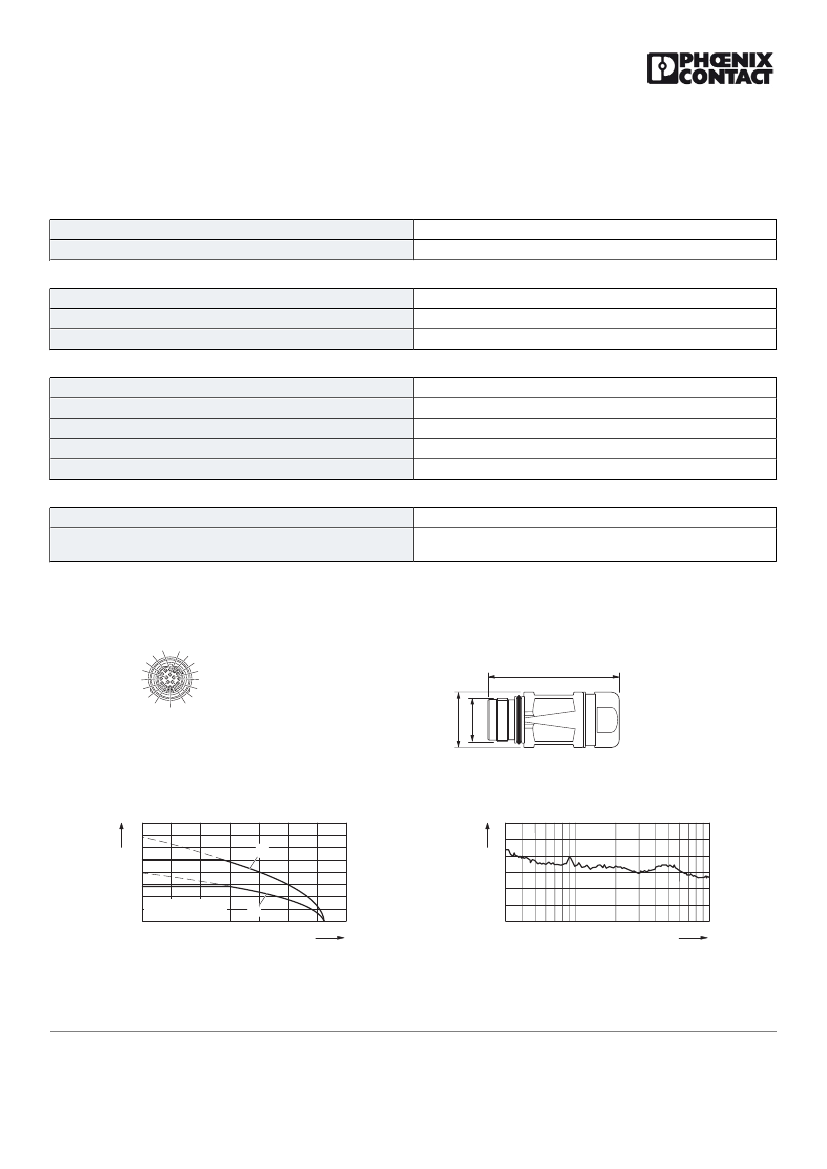

Drawings
Schematic diagram
1
2
3
14
4
5
15
6
7
8
16
13
12
11
17
10
9
Dimensional drawing
50,5
Connector pin assignment
Diagram
Current carrying capacity [A]
Attenuation [dB]
M17x1
Ø21,3
Diagram
120
100
80
60
40
40
35
30
25
20
15
10
5
0
0
1
= 4-pos. 3x2,5mm²
2
= 8-pos. 3x1,0mm²
20
40
60
1
2
80
100
120
Ambient temperature [°C]
20
0
30
100
1000
Frequency [MHz]
Approvals
Approvals
11/14/2016 Page 2 / 3
https://www.phoenixcontact.com/hq/products/1607649
Coupler connector - ST-17S1N8A9004S - 1607649
Approvals
Approvals
UL Recognized / cUL Recognized / EAC / cULus Recognized
Ex Approvals
Approval details
UL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm FILE E 335019
0.14-0.6
1A
60 V
cUL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm FILE E 335019
0.14-0.6
1A
60 V
EAC B.01742
cULus Recognized
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
Phoenix Contact 2016 © - all rights reserved
http://www.phoenixcontact.com
11/14/2016 Page 3 / 3
