MIL-DTL-5015, Matrix
TABLE OF CONTENTS
®
MIL-DTL-5015, Matrix
®
•
Table of Contents
•
Design Characteristics, Customer Options
•
Insert Availability and Identification
•
Insert Arrangement Drawings
•
Class Descriptions, Performance Specifications
•
Insert Alternate Positioning
•
How to Order, Military and Commercial
Shell Styles:
•
Wall mounting receptacle threaded MS3450 (9440)
•
Cable connecting plug threaded MS3451 (9441)
•
Box mounting receptacle threaded MS3452 (9442)
•
Jam nut receptacle threaded MS3454 (9444)
•
Straight plug threaded MS3456 (9446)
•
Straight plug, self-locking threaded MS3459 (9816)
•
Quick disconnect plug push-pull coupling (9817/9818)
•
Matrix
®
5015 with RADSOK
®
contacts, for high power
•
Contact information, sealing plugs, tools
•
Protection caps, dust caps
•
Additional MIL-DTL-5015 connectors offered by Amphenol
170
171
172, 173
174 - 182
183
184
185
186
187
188
189
190
191
192
193
194
195-197
198
New
Featured
MIL-DTL-5015, Matrix
®
Typical Markets:
•
Military Vehicles
•
Heavy Equipment
•
Military Aircraft
•
Power Generation
Amphenol
Aerospace
170
170
Contact Amphenol Aerospace for more information at 800-678-0141 • www.amphenol-aerospace.com
Amphenol
®
/Matrix
®
MS/Standard Circular
MIL-DTL-5015 with Crimp Rear Release Contacts
Amphenol
Aerospace
III
38999
II

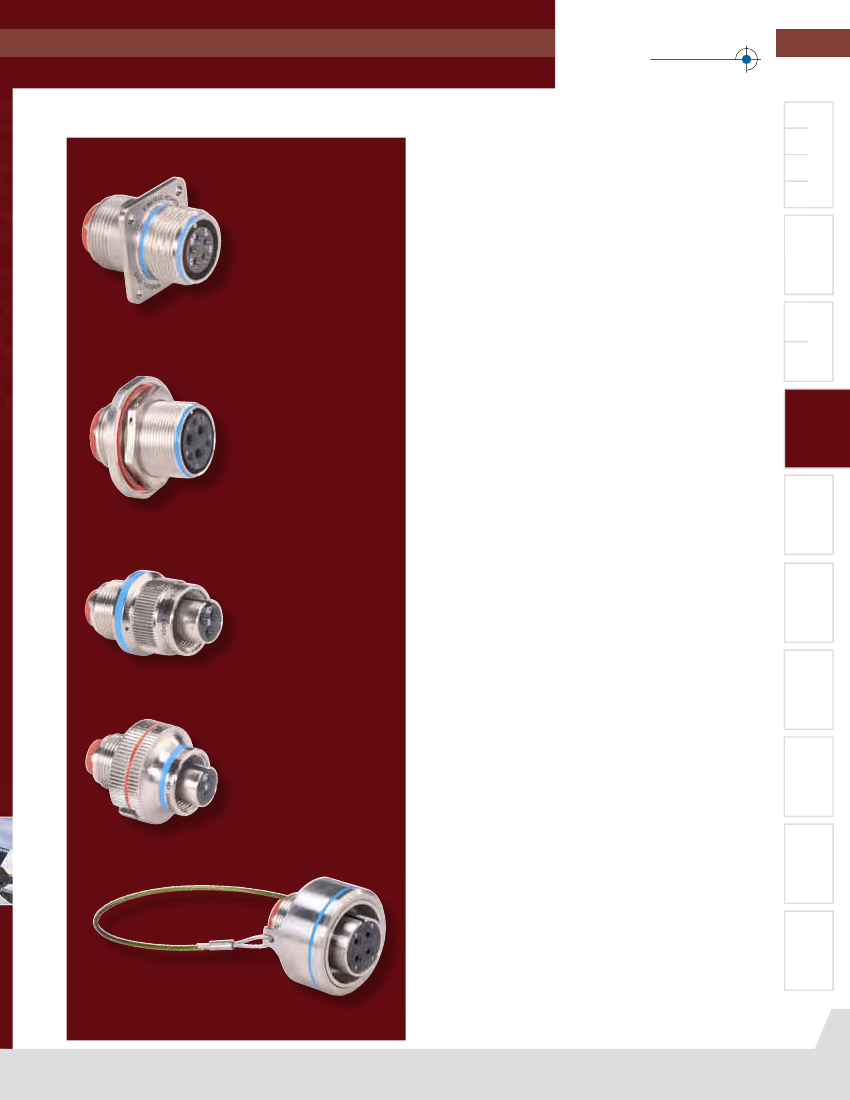

MS3450
wall mounting receptacle
MS3451
cable connecting receptacle
MS3452
box mounting receptacle
Amphenol broadens their MS/Standard family of
connectors with the MIL-DTL-5015 Crimp Rear
Release Series.
This series provides an alternative to the older MIL-C-5015
solder type. It bridges the gap between an old connector
standard and the environmental and high performance needs
of current technologies.
I
SJT
Matrix 2
26482
DESIGN CHARACTERISTICS
•
Medium to heavy weight cylindrical
•
MS345( ) series intermateable with existing MIL-DTL-5015
solder or crimp versions on existing equipment
•
Captive coupling nut mechanism, utilizes retaining rings
in combination with “L” washers to prevent inadvertent
disassembly
•
Multiple interlock systems ensure permanent
insert retention
•
Positive control of dielectric separation with guaranteed
ease of contact insertion
•
Positive contact retention provided by a closely toleranced
damage-proof metal retention clip
•
Completely sealed against environmental extremes with -
• Individual contact seals (conical risers on pin interface)
• Interfacial seals between contacts
• Peripheral gasket shell-to-shell seals
• Redundant rear wire seals and insert-to-shell seals
Matrix Pyle
83723 III
5015
Crimp Rear
Release Matrix
MS3454
jam nut receptacle
Printed
26500 Pyle
Circuit Board
MS3456
plug with threaded
coupling
CUSTOMER OPTIONS
•
Seven mounting styles, in shell sizes 8 to 48*
•
Threaded coupling or self-locking plug (MS3459) with an
internal ratcheting mechanism to prevent unmating due to
vibration and shock, eliminating the need for safety wiring
•
Proprietary quick disconnect plug, with or without
lanyard available
•
Classes include aluminum or stainless steel shells,
or firewall capability
•
MS and Proprietary versions available
•
Some styles are supplied to McDonnell Douglas
Specifica
tion BAN 7025, DC60 Series
•
Accommodation of contact sizes 0 to 16
•
Over 100 insert arrangement patterns available,
accommodating from a minimum of 1 to a maximum
of 85 circuits
•
Alternate positioning available
•
Thermocouple pin and socket contacts are available**
EMI Filter
Transient
Fiber Optics
MS3459
plug with self-locking
coupling nut
High Speed
Contacts
Options
Others
Proprietary quick disconnect
plug with/without lanyard
NOTE: MIL-C-5015 is superceded to MIL-DTL-5015 for all Amphenol/Matrix rear
release crimp type contacts.
* Consult Amphenol, Sidney, NY for availability of shell sizes 44 and 48.
** Consult Amphenol, Sidney, NY for information on thermocouple contacts.
Contact Amphenol Aerospace for more information at 800-678-0141 • www.amphenol-aerospace.com
171
Amphenol
Aerospace
III
MIL-DTL-5015 Crimp Rear Release

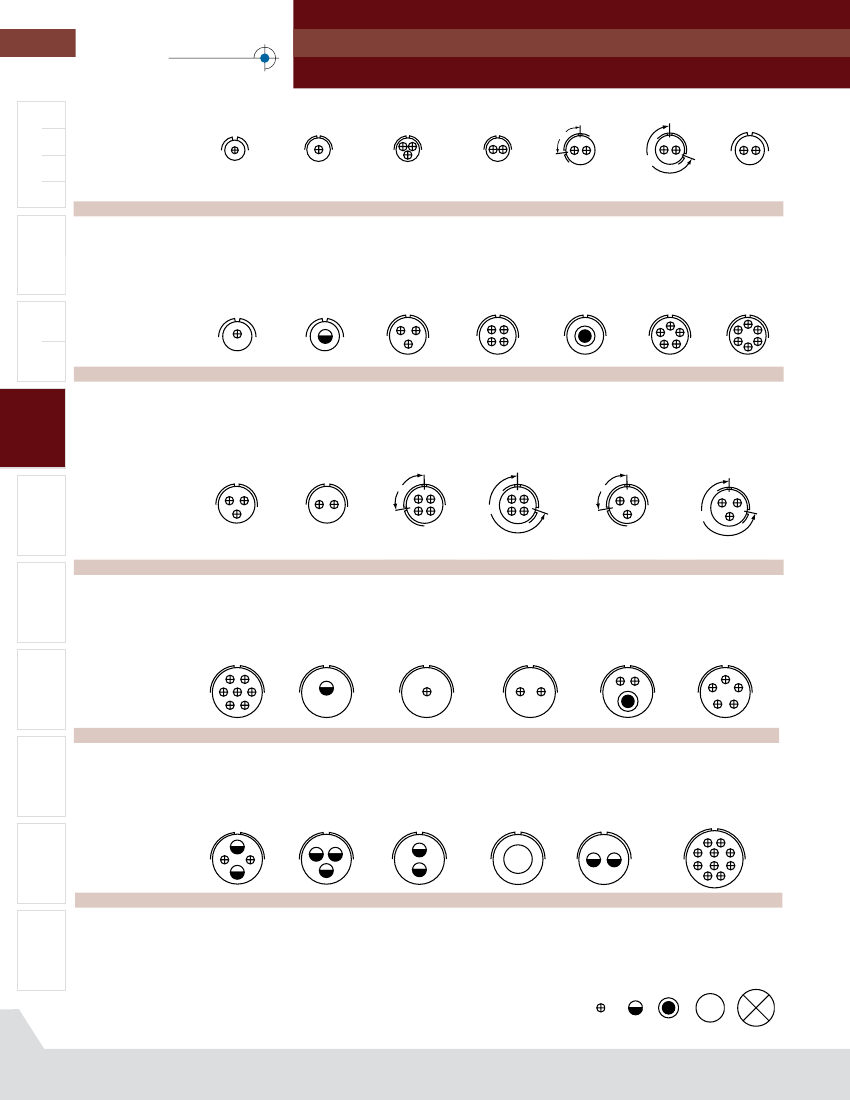

Insert Arrangements
C
B
A
F
ront Face of Pin Insert or Rear Face of Socket Insert Illustrated
100˚
A
B
38999
II
B
A
B
A
B
A
250˚
I
SJT
100° Rotation
of 12S-3
250° Rotation
of 12S-3
83723 III
Matrix Pyle
Matrix 2
26482
Insert Arrangement
Service Rating
Number of Contacts
Contact Size
8S-1
A
1
16
10S-2
A
1
16
10SL-3
A***
3
16
10SL-4
A
2
16
12S-1
A
2
16
12S-2
A
2
16
12S-3
A
2
16
C
A
D
B
A
B
E
D
C
A
B
E
F
A
B
C
D
C
26500 Pyle
Crimp Rear
Release Matrix
5015
Insert Arrangement
Service Rating
Number of Contacts
Contact Size
12S-4
D
1
16
12-5
D
1
12
14S-1**
A
3
16
14S-2
Inst.
4
16
14-3
A
1
8
14S-5
Inst.
5
16
14S-6
Inst.
6
16
100˚
B
C
B
A
100˚
A
B
A
D
C
D
A
C
A
B
C A
250˚
C
B
260˚
B
100° Rotation
of 14S-2
250° Rotation
of 14S-2
100° Rotation
of 14S-1
260° Rotation
of 14S-1
EMI Filter
Transient
Circuit Board
Printed
Insert Arrangement
Service Rating
Number of Contacts
Contact Size
14S-7
A
3
16
14S-9**
A
2
16
14S-10
Inst.
4
16
14S-11
Inst.
4
16
14S-12
A
3
16
14S-13
A
3
16
F
E
D
G
A
B
C
A
B
D
E
A
B
A
C
C
B
Fiber Optics
Insert Arrangement
Service Rating
Number of Contacts
Contact Size
16S-1
A
7
16
16-2*
E
1
12
16S-3*
B
1
16
16S-4*
D
2
16
16-7*
A
1
8
2
16
16S-8
A
5
16
High Speed
Contacts
A
D
B
C
C
A
A
H
B
A
A
I
B
C
G
F
E
J
D
B
B
Options
Others
Insert Arrangement
Service Rating
Number of Contacts
Contact Size
16-9
A
2
12
2
16
16-10
A
3
12
16-11
A
2
12
16-12
A
1
4
16-13
A
2†
12
18-1
B, C, F, G = A; Bal. = Inst.
10
16
* Consult Amphenol, Sidney, NY for availability
** Inactive for new design
*** Service rating Inst Class K
† one Iron contact and one Constantan contact
CONTACT LEGEND
16
12
8
4
0
174
Contact Amphenol Aerospace for more information at 800-678-0141 • www.amphenol-aerospace.com
