SKD210 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Discrete semiconductor> SKD210

SKD210: Description3 PHASE, 220 A, 1600 V, SILICON, BRIDGE RECTIFIER DIODE; Categorysemiconductor Discrete semiconductor; File Size553KB，3 Pages; ManufacturerSEMIKRON; Websitehttp://www.semikron.com

Download Datasheet Parametric Compare View All

SKD210 Overview

3 PHASE, 220 A, 1600 V, SILICON, BRIDGE RECTIFIER DIODE

SKD210 Parametric

Parameter Name	Attribute value
Number of terminals	5
Number of components	6
Maximum average input current	220 A
Processing package description	PLASTIC, CASE G 37, SEMIPONT 4, 5 PIN
Lead-free	Yes
EU RoHS regulations	Yes
state	ACTIVE
packaging shape	RECTANGULAR
Package Size	FLANGE MOUNT
Terminal form	UNSPECIFIED
terminal coating	TIN/SILVER
Terminal location	UPPER
Packaging Materials	PLASTIC/EPOXY
structure	BRIDGE, 6 ELEMENTS
Shell connection	ISOLATED
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
Phase	3
Maximum repetitive peak reverse voltage	1600 V
Maximum non-repetitive peak forward current	1600 A

Preview

Download Datasheet

View All

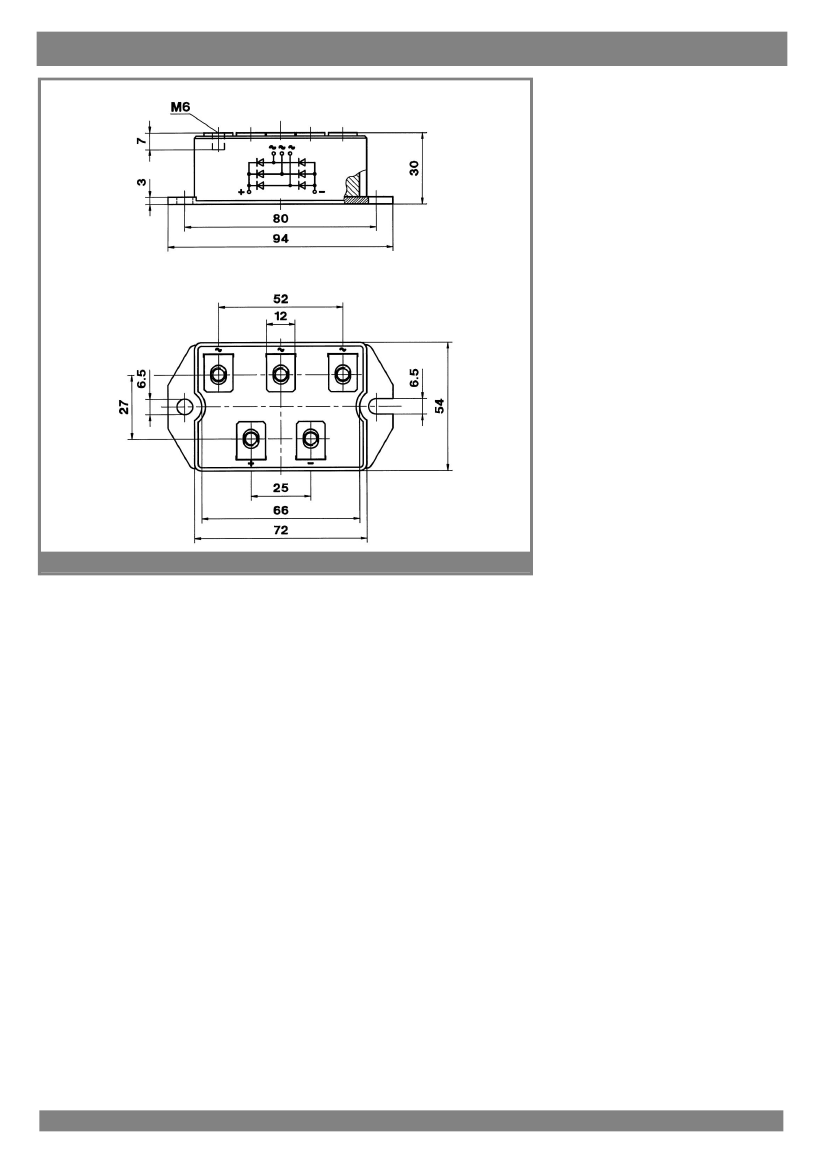

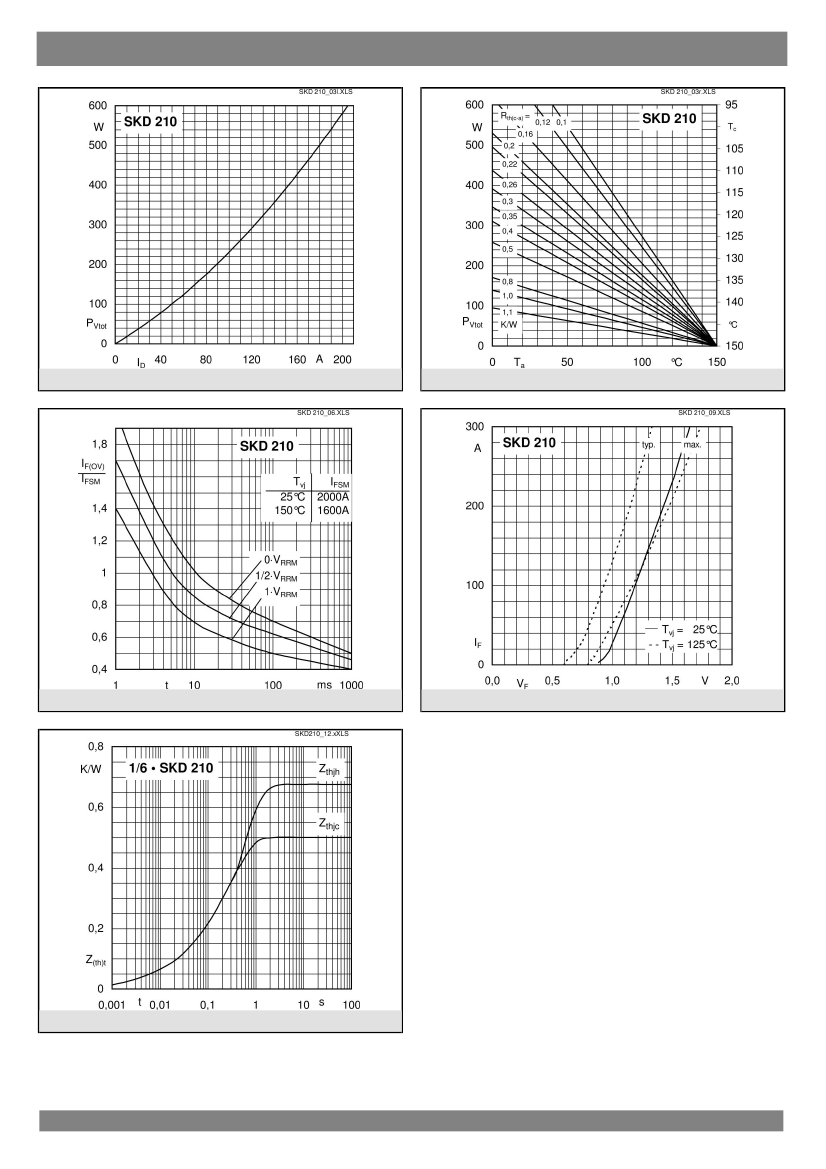

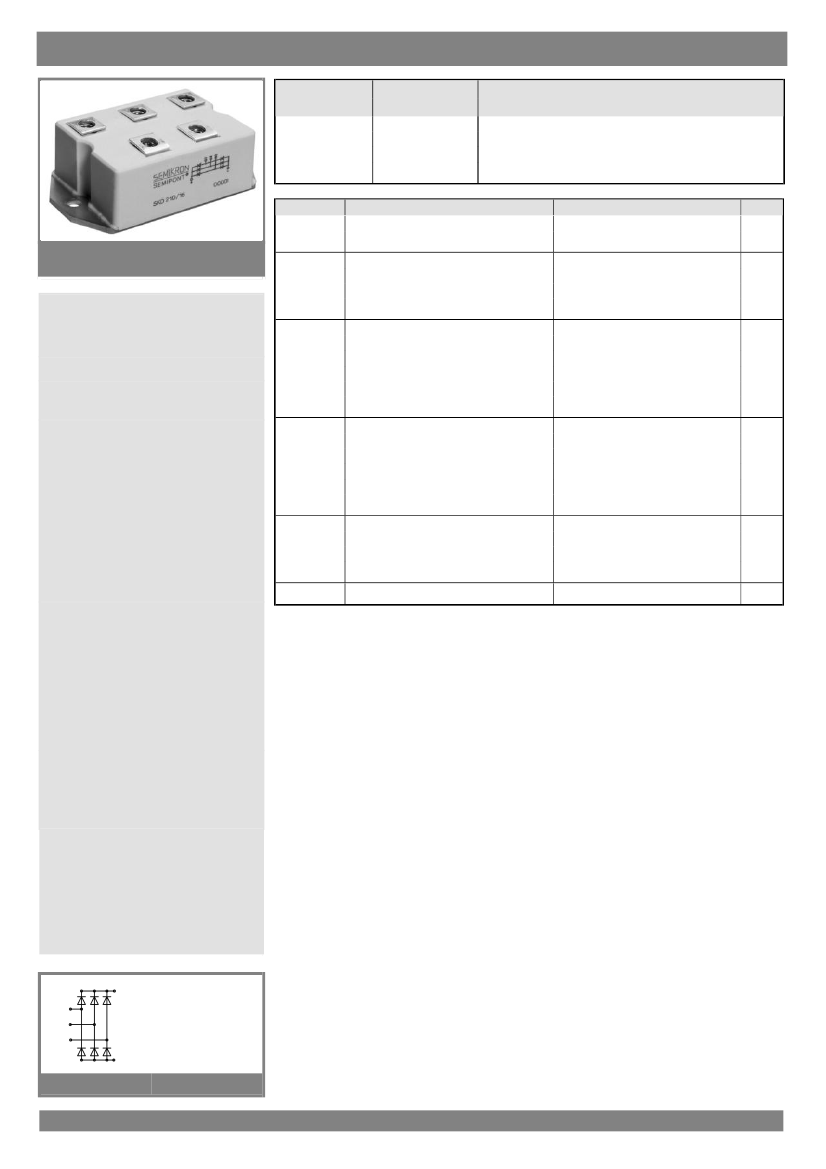

SKD 210

Symbol

Conditions

Values

Units

SEMIPONT

Power Bridge Rectifiers

SKD 210

Preliminary Data

Features

Typical Applications

SKD

29-06-2005 NOS

SKD210 Related Products

	SKD210	SKD210/12	SKD210/08	SKD210/16	SKD210/18
Description	3 PHASE, 220 A, 1600 V, SILICON, BRIDGE RECTIFIER DIODE	3 PHASE, 220 A, 1600 V, SILICON, BRIDGE RECTIFIER DIODE	3 PHASE, 220 A, 1600 V, SILICON, BRIDGE RECTIFIER DIODE	3 PHASE, 220 A, 1600 V, SILICON, BRIDGE RECTIFIER DIODE	3 PHASE, 220 A, 1600 V, SILICON, BRIDGE RECTIFIER DIODE
Number of terminals	5	5	5	5	5
Number of components	6	6	6	6	6
Terminal form	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Terminal location	UPPER	UPPER	UPPER	UPPER	UPPER
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
Phase	3	3	3	3	3
Maximum repetitive peak reverse voltage	1600 V	1200 V	800 V	1600 V	1800 V
Maximum non-repetitive peak forward current	1600 A	1600 A	1600 A	1600 A	1600 A
Is it lead-free?	-	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	-	conform to	conform to	conform to	conform to
Maker	-	SEMIKRON	SEMIKRON	SEMIKRON	-
package instruction	-	R-PUFM-X5	R-PUFM-X5	R-PUFM-X5	R-PUFM-X5
Contacts	-	5	5	5	5
Manufacturer packaging code	-	CASE G 37	CASE G 37	CASE G 37	CASE G 37
Reach Compliance Code	-	compli	compli	compli	compli
Other features	-	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED
Configuration	-	BRIDGE, 6 ELEMENTS	BRIDGE, 6 ELEMENTS	BRIDGE, 6 ELEMENTS	BRIDGE, 6 ELEMENTS
Maximum forward voltage (VF)	-	1.65 V	1.65 V	1.65 V	1.65 V
JESD-30 code	-	R-PUFM-X5	R-PUFM-X5	R-PUFM-X5	R-PUFM-X5
JESD-609 code	-	e3/e4	e3/e4	e3/e4	e3/e4
Maximum operating temperature	-	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-	-40 °C	-40 °C	-40 °C	-40 °C
Maximum output current	-	220 A	220 A	220 A	220 A
Package body material	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	-	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	-	NO	NO	NO	NO
Terminal surface	-	TIN/SILVER	TIN/SILVER	TIN/SILVER	TIN/SILVER
Maximum time at peak reflow temperature	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
