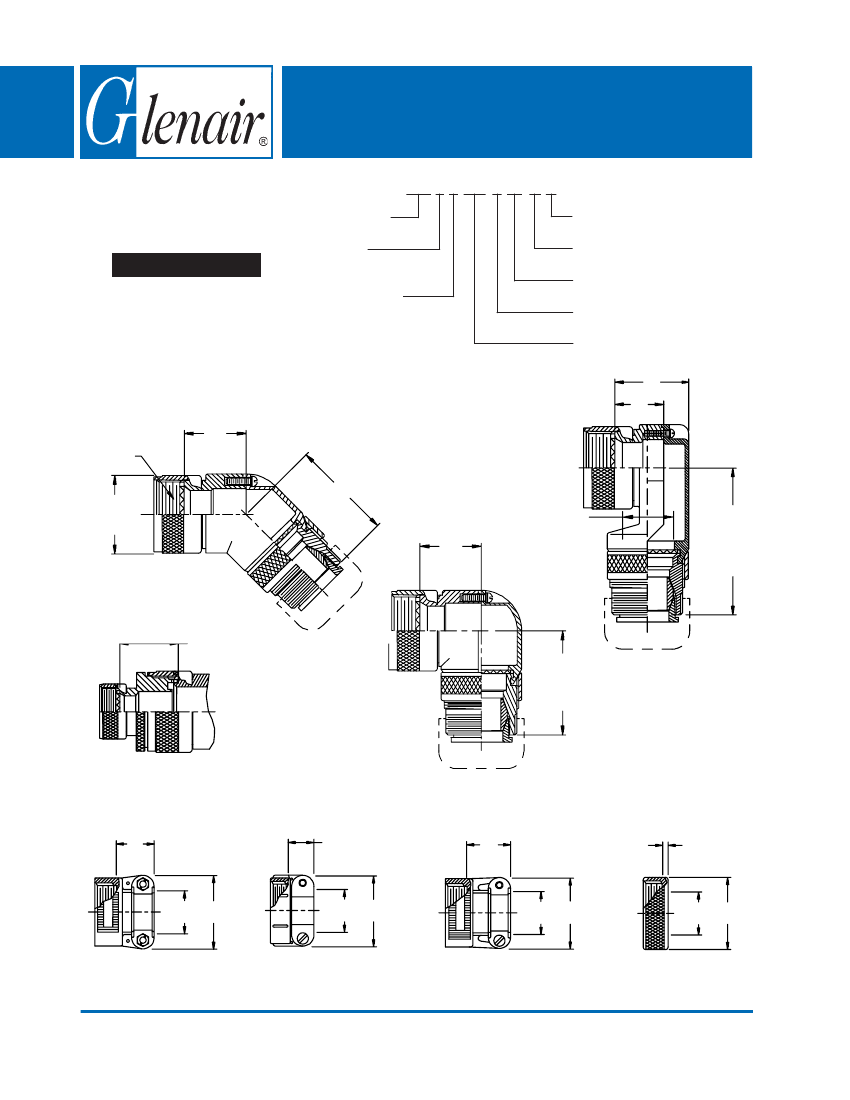

380-105
EMI/RFI Non-Environmental Backshell
with Strain Relief
Type F - Self-Locking - Rotatable Coupling - Split Shell
38
CONNECTOR
DESIGNATORS
380 F D 105 M 24 12 A
Product Series
Connector
Designator
Angle and Profile
C = Ultra-Low Split 90°
D = Split 90°
F = Split 45° (Note 4)
Strain Relief Style (H, A, M, D)
Cable Entry (Table X, XI)
Shell Size (Table I)
Finish (Table II)
Basic Part No.
M
(Table III)
K
(Table III)
A-F-H-L-S
SELF-LOCKING
ROTATABLE
COUPLING
TYPE F INDIVIDUAL
AND/OR OVERALL
SHIELD TERMINATION
A Thread
(Table I)
F
(Table III)
G (Table III)
E Typ.
(Table I)
Ultra Low-
Profile Split
90°
H
(Table III)
Max
Wire
Bundle
(Table III,
Note 1)
L
(Table
III)
Split
45°
1.00 (25.4)
Max
Split
90°
STYLE 2
(See Note 1)
STYLE H
Heavy Duty
(Table X)
T
J
(Table
III)
STYLE A
Medium Duty
(Table XI)
W
STYLE M
Medium Duty
(Table XI)
X
STYLE D
Medium Duty
(Table XI)
.135 (3.4)
Max
Cable
Range
V
Cable
Range
Y
Cable
Range
Y
Cable
Entry
Z
© 2005 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 38 - Page 122
with Strain Relief
Type F - Self-Locking - Rotatable Coupling - Split Shell
TABLE III ELBOW DIMENSIONS
F
Shell
Max
Size
08/09 .596 (15.1)
10/11 .656 (16.7)
12/13 .716 (18.2)
14/15 .776 (19.7)
16/17 .836 (21.2)
18/19 .906 (23.0)
20/21 .976 (24.8)
22/23 1.036 (26.3)
24/25 1.096 (27.8)
G
Max
1.590 (40.4)
1.650 (41.9)
1.720 (43.7)
1.750 (44.5)
1.850 (47.0)
1.910 (48.5)
1.970 (50.0)
2.030 (51.6)
2.090 (53.1)
H
Max
.836 (21.2)
.906 (23.0)
.966 (24.5)
1.026 (26.1)
1.086 (27.6)
1.156 (29.4)
1.216 (30.9)
1.276 (32.4)
1.336 (33.9)
J
Max
1.530 (38.9)
1.590 (40.4)
1.660 (42.2)
1.690 (42.9)
1.790 (45.5)
1.850 (47.0)
1.910 (48.5)
1.970 (50.0)
2.030 (51.6)
K
Max
.496 (12.6)
.426 (10.8)
.426 (10.8)
.436 (11.1)
.576 (14.6)
.796 (20.2)
.796 (20.2)
.696 (17.7)
.696 (17.7)
L
Max
1.780 (45.2)
1.940 (49.3)
1.940 (49.3)
2.010 (51.1)
2.060 (52.3)
2.090 (53.1)
2.090 (53.1)
2.240 (56.9)
2.240 (56.9)
M
Function C Max
Max
Wire Bundle
.837 (21.3)
.250 (6.4)
.887 (22.5)
.375 (9.5)
.887 (22.5)
.375 (9.5)
.987 (25.1)
.500 (12.7)
1.137 (28.9)
.625 (15.9)
1.337 (34.0)
.625 (15.9)
1.337 (34.0)
.625 (15.9)
1.337 (34.0)
.750 (19.1)
1.337 (34.0)
.750 (19.1)
TABLE X: CABLE ENTRY
Cable Range
Dash
T
V
Max
No.
Max
Min
Max
.957 (24.3)
.780 (19.8)
.125 (3.2) .312 (7.9)
04
.250 (6.4) .437 (11.1)
06
.780 (19.8) 1.145 (29.1)
08
.780 (19.8) 1.332 (33.8)
.312 (7.9) .562 (14.3)
.350 (8.9) .625 (15.9)
10
.780 (19.8) 1.332 (33.8)
12
.811 (20.6) 1.551 (39.4)
.500 (12.7) .750 (19.1)
.905 (23.0) 1.770 (45.0)
.625 (15.9) .937 (23.8)
16
20
1.092 (27.7) 2.113 (53.7)
.875 (22.2) 1.250 (31.8)
1.124 (28.5) 2.363 (60.0) 1.000 (25.4) 1.375 (34.9)
24
28
1.399 (35.5) 2.770 (70.4) 1.250 (31.8) 1.625 (41.3)
32
1.399 (35.5) 3.020 (76.7) 1.437 (36.5) 1.875 (47.6)
TABLE II: STANDARD FINISHES
GLENAIR
SYMBOL
B
M
NF
FINISH
Cadmium Plate, Olive Drab
Electroless Nickel
Cadmium Plate, Olive Drab
Over Electroless Nickel
See Inside Back Cover
for Additional Finish Options
See inside back cover
fold-out or pages 13 and
14 for unabridged
Tables I and II.
TABLE XI: CABLE ENTRY
Dash
W
Z
Y
X
Cable Range
No.
Max
Max
Max
Max
Max
Min **
03* .437 (11.1) .760 (19.3) .843 (21.4)
.630 (16.0) .156 (4.0) .250 (6.4)
04* .437 (11.1) .760 (19.3) .906 (23.0)
.755 (19.2) .188 (4.8) .312 (7.9)
06* .500 (12.7) .760 (19.3) 1.093 (27.8)
.942 (23.9) .281 (7.1) .438 (11.1)
08
.563 (14.3) .760 (19.3) 1.187 (30.1) 1.067 (27.1) .344 (8.7) .562 (14.3)
10
.563 (14.3) .760 (19.3) 1.281 (32.5) 1.192 (30.3) .375 (9.5) .625 (15.9)
12
.563 (14.3) .760 (19.3) 1.500 (38.1) 1.380 (35.1) .438 (11.1) .750 (19.1)
16
.656 (16.7) 1.073 (27.3) 1.719 (43.7) 1.535 (39.0) .562 (14.3) .938 (23.8)
20
.656 (16.7) 1.323 (33.6) 2.062 (52.4) 1.848 (46.9) .750 (19.1) 1.250 (31.8)
24
.656 (16.7) 1.323 (33.6) 2.312 (58.7) 2.255 (57.3) .781 (19.8) 1.375 (34.9)
28 1.188 (30.2) 1.572 (39.9) 2.719 (69.1) 2.505 (63.6) .969 (24.6) 1.625 (41.3)
32* 1.187 (30.1) 1.572 (39.9) 2.969 (75.4) 2.755 (70.0) 1.125 (28.6) 1.875 (47.6)
40* 1.125 (28.6) 1.572 (39.9) 3.531 (89.7) 3.255 (82.7) 1.469 (37.3) 2.375 (60.3)
* Not available in Style M clamp.
** Not Applicable Style D
1. When maximum cable entry (page 21) is exceeded, Style 2 will be supplied (not available in
Function C). Dimensions F, G, H and J will not apply. Please consult factory.
2. Metric dimensions (mm) are indicated in parentheses.
3. Cable range is defined as the accommodations range for the wire bundle or cable.
Dimensions shown are not intended for inspection criteria.
4. Consult factory for available sizes of 45° (Function F).
5. Angular function "C", low-profile split elbow, not available with "S" connector designator.
© 2005 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 38 - Page 123
