39514-0509

Description
Pluggable Terminal Blocks 3.81MM EUROPLUG RA ME BLK AU 9CKT
CategoryThe connector
File Size29KB,1 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

39514-0509 Online Shopping

Suppliers Part Number Price MOQ In stock
39514-0509 - - View Buy Now

39514-0509 Overview

Pluggable Terminal Blocks 3.81MM EUROPLUG RA ME BLK AU 9CKT

39514-0509 Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerMolex
Product CategoryPluggable Terminal Blocks
RoHSDetails
ProductPlugs
Number of Positions9 Position
Pitch3.81 mm
Current Rating8 A
Voltage Rating300 V
Wire Gauge Range24 AWG to 16 AWG
Mounting AngleHorizontal
Factory Pack Quantity320
Wire Gauge Max16 AWG
Wire Gauge Min24 AWG

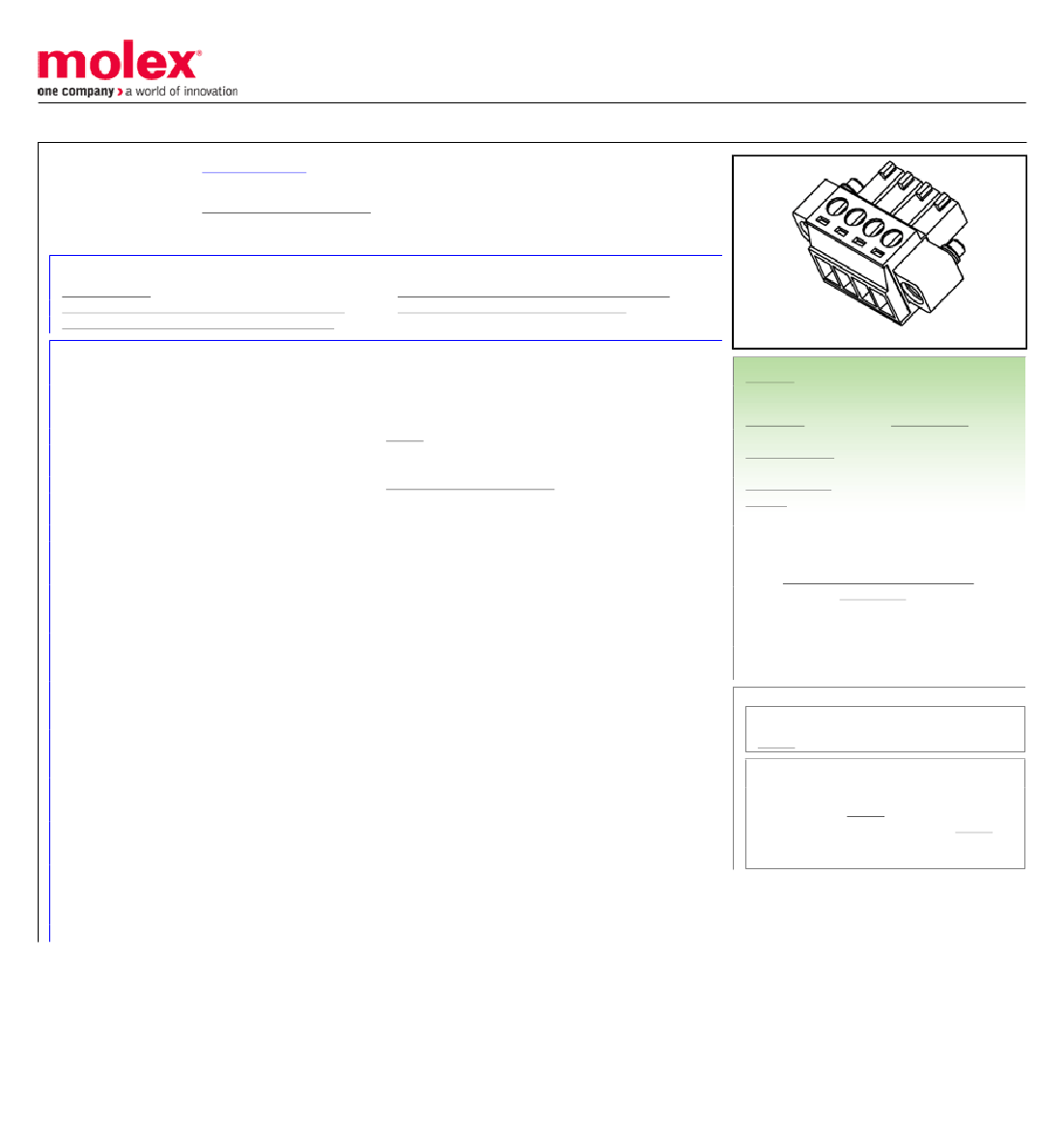

This document was generated on 10/11/2017
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0395140509
Active
Eurostyle™ Terminal Blocks
3.81mm Pitch Eurostyle Horizontal Plug, with Retention Screws, Gold (Au) Plated, 9
Circuits
Documents:
Drawing (PDF)
Product Specification PS-39500-001-001 (PDF)
Packaging Specification PK-39500-001 (PDF)
Agency Certification
UL
General
Product Family
Series
Application
Component Type
Overview
Product Name
Type
UPC
Physical
Circuits (Loaded)
Entry Angle
Lock to Mating Part
Number of Rows
Orientation
Panel Mount
Pitch - Mating Interface
Pitch - Termination Interface
Polarized to Mating Part
Stackable
Temperature Range - Operating
Wire Size AWG
Wire Size mm²
Electrical
Current - Maximum per Contact
Voltage - Maximum
Material Info
Reference - Drawing Numbers
Packaging Specification
Product Specification
Sales Drawing
Packaging Specification PK-39514-001 (PDF)
RoHS Certificate of Compliance (PDF)
Series image - Reference only
E48521
Terminal Blocks
39514
N/A
Plug
Eurostyle™ Terminal Blocks
ESE, Eurostyle Pluggable
Euro Block
822350689533
9
Vertical
Yes
1
Horizontal
No
3.81mm
3.81mm
Yes
No
-40°C to +105°C
16, 18, 20, 22, 24
0.20-1.31
8.0A
300V
EU ELV
Not Relevant
EU RoHS
China RoHS
Not Reviewed
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
Please visit the Contact Us section for any
non-product compliance questions.
China ROHS
ELV
RoHS Phthalates
Not Relevant
Not Relevant
Not Reviewed
Search Parts in this Series
39514 Series
Mates With
Most 3.81mm Pitch Industry Standard
PCB Headers, 39515 Vertical PCB Header
with Threaded Retention Inserts, 39516
Horizontal PCB Header with Threaded
Retention Inserts
PK-39500-001, PK-39514-001
PS-39500-001-001
SD-39514-001
This document was generated on 10/11/2017
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
