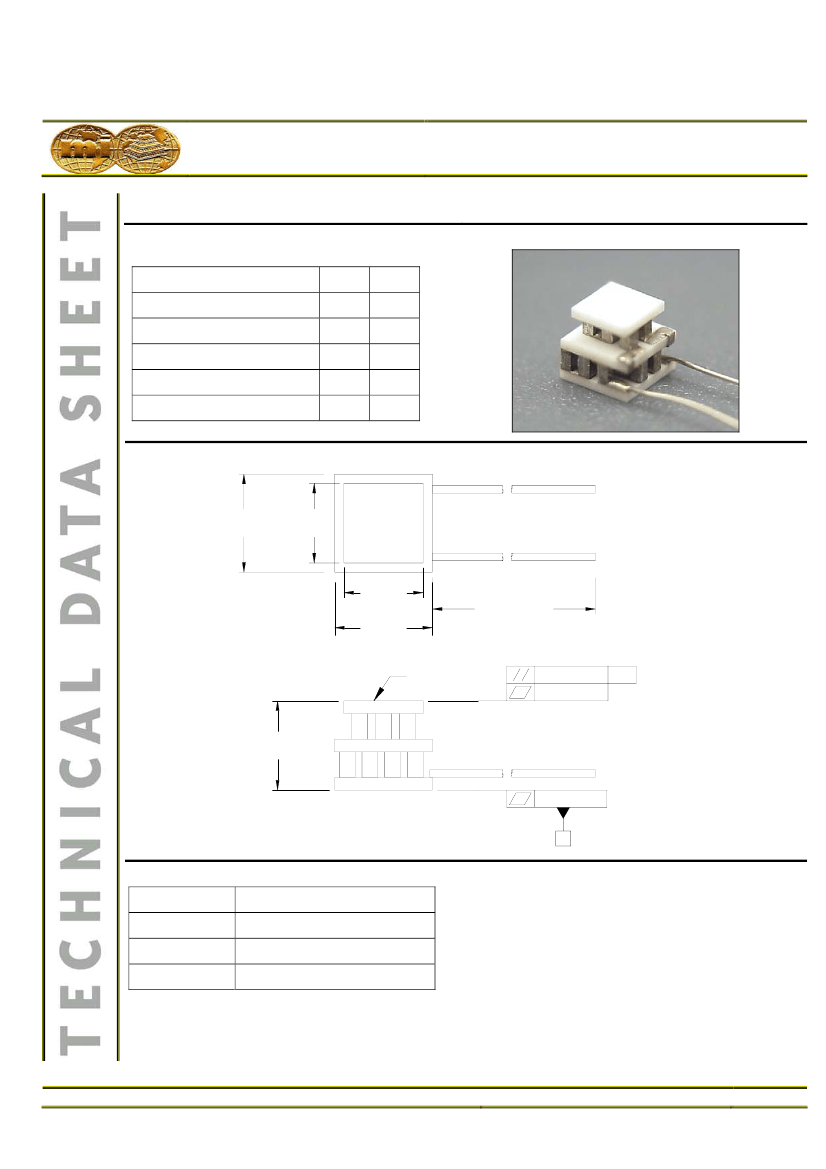

Thermoelectric Cooler NL2022T
Performance Values
Hot Side Temperature (°C)
Δ
Tmax (°C-dry N
2
):
Qmax (watts):
Imax (amps):
Vmax (vdc):
AC Resistance (ohms):
27°C
78
0.39
1.4
0.8
0.56
50°C
89
0.44
1.4
1.0
---
RoHS 2002/95/EC Compliant
Mechanical Characteristics
Positive Lead
.156
[3.96]
.125
[3.18]
Leads: 28 AWG (0.32) Bus
Solid Tinned Copper
Negative Lead
.125
[3.18]
.156
[3.96]
2.00 +/-.25
[50.80+/-6.35]
Cold Side
.003 [0.08]
.001 [0.03]
A
Parallelism
Flatness
.149+/-.007
[3.78 +/-0.18]
.001 [0.03]
Ceramics: Aluminum oxide (AC)
Dimensions in inches and [mm].
A
Ordering Options
Model Number
NL2022T-01
NL2022T-02
NL2022T-03
Description
both surfaces are metallized
hot side exterior is metallized
no metallization
Features
•
•
RoHS 2002/95/EC compliant
For example, and NL2022T with only the hot side
metallized is specified as an NL2022T-02AC
Available Modifications
•
•
•
Pretinned metallized ceramic surface(s) with 117°C
solder.
Thermistor mounted on edge of cold side ceramic.
(Calibration available.)
Elevated temperature burn-in with test data
provided.
Doc # 102-0302
Rev B
Page 1 of 2
214-340-4900 (tel)
●
214-341-5212 (fax)
●
www.marlow.com
marlow
industries
Subsidiary of II-VI Incorporated
a global leader in thermoelectric solutions

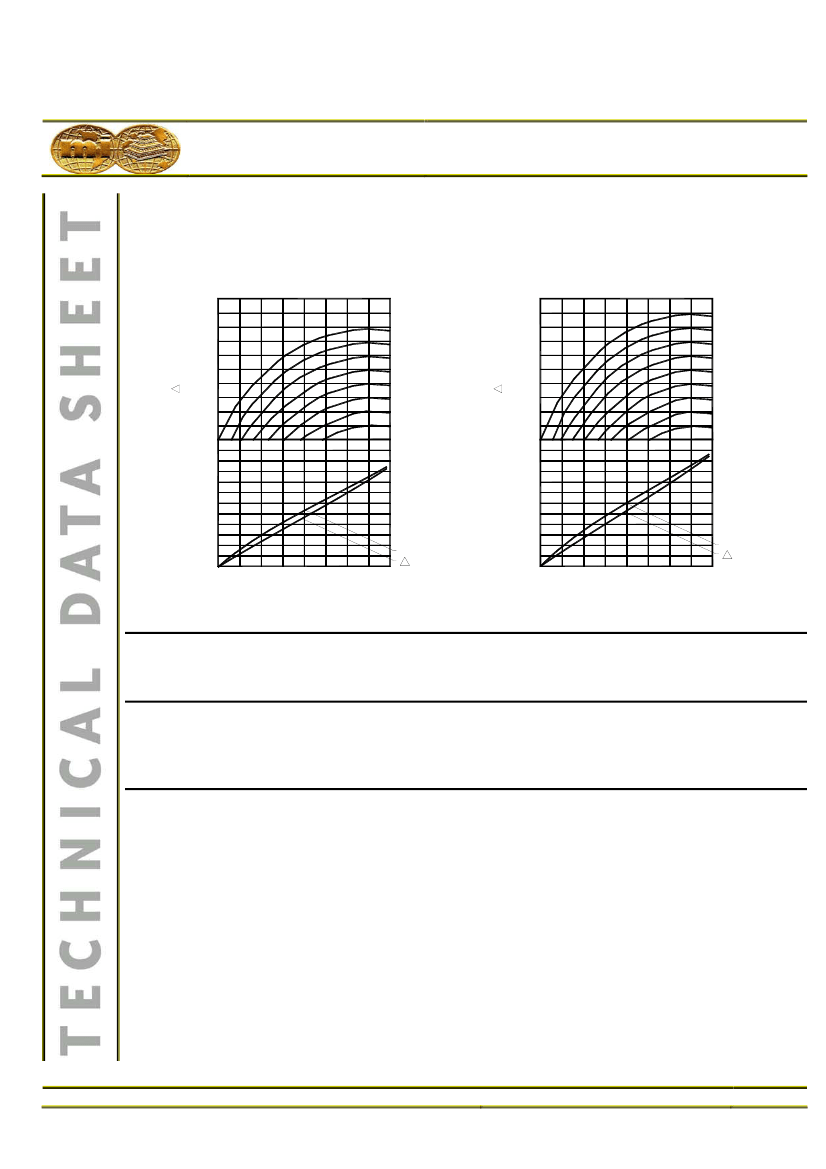

Performance Curves
Environment: One atmosphere dry nitrogen
Hot Side Temperature: 27°C
100.0
80.0
T (C)
60.0
40.0
20.0
0.0
VOLTAGE (VDC)
0.8
0.6
0.4
0.2
0.0
0.0
0.4
0.8
1.2
CURRENT (AMPS)
1.6
Q=0
T=0
VOLTAGE (VDC)
1.0
HEAT
LOAD
(WATTS)
0.00
0.05
0.10
0.15
0.20
0.25
0.30
0.35
100.0
80.0
T (C)
60.0
40.0
20.0
0.0
1.0
0.8
0.6
0.4
0.2
0.0
0.0
0.4
0.8
1.2
CURRENT (AMPS)
1.6
Q=0
T=0
Hot Side Temperature: 50°C
HEAT
LOAD
(WATTS)
0.00
0.05
0.10
0.15
0.20
0.25
0.30
0.35
0.40
For performance information in a vacuum or with hot side temperatures other than 27°C or 50°C, consult one of our Applications
Engineers.
Installation
Recommended mounting methods: Bonding with thermal epoxy or soldering with metallized ceramics. For
additional information, please refer to our TEC Installation Guide.
Operation Cautions
For maximum reliability, storage and operation below 85°C in a non-condensing environment is
recommended. To minimize thermal stress, use linear/proportional temperature control or a similar method
rather than an ON/OFF method.
Addresses
Marlow Industries, Inc.
10451 Vista Park Road
Dallas Texas 75238-1645
214-340-4900 (tel)
214-341-5212 (fax)
II-VI Japan Inc.
WBG Marive East 17F
2-6 Nakase, Mihama-ku
Chiba-Shi, Chiba 261-7117
Japan
81 43 297 2693 (tel)
81 43 297 3003 (fax)
center@ii-vi.co.jp
www.ii-vi.co.jp
Marlow Industries Europe
Aberdeen House, South Road
Haywards Heath
West Sussex RH164NG UK
+44 (0)1444-443404 (tel)
+44 (0)1444-443334(fax)
Marlow Industries China, II-VI
Technologies Beijing
A subsidiary of II-VI Incorporated
II-VI Singapore Pte., Ltd.
Blk. 5012, Techplace II
#04-07 & 05-07/12, Ang Mo Kio Ave. 5
Singapore 569876
(65) 6481 8215 (tel)
(65) 6481 8702 (fax)
info@ii-vi.com.sg
www.ii-vi.com.sg
Rm 202, 1# Lize 2nd Middle Road
Wangjing, Chaoyang District
Beijing 100102 China
64391260 ext 105 (tel)
64399315 (fax)
info@iivibj.com
Doc # 102-0302
Rev B
Page 2 of 2
214-340-4900 (tel)
●
214-341-5212 (fax)
●
www.marlow.com
