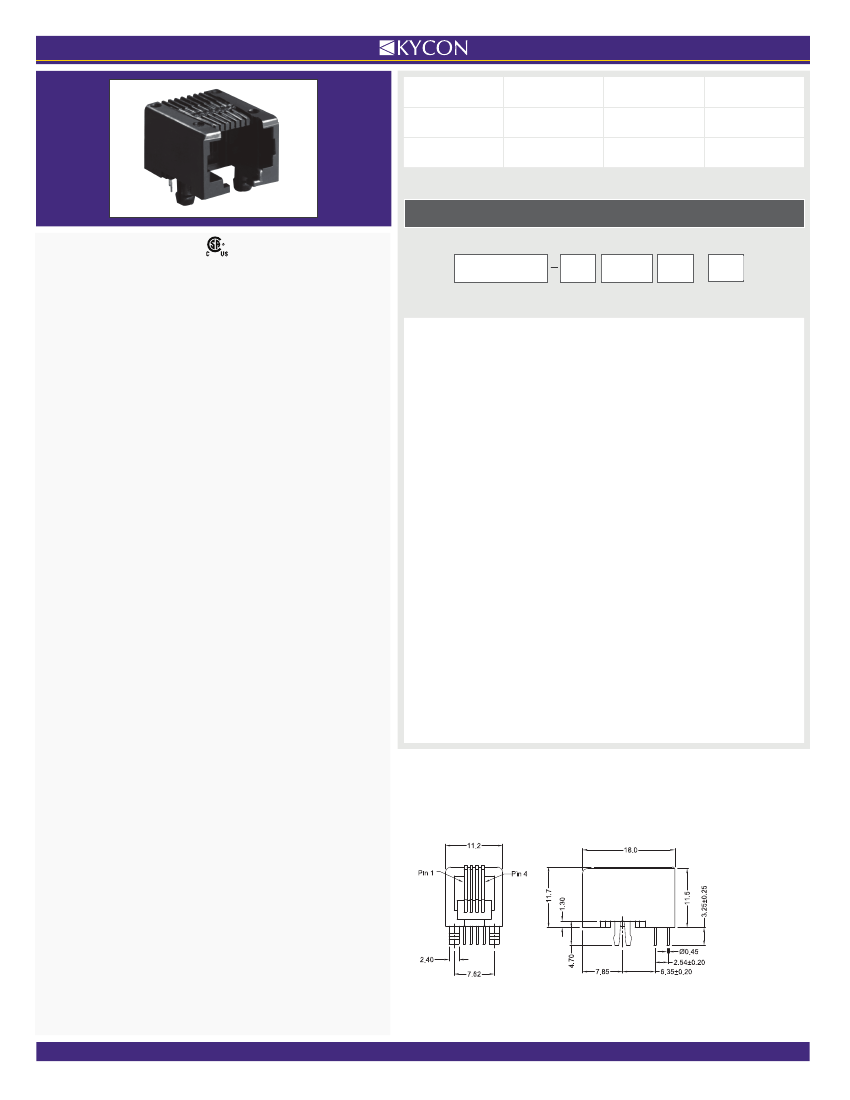

MODULAR JACKS AND PLUGS: GMX Series
Right Angle Modular Jack, Low Profile
Product Features
0.45” Height
Low Profile Design Suitable for PC Add-On Board Applications
Snap in Board Retention Tabs
Available in 4, 6, 8, and 10 Position Housings
Available Fully Shielded for EMI/RFI Protection
CSA/NRTL Certified File No. LR78160
GMX
Series
N
Shield
Option
44
No. of
Positions
& Contacts
Keyed
Options
Plating
Options
Series
GMX
- Right Angle, PCB Mount
Shield Options
N
- Non-Shielded
S
- Fully Shielded
(Available with 6 -10 Positions)
S2
-
Shielded with Grounding Tab
(Available with only 8 Positions)
S7
-
Shielded with Side & Top Grounding
(Available with only 8 Positions)
Number of Positions / Contacts
44
- 4 Positions / 4 Contacts
( only with N Option)
64
- 6 Positions / 4 Contacts
66
- 6 Positions / 6 Contacts
88
- 8 Positions / 8 Contacts
1010
- 10 Positions / 10 Contacts
Keyed Option
Blank
- Not Keyed
Performance Specifications
Materials and Finish
Housing Material
PBT Thermoplastic, UL 94V-0 Rated, Black Color
Shield Material
Copper Alloy, Nickel Plated
Contact Material
Phosphor Bronze
Electrical Characteristics
Insulation Resistance
500 Megohms Min.
Dielectric Withstanding Voltage
1000V RMS, 60Hz
Contact Resistance
20 milliohms Max.
Current Rating
1.5A
Voltage Rating
125V DC
Operating Temperature
-40°C to +85°C
Durability
500 Mating Cycles Min.
Plating Option
Blank
- Gold Flash
50
- 50µ" Gold Plating
Contact Kycon for Other Options
GMX Series
Dimensions in mm
GMX-N-44-x
