CEP1311: DescriptionTELECOM TRANSFORMER; CategoryPower/power management; File Size149KB，2 Pages; ManufacturerSUMIDA; Websitehttp://www.sumida.com/

Download Datasheet Parametric View All

CEP1311 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CEP1311	-	-	View	Buy Now

CEP1311 Overview

TELECOM TRANSFORMER

CEP1311 Parametric

Parameter Name	Attribute value
Processing package description	ROHS COMPLIANT
EU RoHS regulations	Yes
state	Active
Transformer type	TELECOM TRANSFORMER
Manufacturer Series	CEP
Installation features	SURFACE MOUNT
Dimensions	13.5mm X 17.7mm X 12.3mm
heigh	12.3 mm
length	13.5 mm
width	17.7 mm
dditional_feature	BREADTH AND HEIGHT DIM INCLUDES TERMINALS ALSO, TURNS RATIO 2:1

Preview

Download Datasheet

View All

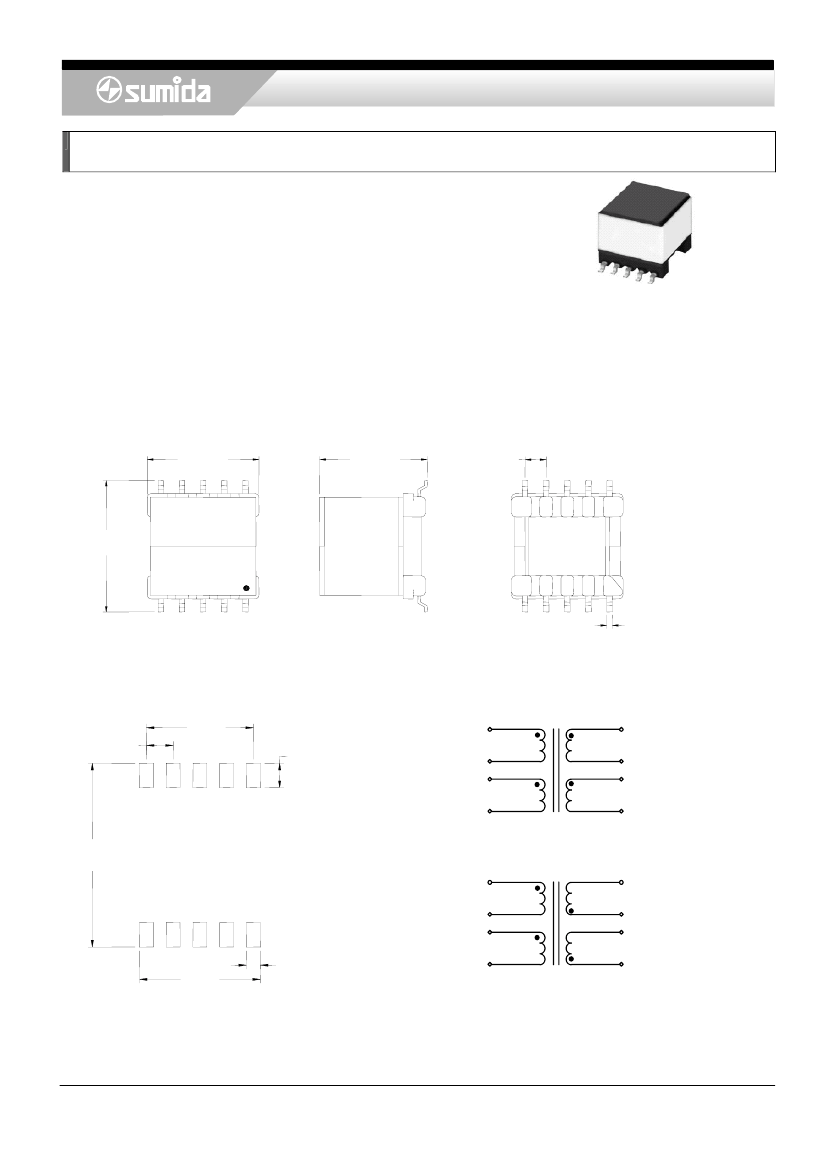

ADSL Transformer< SMD Type: CEP Series>

Type: CEP1311

◆

Product Description

・17.7×13.5mm

Max.(L×W),12.3mm Max. Height.

◆

Feature

・xDSL

line transformer.

・Ideally

used in ADSL customer premises equipment, SHDSL&HDSL, splitter and VDSL.

・Approved

by TI, Silicon Labs, Broadcom and Conexant.

・RoHS

Compliance.

◆

Dimensions (mm)

13.5 MAX

[.531]

6

10

12.3 MAX

[.484]

8x2.5±0.25

[.098±.010]

10

6

sumida

17.7 MAX

[.697]

Part Number

Country of Origin

Date Code

5

1

5

10x0.65±0.20

[.026±.008]

◆

Land Pattern (mm)

10.0

[.394]

2.54

[.100]

◆Schematics(Bottom)

1

Line

2.5

[.098]

8

5

7

Chip

(A)

6

3

2

4

19.05

[.750]

1

Line

11.3

[.445]

1.3

[.051]

8

5

7

Chip

6

(B)

3

2

4

Please refer to the sales offices on our website for a representative near you

www.sumida.com

1/2
