54201000N-B

Description
Automotive Connectors 10W FEMALE HOUSING BLACK 2.8MM TERM SZ
CategoryThe connector
File Size85KB，1 Pages
ManufacturerAptiv
Environmental Compliance
Download Datasheet Parametric Compare View All

54201000N-B Online Shopping

Suppliers Part Number Price MOQ In stock
54201000N-B - - View Buy Now

54201000N-B Overview

Automotive Connectors 10W FEMALE HOUSING BLACK 2.8MM TERM SZ

54201000N-B Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerAptiv
Product CategoryAutomotive Connectors
RoHSDetails
ProductConnectors
Number of Positions10 Position
GenderFemale
Mounting StyleWire
PackagingBulk
ApplicationWire to Wire
ColorBlack
Description/Function10 Female, Connector, APEX 2.8 mm, Black, Unsealed
FamilyAPEX
Housing MaterialPolyamide (PA)
MaterialUltramid A3EG7 Nylon 6/6 GF35
Mounting MethodWire
Number of Rows2 Row
TypeConnector
Locking MechanismCPA
Pitch5.25 mm
Maximum Operating Temperature+ 125 C
Minimum Operating Temperature- 40 C
Factory Pack Quantity1

Preview

Download Datasheet

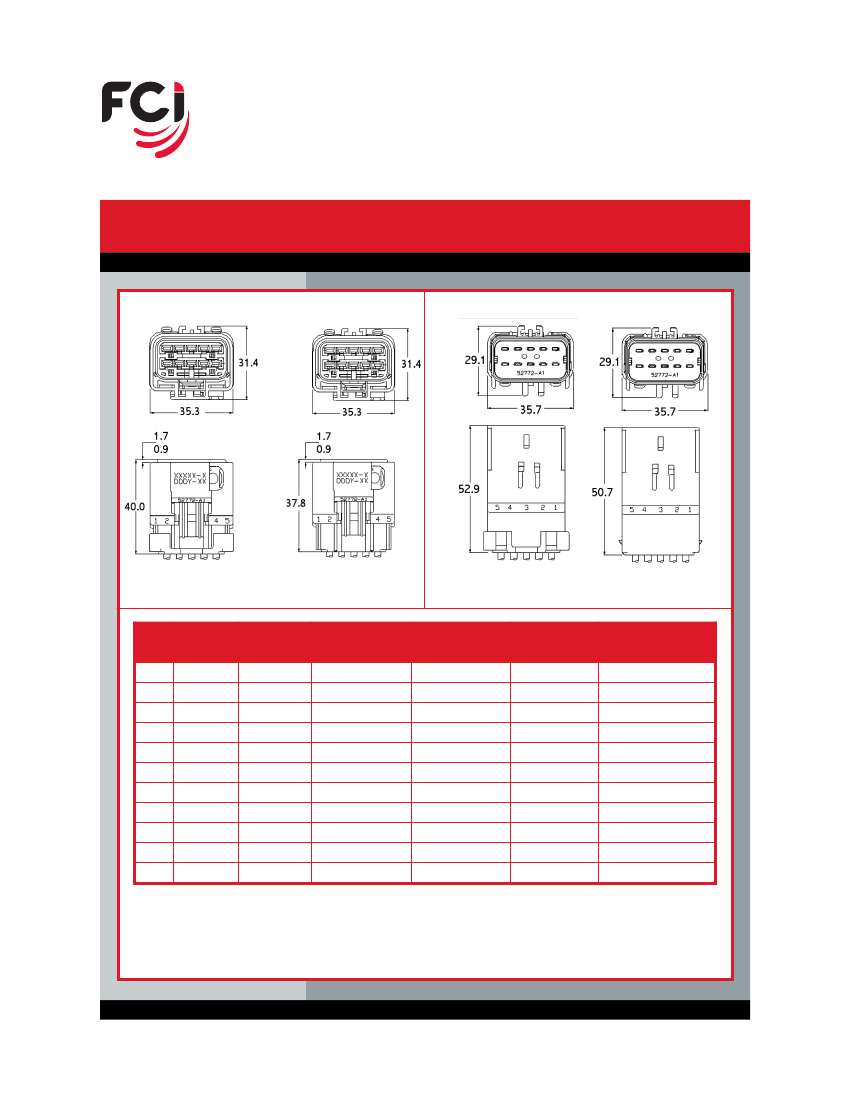

APEX 2.8
™
Connection Systems
FCI 10-Way APEX 2.8 mm Connection System
FEMALE
MALE
Sealed Assembly
Unsealed Assembly
Sealed Assembly
TEMPERATURE
RATING OF
MATERIAL
–40°C to +125°C
–40°C to +125°C
–40°C to +125°C
–40°C to +125°C
–40°C to +125°C
–40°C to +125°C
SEAL W/O HOLES
SEAL W/O HOLES
SEAL W/ O HOLES
–40°C to +125°C
SEAL W/ O HOLES
Unsealed Assembly
WIRE INSULATION
RANGE PER CAVITY
(mm)
1.70 – 3.35
1.50 – 4.09
1.70 – 3.35
1.70 – 3.35
1.50 – 4.09
1.70 – 3.35
USED AS CAP
USED AS CAP
USED AS CAP
1.50 – 4.09
USED AS CAP
INDEX
TYPE
A
A
B
C
C
G
A
A
B
B
C
HOUSING
COLOR
BLK
BLK
LT GREY
LT GRN
LT GRN
LT BRN
BLACK
BLACK
LT GREY
LT GREY
LT GRN
SEALED/
UNSEALED
SEALED
UNSEALED
SEALED
SEALED
UNSEALED
SEALED
SEALED
SEALED
SEALED
UNSEALED
SEALED
FEMALE ASSEMBLY
PART NUMBER
54201009
54201000
54201010
54201012
54201002
54201043
54201051N*
—
—
54201001
—
MALE ASSEMBLY
PART NUMBER
54201016
54201006
54201017
54201018
54201008
54201042
—
54201058*
54201024*
54201007
54201059*
* Plug for same index (A, B or C) mating connector.
Note: Female part numbers with the N suffix are without CPA latch.
Additional configurations available. Please consult sales drawing.
9

54201000N-B Related Products

54201000N-B 54201058-B 54201009 54201024 54201016-B
Description Automotive Connectors 10W FEMALE HOUSING BLACK 2.8MM TERM SZ Automotive Connectors 2.8,10W MALE NO HOLE CONNECTOR Automotive Connectors 10W FEMALE HOUSING BLACK 2.8MM TERM SZ Automotive Connectors APEX2.8 10WM NO-HOLE SLD L GRY Automotive Connectors 10W MALE HOUSING BLACK 2.8MM TERM SZ
Product Attribute Attribute Value Attribute Value Attribute Value Attribute Value Attribute Value
Manufacturer Aptiv Aptiv Aptiv Aptiv Aptiv
Product Category Automotive Connectors Automotive Connectors Automotive Connectors Automotive Connectors Automotive Connectors
Product Connectors Connectors Connectors Connectors Connectors
Number of Positions 10 Position 10 Position 10 Position 10 Position 10 Position
Gender Female Male Female Female Male
Packaging Bulk Bulk Bulk Bulk Bulk
Color Black Black Black Light Gray Black
Family APEX APEX APEX APEX APEX
Number of Rows 2 Row 2 Row 2 Row 2 Row 2 Row
Maximum Operating Temperature + 125 C + 125 C + 125 C + 125 C + 125 C
Minimum Operating Temperature - 40 C - 40 C - 40 C - 40 C - 40 C
Factory Pack Quantity 1 1 800 700 1
RoHS Details Details Details - Details
Mounting Style Wire Wire Wire - Wire
Application Wire to Wire - Wire to Wire - Wire to Wire
Description/Function 10 Female, Connector, APEX 2.8 mm, Black, Unsealed - 10 Female, Connector, APEX 2.8 mm, Black, Sealed - 10 Male, Connector, APEX 2.8 mm, Black, Sealed
Housing Material Polyamide (PA) Polyamide (PA) Polyamide (PA) - Polyamide (PA)
Material Ultramid A3EG7 Nylon 6/6 GF35 - Ultramid A3EG7 Nylon 6/6 GF35 - Ultramid A3EG7 Nylon 6/6 GF35
Type Connector - Connector - Connector
Pitch 5.25 mm - 5.25 mm - 5.25 mm
