BIR-BM13J4G
END-LOOK PACKAGE
LIGHT EMITTING DIODE
Features:
1. High radiant power and high radiant intensity.
2. Standard T-1 3/4(5mm)package.
3. Peak wavelength
λp=940nm.
4. Good spectral matching to si-photodetector.
5. Radiant angle: 20
°
Package Dimensions:
Unit:mm(inches)
1.0(.040)
Anode
Cathode
Cathode
6. Lens Appearance: Water Clear.
7. This product doesn't contain restriction
substance, comply ROHS standard
2.54(0.100) NOM
NOTES:
Applications:
1. Remote Control.
2. Automatic Control System.
1.All dimensions are in millimeters (inches).
2.Tolerance is ±0.25mm (0.01’) unless otherwise specified.
3.Lead spacing is measured where the leads emerge from the package.
4. Specifications are subject to change without notice.
Absolute Maximum Ratings(Ta=25℃)
Parameter
Power Dissipation
Continuous Forward Current
Peak Forward Current
Reverse Voltage
Operating Temperature
Storage Temperature
Soldering Temperature
*1
*1
Symbol
Pd
I
F
I
FP
V
R
Topr
Tstg
Tsol
Rating
100
100
1.0
5
-45℃~85℃
-45℃~100℃
260℃(for 5 seconds)
Unit
mW
mA
A
V
-
-
-
Condition for is I
FP
pulse of 1/10 duty and 0.1 msec width.
Rev:2.1 Page1 of 3
BRIGHT LED ELECTRONICS CORP.
SINCE 1981
BIR-BM13J4G
Optical- Electrical Characteristics
(@T
A
=25℃)
Parameter
Radiant Intensity
Forward Voltage
Reverse Current
Peak Wavelength
Spectral Line Half- Width
Viewing Angle
Symbol
Ie
V
F
I
R
λp
∆λ
2θ
1/2
Test Conditions
I
F
=50mA
I
F
=50mA
V
R
=5V
I
F
=20mA
I
F
=20mA
I
F
=20mA
Min
16.5
-
-
-
-
-
TYP
46.8
1.25
-
940
50
20
Max
-
1.5
100
-
-
-
Unit
mW/sr
V
µA
nm
nm
deg

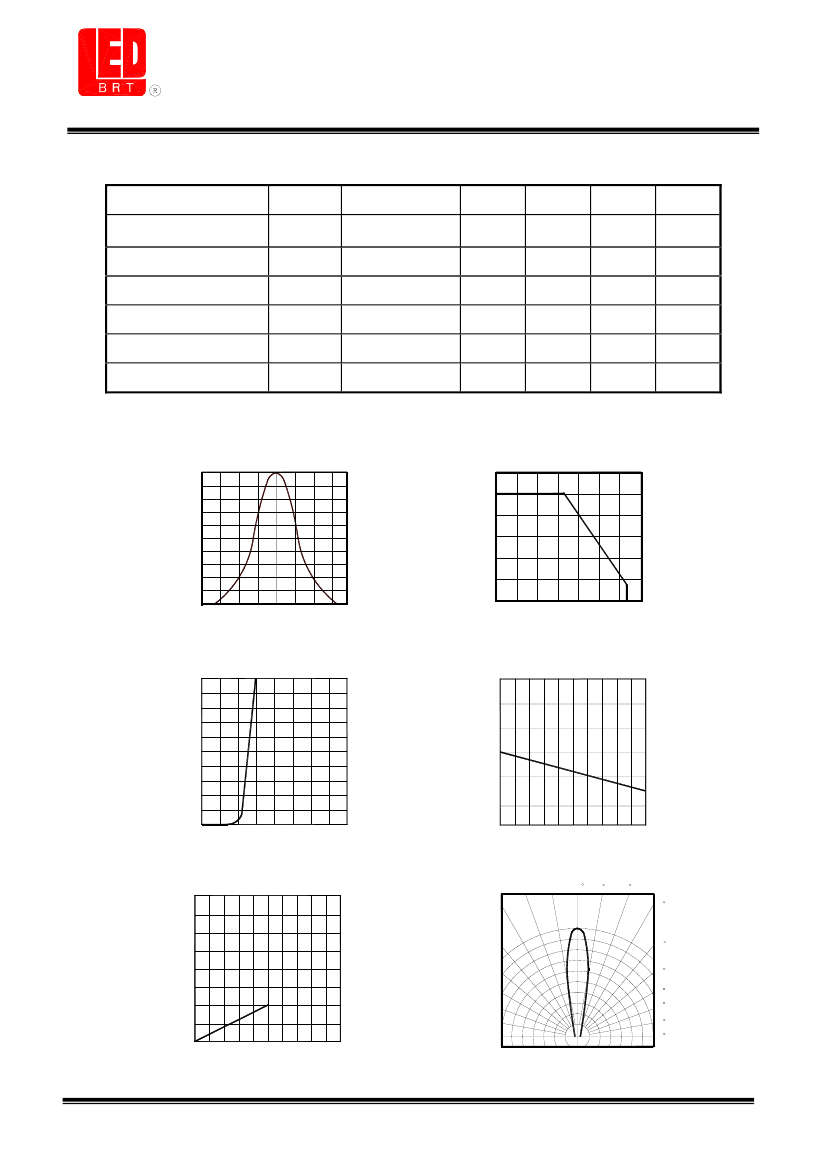

Typical Optical-Electrical Characteristic Curves
Fig.1 Spectral Dlstrbution
1.0
Fig.2 Forward Current Vs
Ambient Temperature
120
Relative Radiant Intensity
Forward Current IF (mA)
100
80
0.5
60
40
20
0
-40
-20
0
20
40
60
80
100
840
940
1040
(nm)
Wavelength
Ambient Temperature
Fig.4 Relative Radiant Intensity
Vs Ambient Tembeb Ature
Output Power To Value @50mA
3.0
Fig.3 Forward Current Vs
(mA)
100
80
2.5
Forward Current
2.0
60
1.5
40
1.0
20
0.5
0
-40
0
0
1.0
2.0
3.0
4.0
(V)
-20
0
20
40
60
(°C)
Forward Voltage
Fig.5 Relative Radiant Intensity
Vs Forward Current
4.0
Ambient Temperature
Fig.6 Radiation Diagram
0
10
20
30
Output Power Relative To
Value At @ 50mA
3.0
Relative Radiant Intensity
1.0
40
2.0
0.9
0.8
50
60
70
1.0
0.7
80
90
0.5
0.3
0.1
0.2
0.4
0.6
0
0
20
40
60
80
100
(mA)
Forward Current
Rev:2.1
Page2 of 3
BRIGHT LED ELECTRONICS CORP.
SINCE 1981
BIR-BM13J4G

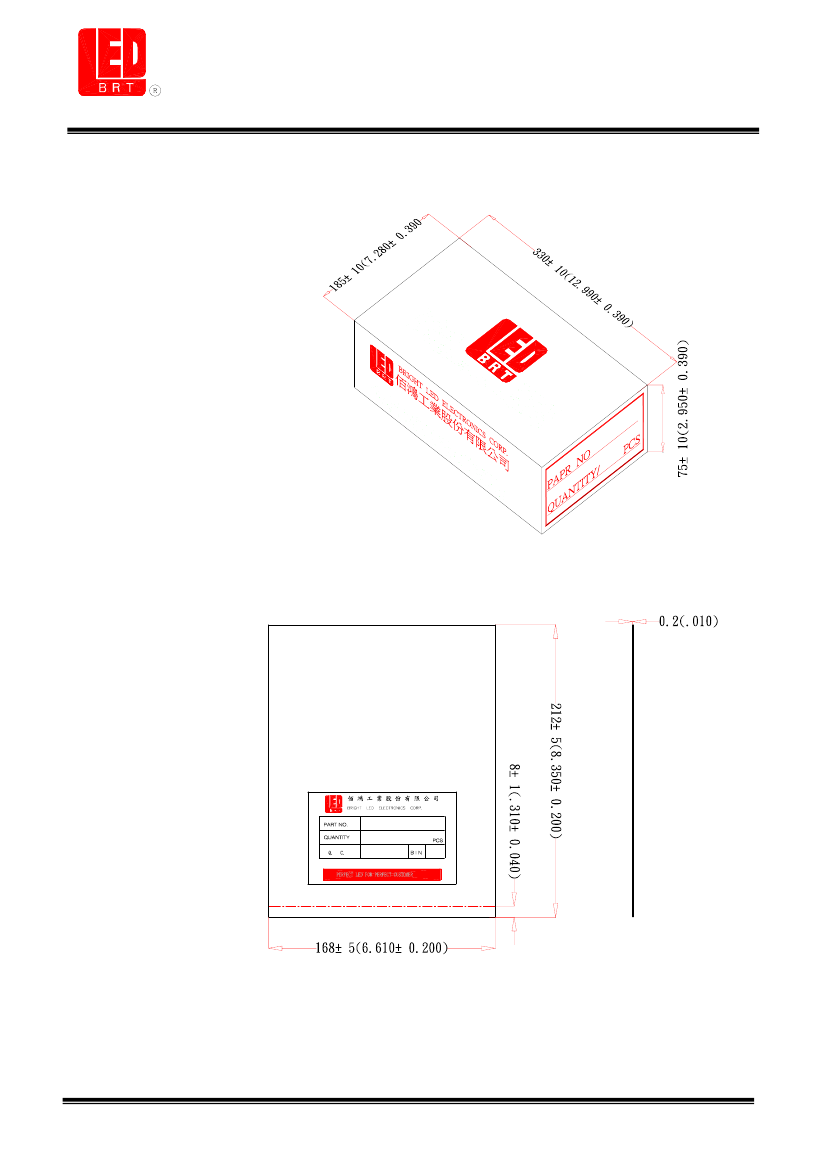

Tapping and packaging specifications(Units:
mm)
Packaging Bag Dimensions
Notes:
1、500pcs per bag, 5Kpcs per box.
2、All dimensions are in millimeters(inches).
3、Specifications are subject to change without notice.
Rev:2.1
Page3 of 3
