39501-6503 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 39501-6503

39501-6503: DescriptionPluggable Terminal Blocks 3.5MM EURO HEADER VE DER VERT GRN AU 3CKT; CategoryThe connector; File Size28KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

39501-6503 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	39501-6503	-	-	View	Buy Now

39501-6503 Overview

Pluggable Terminal Blocks 3.5MM EURO HEADER VE DER VERT GRN AU 3CKT

39501-6503 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Molex
Product Category	Pluggable Terminal Blocks
RoHS	Details
Product	Headers
Number of Positions	3 Position
Pitch	3.5 mm
Current Rating	8 A
Voltage Rating	300 V
Mounting Angle	Vertical
Factory Pack Quantity	1280

Preview

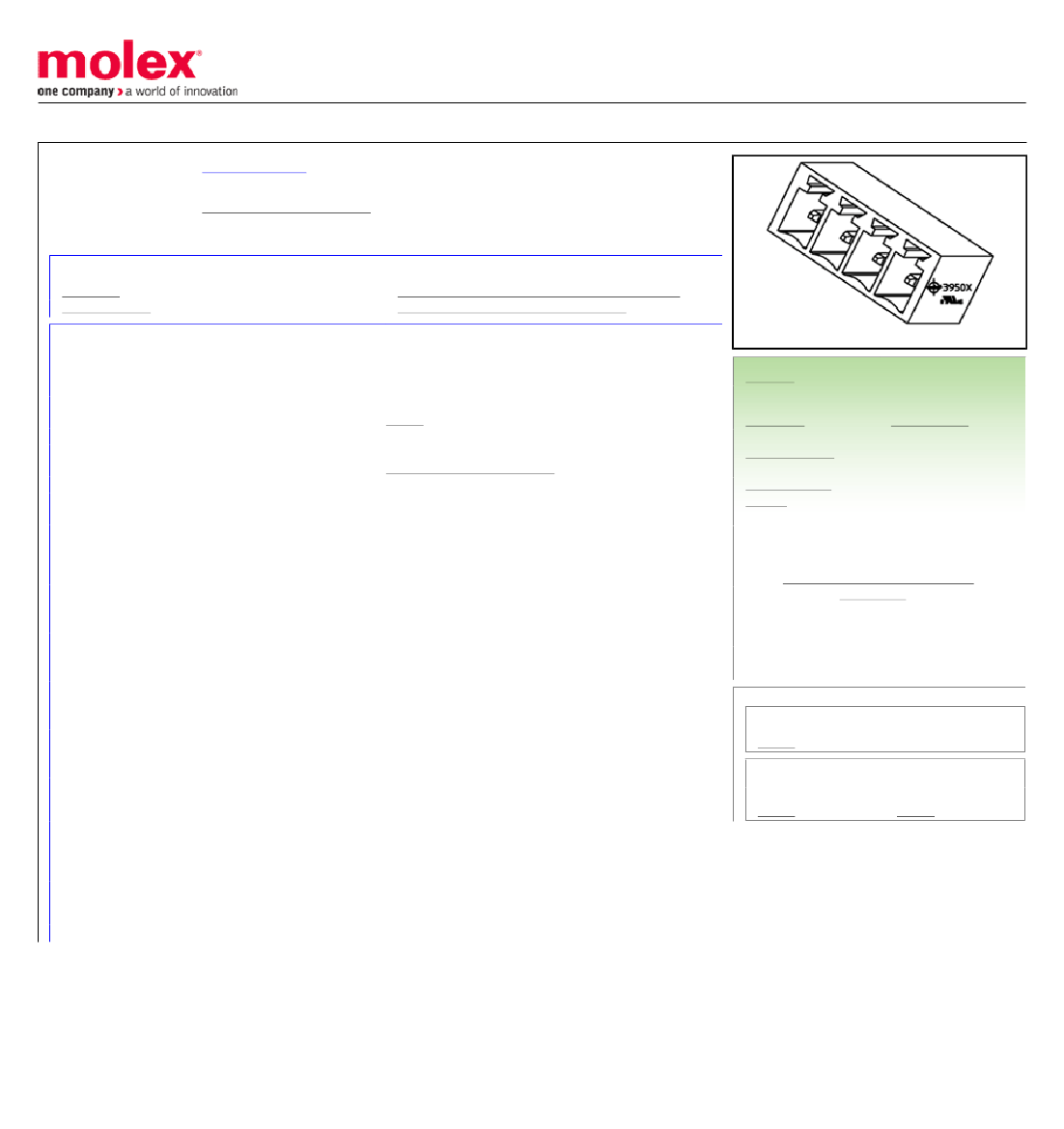

Download Datasheet

View All

This document was generated on 10/11/2017

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0395016503

Active

Eurostyle™ Terminal Blocks

3.50mm Pitch Eurostyle Vertical PCB Header, Green Housing, Gold (Au) Plated, 3

Circuits

Documents:

3D Model

Drawing (PDF)

Agency Certification

General

Product Family

Series

Application

Component Type

Overview

Product Name

Type

UPC

Physical

Circuits (Loaded)

Entry Angle

Lock to Mating Part

Number of Rows

Orientation

PC Tail Length

PCB Thickness - Recommended

Panel Mount

Pitch - Mating Interface

Pitch - Termination Interface

Polarized to Mating Part

Shrouded

Stackable

Temperature Range - Operating

Wire Size AWG

Electrical

Current - Maximum per Contact

Voltage - Maximum

Material Info

Reference - Drawing Numbers

Product Specification

Sales Drawing

Product Specification PS-39500-001-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

E48521

Terminal Blocks

39501

N/A

PCB Header

Eurostyle™ Terminal Blocks

ESE, Eurostyle Pluggable

Euro Block

822350433495

N/A

None

Vertical

3.50mm

2.50mm

3.50mm

Yes

Fully

-40°C to +105°C

N/A

8.0A

300V

EU ELV

Not Relevant

EU RoHS

China RoHS

Not Reviewed

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Not Relevant

Not Reviewed

Search Parts in this Series

39501 Series

Mates With

Most 3.50mm Pitch Industry Standard Plugs,

39500 Horizontal Plug, 39503 Vertical Plug

PS-39500-001-001

SD-39501-001, SD-39501-002

This document was generated on 10/11/2017

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
