35068-9802 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 35068-9802

35068-9802: DescriptionTerminals REELED TERMINALS; CategoryThe connector; File Size27KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

35068-9802 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	35068-9802	-	-	View	Buy Now

35068-9802 Overview

Terminals REELED TERMINALS

35068-9802 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Molex
Product Category	Terminals
RoHS	Details
Product	Quick Disconnects
Stud / Tab Size	4.75 mm
Wire Gauge	20 AWG to 16 AWG
Termination Style	Crimp
Gender	Female
Insulation	Not Insulated
Contact Plating	Tin
Contact Material	Brass
Packaging	Cut Tape
Packaging	Reel
Mounting Angle	Straight
Voltage Rating	300 V
Maximum Operating Temperature	+ 105 C
Minimum Operating Temperature	- 40 C
Factory Pack Quantity	15000
Wire Gauge Max	16 AWG
Unit Weight	0.014568 oz

Preview

Download Datasheet

View All

This document was generated on 02/27/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

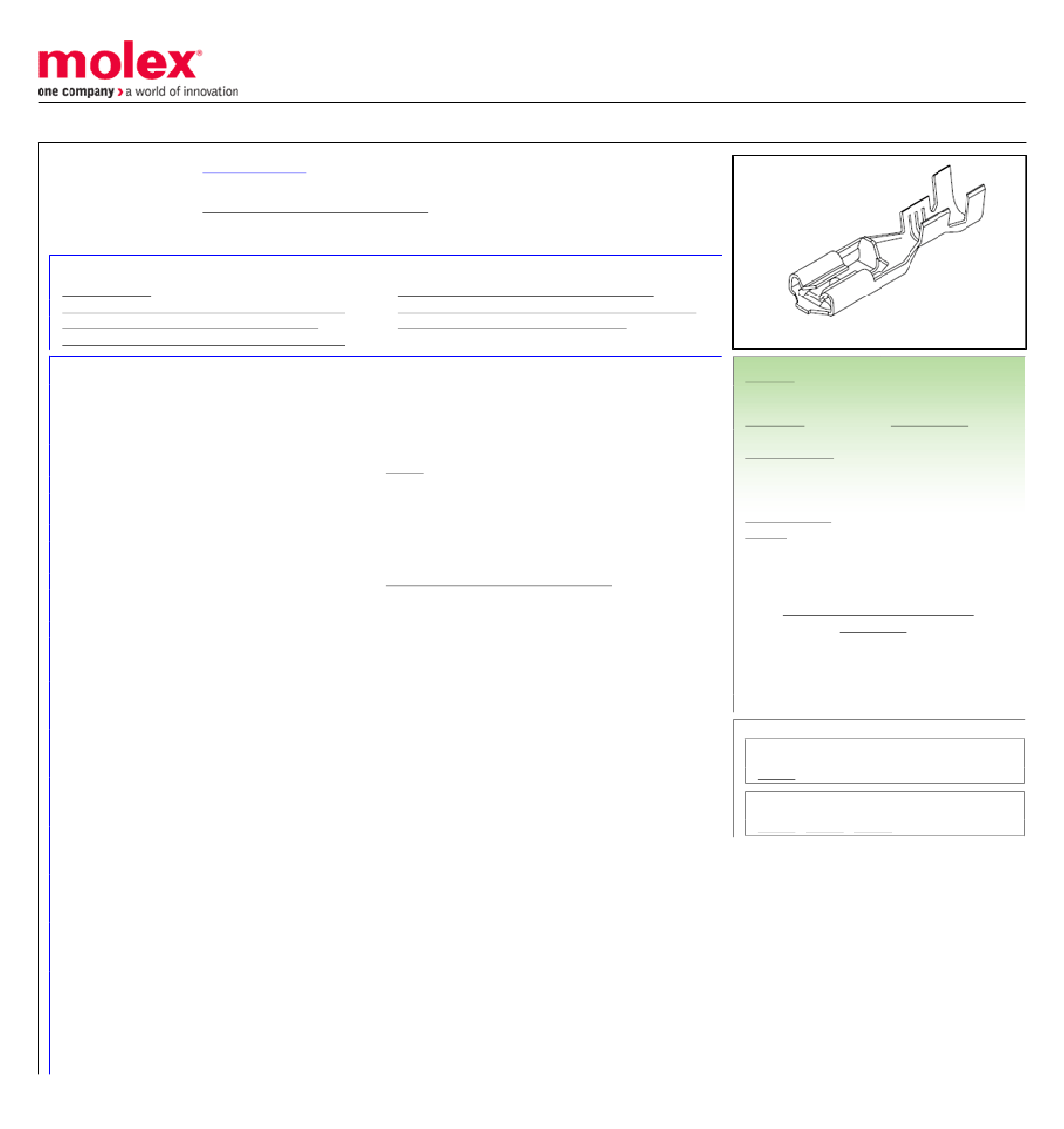

0350689802

Active

Standard Quick-Disconnect Terminals

MP-Lock Quick Disconnect, Female, for 16-20 AWG (1.31-0.52mm²), Metal Strip, Tab

4.75 x 0.51mm, Pre-Tin Plated, Insertion Force 1.0-2.2kgf (9.8-21.6N)

Documents:

Drawing (PDF)

Product Specification PS-35189-002-001 (PDF)

Product Specification PS-35189-004 (PDF)

Product Specification PS-35194-001-001 (PDF)

Agency Certification

CSA

General

Product Family

Series

Crimp Quality Equipment

Current Released Drawing

Current Released Revision

Data Load Status

Insulated

Made From

Overview

Product Name

Type

UPC

Physical

Barrel Type

Gender

Glow-Wire Capable

Insulation

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Net Weight

Orientation

Packaging Type

Plating min - Mating

Plating min - Termination

Polarized to Mating Part

Tab Thickness

Tab Width

Temperature Range - Operating

Termination Interface: Style

Wire Insulation Diameter

Wire Size AWG

Wire Size mm²

Electrical

Voltage - Maximum

Material Info

Product Specification PS-35817-001 (PDF)

Packaging Specification PK-35068-001-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per -

ED/30/2017 (7 July

2017)

Halogen-Free

Status

Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

LR95446

E92853

Quick Disconnects

35068

Yes

E-35068-980

Data Bulk Loaded from Saqqara

0359820043

Standard Quick-Disconnect Terminals

MP-Lock

Quick Disconnect

800754375108

Open

Female

None

Yes

Brass

Tin

0.413/g

Straight

Reel

0.813µm

Yes

0.51mm

4.75mm

-40°C to +105°C

Crimp or Compression

3.40mm max.

16, 18, 20

0.50-1.30

300V

Search Parts in this Series

35068 Series

Use With

35189 , 35817 , 35961
