HMC292_08: Description18000 MHz - 32000 MHz RF/MICROWAVE DOUBLE BALANCED MIXER, 11 dB CONVERSION LOSS-MAX; CategoryTopical application Wireless rf/communication; File Size200KB，6 Pages; ManufacturerHittite Microwave（ADI）; Websitehttp://www.hittite.com/

Download Datasheet Parametric Compare View All

HMC292_08 Overview

18000 MHz - 32000 MHz RF/MICROWAVE DOUBLE BALANCED MIXER, 11 dB CONVERSION LOSS-MAX

HMC292_08 Parametric

Parameter Name	Attribute value
Maximum input power	13 dBm
Minimum operating frequency	18000 MHz
Maximum operating frequency	32000 MHz
Minimum operating temperature	-55 Cel
Maximum operating temperature	85 Cel

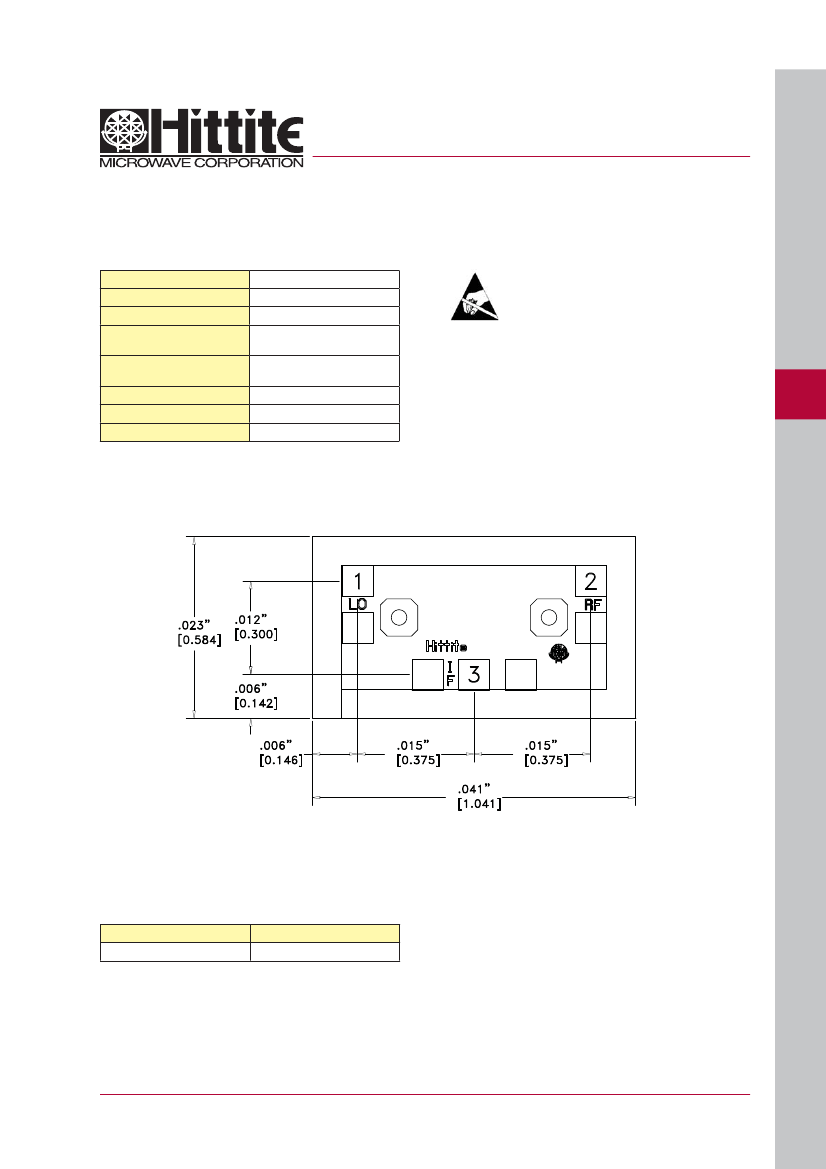

Processing package description	1.04 X 0.58 MM, 0.10 MM HEIGHT, MINIATURE, DIE-3
each_compli	Yes
EU RoHS regulations	Yes
state	Active
Microwave RF Type	DOUBLE BALANCED
Impedance characteristics	50 ohm
structure	COMPONENT
Maximum conversion loss	11 dB
jesd_609_code	e4
ckage_equivalence_code	DIE OR CHIP
sub_category	RF/Microwave Mixers
Craftsmanship	GAAS
terminal coating	GOLD

Preview

Download Datasheet

View All

HMC292

v06.1007

GaAs MMIC DOUBLE-BALANCED

MIXER, 18 - 32 GHz

Typical Applications

The HMC292 is ideal for:

• Microwave Point-to-Point Radios

• LMDS

• SATCOM

Features

Input IP3: +19 dBm

LO / RF Isolation: 38 dB

Passive: No DC Bias Required

Small Size: 1.04 x 0.58 x 0.1 mm

MIXERS - DOUBLE-BALANCED - CHIP

Functional Diagram

General Description

The HMC292 chip is a miniature passive GaAs MMIC

double-balanced mixer which can be used as an

upconverter or downconverter from 18 - 32 GHz in a

small chip area of 0.66 mm

. Excellent isolations are

provided by on-chip baluns, which require no exter-

nal components and no DC bias. All data is measured

with the chip in a 50 ohm test fixture connected via

0.076 mm (3 mil) ribbon bonds of minimal length <0.31

mm (<12 mils).

Electrical Specifi cations,

= +25° C

LO = +13 dBm

Parameter

Min.

Frequency Range, RF & LO

Frequency Range, IF

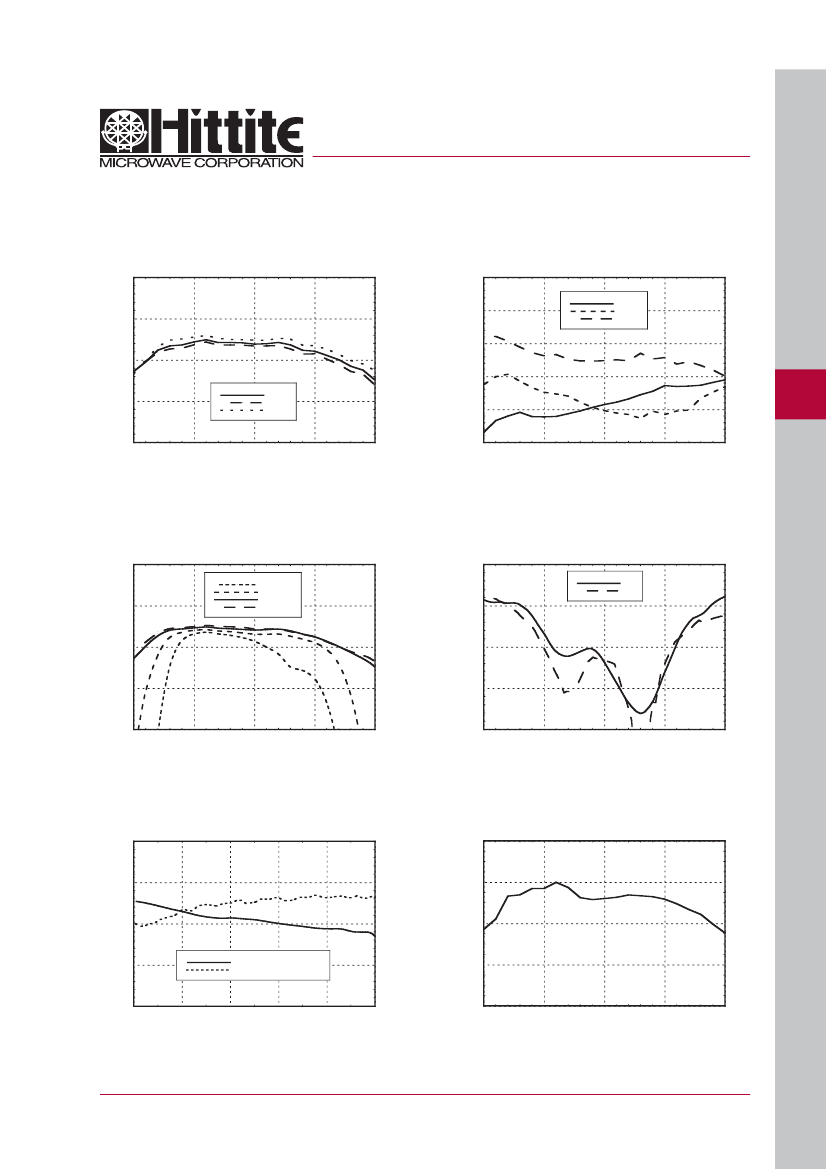

Conversion Loss

Noise Figure (SSB)

LO to RF Isolation

LO to IF Isolation

RF to IF Isolation

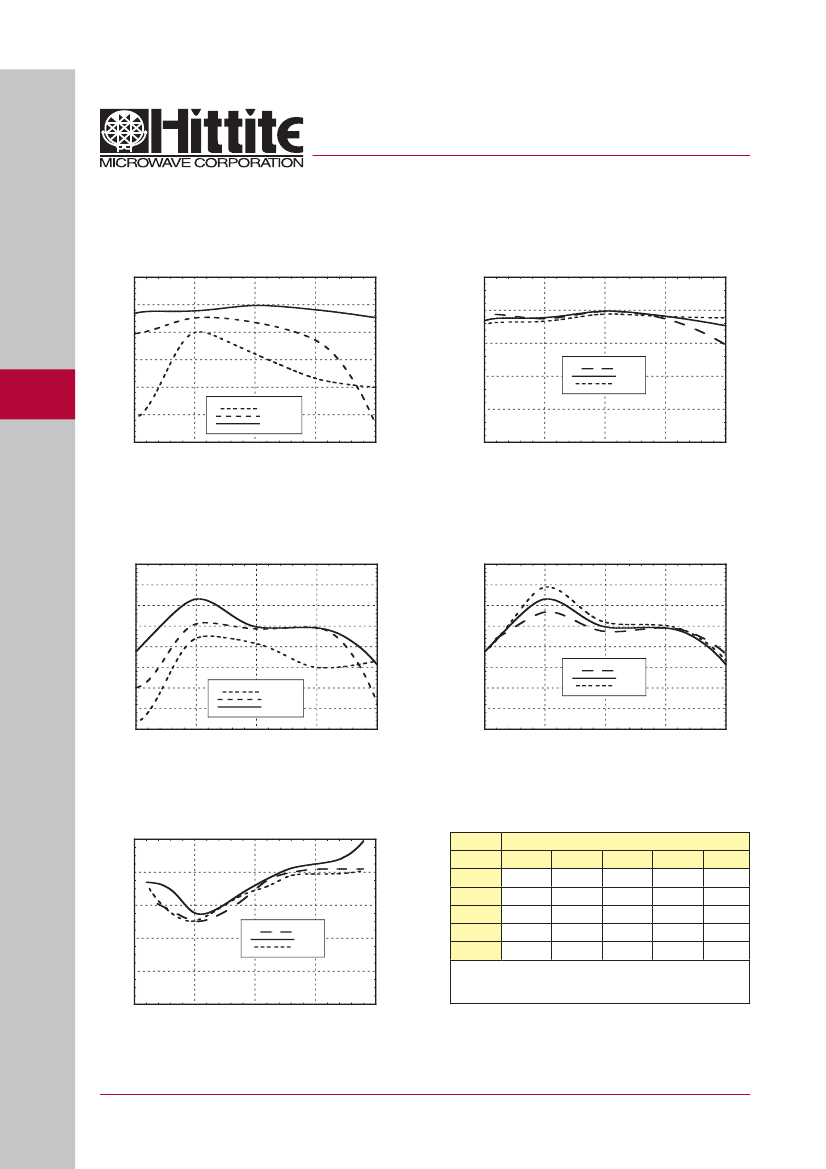

IP3 (Input)

IP2 (Input)

1 dB Gain Compression (Input)

Typ.

20 - 30

DC - 8

7.5

9.5

Max.

Min.

Typ.

18 - 32

DC - 8

Max.

GHz

dBm

LO = +13 dBm

Units

4 - 48

For price, delivery, and to place orders, please contact Hittite Microwave Corporation:

20 Alpha Road, Chelmsford, MA 01824 Phone: 978-250-3343 Fax: 978-250-3373

Order On-line at www.hittite.com
