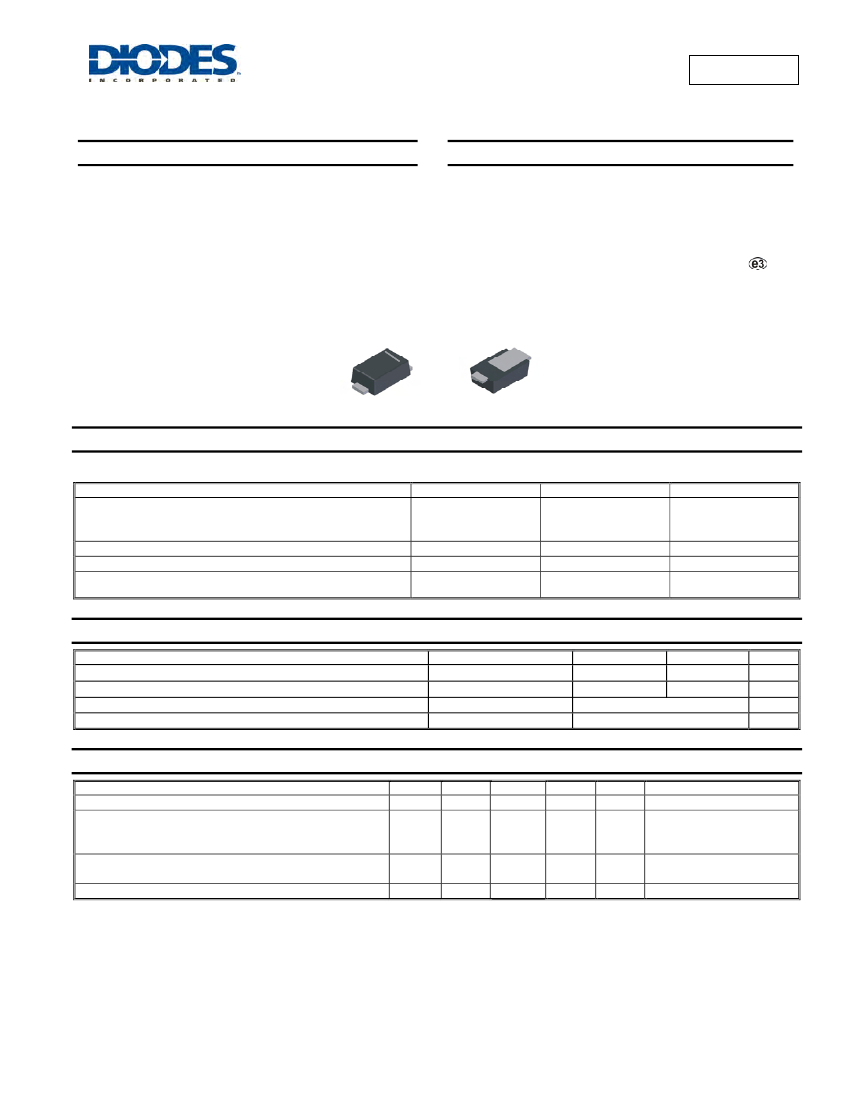

PD3S130L
1.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
PowerDI
®
323
Please click here to visit our online spice models database.
Features
•
•
•
•
•
•
Ultra-Small Surface Mount Package
Guard Ring Die Construction for Transient Protection
High Surge Capability
Lead Free Finish, RoHS Compliant (Note 1)
"Green" Molding Compound (No Br, Sb)
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
•
•
•
•
•
•
•
•
Case: PowerDI 323
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020D
Polarity: Cathode Band
Terminals: Finish - Matte Tin annealed over Copper
leadframe. Solderable per MIL-STD-202, Method 208
Marking Information: See Page 3
Ordering Information: See Page 3
Weight: 0.006 grams (approximate)
®
Top View
Bottom View
Maximum Ratings
@T
A
= 25°C unless otherwise specified
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitance load, derate current by 20%.
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Average Forward Current (See also figure 4)
Non-Repetitive Peak Forward Surge Current 8.3ms
Single Half Sine-Wave Superimposed on Rated Load
Symbol
V
RRM
V
RWM
V
R
V
R(RMS)
I
F(AV)
I
FSM
Value
30
21
1.0
22
Unit
V
V
A
A
Thermal Characteristics
Characteristic
Thermal Resistance Junction to Soldering Point
Thermal Resistance Junction to Ambient Air (Note 2)
Operating Temperature Range
Storage Temperature Range
Symbol
R
θ
JS
R
θ
JA
T
J
T
STG
Typ
⎯
177
-65 to +125
-65 to +150
Max
6.0
⎯
Unit
°C/W
°C/W
°C
°C
Electrical Characteristics
Characteristic
Reverse Breakdown Voltage (Note 3)
Forward Voltage
Leakage Current (Note 3)
Total Capacitance
Notes:
@T
A
= 25°C unless otherwise specified
Symbol
V
(BR)R
V
F
I
R
C
T
Min
30
⎯
⎯
⎯
⎯
⎯
⎯
Typ
⎯
0.25
0.33
0.39
40
0.37
40
Max
⎯
0.33
0.37
0.42
250
1.5
⎯
Unit
V
V
μA
mA
pF
Test Condition
I
R
= 1.5mA
I
F
= 0.1A
I
F
= 0.7A
I
F
= 1.0A
V
R
= 5V, T
A
= 25°C
V
R
= 30V, T
A
= 25°C
V
R
= 10V, f = 1.0MHz
1. EU Directive
2002/95/EC
(RoHS). All applicable RoHS exemptions applied, see
EU Directive
2002/95/EC
Annex Notes.
2. FR-4 PCB, 2 oz. Copper, minimum recommended pad layout per http://www.diodes.com/datasheets/ap02001.pdf. T
A
= 25°C.
3. Short duration pulse test used to minimize self-heating effect.
PowerDI is a registered trademark of Diodes Incorporated.
PD3S130L
Document number: DS30671 Rev. 9 - 2
1 of 3
www.diodes.com
June 2008
© Diodes Incorporated
PD3S130L
0.8
P
D
, POWER DISSIPATION (W)
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0
0
2.0
2.5
0.5
1.0
1.5
I
F(AV)
, AVERAGE FORWARD CURRENT (A)

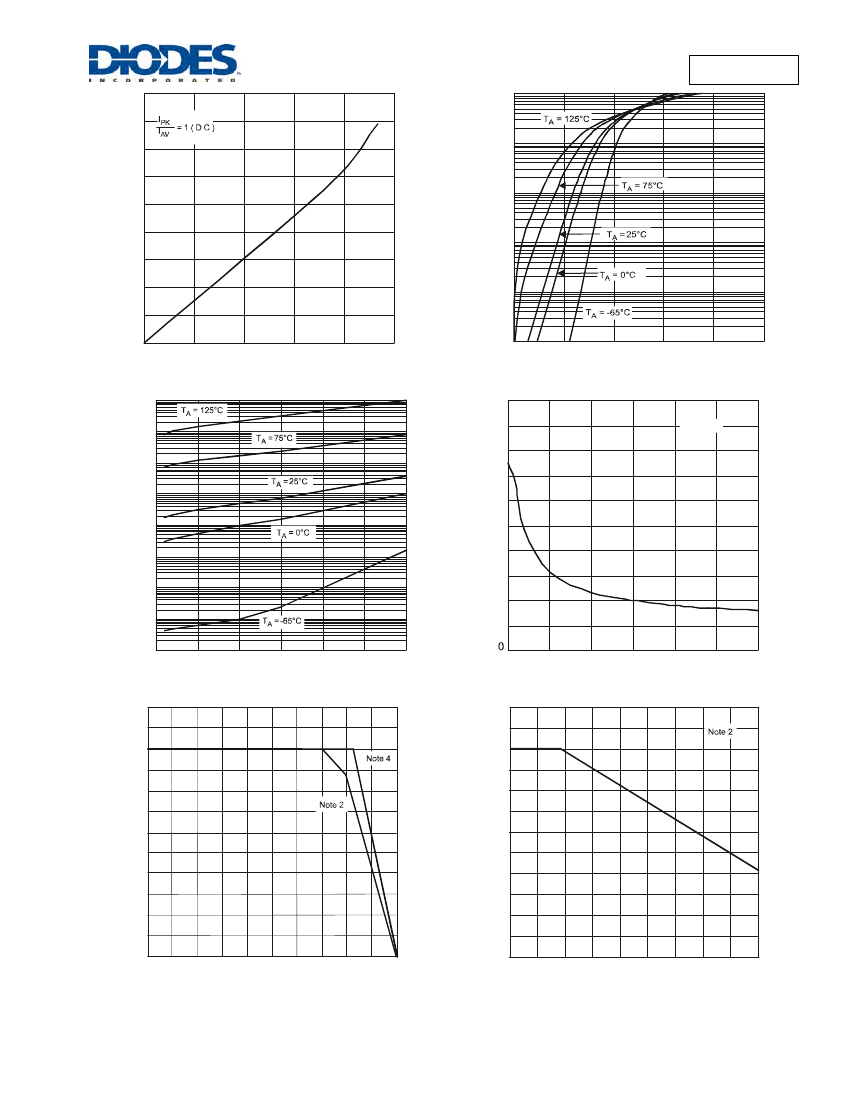

Fig. 1 Forward Power Dissipation
I
F
, INSTANTANEOUS FORWARD CURRENT (mA)
0.9
10,000
1,000
100
10
1
0.1
0
0.2
0.4
0.6
0.8
1.0
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)
Fig. 2 Typical Forward Characteristics
200
180
f = 1MHz
I
R
, INSTANTANEOUS REVERSE CURRENT (uA)
100,000
10,000
C
T
, TOTAL CAPACITANCE (pF)
160
140
120
100
80
60
40
20
1,000
100
10
1
0.1
0.01
0.001
0
25
10
15
20
30
5
V
R
, INSTANTANEOUS REVERSE VOLTAGE (V)
Fig. 3 Typical Reverse Characteristics
0
10
15
20
25
30
V
R
, DC REVERSE VOLTAGE (V)
Fig. 4 Total Capacitance vs. Reverse Voltage
5
1.2
1.0
T
A
, DERATED AMBIENT TEMPERATURE (°C)
150
I
F(AV)
, AVERAGE FORWARD CURRENT (A)
125
0.8
100
0.6
75
0.4
50
0.2
25
0
0
100
25
50
75
T
A
, AMBIENT TEMPERATURE (°C)
Fig. 5 Forward Current Derating Curve
125
0
0
10
20
V
R
, DC REVERSE VOLTAGE (V)
Fig. 6 Operating Temperature Derating
30
Notes:
4. Polymide PCB, 2 oz. Copper, minimum recommended pad layout per http://www.diodes.com/datasheets/ap02001.pdf.
PowerDI is a registered trademark of Diodes Incorporated.
PD3S130L
Document number: DS30671 Rev. 9 - 2
2 of 3
www.diodes.com
June 2008
© Diodes Incorporated
PD3S130L
Ordering Information
Part Number
PD3S130L-7
Notes:
(Note 5)
Case
®
PowerDI 323
Packaging
3000/Tape & Reel
5. For packaging details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf.
Marking Information
31
31 = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: T = 2006)
M = Month (ex: 9 = September)
Date Code Key
Year
Code
Month
Code
2006
T
Jan
1
Feb
2
2007
U
Mar
3
Apr
4
2008
V
May
5
Jun
6
YM
2009
W
Jul
7
2010
X
Aug
8
Sep
9
2011
Y
Oct
O
Nov
N
2012
Z
Dec
D

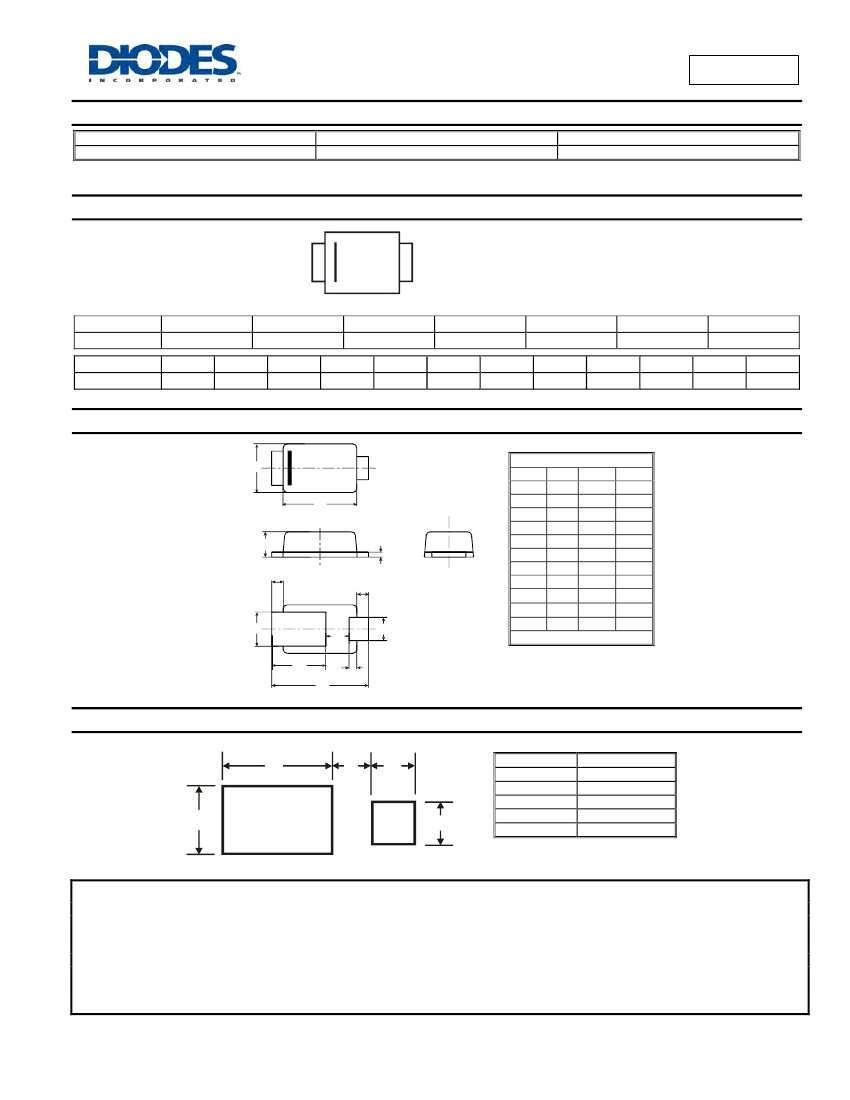

Package Outline Dimensions
C
B
D
H
L
L
E
L1
L1
L4
L3
A
E1
PowerDI 323
Dim Min Max
Typ
A
2.40 2.60 2.50
B
1.85 1.95 1.90
C
1.20 1.30 1.25
D
0.60 0.70 0.65
E
0.78 0.98 0.88
E1
0.50 0.70 0.60
H
0.08 0.18 0.13
L
0.20 0.40 0.30
L1
1.40
⎯
⎯
L3
0.20
⎯
⎯
L4
0.40 0.80 0.60
All Dimensions in mm
®
Suggested Pad Layout
X1
G
X2
Dimensions
G
X1
X2
Y1
Y2
Value (in mm)
0.5
2.0
0.8
0.8
1.1
Y2
Y1
IMPORTANT NOTICE
Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes
without further notice to any product herein. Diodes Incorporated does not assume any liability arising out of the application or use of any product
described herein; neither does it convey any license under its patent rights, nor the rights of others. The user of products in such applications shall
assume all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on our website,
harmless against all damages.
LIFE SUPPORT
Diodes Incorporated products are not authorized for use as critical components in life support devices or systems without the expressed written
approval of the President of Diodes Incorporated.
PowerDI is a registered trademark of Diodes Incorporated.
PD3S130L
Document number: DS30671 Rev. 9 - 2
3 of 3
www.diodes.com
June 2008
© Diodes Incorporated
