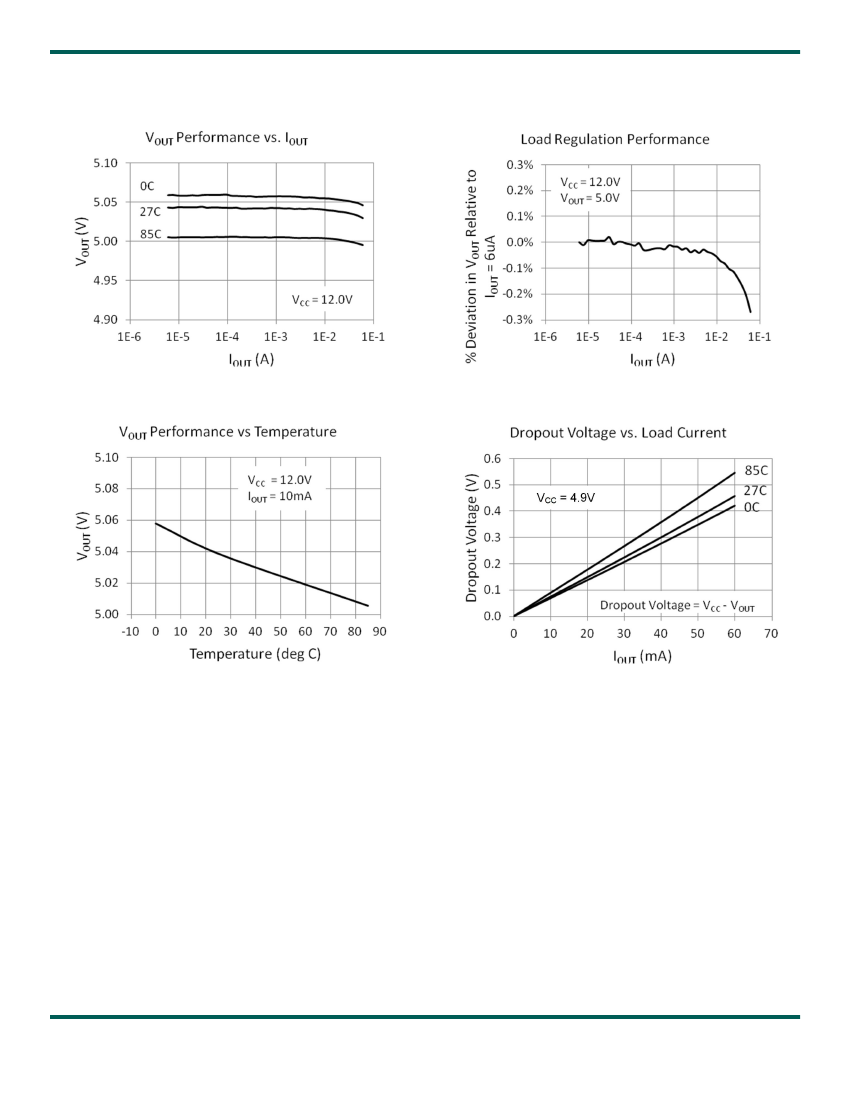

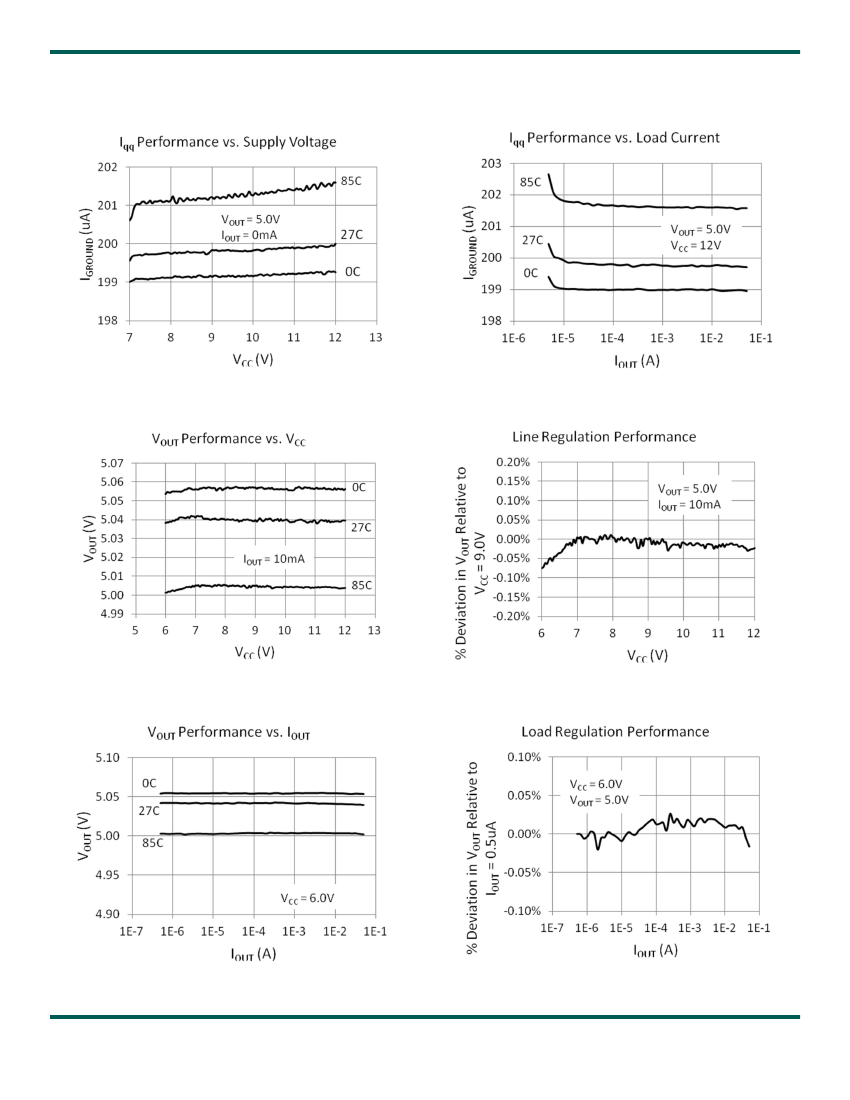

The TS31x23 high voltage linear regulator consists of a low
power amplifier with a high voltage p-channel pass gate.
The linear regulator has a wide operating range, and is ideal
for systems that may have large voltage transients and require
the output load to remain regulated.
An analog current limit is used to limit output current and
protect the regulator from external short circuits.
•
•
•
Applications
•
•
•
•
•
•
Set-top Boxes
Automotive
Industrial
Medical
Energy harvesting systems
Wireless Power
Summary Specification
•
Packaged in a 8pin DFN (2x2)
Typical Application Circuit
TS31023/223
Final Datasheet
April 4, 2016
Rev 1.2
www.semtech.com
1 of 8
Semtech
Proprietary & Confidential
Pin-out Configuration
Pin #
1
2
3
4
5
6
7
8
Pin Symbol
GND
VOUT
N/C
N/C
N/C
FB
VIN
EN
I/O/P
P
O
Description
Ground
Regulated Output Voltage
No Connect
No Connect
No Connect
I
P
I
Feedback Voltage
Input Voltage
ENABLE Input
Absolute Maximum Ratings
Over operating free–air temperature range unless otherwise noted(1,2)
Unit
VIN
VOUT
EN, FB
Electrostatic Discharge – Human Body Model
Maximum junction temperature, TJ
Storage temperature range, Tstg
Lead Temperature (soldering, 10 seconds)
-0.3 to 18 (TS31023)
-0.3 to 40 (TS31223)
-0.3 to 18 (TS31023)
-0.3 to 40 (TS31223)
-0.3 to 6.0
2
150
-65 to 150
260
V
V
V
kV
O
O
O
C
C
C
Note 1: Stresses beyond those listed under “absolute maximum ratings” may cause permanent damage to the device. These are stress ratings only, and functional
operation of the device at these or any other conditions beyond those indicated under “recommended operating conditions” is not implied. Exposure to
absolute–maximum–rated conditions for extended periods may affect device reliability.
Note 2: All voltage values are with respect to network ground terminal.
Thermal Characteristics
Package
DFN
8 pin
(See Note 4)
73.1
θ
JA
(
O
C/W)
(See Note 5)
10.7
θ
JC
(
O
C/W)
Note 4: This assumes a FR4 board only.
Note 5: This assumes a 1oz. Copper JEDEC standard board with thermal vias. See Exposed Pad section and application note for more information.
