311 Overview

FEMALE, TWO PART BOARD CONNECTOR, SOCKET

Preview

Download Datasheet

View All

INIATURE

USES

mm/

5x20 mm No. 311

Indicator,

Indicator, 250 V

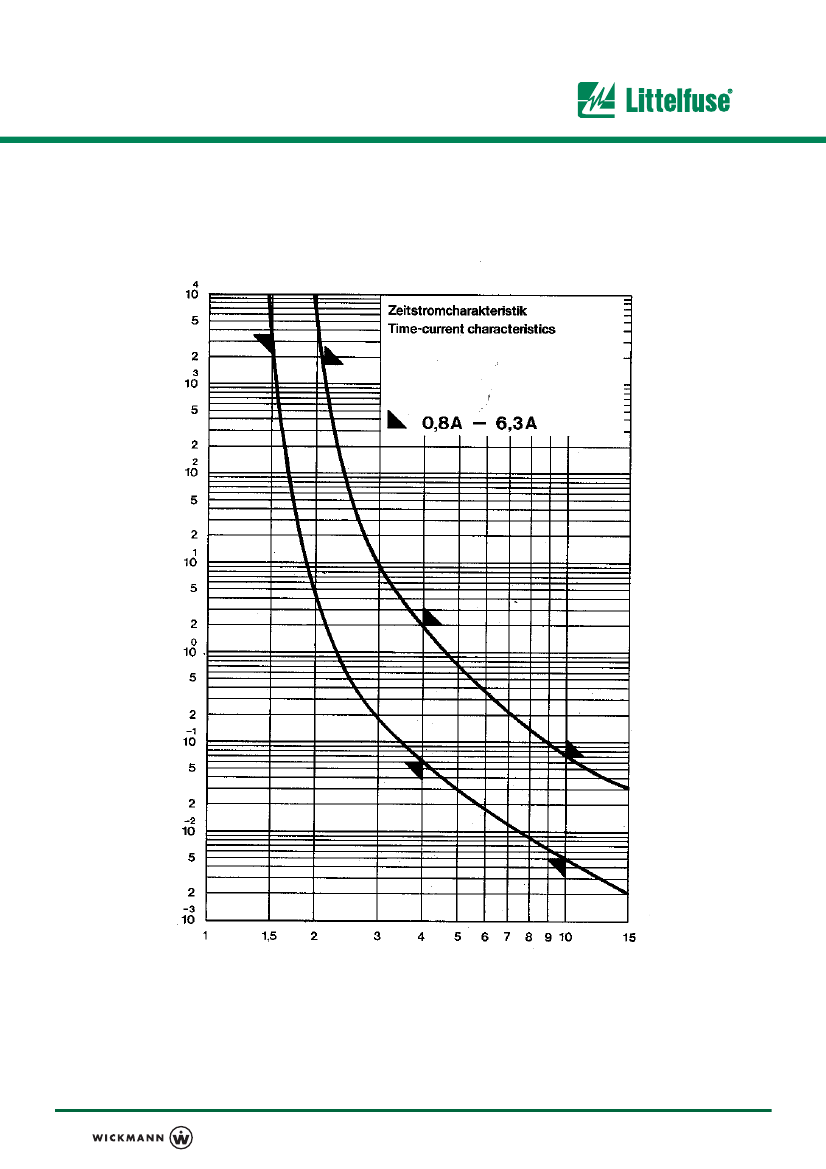

Time-Current

Standard

Mittelträge (M)

DIN 41577, T.2

None

Specifications

Packaging

002: Pack (20 x 10 pcs.)

Characteristic

Materials

Approvals

Tube:

End Caps:

Ceramic

Nickel-plated brass

Temperature

Operating Temperature

Climatic Category

Stock Conditions

-40 ºC to +85 ºC (consider de-rating)

-40 ºC / +85 ºC / 21 days

(IEC 60068-1,-2-1,-2-2,-2-78)

+10 ºC to +60 ºC

relative humidity

≤

75 % yearly average,

without dew

24 cycles at 15 min. each (EN 60068-2-6)

10 - 60 Hz at 0.75 mm amplitude

60 - 2000 Hz at 10 g acceleration

, M, Current Rating, 250 V, G

Dimensions (mm)

Ausf. / type: 800mA ... 4A

Ø5,2

+0,1

- 0,2

Vibration Resistance

±0,5

Kappe mit Kennmelder

cap with indicator

Marking

Ausf. / type: 6,3A

Ø5,2

+0,1

- 0,2

±0,5

Limits for Pre-arcing Time

Rated Current

800 mA ... 6.30 A

1.5 x I

>1h

2.1 x I

< 30 min

2.75 x I

4 x I

60 ms ... 2 s

10 x I

5 ms ... 70 ms

Permissible continuous operating current is

≤

80 % at ambient temperature of 23 ºC (73.4 ºF).

Rated

Amp

Voltage

Breaking

Voltage Drop Power Dissipation Melting Integral

Current

Code

Rating

Capacity

1.0 x

1.5 x

10 x

max. (mV)

max. (W)

min. (A

800 mA

1.25 A

1.6 A

2.5 A

6.3 A

0800

1100

1125

1160

1200

1250

1400

1630

250 V2

400

350

310

480

360

300

180

160

1.0

1.2

1.7

2.5

4.5

8.2

30.0

94.0

Approvals

1500 A @ 250 V AC

50 Hz

cos

= 0.7

on request

None

1 without gauge stud

2 operating voltage

≥

10 V

Note: 1.00 means the number one with two decimal places. 1,000 means the number one thousand.

Order

Information

050930

Qty.

Order-

Number

Series

311

Amp Code

Packaging

In our continuing strategy to deliver unparalleled circuit protection solutions,

technical expertise and application leadership, we proudly introduce the

WICKMANN Group and its products to the Littelfuse portfolio.

WebSite

www.littelfuse.com
