DTA123JETL

Description
Bipolar Transistors - Pre-Biased PNP 50V 100MA SOT-416
CategoryDiscrete semiconductor    The transistor
File Size4MB,12 Pages
ManufacturerROHM Semiconductor
Websitehttps://www.rohm.com/
Environmental Compliance
Download Datasheet Parametric View All

DTA123JETL Online Shopping

Suppliers Part Number Price MOQ In stock
DTA123JETL - - View Buy Now

DTA123JETL Overview

Bipolar Transistors - Pre-Biased PNP 50V 100MA SOT-416

DTA123JETL Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerROHM Semiconductor
Parts packaging codeSC-75A
package instructionSMALL OUTLINE, R-PDSO-G3
Contacts3
Reach Compliance Codecompliant
ECCN codeEAR99
Factory Lead Time13 weeks
Is SamacsysN
Other featuresBUILT-IN BIAS RESISTOR RATIO IS 21
Maximum collector current (IC)0.1 A
Collector-emitter maximum voltage50 V
ConfigurationSINGLE WITH BUILT-IN RESISTOR
Minimum DC current gain (hFE)80
JESD-30 codeR-PDSO-G3
JESD-609 codee1
Humidity sensitivity level1
Number of components1
Number of terminals3
Maximum operating temperature150 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)260
Polarity/channel typePNP
Maximum power dissipation(Abs)0.15 W
Certification statusNot Qualified
surface mountYES
Terminal surfaceTin/Silver/Copper (Sn/Ag/Cu)
Terminal formGULL WING
Terminal locationDUAL
Maximum time at peak reflow temperature10
transistor applicationsSWITCHING
Transistor component materialsSILICON
Nominal transition frequency (fT)250 MHz
VCEsat-Max0.3 V
Base Number Matches1

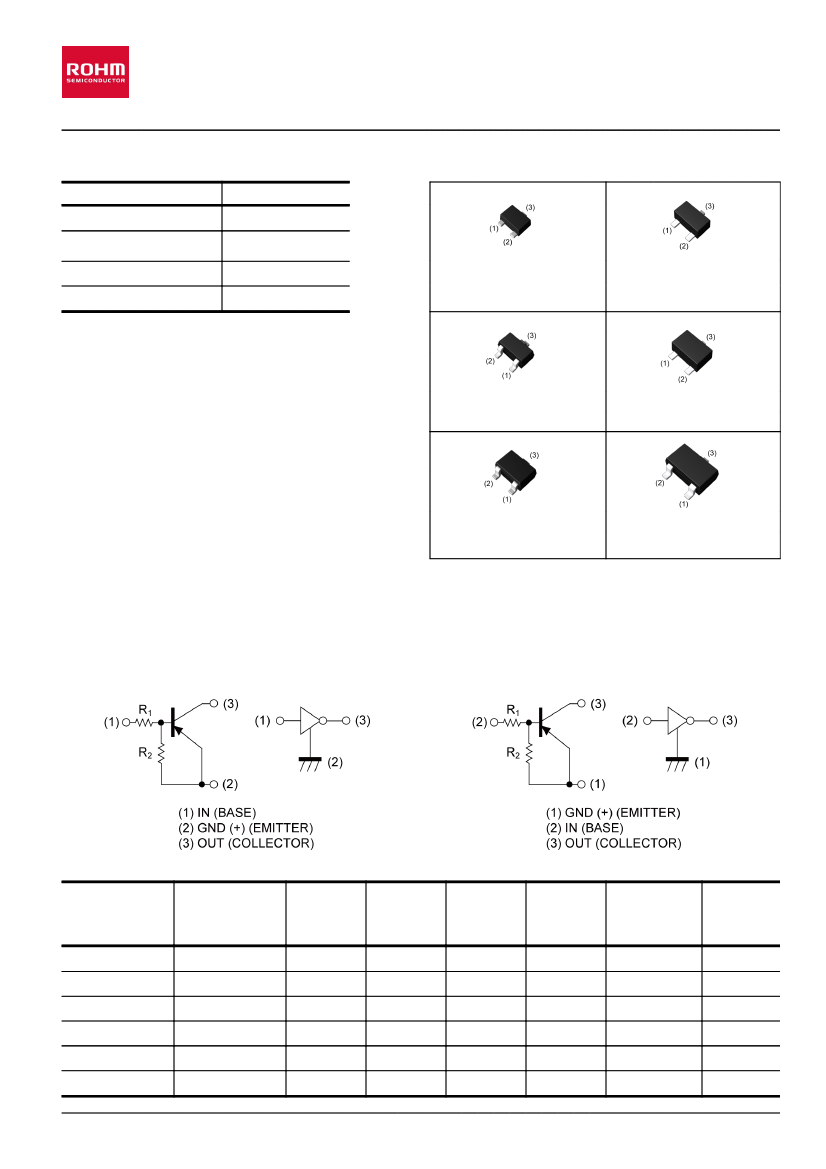

DTA123J series
PNP -100mA -50V Digital Transistors (Bias Resistor Built-in Transistors)
Datasheet
l
Outline
Parameter
V
CC
I
C(MAX.)
R
1
R
2
Value
-50V
-100mA
2.2kΩ
47kΩ
VMT3
EMT3F

DTA123JM
(SC-105AA)
EMT3

DTA123JEB
(SC-89)
UMT3F
l
Features
1) Built-In Biasing Resistors
2) Built-in bias resistors enable the configuration of

an inverter circuit without connecting external

input resistors (see inner circuit) .
3) Only the on/off conditions need to be set

for operation, making the circuit design easy.
4) Complementary NPN Types: DTC123J series

DTA123JE
SOT-416(SC-75A)
UMT3

DTA123JUB
(SC-85)
SMT3

DTA123JUA
SOT-323(SC-70)

DTA123JKA
SOT-346(SC-59)
l
Application
INVERTER, INTERFACE, DRIVER
l
Inner circuit
DTA123JM/ DTA123JEB/ DTA123JUB
DTA123JE/ DTA123JUA/ DTA123JKA
l
Packaging specifications

Part No.
DTA123JM
DTA123JEB
DTA123JE
DTA123JUB
DTA123JUA
DTA123JKA
Package
VMT3
EMT3F
EMT3
UMT3F
UMT3
SMT3
Package
size
1212
1616
1616
2021
2021
2928
Taping
code
T2L
TL
TL
TL
T106
T146
1/10
Reel size Tape width
(mm)
(mm)
180
180
180
180
180
180
8
8
8
8
8
8
Basic
ordering
unit.(pcs)
8000
3000
3000
3000
3000
3000
Marking
E32
E32
E32
132
132
E32

www.rohm.com
© 2015 ROHM Co., Ltd. All rights reserved.
20150311 - Rev.002
