BD5471MUV-E2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Consumption circuit> BD5471MUV-E2

BD5471MUV-E2: DescriptionAudio Amplifiers IC STEREO SP. AMP CLASS D; CategoryAnalog mixed-signal IC Consumption circuit; File Size785KB，25 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric View All

BD5471MUV-E2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BD5471MUV-E2	-	-	View	Buy Now

BD5471MUV-E2 Overview

Audio Amplifiers IC STEREO SP. AMP CLASS D

BD5471MUV-E2 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Parts packaging code	QFN
package instruction	VQFN-20
Contacts	20
Reach Compliance Code	compliant
ECCN code	EAR99
Commercial integrated circuit types	AUDIO AMPLIFIER
harmonic distortion	0.2%
JESD-30 code	S-XQCC-N24
length	4 mm
Number of channels	1
Number of functions	1
Number of terminals	24
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Nominal output power	2.2 W
Package body material	UNSPECIFIED
encapsulated code	HVQCCN
Encapsulate equivalent code	LCC24,.16SQ,20
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
Maximum seat height	1 mm
Maximum slew rate	12 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
surface mount	YES
Temperature level	INDUSTRIAL
Terminal form	NO LEAD
Terminal pitch	0.5 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	4 mm
Base Number Matches	1

Preview

Download Datasheet

View All

Small-sized Class-D Speaker Amplifiers

Analog Input

Stereo Class-D Speaker Amplifier

●Description

BD5471MUV is a low voltage drive class-D stereo speaker amplifier that was developed for note-book PC, cellular phone,

mobile audio products and the others. LC filters of speaker outputs are unnecessary, and only 7 external components are

needed for speaker system. Also, 3.3V regulator in BD5471MUV can use power supply for audio-codec. BD5471MUV, that

is high-efficiency, low consumption, is suitable for application by using battery. Shutdown current is 0µA typically. Also,

start-up time is fast from shutdown to active mode. BD5471MUV can use for some applications that change mode between

“shutdown state” and “active state”.

●Features

1) High power 2.3W typ. (VDD=5V, RL=4Ω, THD+N=10%, stereo input)

High power 1.5W typ. (VDD=5V, RL=8Ω, THD+N=10%, stereo input)

2) Gain selectable by the external control (6, 12, 18, 24dB)

3) Pop noise suppression circuitry

4) Standby function (Mute function) [I

=0uA]

5) Protection circuitry (Short protection [Audio, REG], Thermal shutdown, Under voltage lockout)

6) Built-in 3.3V regulator

7) Built-in BEEP detect circuitry

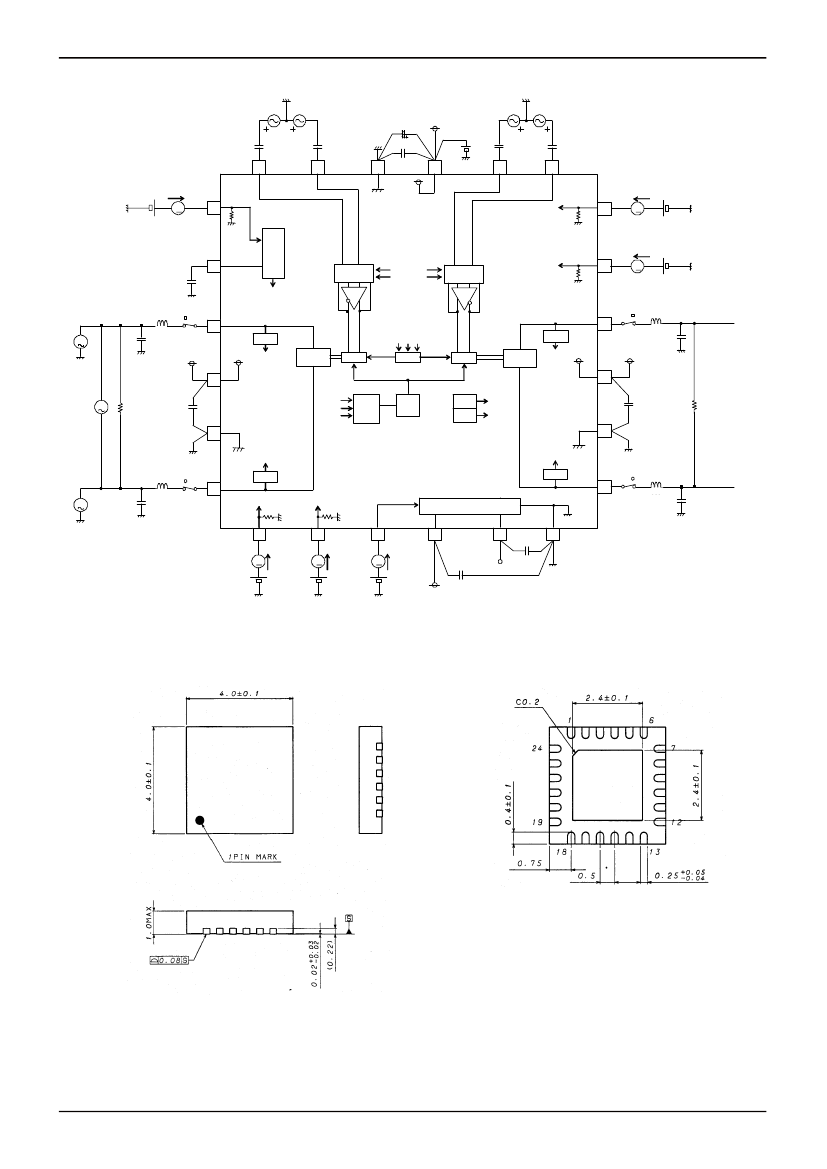

8) Very small package VQFN024V4040

●Applications

Notebook computers, Mobile electronic applications, Mobile phones, PDA etc.

●Absolute

Maximum Ratings(Ta=+25℃)

Parameter

Power Supply Voltage

Power Dissipation

Storage Temperature Range

Input Voltage Range *3

Control Terminal

Input Voltage Range *4

74.2mm×74.2mm×1.6mm, FR4 1-layer glass epoxy board(Copper on top layer 0%)

Derating in done at 5.6mW/℃ for operating above Ta=25℃. There are thermal via on the board

4.2mm×74.2mm×1.6mm, FR4 4-layer glass epoxy board (Copper on bottom 2 and 3 layer 100%)

input Terminal (INL+, INL-, INR+, INR-)

Control Terminal (MUTE, G0, G1, EAPD, BEEP, REG_SD)

●Operating

Conditions

Parameter

Power Supply Voltage

Temperature Range

Symbol

VDD

Topr

Ratings

+4.5 ~ +5.5

-40 ~ +85

Unit

℃

* These products aren’t designed for protection against radioactive rays.

www.rohm.com

ew om

es en

ig de

ns d

Symbol

VDD

Ratings

7.0

Unit

0.7 *1

2.2 *2

Tstg

Vin

-55 ~ +150

℃

-0.3 ~ VDD+0.3

Vctl

-0.3 ~ VDD+0.3

1/21

BD5471MUV

No.13101EBT03

2013.11 - Rev.B
