TIP30C datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> TIP30C

TIP30C: DescriptionBipolar Transistors - BJT PNP Gen Pur Power; CategoryDiscrete semiconductor The transistor; File Size148KB，9 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

TIP30C Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	TIP30C	-	-	View	Buy Now

TIP30C Overview

Bipolar Transistors - BJT PNP Gen Pur Power

TIP30C Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	STMicroelectronics
Parts packaging code	TO-220AB
package instruction	FLANGE MOUNT, R-PSFM-T3
Contacts	3
Reach Compliance Code	not_compliant
ECCN code	EAR99
Maximum collector current (IC)	1 A
Collector-emitter maximum voltage	100 V
Configuration	SINGLE
Minimum DC current gain (hFE)	15
JEDEC-95 code	TO-220AB
JESD-30 code	R-PSFM-T3
JESD-609 code	e3
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	245
Polarity/channel type	PNP
Maximum power consumption environment	30 W
Maximum power dissipation(Abs)	30 W
Certification status	Not Qualified
surface mount	NO
Terminal surface	Matte Tin (Sn)
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	3 MHz
VCEsat-Max	0.7 V

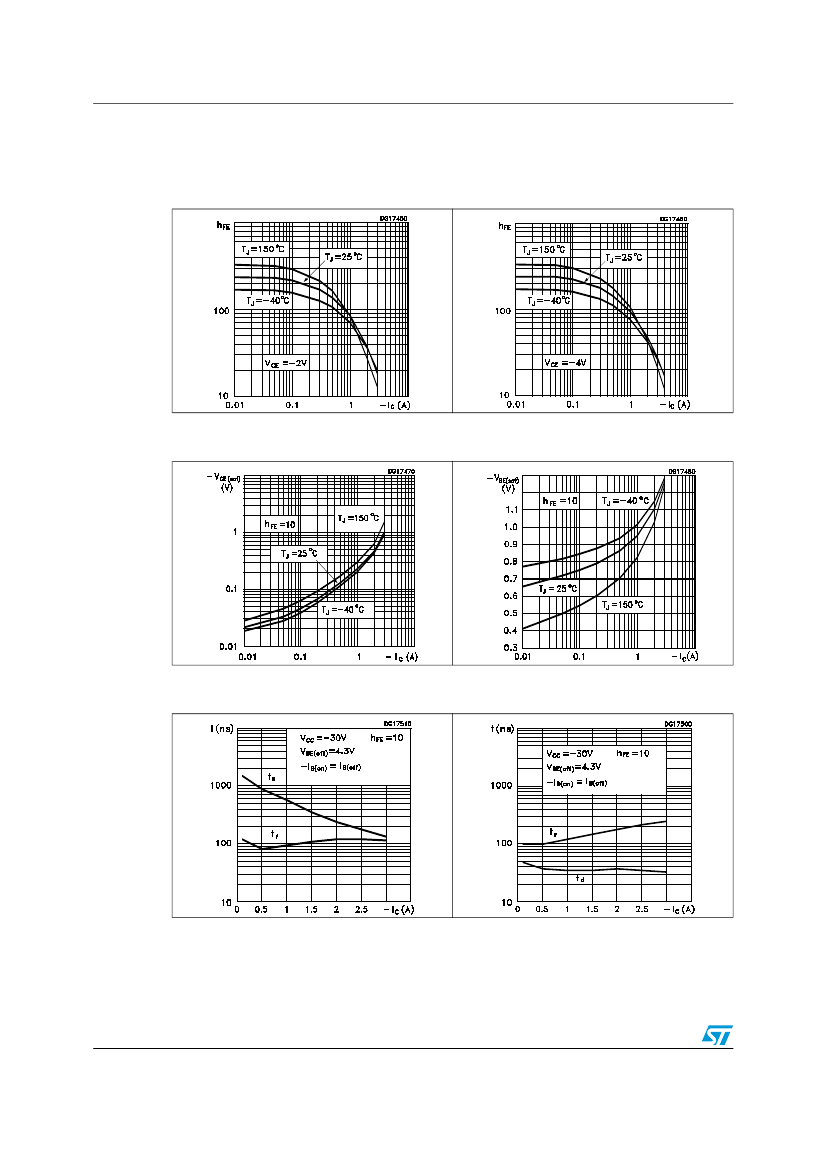

Preview

Download Datasheet

View All

TIP30C

Low voltage PNP power transistor

Application

■

General purpose switching and amplifier

Description

The device is manufactured in planar technology

with “Base Island” layout. The resulting transistor

shows exceptional high gain performance

coupled with very low saturation voltage. The

NPN type is TIP29C.

TO-220

Figure 1.

Table 1.

Order code

TIP30C

Device summary

Marking

TIP30C

Package

TO-220

Packaging

Tube

-O

Internal schematic diagram

October 2007

Rev 1

1/9

www.st.com
