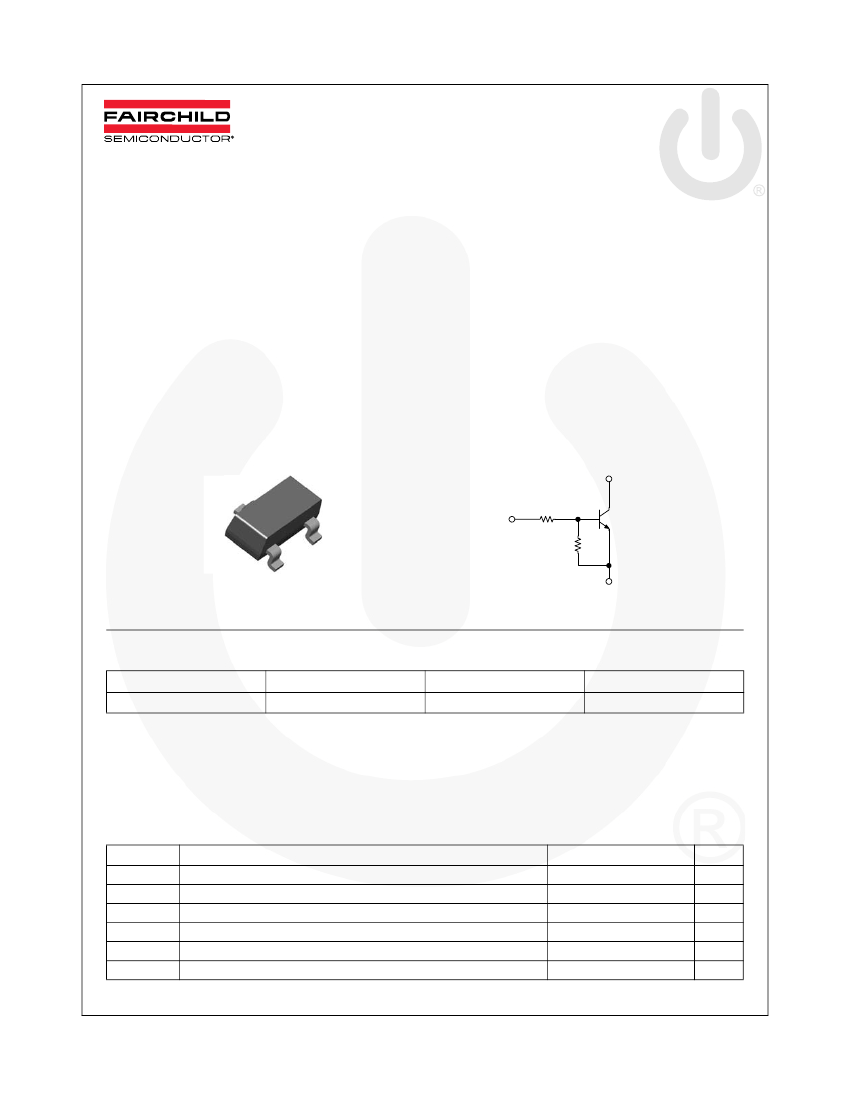

FJV3113R — NPN Epitaxial Silicon Transistor with Bias Resistor
November 2013
FJV3113R
NPN Epitaxial Silicon Transistor with Bias Resistor
Features
• 100 mA Output Current Capability
• Built-in Bias Resistor (R
1
= 2.2 kΩ, R
2
= 47 kΩ)
Description
Transistors with built-in resistors can be excellent
space- and cost-saving solutions by reducing compo-
nent count and simplifying circuit design.
Application
• Switching, Interface, and Driver Circuits
• Inverters
• Digital Applications in Industrial Segments
Equivalent Circuit
C
3
B
R1
2
1
R2

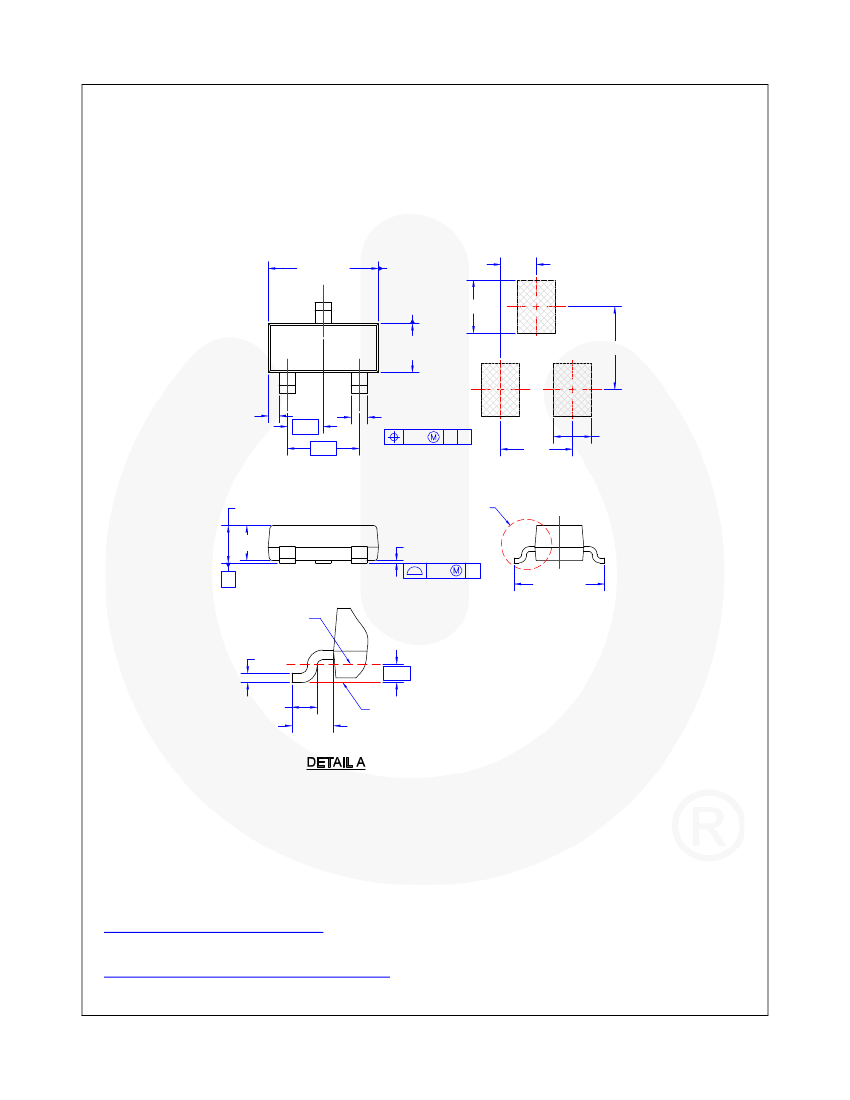

SOT-23
E
1. Base 2. Emitter 3. Collector
Ordering Information
Part Number
FJV3113RMTF
Top Mark
R33
Package
SOT-23 3L
Packing Method
Tape and Reel
Absolute Maximum Ratings
Stresses exceeding the absolute maximum ratings may damage the device. The device may not function or be opera-
ble above the recommended operating conditions and stressing the parts to these levels is not recommended. In addi-
tion, extended exposure to stresses above the recommended operating conditions may affect device reliability. The
absolute maximum ratings are stress ratings only. Values are at T
