BZX55C51-TR

Description
Zener Diodes 51 Volt 0.5W 5%
CategoryDiscrete semiconductor    diode
File Size104KB,7 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Download Datasheet Parametric View All

BZX55C51-TR Online Shopping

Suppliers Part Number Price MOQ In stock
BZX55C51-TR - - View Buy Now

BZX55C51-TR Overview

Zener Diodes 51 Volt 0.5W 5%

BZX55C51-TR Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
MakerVishay
Parts packaging codeDO-35
package instructionO-PALF-W2
Contacts2
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresLOW NOISE
Shell connectionISOLATED
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeZENER DIODE
Maximum dynamic impedance125 Ω
JEDEC-95 codeDO-35
JESD-30 codeO-PALF-W2
JESD-609 codee2
Number of components1
Number of terminals2
Maximum operating temperature175 °C
Package body materialPLASTIC/EPOXY
Package shapeROUND
Package formLONG FORM
Peak Reflow Temperature (Celsius)NOT SPECIFIED
polarityUNIDIRECTIONAL
Maximum power dissipation0.5 W
Certification statusNot Qualified
GuidelineAEC-Q101
Nominal reference voltage51 V
surface mountNO
technologyZENER
Terminal surfaceTin/Silver (Sn/Ag)
Terminal formWIRE
Terminal locationAXIAL
Maximum time at peak reflow temperatureNOT SPECIFIED
Maximum voltage tolerance5.88%
Working test current2.5 mA
Base Number Matches1

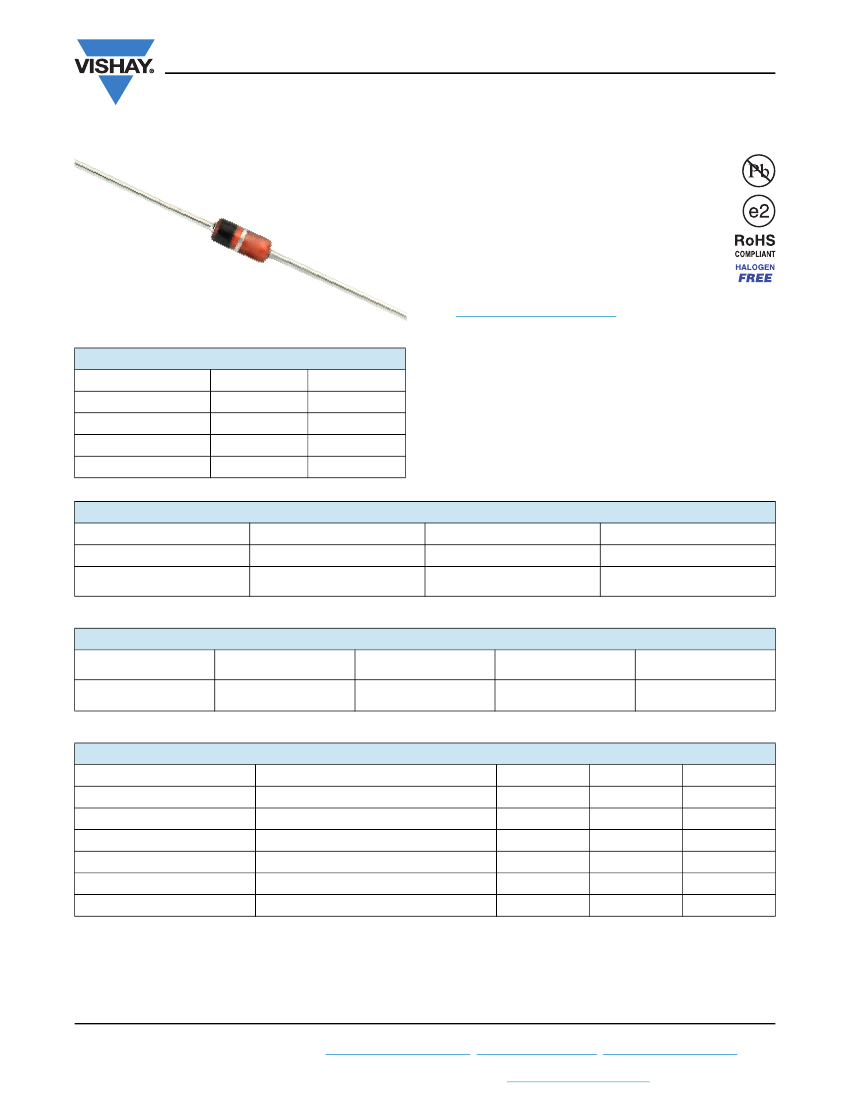

BZX55-Series
www.vishay.com
Vishay Semiconductors
Small Signal Zener Diodes
FEATURES
• Very sharp reverse characteristic
• Low reverse current level
• Very high stability
• Low noise
• AEC-Q101 qualified
• Material categorization:
For definitions of compliance please see
www.vishay.com/doc?99912
APPLICATIONS
PRIMARY CHARACTERISTICS
PARAMETER
V
Z
range nom.
Test current I
ZT
V
Z
specification
Int. construction
VALUE
2.4 to 75
2.5; 5
Pulse current
Single
UNIT
V
mA
• Voltage stabilization
ORDERING INFORMATION
DEVICE NAME
BZX55-series
BZX55-series
ORDERING CODE
BZX55-series-TR
BZX55-series-TAP
TAPED UNITS PER REEL
10 000 per 13" reel
10 000 per ammopack
(52 mm tape)
MINIMUM ORDER QUANTITY
30 000/box
30 000/box
PACKAGE
PACKAGE NAME
DO-35
WEIGHT
125 mg
MOLDING COMPOUND MOISTURE SENSITIVITY
FLAMMABILITY RATING
LEVEL
UL 94 V-0
MSL level 1
(according J-STD-020)
SOLDERING
CONDITIONS
260 °C/10 s at terminals
ABSOLUTE MAXIMUM RATINGS
(T
amb
= 25 °C, unless otherwise specified)
PARAMETER
Power dissipation
Zener current
Junction to ambient air
Junction temperature
Storage temperature range
Forward voltage (max.)
I
F
= 200 mA
l = 4 mm, T
L
= constant
TEST CONDITION
l = 4 mm, T
L
= 25 °C
SYMBOL
P
tot
I
Z
R
thJA
T
j
T
stg
V
F
VALUE
500
P
tot
/V
Z
300
175
- 65 to + 175
1.5
UNIT
mW
mA
K/W
°C
°C
V
Rev. 1.7, 06-May-13
Document Number: 85604
1
