ICM7556IPD+ datasheet, PDF - EEWORLD Datasheet

ICM7556IPD+: DescriptionTimers & Support Products Low-Power General Purpose Timer; CategoryAnalog mixed-signal IC The signal circuit; File Size5MB，9 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html; Environmental Compliance

Download Datasheet Parametric View All

ICM7556IPD+ Overview

Timers & Support Products Low-Power General Purpose Timer

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Maxim
Parts packaging code	DIP
package instruction	PLASTIC, DIP-14
Contacts	14
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	6 weeks
Analog Integrated Circuits - Other Types	SQUARE
JESD-30 code	R-PDIP-T14
JESD-609 code	e3
length	19.05 mm
Humidity sensitivity level	1
Number of functions	2
Number of terminals	14
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
Maximum output frequency	0.5 GHz
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	260
power supply	5/15 V
Certification status	Not Qualified
Maximum seat height	4.572 mm
Maximum supply current (Isup)	0.6 mA
Maximum supply voltage (Vsup)	18 V
Minimum supply voltage (Vsup)	2 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	OTHER
Terminal surface	Matte Tin (Sn)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
width	7.62 mm
Base Number Matches	1

AVAILAB

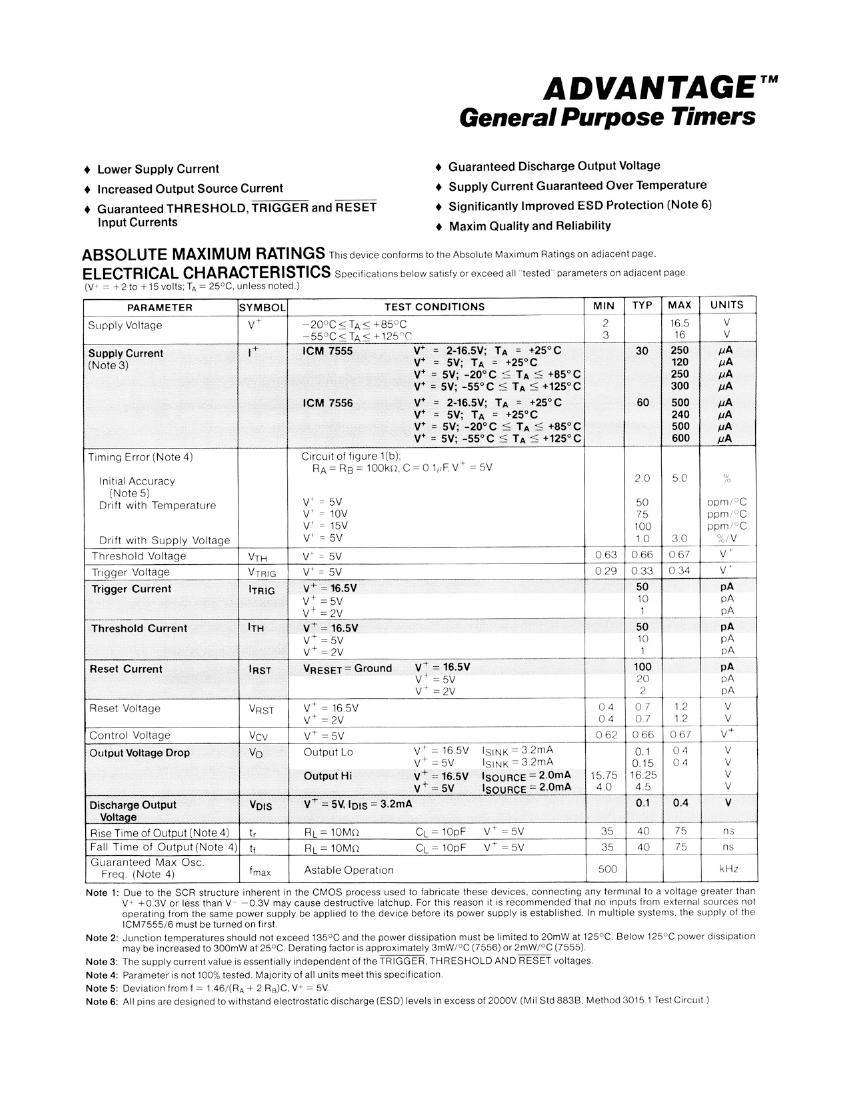

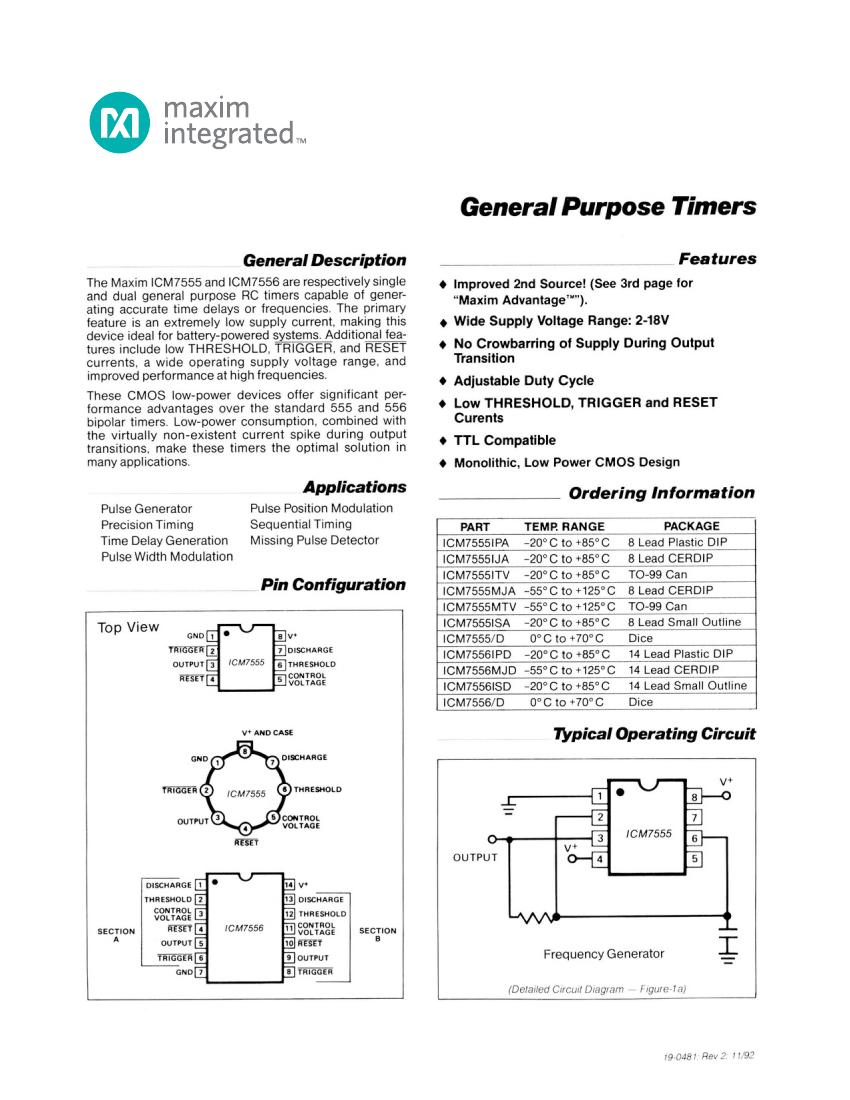

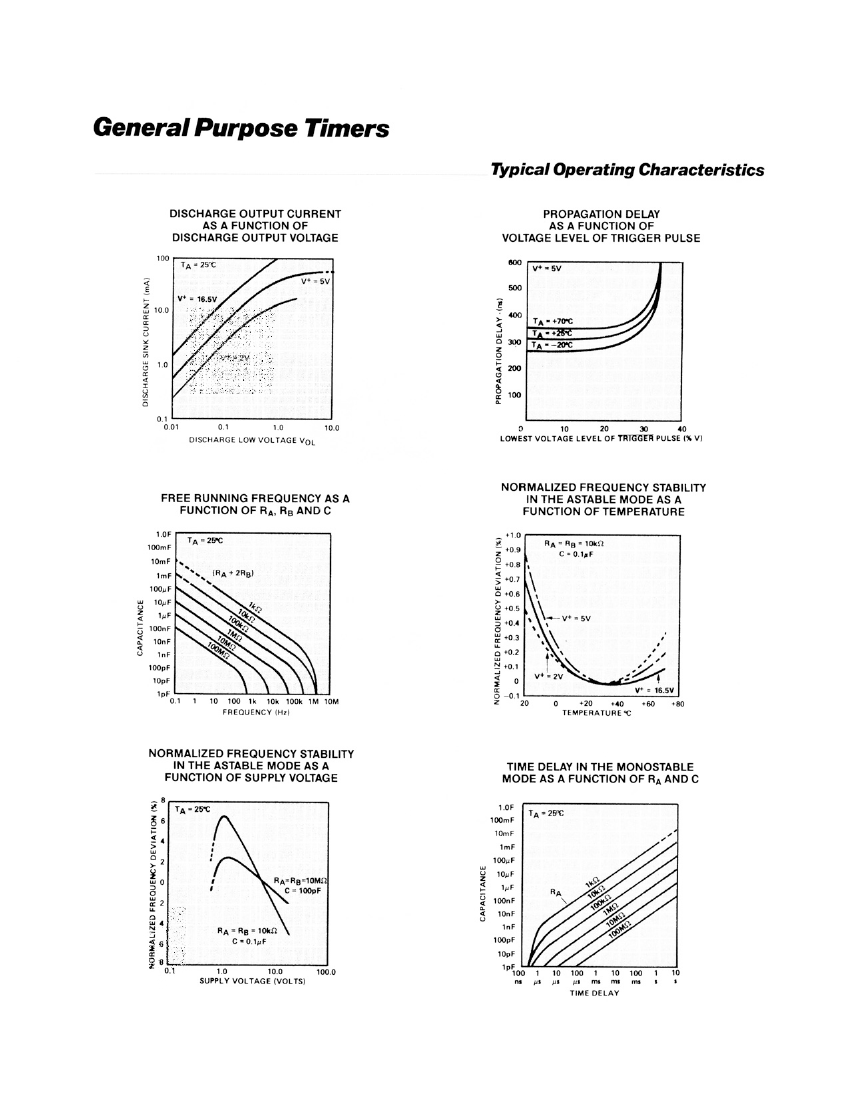

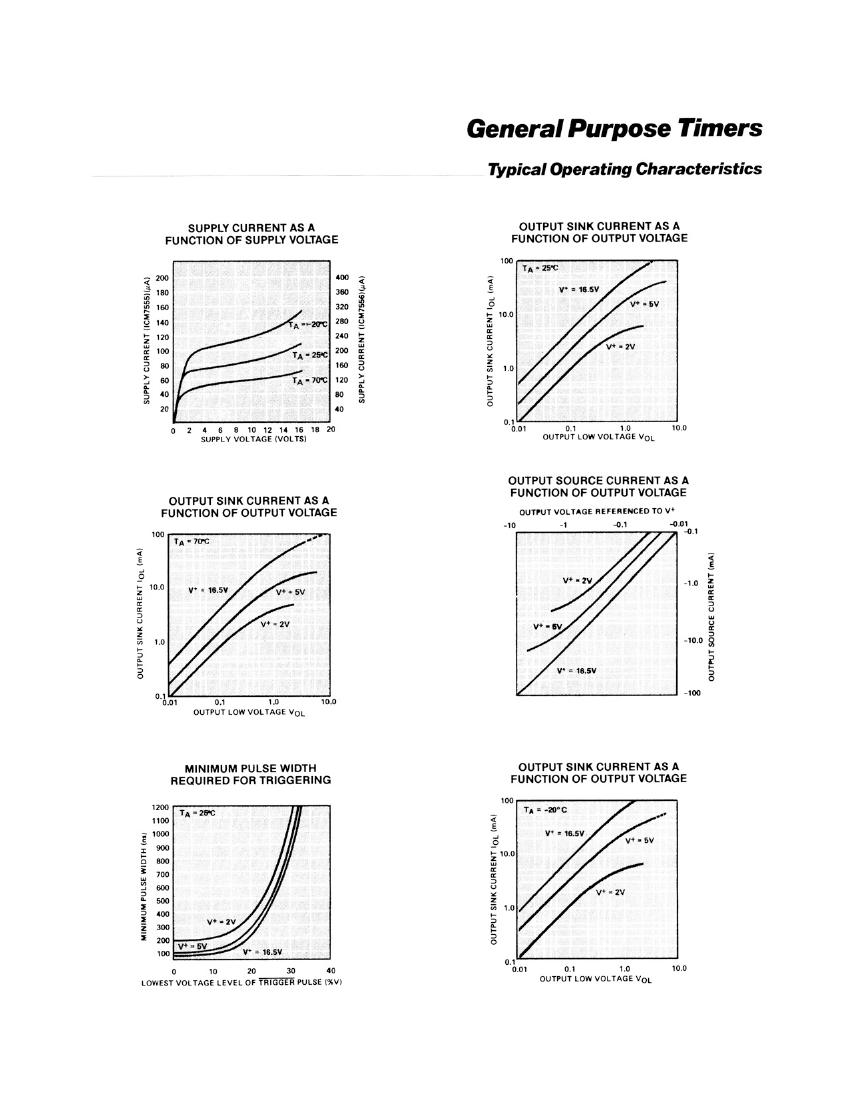

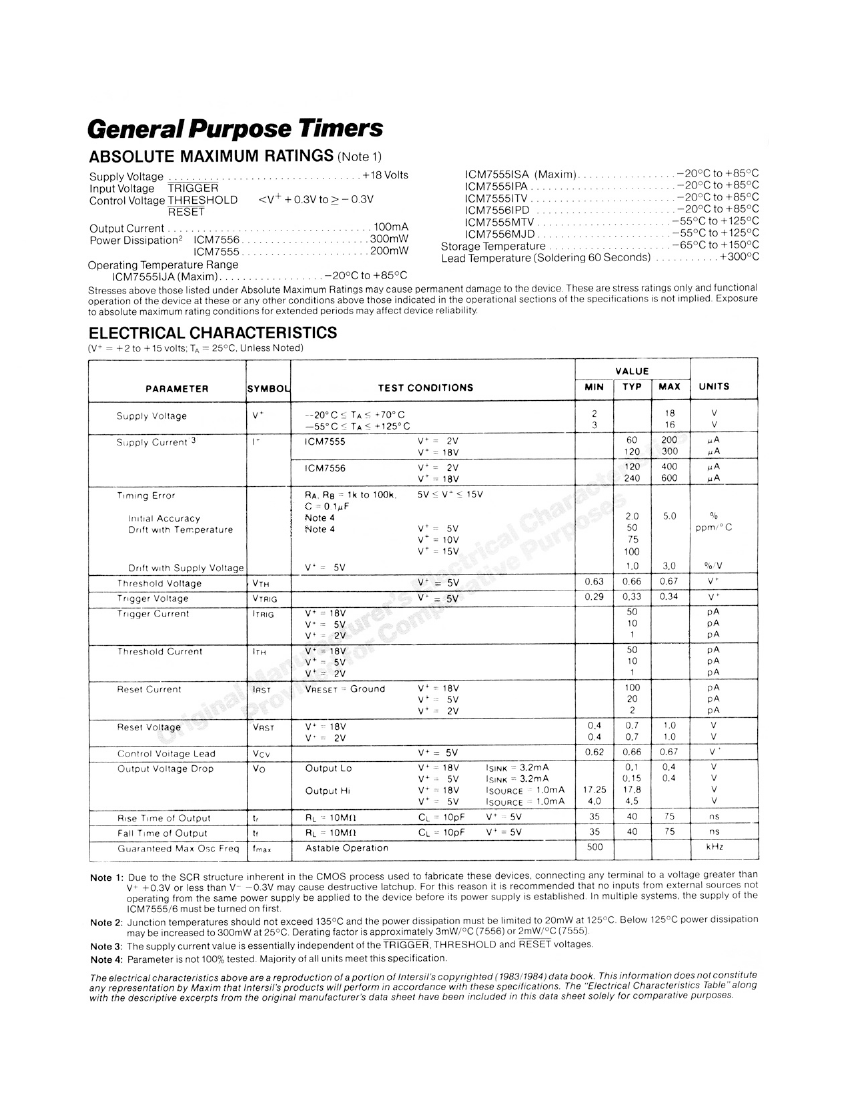

ICM7555/7556

Functional Diagrams

Pin Configurations appear at end of data sheet.

Functional Diagrams continued at end of data sheet.

UCSP is a trademark of Maxim Integrated Products, Inc.

For pricing, delivery, and ordering information, please contact Maxim Direct

at 1-888-629-4642, or visit Maxim’s website at www.maximintegrated.com.
