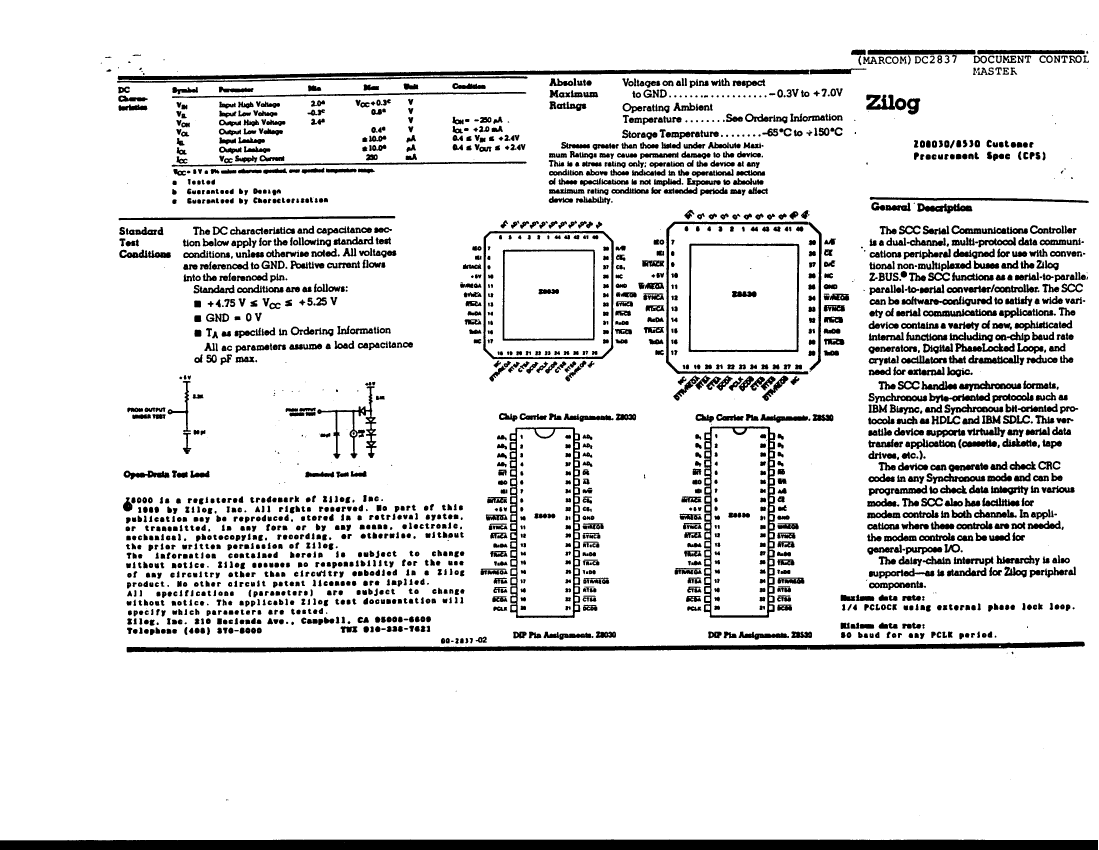

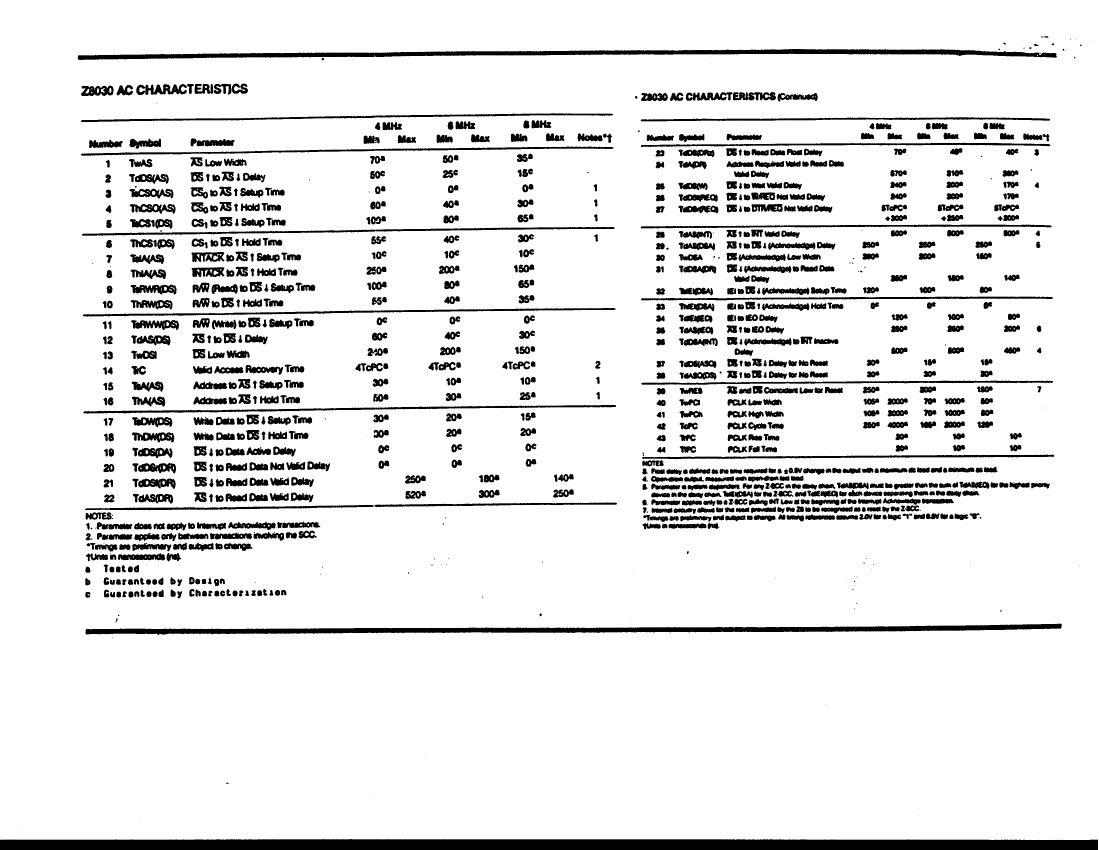

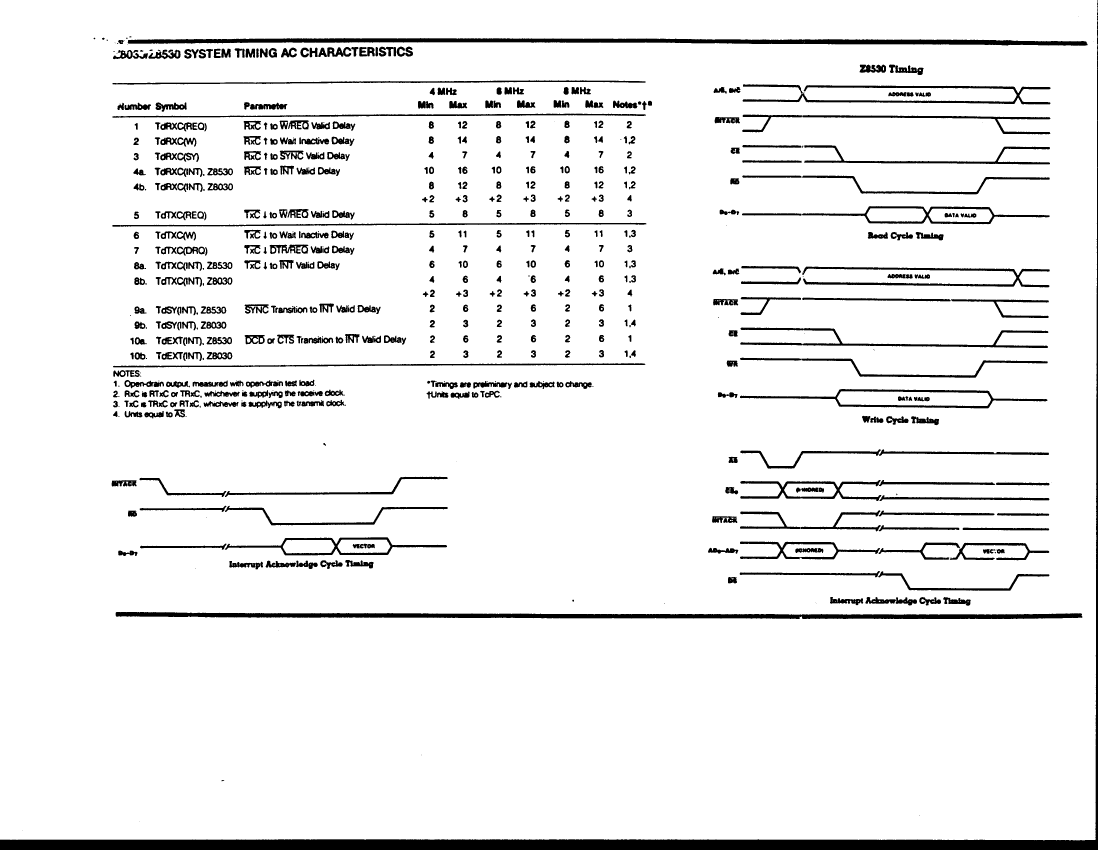

Timers & Support Products DIP-40 SCC 6MHz
| Parameter Name | Attribute value |
| Is it lead-free? | Lead free |
| Is it Rohs certified? | conform to |
| Maker | Zilog, Inc. |
| Parts packaging code | DIP |
| package instruction | DIP, DIP40,.6 |
| Contacts | 40 |
| Reach Compliance Code | unknown |
| boundary scan | NO |
| maximum clock frequency | 6 MHz |
| letter of agreement | ASYNC, BIT; SYNC, BYTE; SYNC, HDLC; SYNC, SDLC; BISYNC |
| Data encoding/decoding methods | NRZ; NRZI; BIPH-MARK(FM1); BIPH-SPACE(FM0) |
| Maximum data transfer rate | 0.25 MBps |
| External data bus width | 8 |
| JESD-30 code | R-PDIP-T40 |
| JESD-609 code | e3 |
| length | 52.325 mm |
| low power mode | NO |
| Number of serial I/Os | 2 |
| Number of terminals | 40 |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | DIP |
| Encapsulate equivalent code | DIP40,.6 |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| power supply | 5 V |
| Certification status | Not Qualified |
| Maximum seat height | 4.75 mm |
| Maximum slew rate | 230 mA |
| Maximum supply voltage | 5.25 V |
| Minimum supply voltage | 4.75 V |
| Nominal supply voltage | 5 V |
| surface mount | NO |
| technology | CMOS |
| Temperature level | COMMERCIAL |
| Terminal surface | MATTE TIN |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| width | 15.24 mm |
| uPs/uCs/peripheral integrated circuit type | SERIAL IO/COMMUNICATION CONTROLLER, SERIAL |
| Z0853006PSG | Z0853006VSG | Z0853008PSG | Z0853008VSG | Z0853004PSG | |
|---|---|---|---|---|---|
| Description | Timers & Support Products DIP-40 SCC 6MHz | Timers & Support Products ZILOG 6 MHZ Z8500 SCC | Timers & Support Products 8 MHZ Z8500 SCC | Timers & Support Products 8 MHZ Z8500 SCC | Timers & Support Products 4 MHZ Z8500 SCC |
| Is it lead-free? | Lead free | Lead free | Lead free | Lead free | Lead free |
| Is it Rohs certified? | conform to | conform to | conform to | conform to | conform to |
| Maker | Zilog, Inc. | Zilog, Inc. | Zilog, Inc. | Zilog, Inc. | Zilog, Inc. |
| Parts packaging code | DIP | LCC | DIP | LCC | DIP |
| package instruction | DIP, DIP40,.6 | QCCJ, LDCC44,.7SQ | DIP, DIP40,.6 | QCCJ, LDCC44,.7SQ | DIP, DIP40,.6 |
| Contacts | 40 | 44 | 40 | 44 | 40 |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown |
| boundary scan | NO | NO | NO | NO | NO |
| maximum clock frequency | 6 MHz | 6 MHz | 8 MHz | 8 MHz | 4 MHz |
| letter of agreement | ASYNC, BIT; SYNC, BYTE; SYNC, HDLC; SYNC, SDLC; BISYNC | ASYNC, BIT; SYNC, BYTE; SYNC, HDLC; SYNC, SDLC; BISYNC | ASYNC, BIT; SYNC, BYTE; SYNC, HDLC; SYNC, SDLC; BISYNC | ASYNC, BIT; SYNC, BYTE; SYNC, HDLC; SYNC, SDLC; BISYNC | ASYNC, BIT; SYNC, BYTE; SYNC, HDLC; SYNC, SDLC; BISYNC; EXT SYNC |
| Data encoding/decoding methods | NRZ; NRZI; BIPH-MARK(FM1); BIPH-SPACE(FM0) | NRZ; NRZI; BIPH-MARK(FM1); BIPH-SPACE(FM0) | NRZ; NRZI; BIPH-MARK(FM1); BIPH-SPACE(FM0) | NRZ; NRZI; BIPH-MARK(FM1); BIPH-SPACE(FM0) | NRZ; NRZI-SPACE; BIPH-MARK(FM1); BIPH-SPACE(FM0) |
| Maximum data transfer rate | 0.25 MBps | 0.25 MBps | 0.25 MBps | 0.25 MBps | 0.25 MBps |
| External data bus width | 8 | 8 | 8 | 8 | 8 |
| JESD-30 code | R-PDIP-T40 | S-PQCC-J44 | R-PDIP-T40 | S-PQCC-J44 | R-PDIP-T40 |
| JESD-609 code | e3 | e3 | e3 | e3 | e3 |
| length | 52.325 mm | 16.5862 mm | 52.325 mm | 16.5862 mm | 52.325 mm |
| low power mode | NO | NO | NO | NO | NO |
| Number of serial I/Os | 2 | 2 | 2 | 2 | 2 |
| Number of terminals | 40 | 44 | 40 | 44 | 40 |
| Maximum operating temperature | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | DIP | QCCJ | DIP | QCCJ | DIP |
| Encapsulate equivalent code | DIP40,.6 | LDCC44,.7SQ | DIP40,.6 | LDCC44,.7SQ | DIP40,.6 |
| Package shape | RECTANGULAR | SQUARE | RECTANGULAR | SQUARE | RECTANGULAR |
| Package form | IN-LINE | CHIP CARRIER | IN-LINE | CHIP CARRIER | IN-LINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | 260 | NOT SPECIFIED | 260 | NOT SPECIFIED |
| power supply | 5 V | 5 V | 5 V | 5 V | 5 V |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 4.75 mm | 4.57 mm | 4.75 mm | 4.57 mm | 4.75 mm |
| Maximum slew rate | 230 mA | 230 mA | 230 mA | 230 mA | 230 mA |
| Maximum supply voltage | 5.25 V | 5.25 V | 5.25 V | 5.25 V | 5.25 V |
| Minimum supply voltage | 4.75 V | 4.75 V | 4.75 V | 4.75 V | 4.75 V |
| Nominal supply voltage | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | NO | YES | NO | YES | NO |
| technology | CMOS | CMOS | CMOS | CMOS | NMOS |
| Temperature level | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal surface | MATTE TIN | MATTE TIN | MATTE TIN | MATTE TIN | MATTE TIN |
| Terminal form | THROUGH-HOLE | J BEND | THROUGH-HOLE | J BEND | THROUGH-HOLE |
| Terminal pitch | 2.54 mm | 1.27 mm | 2.54 mm | 1.27 mm | 2.54 mm |
| Terminal location | DUAL | QUAD | DUAL | QUAD | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED | 40 | NOT SPECIFIED | 40 | NOT SPECIFIED |
| width | 15.24 mm | 16.5862 mm | 15.24 mm | 16.5862 mm | 15.24 mm |
| uPs/uCs/peripheral integrated circuit type | SERIAL IO/COMMUNICATION CONTROLLER, SERIAL | SERIAL IO/COMMUNICATION CONTROLLER, SERIAL | SERIAL IO/COMMUNICATION CONTROLLER, SERIAL | SERIAL IO/COMMUNICATION CONTROLLER, SERIAL | SERIAL IO/COMMUNICATION CONTROLLER, SERIAL |
