MCF51JM128VLH datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> MCF51JM128VLH

MCF51JM128VLH: Description32-bit Microcontrollers - MCU 64L 128K FLASH 16K RAM; CategoryThe embedded processor and controller Microcontrollers and processors; File Size971KB，49 Pages; ManufacturerNXP; Websitehttps://www.nxp.com; Environmental Compliance

Download Datasheet Parametric View All

MCF51JM128VLH Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MCF51JM128VLH	-	-	View	Buy Now

MCF51JM128VLH Overview

32-bit Microcontrollers - MCU 64L 128K FLASH 16K RAM

MCF51JM128VLH Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	NXP
Parts packaging code	QFP
package instruction	10 X 10 MM, 1.40MM HEIGHT, 0.50 MM PITCH, MS-026BCD, LQFP-64
Contacts	64
Reach Compliance Code	unknown
ECCN code	5A992
Samacsys Description	MCF51JM128 ColdFire Microcontroller
Has ADC	YES
Address bus width
bit size	32
CPU series	COLDFIRE
maximum clock frequency	16 MHz
DAC channel	NO
DMA channel	NO
External data bus width
JESD-30 code	S-PQFP-G64
JESD-609 code	e3
length	10 mm
Humidity sensitivity level	3
Number of I/O lines	51
Number of terminals	64
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PWM channel	YES
Package body material	PLASTIC/EPOXY
encapsulated code	LFQFP
Encapsulate equivalent code	QFP64,.47SQ,20
Package shape	SQUARE
Package form	FLATPACK, LOW PROFILE, FINE PITCH
Peak Reflow Temperature (Celsius)	260
power supply	3/5 V
Certification status	Not Qualified
RAM (bytes)	16384
rom(word)	131072
ROM programmability	FLASH
Maximum seat height	1.6 mm
speed	50.33 MHz
Maximum slew rate	70 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	2.7 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Matte Tin (Sn)
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	40
width	10 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER, RISC

Preview

Download Datasheet

View All

Freescale Semiconductor

Data Sheet: Technical Data

Document Number: MCF51JM128

Rev. 4, 05/2012

MCF51JM128

80 LQFP

14 mm



14 mm

64 LQFP

10 mm



10 mm

MCF51JM128 ColdFire

Microcontroller

The MCF51JM128 is a member of the ColdFire family of

32-bit reduced instruction set computing (RISC)

microprocessors. This document provides an overview of the

MCF51JM128 series, focusing on its highly integrated and

diverse feature set.

The MCF51JM128 series is based on the V1 ColdFire core

and operates at processor core speeds up to 50.33 MHz. As

part of Freescale’s Controller Continuum

, it is an ideal

upgrade for designs based on the MC9S08JM60 series of 8-bit

microcontrollers.

The MCF51JM128 features the following functional units:

•

V1 ColdFire core with background debug module

Up to 128 KB of flash memory

Up to 16 KB of static RAM (SRAM)

Multipurpose clock generator (MCG)

Dual-role Universal Serial Bus On-The-Go device

(USBOTG)

Controller-area network (MSCAN)

Cryptographic acceleration unit (CAU)

Random number generator accelerator (RNGA)

Analog comparators (ACMP)

Analog-to-digital converter (ADC) with up to 12 channels

Two Inter-integrated circuit (IIC) modules

Two serial peripheral interfaces (SPI)

Two serial communications interfaces (SCI)

Carrier modulation timer (CMT)

Eight-channel timer/pulse-width modulators (TPM)

Real-time counter (RTC)

66 general-purpose input/output (GPIO) modules plus

Interrupt request input

Eight keyboard interrupts (KBI)

16-bit Rapid GPIO

44 LQFP

10 mm



10 mm

64 QFP

14 mm



14 mm

This document contains information on a product under development. Freescale reserves the

right to change or discontinue this product without notice.

Table of Contents

MCF51JM128 Family Configurations . . . . . . . . . . . . . . . . . . . .3

1.1 Device Comparison. . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

1.2 Block Diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

1.3 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

1.4 Part Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

1.5 Pinouts and Packaging . . . . . . . . . . . . . . . . . . . . . . . . .10

Preliminary Electrical Characteristics . . . . . . . . . . . . . . . . . . .15

2.1 Parameter Classification . . . . . . . . . . . . . . . . . . . . . . . .15

2.2 Absolute Maximum Ratings . . . . . . . . . . . . . . . . . . . . .15

2.3 Thermal Characteristics . . . . . . . . . . . . . . . . . . . . . . . .16

2.4 Electrostatic Discharge (ESD) Protection Characteristics

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

2.5 DC Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

2.6 Supply Current Characteristics . . . . . . . . . . . . . . . . . . .21

2.7 Analog Comparator (ACMP) Electricals . . . . . . . . . . . .23

2.8 ADC Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . .23

2.9 External Oscillator (XOSC) Characteristics . . . . . . . . .26

2.10 MCG Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . .27

2.11 AC Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

2.12 SPI Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

2.13 Flash Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . .34

2.14 USB Electricals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

2.15 EMC Performance. . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

Mechanical Outline Drawings . . . . . . . . . . . . . . . . . . . . . . . . .36

3.1 80-pin LQFP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

3.2 64-pin LQFP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39

3.3 64-pin QFP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42

3.4 44-pin LQFP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48

Figure 13.Timer Input Capture Pulse . . . . . . . . . . . . . . . . . . . . . 30

Figure 14.SPI Master Timing (CPHA = 0) . . . . . . . . . . . . . . . . . 32

Figure 15.SPI Master Timing (CPHA = 1) . . . . . . . . . . . . . . . . . 32

Figure 16.SPI Slave Timing (CPHA = 0) . . . . . . . . . . . . . . . . . . 33

Figure 17.SPI Slave Timing (CPHA = 1) . . . . . . . . . . . . . . . . . . 33

Figure 18.80-pin LQFP Diagram - I . . . . . . . . . . . . . . . . . . . . . . 36

Figure 19.80-pin LQFP Diagram - II. . . . . . . . . . . . . . . . . . . . . . 37

Figure 20.80-pin LQFP Diagram - III . . . . . . . . . . . . . . . . . . . . . 38

Figure 21.64-pin LQFP Diagram - I . . . . . . . . . . . . . . . . . . . . . . 39

Figure 22.64-pin LQFP Diagram - II. . . . . . . . . . . . . . . . . . . . . . 40

Figure 23.64-pin LQFP Diagram - III . . . . . . . . . . . . . . . . . . . . . 41

Figure 24.64-pin QFP Diagram - I . . . . . . . . . . . . . . . . . . . . . . . 42

Figure 25.64-pin QFP Diagram - II. . . . . . . . . . . . . . . . . . . . . . . 43

Figure 26.64-pin QFP Diagram - III . . . . . . . . . . . . . . . . . . . . . . 44

Figure 27.44-pin LQFP Diagram - I . . . . . . . . . . . . . . . . . . . . . . 45

Figure 28.44-pin LQFP Diagram - II. . . . . . . . . . . . . . . . . . . . . . 46

Figure 29.44-pin LQFP Diagram - III . . . . . . . . . . . . . . . . . . . . . .47

List of Tables

Table 1. MCF51JM128 Series Device Comparison . . . . . . . . . . 3

Table 2. MCF51JM128 Series Functional Units . . . . . . . . . . . . . 5

Table 3. Orderable Part Number Summary. . . . . . . . . . . . . . . . . 8

Table 4. Pin Assignments by Package and Pin Sharing Priority 12

Table 5. Parameter Classifications . . . . . . . . . . . . . . . . . . . . . . 15

Table 6. Absolute Maximum Ratings. . . . . . . . . . . . . . . . . . . . . 16

Table 7. Thermal Characteristics. . . . . . . . . . . . . . . . . . . . . . . . 16

Table 8. ESD and Latch-up Test Conditions . . . . . . . . . . . . . . . 17

Table 9. ESD and Latch-Up Protection Characteristics. . . . . . . 18

Table 10.DC Characteristics. . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Table 11. Supply Current Characteristics. . . . . . . . . . . . . . . . . . 21

Table 12.Analog Comparator Electrical Specifications. . . . . . . . 23

Table 13.5 Volt 12-bit ADC Operating Conditions . . . . . . . . . . . 23

Table 14.5 Volt 12-bit ADC Characteristics (VREFH = VDDA, VREFL

= VSSA). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Table 15.Oscillator Electrical Specifications (Temperature Range =

–40 to 105×C Ambient) . . . . . . . . . . . . . . . . . . . . . . . . 26

Table 16.MCG Frequency Specifications (Temperature Range = –40

to 125×C Ambient) . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Table 17.Control Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Table 18.TPM Input Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Table 19.MSCAN Wake-up Pulse Characteristics . . . . . . . . . . . 30

Table 20.SPI Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Table 21.Flash Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Table 22.Internal USB 3.3V Voltage Regulator Characteristics . 35

Table 23.Internal Revision History . . . . . . . . . . . . . . . . . . . . . . . 50

Table 24.Changes Between Revisions. . . . . . . . . . . . . . . . . . . . 51

List of Figures

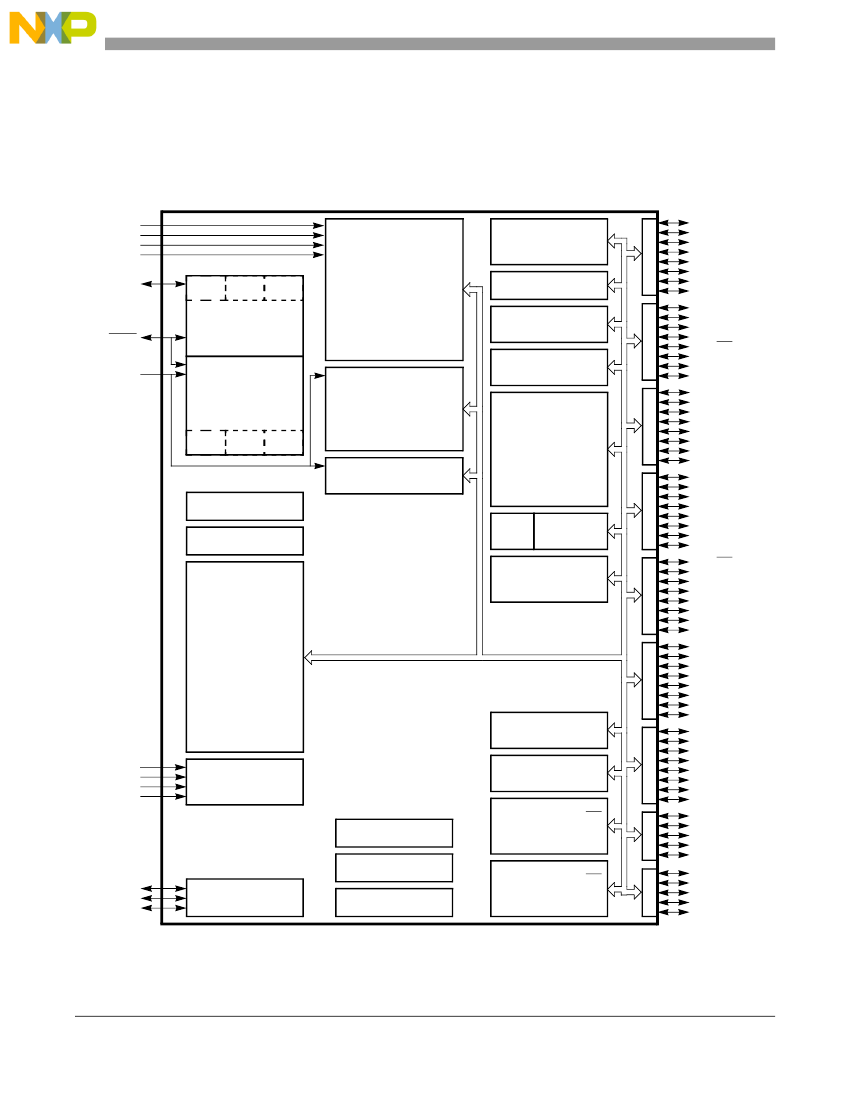

Figure 1. MCF51JM128 Block Diagram . . . . . . . . . . . . . . . . . . . . 4
