HS9-26CT32RH-8: DescriptionRS-422 Interface IC RAD HARD RS422 TTL LINE RECEIVER,FLATPK, CLASS Q; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size229KB，3 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/; Environmental Compliance; Related ProductsFound7parts with similar functions to HS9-26CT32RH-8

Download Datasheet Parametric Compare View All

HS9-26CT32RH-8 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	HS9-26CT32RH-8	-	-	View	Buy Now

HS9-26CT32RH-8 Overview

RS-422 Interface IC RAD HARD RS422 TTL LINE RECEIVER,FLATPK, CLASS Q

HS9-26CT32RH-8 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Renesas Electronics Corporation
Parts packaging code	DFP
package instruction	DFP, FL16,.3
Contacts	16
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	TTL COMPATIBLE INPUTS
Differential output	NO
Input properties	DIFFERENTIAL SCHMITT TRIGGER
Interface integrated circuit type	LINE RECEIVER
Interface standards	EIA-422
JESD-30 code	R-CDFP-F16
JESD-609 code	e4
Number of functions	4
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Maximum output low current	0.006 A
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP
Encapsulate equivalent code	FL16,.3
Package shape	RECTANGULAR
Package form	FLATPACK
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
Maximum receive delay
Number of receiver bits	4
Filter level	MIL-PRF-38535 Class Q
Maximum seat height	2.92 mm
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	Gold (Au)
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
total dose	300k Rad(Si) V
width	6.73 mm

Preview

Download Datasheet

View All

DATASHEET

HS-26CT32RH, HS-26CT32EH

Radiation Hardened Quad Differential Line Receivers

The Intersil HS-26CT32RH, HS-26CT32EH are differential line

receivers designed for digital data transmission over balanced

lines and meets the requirements of EIA standard RS-422.

Radiation hardened CMOS processing assures low power

consumption, high speed, and reliable operation in the most

severe radiation environments.

The HS-26CT32RH, HS-26CT32EH have an input sensitivity

typically of 200mV over the common mode input voltage

range of

7V.

The receivers are also equipped with input fail

safe circuitry, which causes the outputs to go to a logic “1”

when the inputs are open. Enable and Disable functions are

common to all four receivers.

Specifications for Rad Hard QML devices are controlled by the

Defense Logistics Agency Land and Maritime (DLA). The SMD

numbers listed in the “Ordering Information” must be used

when ordering.

Detailed Electrical Specifications for these devices are

contained in SMD

5962-95631.

A “hot-link” is also provided on

our homepage for downloading.

FN2930

Rev 6.00

May 23, 2013

Features

• Electrically screened to SMD #

5962-95631

• QML qualified per MIL-PRF-38535 requirements

• 1.2 Micron radiation hardened CMOS

- Total dose . . . . . . . . . . . . . . . . . . . . . . . . Up to 300kRAD(Si)

• Latch-up free

• EIA RS-422 compatible outputs

• Operation with TTL based on V

= V

• Input fail safe circuitry

• High impedance inputs when disabled or powered down

• Low power dissipation standby (Max) . . . . . . . . . . . . .138mW

• Single 5V supply

• Full Military temperature range . . . . . . . . . -55°C to +125°C

Applications

• Line receiver for MIL-STD-1553 serial data bus

• Line receiver for RS422

Logic Diagram

ENABLE

ENABLE DIN DIN

CIN CIN

BIN BIN

AIN AIN

DOUT

COUT

BOUT

AOUT

Ordering Information

ORDERING NUMBER

(Note 1)

5962F9563101QEC

5962F9563101QXC

5962F9563101V9A

HS0-26CT32RH/SAMPLE

5962F9563101VEC

5962F9563101VXC

5962F9563102VXC

HS1-26CT32RH/PROTO

HS9-26CT32RH/PROTO

5962F9563102VEC

INTERNAL

MKT. NUMBER

HS1-26CT32RH-8

HS9-26CT32RH-8

HS0-26CT32RH-Q

HS0-26CT32RH/SAMPLE

HS1-26CT32RH-Q

HS9-26CT32RH-Q

HS9-26CT32EH-Q

HS1-26CT32RH/PROTO

HS9-26CT32RH/PROTO

HS1-26CT32EH-Q

Q 5962F95 63101VEC

Q 5962F95 63101VXC

Q 5962F95 63102VXC

HS1- 26CT32RH /PROTO

HS9- 26CT32RH /PROTO

Q 5962F95 63102VEC

PART MARKING

Q 5962F95 63101QEC

Q 5962F95 63101QXC

TEMP. RANGE

(°C)

-55 to +125

PACKAGE

16 Ld SBDIP

16 Ld Flatpack

Die

16 Ld SBDIP

16 Ld Flatpack

16 Ld SBDIP

16 Ld Flatpack

16 Ld SBDIP

D16.3

K16.A

D16.3

K16.A

D16.3

PKG. DWG. #

D16.3

K16.A

FN2930 Rev 6.00

May 23, 2013

Page 1 of 3

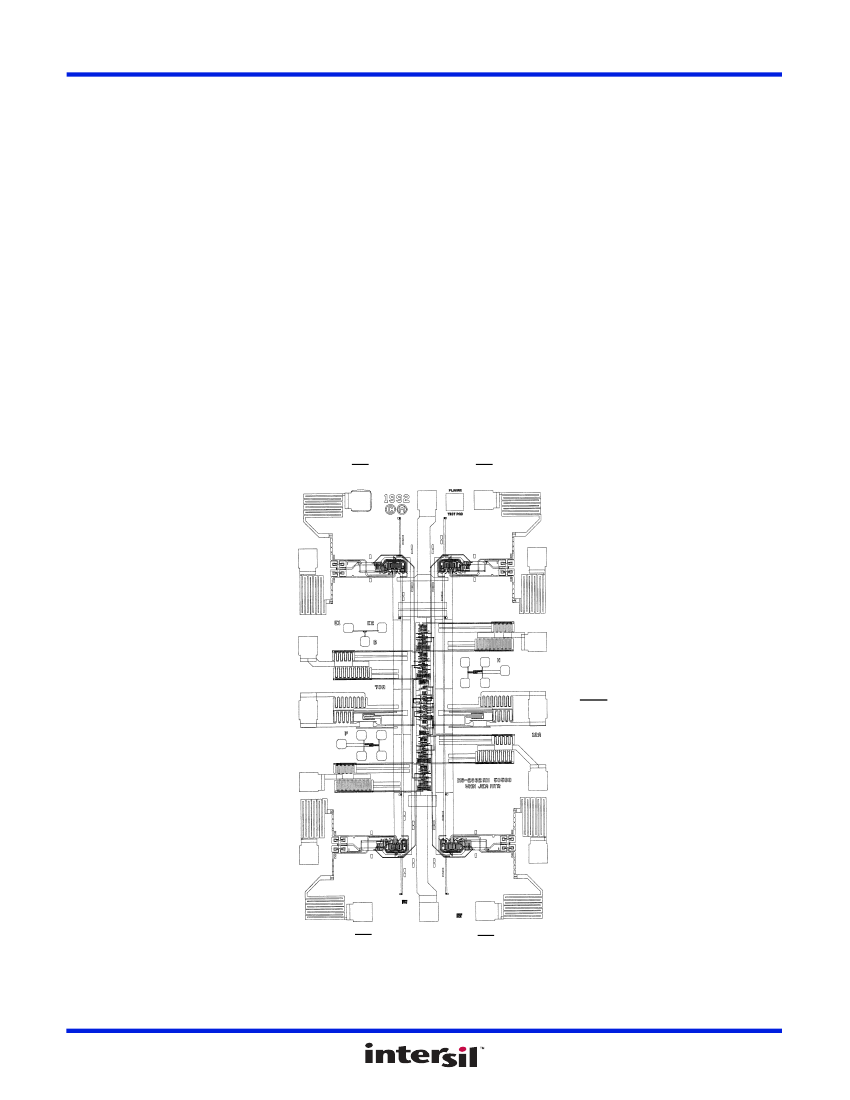

HS9-26CT32RH-8 Related Products

	HS9-26CT32RH-8	HS1-26CT32RH-8	HS1-26CT32RH-Q	HS9-26CT32EH-Q
Description	RS-422 Interface IC RAD HARD RS422 TTL LINE RECEIVER,FLATPK, CLASS Q	RS-422 Interface IC RAD HARD RS422 TTL LINE RECEIVER,DIP PKG, CLASS Q	RS-422 Interface IC RAD HARD RS422 TTL LINE RECEIVER,DIP PKG, CLASS V	RS-422 Interface IC RAD HARD RS422 TTL LINE RECEIVER, FLATPACK, CLASS V, HDR/LDR
Is it lead-free?	Lead free	Lead free	Lead free	-
Is it Rohs certified?	conform to	conform to	conform to	-
Maker	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	-
Parts packaging code	DFP	DIP	DIP	-
package instruction	DFP, FL16,.3	DIP, DIP16,.3	DIP, DIP16,.3	-
Contacts	16	16	16	-
Reach Compliance Code	compliant	compliant	compliant	-
ECCN code	EAR99	EAR99	EAR99	-
Other features	TTL COMPATIBLE INPUTS	TTL COMPATIBLE INPUTS	TTL COMPATIBLE INPUTS	-
Differential output	NO	NO	NO	-
Input properties	DIFFERENTIAL SCHMITT TRIGGER	DIFFERENTIAL SCHMITT TRIGGER	DIFFERENTIAL SCHMITT TRIGGER	-
Interface integrated circuit type	LINE RECEIVER	LINE RECEIVER	LINE RECEIVER	-
Interface standards	EIA-422	EIA-422	EIA-422	-
JESD-30 code	R-CDFP-F16	R-CDIP-T16	R-CDIP-T16	-
JESD-609 code	e4	e4	e4	-
Number of functions	4	4	4	-
Number of terminals	16	16	16	-
Maximum operating temperature	125 °C	125 °C	125 °C	-
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-
Maximum output low current	0.006 A	0.006 A	0.006 A	-
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	-
encapsulated code	DFP	DIP	DIP	-
Encapsulate equivalent code	FL16,.3	DIP16,.3	DIP16,.3	-
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	-
Package form	FLATPACK	IN-LINE	IN-LINE	-
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-
power supply	5 V	5 V	5 V	-
Certification status	Not Qualified	Not Qualified	Not Qualified	-
Number of receiver bits	4	4	4	-
Filter level	MIL-PRF-38535 Class Q	MIL-PRF-38535 Class Q	MIL-PRF-38535 Class V	-
Maximum seat height	2.92 mm	5.08 mm	5.08 mm	-
Nominal supply voltage	5 V	5 V	5 V	-
surface mount	YES	NO	NO	-
technology	CMOS	CMOS	CMOS	-
Temperature level	MILITARY	MILITARY	MILITARY	-
Terminal surface	Gold (Au)	Gold (Au)	Gold (Au)	-
Terminal form	FLAT	THROUGH-HOLE	THROUGH-HOLE	-
Terminal pitch	1.27 mm	2.54 mm	2.54 mm	-
Terminal location	DUAL	DUAL	DUAL	-
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-
total dose	300k Rad(Si) V	300k Rad(Si) V	300k Rad(Si) V	-
width	6.73 mm	7.62 mm	7.62 mm	-
