AD8009ARZ-REEL datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> AD8009ARZ-REEL

AD8009ARZ-REEL: DescriptionHigh Speed Operational Amplifiers 1GHz 5,500 V/uS Low Distortion; CategoryAnalog mixed-signal IC Amplifier circuit; File Size282KB，16 Pages; ManufacturerADI; Websitehttps://www.analog.com; Environmental Compliance

Download Datasheet Download user manual Parametric View All

AD8009ARZ-REEL Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	AD8009ARZ-REEL	-	-	View	Buy Now

AD8009ARZ-REEL Overview

High Speed Operational Amplifiers 1GHz 5,500 V/uS Low Distortion

AD8009ARZ-REEL Parametric

Parameter Name	Attribute value
Brand Name	Analog Devices Inc
Is it lead-free?	Contains lead
Is it Rohs certified?	conform to
Maker	ADI
Parts packaging code	SOIC
package instruction	SOP,
Contacts	8
Manufacturer packaging code	R-8
Reach Compliance Code	compliant
ECCN code	EAR99
Amplifier type	OPERATIONAL AMPLIFIER
Maximum average bias current (IIB)	150 µA
Nominal Common Mode Rejection Ratio	52 dB
Maximum input offset voltage	7000 µV
JESD-30 code	R-PDSO-G8
JESD-609 code	e3
length	4.9 mm
Humidity sensitivity level	1
Negative supply voltage upper limit	-6.3 V
Nominal Negative Supply Voltage (Vsup)	-5 V
Number of functions	1
Number of terminals	8
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum seat height	1.75 mm
Nominal slew rate	5500 V/us
Supply voltage upper limit	6.3 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
Temperature level	INDUSTRIAL
Terminal surface	Matte Tin (Sn)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
width	3.9 mm

User Manual

Preview

Download Datasheet

View All

FEATURES

Ultrahigh Speed

5,500 V/ s Slew Rate, 4 V Step, G = +2

545 ps Rise Time, 2 V Step, G = +2

Large Signal Bandwidth

440 MHz, G = +2

320 MHz, G = +10

Small Signal Bandwidth (–3 dB)

1 GHz, G = +1

700 MHz, G = +2

Settling Time 10 ns to 0.1%, 2 V Step, G = +2

Low Distortion over Wide Bandwidth

SFDR

–66 dBc @ 20 MHz, Second Harmonic

–75 dBc @ 20 MHz, Third Harmonic

Third Order Intercept (3IP)

26 dBm @ 70 MHz, G = +10

Good Video Specifications

Gain Flatness 0.1 dB to 75 MHz

0.01% Differential Gain Error, R

= 150

0.01 Differential Phase Error, R

= 150

High Output Drive

175 mA Output Load Drive

10 dBm with –38 dBc SFDR @ 70 MHz, G = +10

Supply Operation

+5 V to 5 V Voltage Supply

14 mA (Typ) Supply Current

APPLICATIONS

Pulse Amplifier

IF/RF Gain Stage/Amplifiers

High Resolution Video Graphics

High Speed Instrumentations

CCD Imaging Amplifier

NORMALIZED GAIN (dB)

1 GHz, 5,500 V/ s

Low Distortion Amplifier

AD8009

FUNCTIONAL BLOCK DIAGRAMS

8-Lead Plastic SOIC (R-8)

NC 1

–IN

5-Lead SOT-23 (RT-5)

AD8009

OUT 1

–V

S 2

+IN

AD8009

8 NC

7 +V

6 OUT

5 NC

+IN 3

–V

NC = NO CONNECT

–IN

PRODUCT DESCRIPTION

The AD8009 is an ultrahigh speed current feedback amplifier

with a phenomenal 5,500 V/µs slew rate that results in a rise

time of 545 ps, making it ideal as a pulse amplifier.

The high slew rate reduces the effect of slew rate limiting and

results in the large signal bandwidth of 440 MHz required for

high resolution video graphic systems. Signal quality is main-

tained over a wide bandwidth with worst-case distortion of

–40 dBc @ 250 MHz (G = +10, 1 V p-p). For applications with

multitone signals, such as IF signal chains, the third order

intercept (3IP) of 12 dBm is achieved at the same frequency. This

distortion performance coupled with the current feedback

architecture make the AD8009 a flexible component for a gain

stage amplifier in IF/RF signal chains.

The AD8009 is capable of delivering over 175 mA of load current

and will drive four back terminated video loads while maintaining

low differential gain and phase error of 0.02% and 0.04°,

respectively. The high drive capability is also reflected in the

ability to deliver 10 dBm of output power @ 70 MHz with

–38 dBc SFDR.

The AD8009 is available in a small SOIC package and will

operate over the industrial temperature range –40°C to +85°C.

The AD8009 is also available in an SOT-23-5 and will operate

over the commercial temperature range of 0°C to 70°C.

–30

–40

–50

–60

–70

–80

THIRD

100 LOAD

THIRD

150 LOAD

G=2

= 301

= 2V p-p

SECOND

100 LOAD

SECOND

150 LOAD

G = +2

= 301

= 150

–1

= 2V p-p

–2

–3

–4

–5

–6

–7

–8

100

FREQUENCY RESPONSE (MHz)

1000

G = +10

= 200

= 100

DISTORTION (dBc)

–90

–100

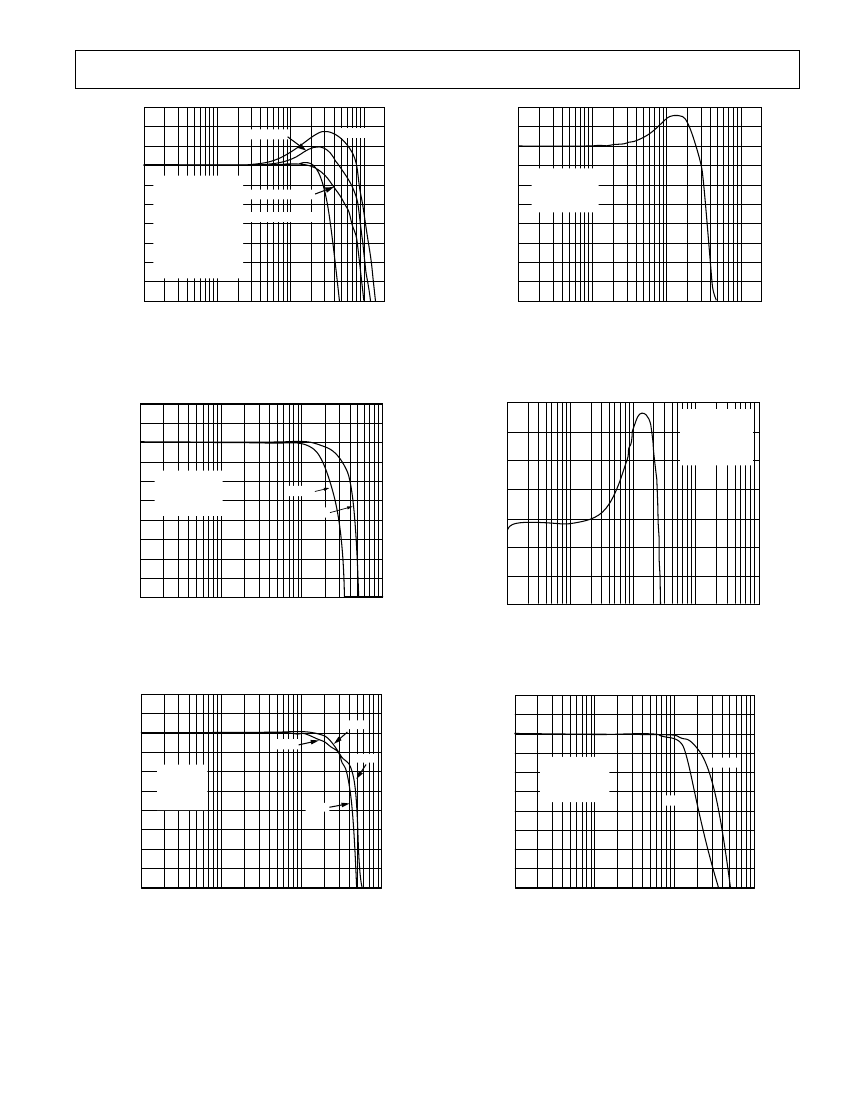

Figure 1. Large Signal Frequency Response; G = +2 and +10

REV. F

Information furnished by Analog Devices is believed to be accurate and

reliable. However, no responsibility is assumed by Analog Devices for its

use, nor for any infringements of patents or other rights of third parties that

may result from its use. No license is granted by implication or otherwise

under any patent or patent rights of Analog Devices. Trademarks and

registered trademarks are the property of their respective owners.

FREQUENCY RESPONSE (MHz)

Figure 2. Distortion vs. Frequency; G = +2

One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.

Tel: 781/329-4700

www.analog.com

Fax: 781/326-8703
