B360B-13 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> B360B-13

B360B-13: DescriptionSchottky Diodes & Rectifiers 60V 3A; CategoryDiscrete semiconductor diode; File Size185KB，5 Pages; ManufacturerDiodes Incorporated

Download Datasheet Parametric Compare View All

B360B-13 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	B360B-13	-	-	View	Buy Now

B360B-13 Overview

Schottky Diodes & Rectifiers 60V 3A

B360B-13 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Diodes Incorporated
package instruction	R-PDSO-C2
Contacts	2
Reach Compliance Code	not_compliant
ECCN code	EAR99
Other features	LOW POWER LOSS, FREE WHEELING DIODE
application	EFFICIENCY
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.7 V
JESD-30 code	R-PDSO-C2
JESD-609 code	e0
Humidity sensitivity level	1
Maximum non-repetitive peak forward current	100 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	125 °C
Maximum output current	3 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	235
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	60 V
surface mount	YES
technology	SCHOTTKY
Terminal surface	Tin/Lead (Sn85Pb15)
Terminal form	C BEND
Terminal location	DUAL
Maximum time at peak reflow temperature	10
Base Number Matches	1

Preview

Download Datasheet

View All

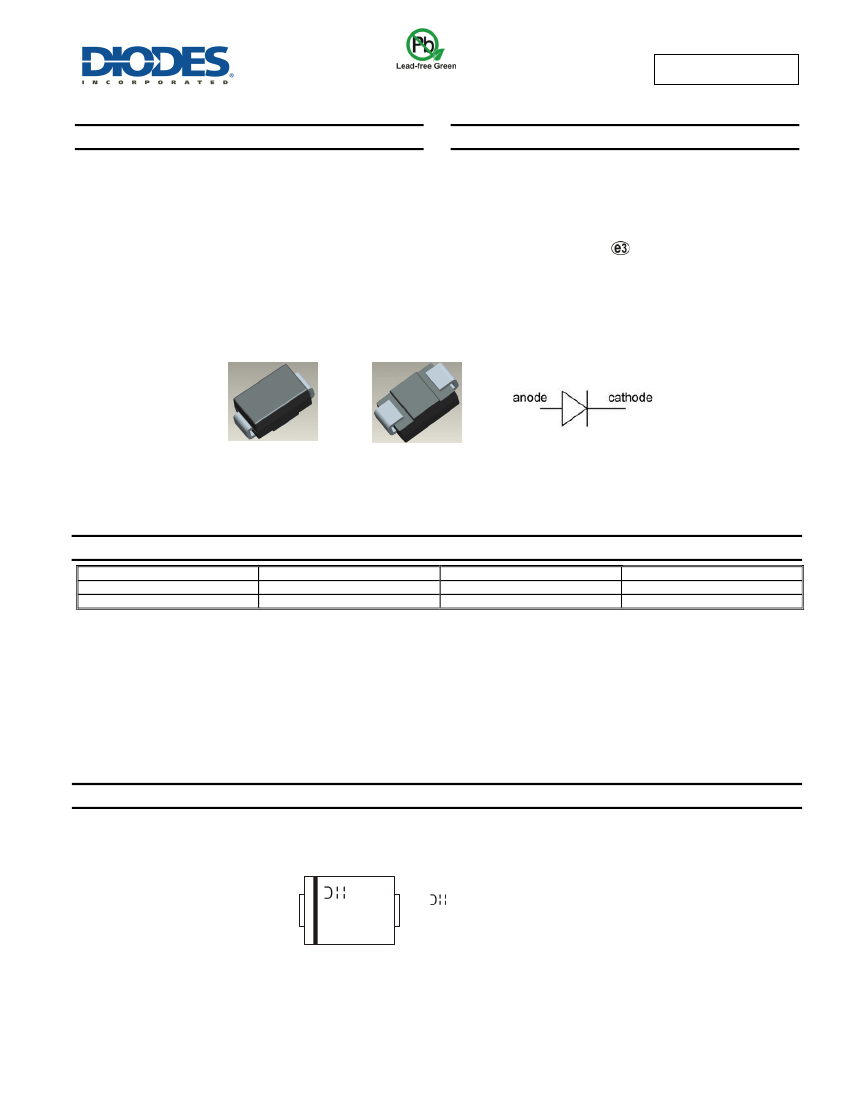

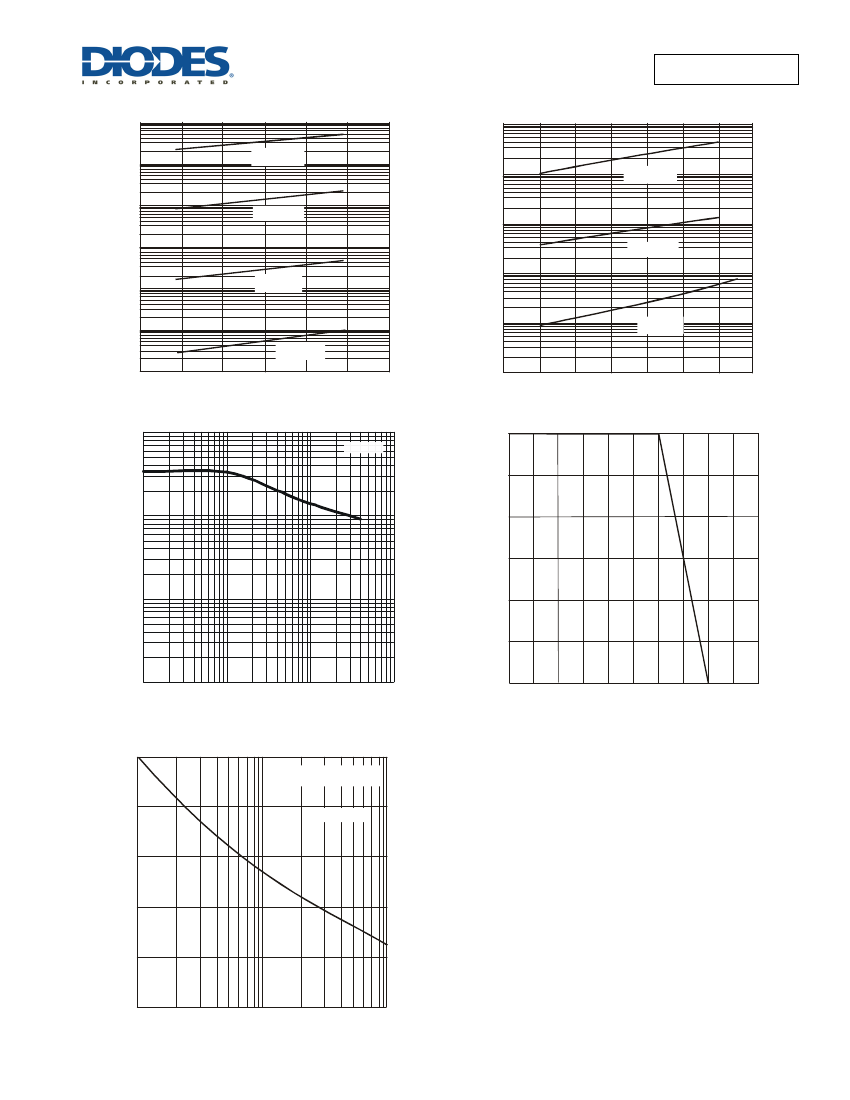

B320B - B360B

3.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER

Features



Guard Ring Die Construction for Transient Protection

Ideally Suited for Automated Assembly

Low Power Loss, High Efficiency

Surge Overload Rating to 125A Peak

For Use in Low Voltage, High Frequency Inverters, Free

Wheeling, and Polarity Protection Application

Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)

Qualified to AEC-Q101 Standards for High Reliability

PPAP Capable (Note 4)

Mechanical Data



Case: SMB

Case Material: Molded Plastic. "Green" Molding Compound. UL

Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminals: Lead Free Plating (Matte Tin Finish). Solderable per

MIL-STD-202, Method 208

Polarity: Cathode Band

Weight: 0.093 grams (approximate)

Top View

Bottom View

Ordering Information

(Note 5)

Part Number*

B3xxB-13-F

B340BQ-13-F

* xx = Device type, e.g. B320B-13-F (SMB package).

Notes:

1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally the

same, except where specified. For more information, please refer to http://www.diodes.com/quality/product_compliance_definitions/.

5. For packaging details, go to our website at http”//www.diodes.com/products/packages.html.

Compliance

Standard

Automotive

Case

SMB

Packaging

3000/Tape & Reel

Marking Information

YWW

Bxxx(x)

Bxxx(x) = Product type marking code, ex: B320B

= Manufacturers’ code marking

YWW = Date code marking

Y = Last digit of year (ex: 3 for 2013)

WW = Week code (01 to 53)

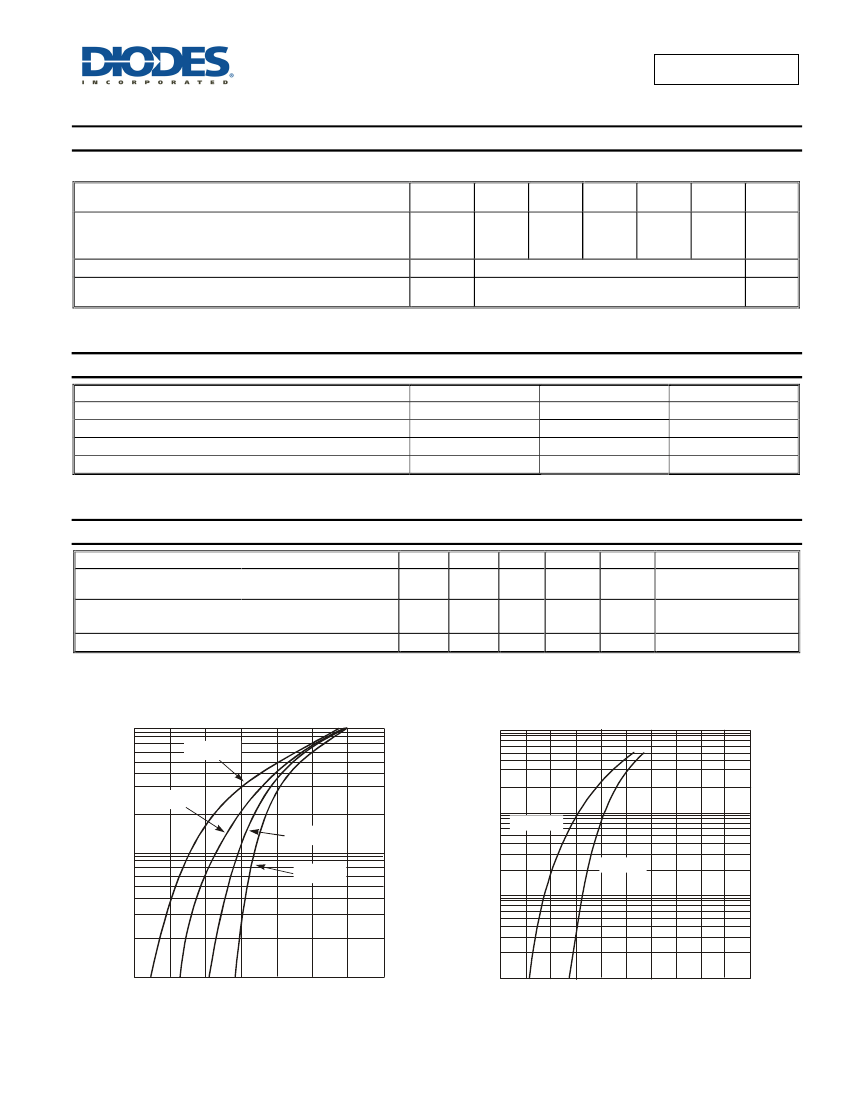

B320B - B360B

Document number: DS30924 Rev. 10 - 2

1 of 5

www.diodes.com

April 2013

B320B - B360B
