55091-0374 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 55091-0374

55091-0374: DescriptionBoard to Board & Mezzanine Connectors .635 HEADER SURFACE MNT 30 CKT; CategoryThe connector The connector; File Size30KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

55091-0374 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	55091-0374	-	-	View	Buy Now

55091-0374 Overview

Board to Board & Mezzanine Connectors .635 HEADER SURFACE MNT 30 CKT

55091-0374 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
Samacsys Description	Board to Board & Mezzanine Connectors .635 HEADER SURFACE MNT 30 CKT
Board mount options	PEG
body width	0.205 inch
subject depth	0.197 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL (59)
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	BELLOWED TYPE
DIN compliance	NO
Durability	50 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.6672 N
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.025 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	10u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.635 mm
Termination type	SURFACE MOUNT
Total number of contacts	30
UL Flammability Code	94V-0
Base Number Matches	1

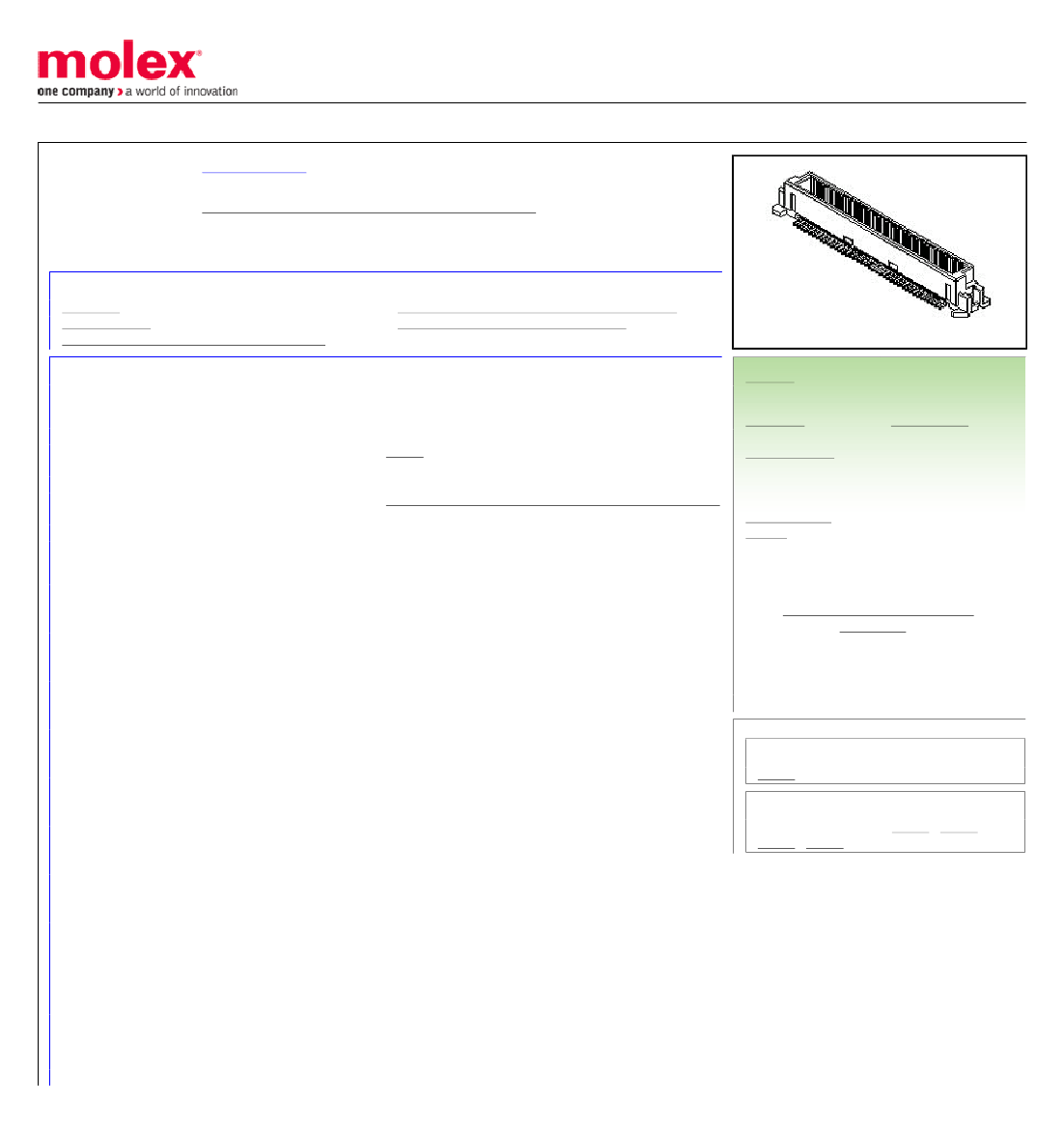

Preview

Download Datasheet

View All

This document was generated on 01/18/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0550910374

Active

SlimStack™ 0.635mm Pitch Board-to-Board Connectors

0.635mm Pitch SlimStack Header, Surface Mount, Dual Row, Vertical Stacking, 6.00

and 12.00mm Stacking Heights, Black, 30 Circuits, Robotic Placement Metal Cap, with

Embossed Tape on Reel Packaging

Documents:

3D Model

Drawing (PDF)

Product Specification 527600000-000 (PDF)

Agency Certification

General

Product Family

Series

Application

Comments

Overview

Product Name

UPC

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

Flammability

Glow-Wire Compliant

Lock to Mating Part

Mated Height

Material - Metal

Material - Plating Mating

Material - Plating Termination

Net Weight

Number of Rows

Orientation

PCB Locator

PCB Retention

Packaging Type

Pitch - Mating Interface

Polarized to PCB

Robotic Placement

Stackable

Temperature Range - Operating

Termination Interface: Style

Electrical

Current - Maximum per Contact

Voltage - Maximum

Material Info

Reference - Drawing Numbers

Packaging Specification

Packaging Specification 550919200-200 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per -

ED/30/2017 (7 July

2017)

Halogen-Free

Status

Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

E29179

PCB Headers

55091

Board-to-Board, Signal

Stacking-Type

SlimStack™ 0.635mm Pitch Board-to-Board Connectors

SlimStack

822348192373

Black

94V-0

Yes

12.00mm, 6.00mm

Copper Alloy

Gold

Tin

401.391/mg

Vertical

Yes

Embossed Tape on Reel

0.64mm

Yes

Metal Cap

-55°C to +85°C

Surface Mount

0.5A

100V

Search Parts in this Series

55091 Series

Mates With

SlimStack Receptacle 52760 , 52837 ,

52885 , 52901

550919200-200
