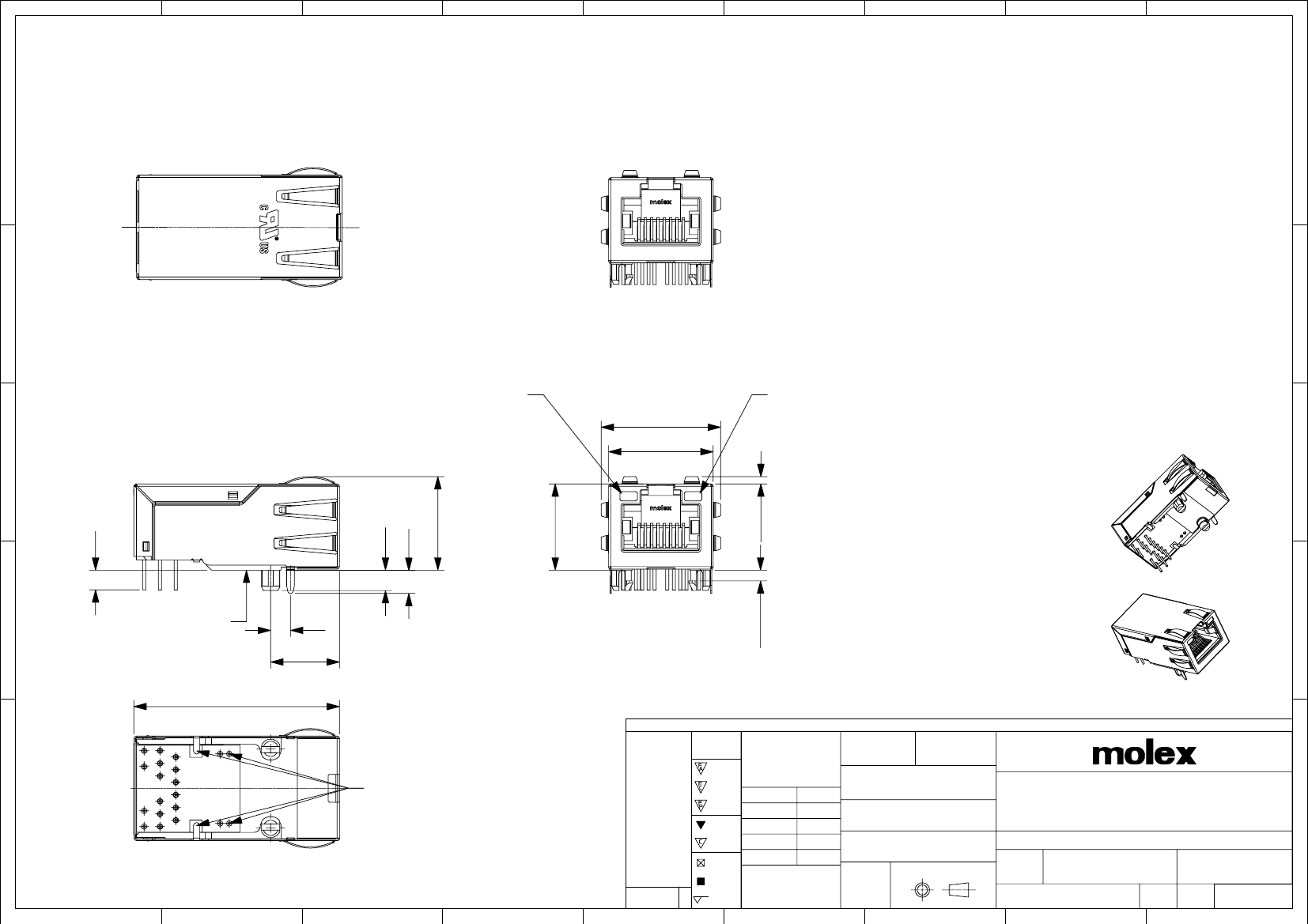

GIGABIT MAGNETIC JACK 1x1 LED
E
D
FRONT VIEW
NON LED VERSION
P/N 85793-1020
NOTES:
1 - SHIELD MATERIAL: STAINLESS STEEL
(GROUND PINS ARE SOLDER DIPPED)
2 - PLASTIC MATERIAL: PBT, BLACK, UL 94V-0
3 - RJ45 TERMINALS MATERIAL: COPPER ALLOY
CONTACT PLATING: 0.76 MICROMETER GOLD
OVER 1.9 MICROMETER NICKEL
PHY TERMINALS: TIN PLATED
4 - MATING INTERFACE ACCORDING TO IEC 60603-7
5 - PRODUCT SPECIFICATION: PS-85793-001
6 - PACKAGING SPECIFICATION: PK-85759-001
7 - STAND OFF TO SYSTEM BOARD
8 - RECOMMENDED PCB THICKNESS: 1.6mm
9 - SHIELD LATCHES: AVOID TO ROUTE
TRACES OR TO PLACE ANY VIAS OR PADS
BELOW THESE LATCHES
10 - INSCRIPTION MARKED BY LASER:
UL LOGO
1st : MOLEX
2st : P/N (SEE BOM)
3rd : DATE CODE(WEEK/YEAR)
E
MOLEX
85793-XXXX
WW YY Z
D
LEFT LED
(SEE SHEET 3)
19.19
REF
16.79
MAX
RIGHT LED
(SEE SHEET 3)
SCALE 1:1
C
C
15.05
REF
13.87
MAX
3.27
3.15
3.70
B
SEE NOTE 7
3.18
11.05
1.71
(2x)
1.18
(6x)
B
FRONT VIEW
LED VERSION
P/N SEE BOM ON SHEET 3
33.02
MAX
THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX INCORPORATED AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION
DIMENSION UNITS
SCALE
GENERAL
QUALITY
TOLERANCES
SYMBOLS
MM
2:1
(UNLESS SPECIFIED)
=
0
DRWN BY
DATE
ANGULAR TOL ±
0.5
°
=
0
MFURKEL
2015/06/15
±
4 PLACES
GIGABIT MAGNETIC JACK 1X1 LED
DATE
CHK'D BY
=
0
±
3 PLACES
2015/09/24
SEE NOTE 9
A
EC DESCRIPTION
2016/02/15
EC NO:
101432
DRWN: MFURKEL
CHK'D:
APPR:
RSILLER
A
=
=
=
=
C
0
0
0
0
0
2 PLACES
1 PLACE
0 PLACES
±
±
±
0.25
0.5
APPR BY
DATE
PRODUCT CUSTOMER DRAWING
2015/07/02
SERIES
MATERIAL NUMBER
CUSTOMER
RSILLER
DRAWING SIZE
THIRD ANGLE PROJECTION
D
9
8
7
6
5
REV
=
DRAFT WHERE APPLICABLE
MUST REMAIN
WITHIN DIMENSIONS
85793
SEE BOM/ SHEET 3/4
DOC TYPE
DOC PART
SHEET NUMBER
A3
3
DOCUMENT NUMBER
857931001
PSD
000
1 OF 4
4
2
1

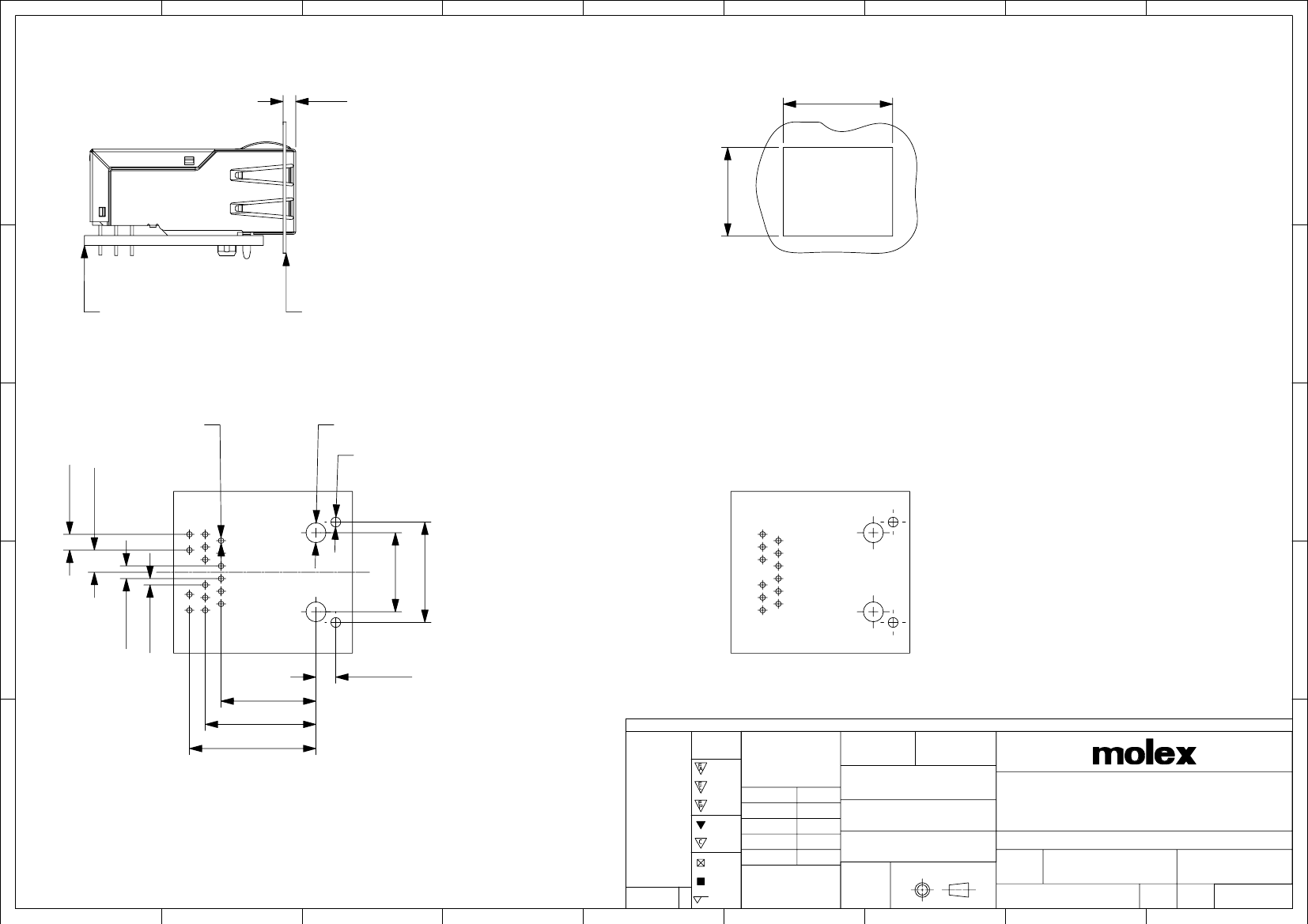

SUGGESTED PANEL CUTOUT
2.03
17.55
PCB
PANEL
SUGGESTED BOARD LAYOUT- COMPONENT SIDE
⌀
0.89
+0.05
-0.03
2.54
±
0.05
3.56
±
0.05
⌀
3.20
+0.05
-0.03
⌀
1.57
+0.05
-0.03
14.25
SUGGESTED BOARD LAYOUT
FOR NON LED VERSION
13 7 1
12.70
±
0.05
1.02
±
0.05
16.13
±
0.05
2.03
±
0.05
16 12 6
3.18
±
0.05
15.24
±
0.05
17.78
±
0.05
20.32
±
0.05
THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX INCORPORATED AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION
DIMENSION UNITS
SCALE
GENERAL
QUALITY
TOLERANCES
SYMBOLS
MM
2:1
(UNLESS SPECIFIED)
=
0
DRWN BY
DATE
ANGULAR TOL ±
0.5
°
=
0
MFURKEL
2015/06/15
±
4 PLACES
GIGABIT MAGNETIC JACK 1X1 LED
DATE
CHK'D BY
=
0
±
3 PLACES
2015/09/24
EC DESCRIPTION
EC NO:
101432
DRWN: MFURKEL
CHK'D:
APPR:
RSILLER
2016/02/15
=
=
=
=
C
0
0
0
0
0
2 PLACES
1 PLACE
0 PLACES
±
±
±
0.25
0.5
APPR BY
DATE
PRODUCT CUSTOMER DRAWING
2015/07/02
SERIES
MATERIAL NUMBER
CUSTOMER
RSILLER
DRAWING SIZE
THIRD ANGLE PROJECTION
D
REV
=
DRAFT WHERE APPLICABLE
MUST REMAIN
WITHIN DIMENSIONS
85793
SEE BOM/ SHEET 3/4
DOC TYPE
DOC PART
SHEET NUMBER
A3
DOCUMENT NUMBER
857931001
PSD
000
2 OF 4
9

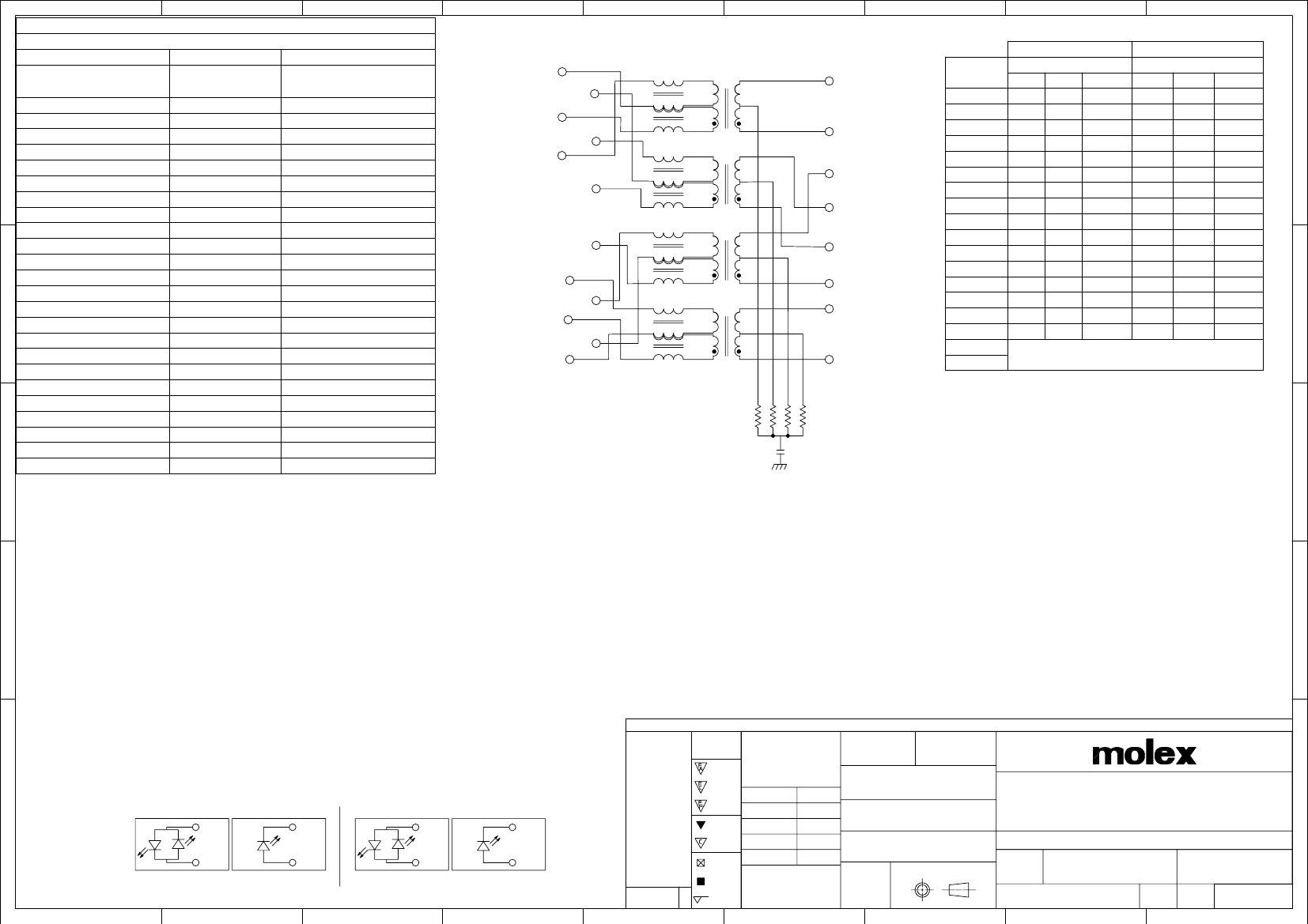

Electrical Specifications @25°C
Operating temperature (0°C to +70°C)
Description
VALUE
8
7
6
PHY SIDE / PCB SIDE
5
ETHERNET MAGNETICS
4
WIRE SIDE / RJ45
3
2
1
STANDARD VERSION
LED1 POLARITY
LED2 POLARITY
LEFT LED
RIGHT LED
PART
NUMBER
PIN15 PIN16
COLOR
PIN13 PIN14
COLOR
-
+
-
+
857931001
GRN
GRN
0°C~+70°C
-
+
-
+
857931003
GRN
GRN
+
-
0°C~+70°C
ORG
-
+
-
+
YW
857931006
GRN
0°C~+70°C
-
+
-
+
857931007
GRN
GRN
+
-
YW
0°C~+70°C
-
+
-
+
YW
857931010
GRN
+
-
YW
+
-
0°C~+70°C
GRN
-
+
YW
-
+
857931012
GRN
+
-
0°C~+70°C
GRN
-
+
YW
-
+
YW
857931013
+
-
+
-
0°C~+70°C
GRN
GRN
-
+
YW
-
+
857931014
GRN
0°C~+70°C
857931020
NON LED
0°C~+70°C
CT3
7
OCL
8mA bias
(0°C to +70°C)
Turns Ratio
E
Insertion Loss
Frequency (MHz)
1.0-9.9 MHz
10-49.9 MHz
50-79.9 MHz
80-100 MHz
Return Loss
Frequency (MHz)
1-9.9 MHz
10-100 MHz
CMR
Frequency (MHz)
D
1-9.9 MHz
10-79.9 MHz
80-199.9 MHz
200-399.9 MHz
400-1000 MHz
NEXT
Frequency (MHz)
1-5.9 MHz
6-49.9 MHz
50-100 MHz
C
Isolation PHY to Wire side
350µH min.
CT2
1
8 MD -3
1CT:1CT
Limits (dB max.)
0.4+0.1*log(F)
0.5+0.3*log(F/10)
1+1.4*log(F/80)
1.3+3*log(F/100)
Limits (dB min.)
27dB min.
27-17*log(F/10)
Limits (dB min.)
34dB min.
27dB min.
27-14.5*log(F/80)
21.5-39*log(F/200)
10
Limits (dB min.)
50
45-16*log(F/10)
25-30*log(F/100)
2.25kVDC/60sec
Typical Values (dB max.)
0.5 @ 10MHz
0.7 @ 50MHz
1.0 @ 80MHz
1.3 @ 100MHz
TYPICAL Values (dB min.)
27 @ 10MHz
10 @ 100MHz
TYPICAL Values (dB min.)
34 @ 10MHz
27 @ 80MHz
21.5 @ 200MHz
10 @ 400MHz
10 @ 1000MHz
TYPICAL Values (dB min.)
50 @ 6MHz
34 @ 50MHz
25 @ 100MHz
TD+3
8
E
TD-2
TD-3
9
2
7
MD +3
ETHERNET TERMINALS
TD+2
3
6 MD -1
5
TD+1
4
MD -2
4 MD +2
TD-0
10
TD-1
TD+0
11
5
3
MD +1
RJ-45 CONTACTS
2 MD -0
D
CT1
CT 0
12
6
1
MD +0
75 Ohm x4
ADDITIONAL LED COLORS AND CONFIGURATIONS
ARE AVAILABLE ON REQUEST
1nF / 3 KV
C
Shield
B
B
EC NO:
101432
DRWN: MFURKEL
CHK'D:
APPR:
RSILLER
A
LEFT LED
RIGHT LED
EC DESCRIPTION
THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX INCORPORATED AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION
DIMENSION UNITS
SCALE
GENERAL
QUALITY
TOLERANCES
SYMBOLS
MM
5:1
(UNLESS SPECIFIED)
=
0
DRWN BY
DATE
ANGULAR TOL ±
0.5
°
=
0
MFURKEL
2015/06/15
±
4 PLACES
GIGABIT MAGNETIC JACK 1X1 LED
DATE
CHK'D BY
=
0
±
3 PLACES
2015/09/24
2016/02/15
A
15
16
BICOLOR
OPTION
OPTION
15
16
SINGLE COLOR
BICOLOR
OPTION
13
14
OPTION
13
14
SINGLE COLOR
=
=
=
=
C
0
0
0
0
0
2 PLACES
1 PLACE
0 PLACES
±
±
±
0.25
0.5
APPR BY
DATE
PRODUCT CUSTOMER DRAWING
2015/07/02
SERIES
MATERIAL NUMBER
CUSTOMER
RSILLER
DRAWING SIZE
THIRD ANGLE PROJECTION
D
6
5
REV
=
DRAFT WHERE APPLICABLE
MUST REMAIN
WITHIN DIMENSIONS
85793
SEE BOM/ SHEET 3/4
DOC TYPE
DOC PART
SHEET NUMBER
A3
3
DOCUMENT NUMBER
857931001
PSD
000
3 OF 4
9
8
7
4
2
1
9

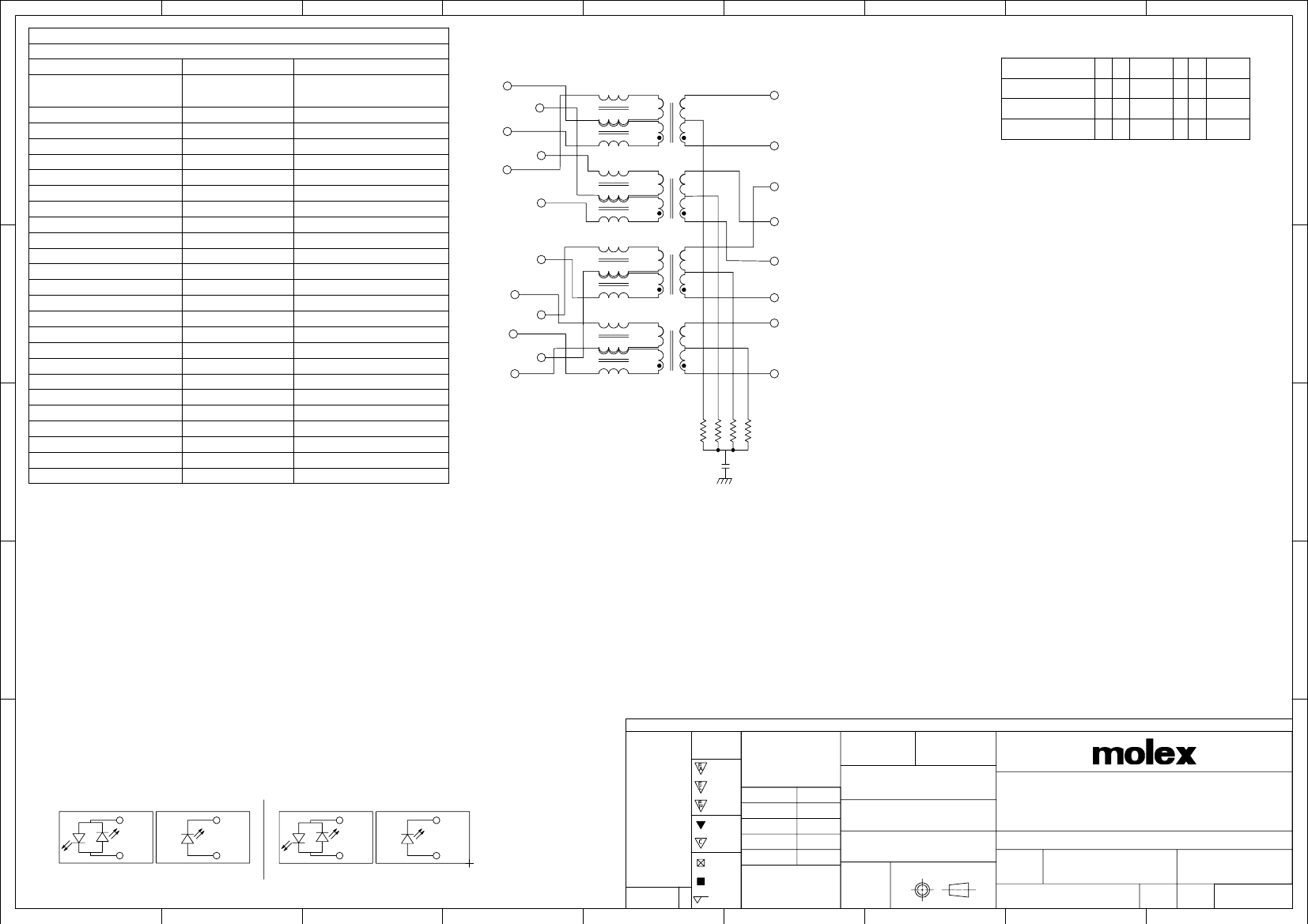

Electrical Specifications @25°C
Operating temperature (-40°C to +85°C)
Description
VALUE
8
7
6
PHY SIDE / PCB SIDE
5
ETHERNET MAGNETICS
4
WIRE SIDE / RJ45
3
2
1
INDUSTRIAL VERSION / HIGH TEMP
E
D
C
OCL
8mA bias
(-40°C to +85°C)
Turns Ratio
Insertion Loss
Frequency (MHz)
1.0-9.9 MHz
10-49.9 MHz
50-79.9 MHz
80-100 MHz
Return Loss
Frequency (MHz)
1-9.9 MHz
10-100 MHz
CMR
Frequency (MHz)
1-9.9 MHz
10-79.9 MHz
80-199.9 MHz
200-399.9 MHz
400-1000 MHz
NEXT
Frequency (MHz)
1-5.9 MHz
6-49.9 MHz
50-100 MHz
Isolation PHY to Wire side
CT3
7
350µH min.
CT2
1
8 MD -3
1CT:1CT
Limits (dB max.)
0.4+0.1*log(F)
0.5+0.3*log(F/10)
1+1.4*log(F/80)
1.3+3*log(F/100)
Limits (dB min.)
27dB min.
27-17*log(F/10)
Limits (dB min.)
34dB min.
27dB min.
27-14.5*log(F/80)
21.5-39*log(F/200)
10
Limits (dB min.)
50
45-16*log(F/10)
25-30*log(F/100)
2.25kVDC/60sec
Typical Values (dB max.)
0.5 @ 10MHz
0.7 @ 50MHz
1.0 @ 80MHz
1.3 @ 100MHz
TYPICAL Values (dB min.)
27 @ 10MHz
10 @ 100MHz
TYPICAL Values (dB min.)
34 @ 10MHz
27 @ 80MHz
21.5 @ 200MHz
10 @ 400MHz
10 @ 1000MHz
TYPICAL Values (dB min.)
50 @ 6MHz
34 @ 50MHz
25 @ 100MHz
TD+3
8
- +
GRN
- +
YW
857933006
-40°C~+85°C
- +
GRN
- +
GRN
857933007
-40°C~+85°C
+ -
YW
ADDITIONAL LED COLORS AND CONFIGURATIONS
ARE AVAILABLE ON REQUEST
RJ-45 CONTACTS
E
TD-2
TD-3
9
2
7
MD +3
ETHERNET TERMINALS
TD+2
3
6 MD -1
5
TD+1
4
MD -2
4 MD +2
TD-0
10
TD-1
TD+0
11
5
3
MD +1
D
2 MD -0
CT1
CT 0
12
6
1
MD +0
75 Ohm x4
1nF / 3 KV
C
Shield
B
B
15
16
BICOLOR
OPTION
OPTION
15
16
SINGLE COLOR
BICOLOR
OPTION
13
14
OPTION
13
14
SINGLE COLOR
EC NO:
101432
DRWN: MFURKEL
CHK'D:
APPR:
RSILLER
A
LEFT LED
RIGHT LED
EC DESCRIPTION
THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX INCORPORATED AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION
DIMENSION UNITS
SCALE
GENERAL
QUALITY
TOLERANCES
SYMBOLS
MM
5:1
(UNLESS SPECIFIED)
=
0
DRWN BY
DATE
ANGULAR TOL ±
0.5
°
=
0
MFURKEL
2015/06/15
±
4 PLACES
GIGABIT MAGNETIC JACK 1X1 LED
DATE
CHK'D BY
=
0
±
3 PLACES
2015/09/24
2016/02/15
A
=
=
=
=
C
0
0
0
0
0
2 PLACES
1 PLACE
0 PLACES
±
±
±
0.25
0.5
APPR BY
DATE
PRODUCT CUSTOMER DRAWING
2015/07/02
SERIES
MATERIAL NUMBER
CUSTOMER
RSILLER
DRAWING SIZE
THIRD ANGLE PROJECTION
D
6
5
REV
=
DRAFT WHERE APPLICABLE
MUST REMAIN
WITHIN DIMENSIONS
85793
SEE BOM/ SHEET 3/4
DOC TYPE
DOC PART
SHEET NUMBER
A3
3
DOCUMENT NUMBER
857931001
PSD
000
4 OF 4
9
8
7
4
2
1
