35241-4011 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 35241-4011

35241-4011: DescriptionHeaders & Wire Housings 1.0 pai w/w male hsg ai w/w male hsg assy; CategoryThe connector The connector; File Size31KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

35241-4011 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	35241-4011	-	-	View	Buy Now

35241-4011 Overview

Headers & Wire Housings 1.0 pai w/w male hsg ai w/w male hsg assy

35241-4011 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	1.425 inch
subject depth	2.008 inch
body length	2.102 inch
Body/casing type	PLUG
Connector type	RECTANGULAR CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	6 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Durability	50 Cycles
IEC compliance	NO
maximum insertion force	4.8928 N
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
MIL compliance	NO
Manufacturer's serial number	35241
Plug contact pitch	0.145 inch
Match contact row spacing	0.236 inch
Installation option 1	LATCH
Installation option 2	LOCKING
Installation type	CABLE
Number of rows loaded	4
Maximum operating temperature	120 °C
Minimum operating temperature	-40 °C
Options	WATERPROOF
polarization key	POLARIZED HOUSING
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Termination type	CRIMP
Total number of contacts	40
Maximum wire diameter	18 AWG
Minimum wire diameter	22 AWG
Evacuation force-minimum value	4.8928 N
Base Number Matches	1

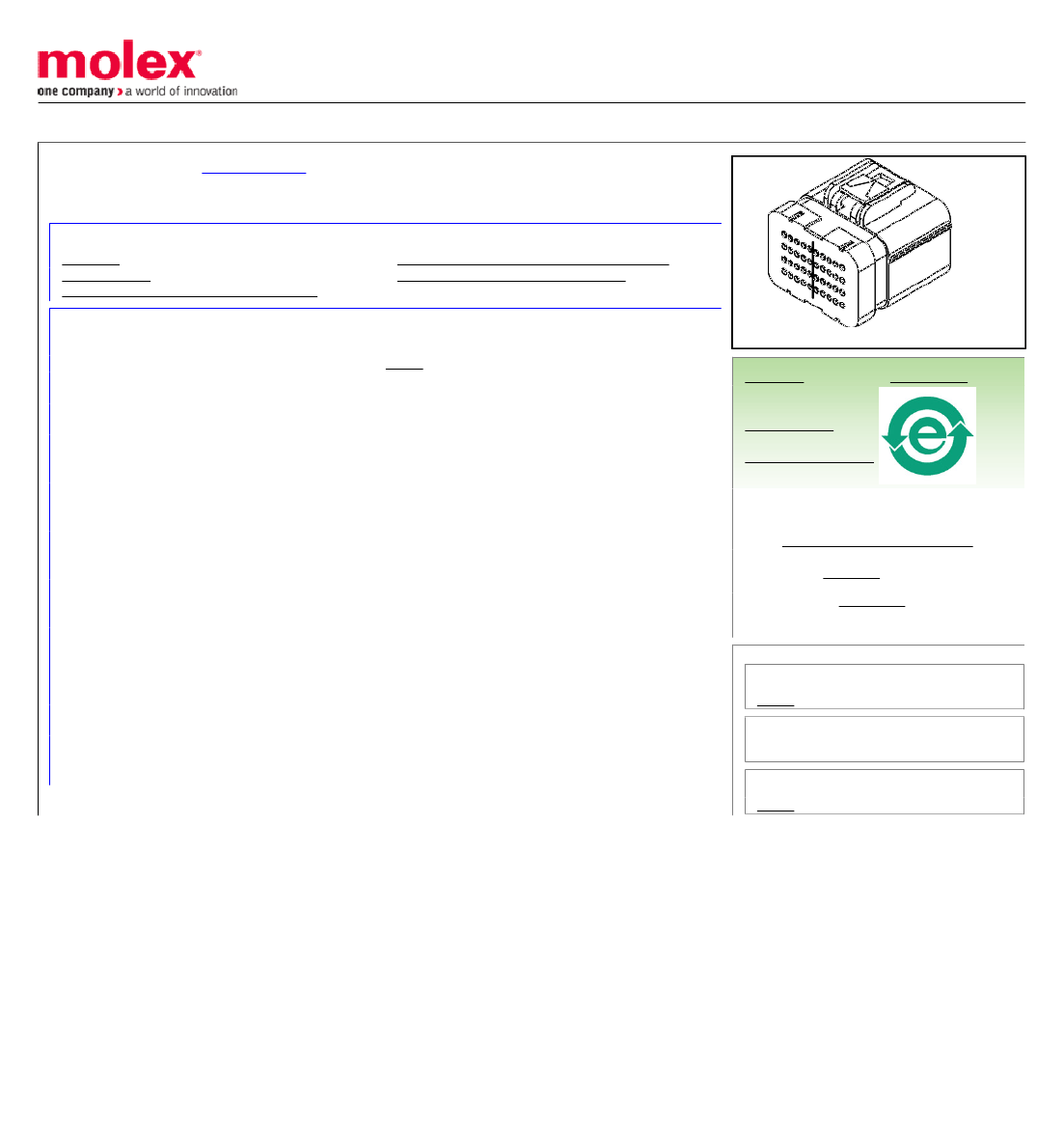

Preview

Download Datasheet

View All

This document was generated on 07/18/2011

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0352414011

Active

1.00mm (.039") Diameter Wire-to-Wire Plug Housing, with Seal and Terminal Retainers

Documents:

3D Model

Drawing (PDF)

Product Specification PS-35241-003 (PDF)

Packaging Specification PK-35241-001 (PDF)

RoHS Certificate of Compliance (PDF)

General

Product Family

Series

Application

Product Name

Crimp Housings

35241

Power, Wire-to-Wire

N/A

Series

image - Reference only

EU RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Low-Halogen Status

Low-Halogen

China RoHS

Physical

Circuits (maximum)

Color - Resin

Gender

Glow-Wire Compliant

Material - Resin

Number of Rows

Packaging Type

Panel Mount

Pitch - Mating Interface

Pitch - Termination Interface

Stackable

Temperature Range - Operating

Black, Natural

Male

Polyester

Bag

3.60mm (.142")

-40°C to +120°C

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Electrical

Current - Maximum per Contact

Search Parts in this Series

35241Series

PK-35241-001

PS-35241-003

SD-35241-4011

Mates With

35245

Use With

35100

Material Info

Reference - Drawing Numbers

Packaging Specification

Product Specification

Sales Drawing

This document was generated on 07/18/2011

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
