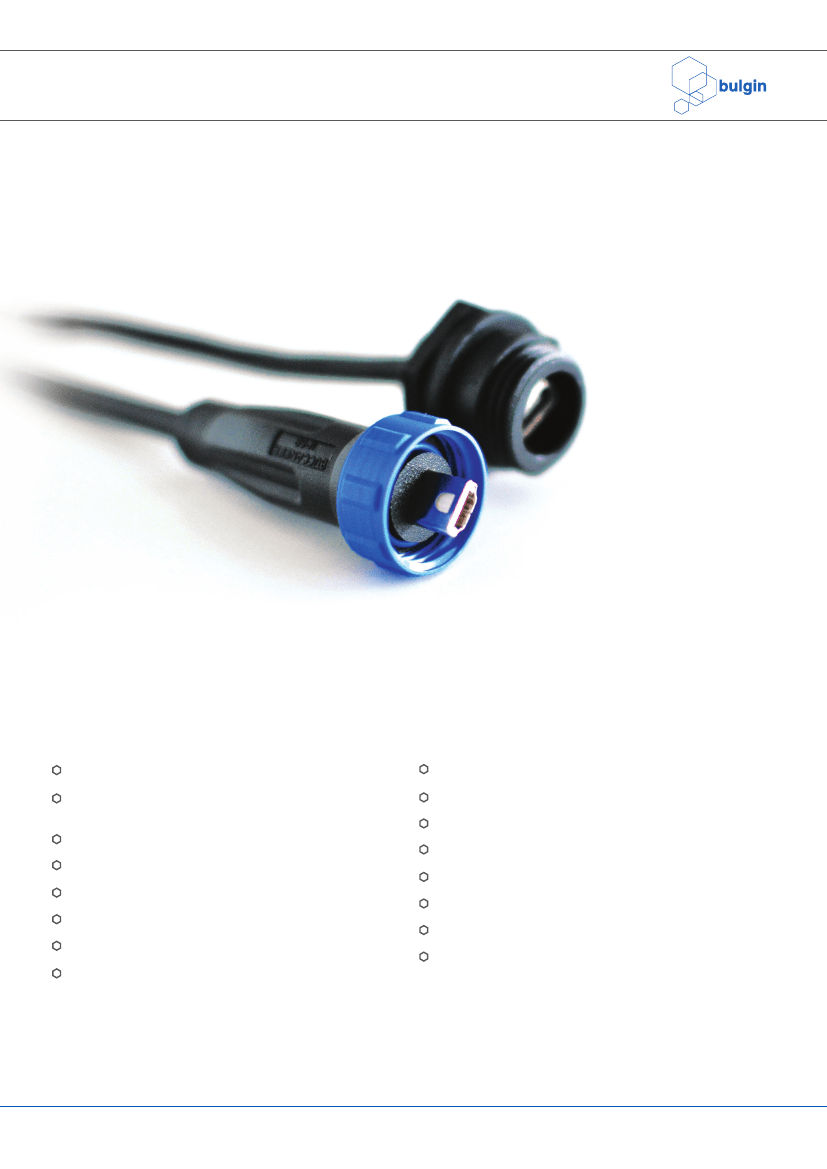

400 Series - Mini USB Buccaneer
IP68 Sealed
BUCCANEER FOR DATA
IP68 rated
IP69K, Tested in accordance with DIN
40050/Part 9 IP6k9k
USB V2.0 performance
Plug and play capability
Shielded system
Overmoulded cables
Screw coupling
PCB versions
Dust and waterproof to EN60529
Data rates up to 480Mbs
Hot pluggable, standard 4 pole interface
High noise immunity
Tamperproof construction
Secure, proven locking system
Direct mounting or via adaptor leads
EN60068-2-52 Test Kb Salt Mist (Cyclic) Marine Severity Level 1
Buccaneer for Data 77
400 Series - Mini USB Buccaneer

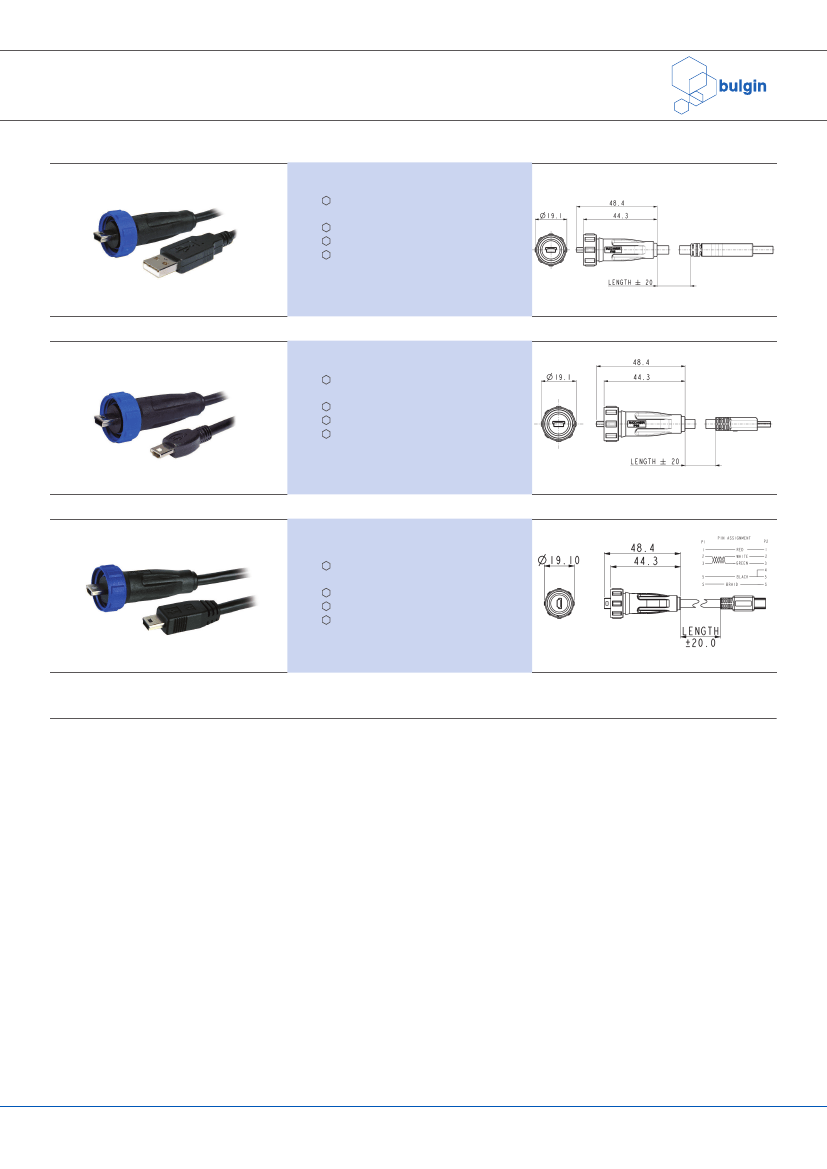

Sealed Mini USB Cables - Single Ended
BUCCANEER FOR DATA
Standard ‘A’ type to sealed Mini
‘B’ type
Fully overmoulded construction
Available in 2, 3 & 4.5m lengths
Mates with PX0443, PX0446,
PX0447, PX0456, PX0457 &
PX0458
PX0441
Mini ‘A’ type to sealed mini ‘B’
type
Fully overmoulded construction
Available in 2, 3 & 4.5m lengths
Mates with PX0443, PX0446,
PX0447, PX0456, PX0457 &
PX0458
PX0442
Mini ‘B’ type to Sealed Mini ‘A’
type
Fully overmoulded construction
Available in 2, 3 & 4.5m lengths
Mates with PX0456, PX0457 &
PX0458
PX0444
Part No.
PX0441/2M00
PX0441/3M00
PX0441/4M50
PX0442/2M00
PX0442/3M00
PX0442/4M50
PX0444/2M00
PX0444/3M00
PX0444/4M50
Length
2.0m
3.0m
4.5m
2.0m
3.0m
4.5m
2.0m
3.0m
4.5m
Description
IP68 mini ‘B’ to Std ‘A’ type USB
IP68 mini ‘B’ to Std ‘A’ type USB
IP68 mini ‘B’ to Std ‘A’ type USB
IP68 mini ‘B’ to Mini ‘A’ type USB
IP68 mini ‘B’ to Mini ‘A’ type USB
IP68 mini ‘B’ to Mini ‘A’ type USB
IP68 mini ‘A’ to Mini ‘B’ type USB
IP68 mini ‘A’ to Mini ‘B’ type USB
IP68 mini ‘A’ to Mini ‘B’ type USB
78 Buccaneer for Data
400 Series - Mini USB Buccaneer
BUCCANEER FOR DATA

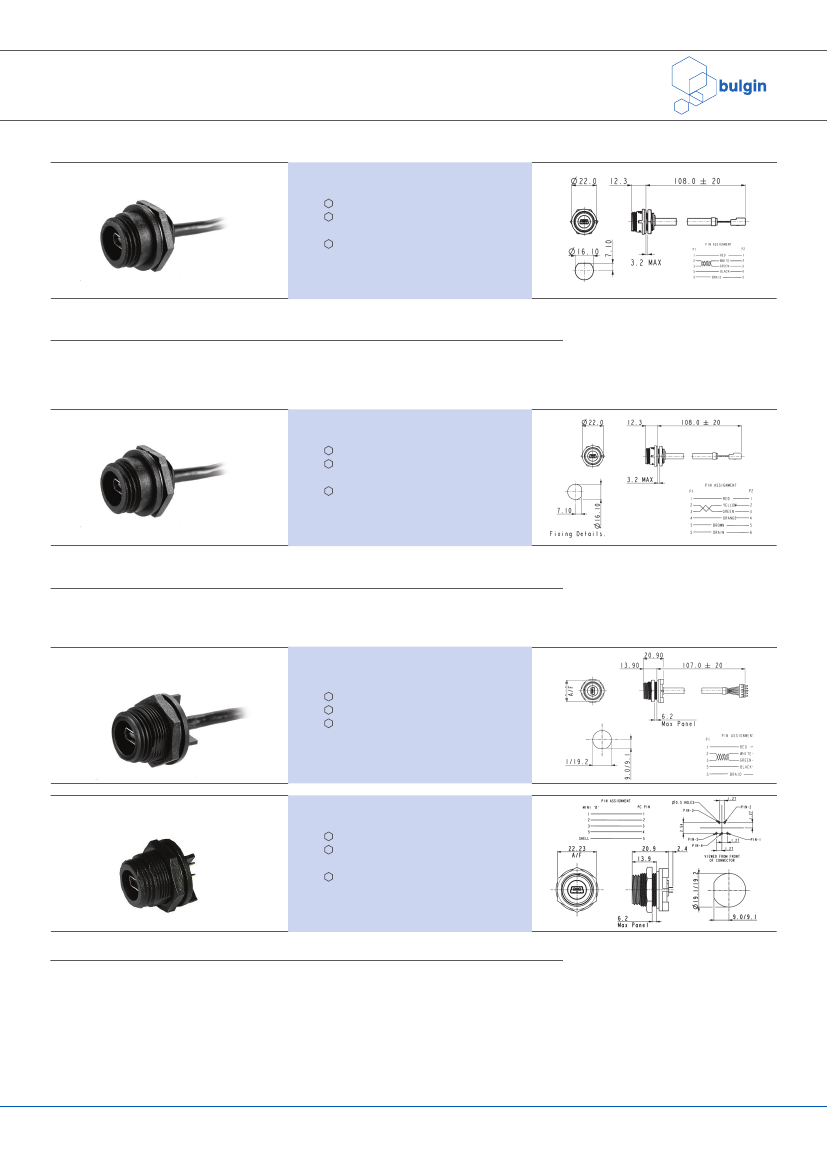

Front Panel Mounting Connector
Mini ‘B’ type
Leaded with 5 way crimp, for
use with PC header
Mates with PX0441 & PX0442
type cables
PX0443
Part no.
PX0443
PX0459
Description
IP68 B type Mini USB, front panel mounted. 5 way crimp connector at rear.
As PX0443 with exposed braid for use with PX0464 screening can
Front Panel Mounting Connector
Mini ‘AB’ type
Leaded with 6 way crimp, for
use with PC header
Mates with PX0441, PX0442 &
PX0444 type cables
PX0456
Part no.
PX0456
Description
IP68 AB type Mini USB, front panel mounted. 6 way crimp connector at rear.
Rear Panel Mounting Connector
Mini ‘B’ type
Leaded with 5 way header
Mates with PX0441 & PX0442
type cables
PX0446
Rear Panel Mounting Connector
Mini ‘B’ type
With pins for direct PC
mounting
Mates with PX0441 & PX0442
type cables
PX0447
Part no.
PX0446
PX0447
Description
IP68 B type Mini USB, rear panel mounted. 5 way header connector at rear.
IP68 B type Mini USB, rear panel mounted. PC terminals at rear.
Buccaneer for Data 79
400 Series - Mini USB Buccaneer

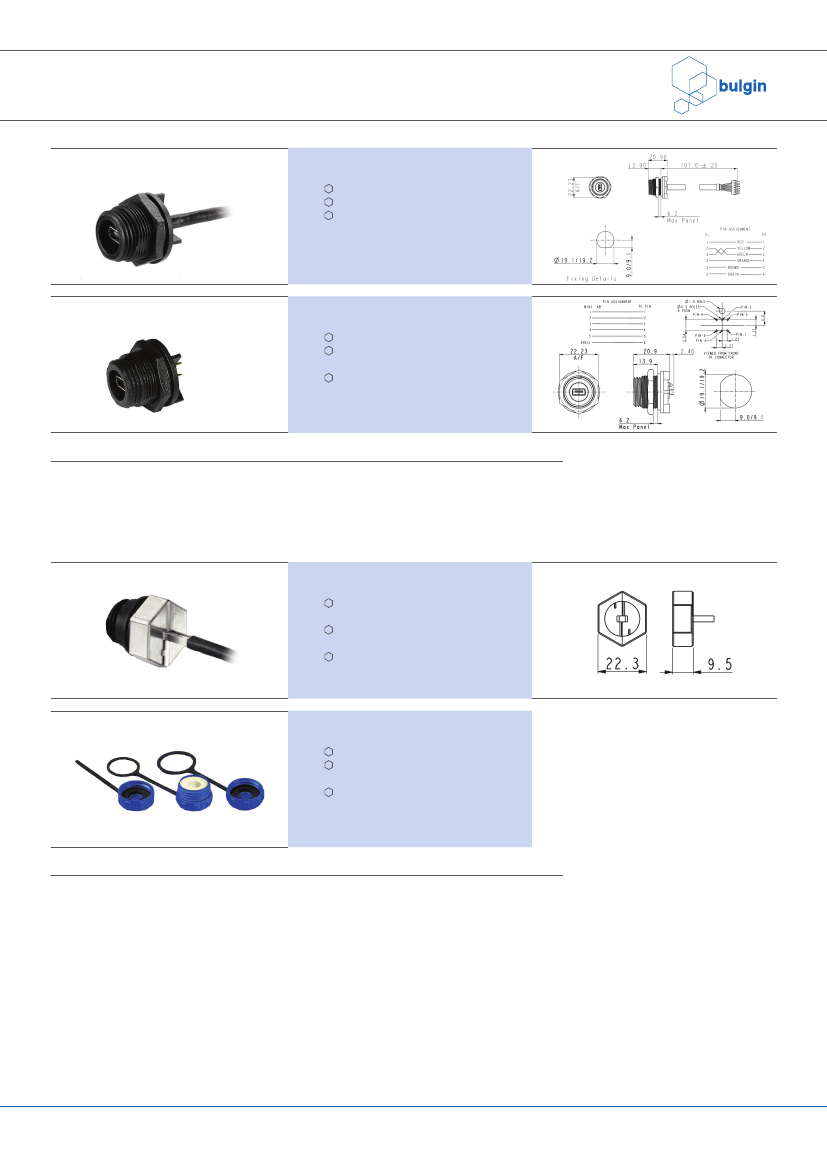

Rear Panel Mounting Connector
Mini ‘AB’ type
Leaded with 6 way header
Mates with PX0441, PX0442 &
PX0444 type cables
BUCCANEER FOR DATA
PX0457
Rear Panel Mounting Connector
Mini ‘AB’ type
With pins for direct PC
mounting
Mates with PX0441, PX0442 &
PX0444 type cables
PX0458
Part no.
PX0457
PX0458
Description
IP68 AB type Mini USB, rear panel mounted. 6 way header connector at rear.
IP68 AB type Mini USB, rear panel mounted. PC terminals at rear.
Screening Can
Maintains cable screening
directly to panel
Shielding can clips around the
panel fixing nut
For use on PX0459
PX0464
Accessories
Sealing caps to maintain IP
rating when connectors are
not in use
PCB headers for use with
PX0443 & PX0456
Part no.
PX0485
PX0480
PX0484
14191
14192
14563
14564
Description
Sealing cap for use with PX0441, PX0442 & PX0444
Sealing cap for use with PX0443 & PX0456
Sealing cap for use with PX0446, PX0447, PX0457 & PX0458
5 way straight header
5 way right angle header
6 way straight header
6 way right angle header
80 Buccaneer for Data
400 Series - Mini USB Buccaneer
Cables & connectors
Mechanical
Sealing
Operating temperature
Salt Mist
Electrical
No. of poles
Current rating
Voltage rating
Contact resistance
Performance
Materials - Overmoulded
Overmould material
Flammability rating
IP68, EN60529:1992+A2:2013 (10m depth for 2 weeks)
IP69K, Tested in accordance with DIN 40050/Part 9 IP6k9k
0°C to +70°C
EN60068-2-52 Test Kb Salt Mist (Cyclic)
Marine Severity Level 1
4 and 5
1A
30Vac, 42Vdc
50m Ω max.
USB version 2.0
PVC (black)
UL94V-0
BUCCANEER FOR DATA
Materials - Re-wireable and Panel Connectors
Shell material
Steel
Shell plating
Nickel
Contact material
Copper Alloy
Contact plating
50 micro inch Gold
Connector body & locking ring Polyester
Panel connector
Nylon 6
Flammability rating
UL94V-0
‘O’ rings
Nitrile
Mating cycles
5,000
RoHS
Compliant
Materials - cable
Cable Jacket
Screen
Flammability
RoHS
PVC (black)
Tinned copper braid
UL94V-0
Compliant
Conductors
Signal
2 x 28AWG
2 x 28AWG
2 x 25AWG
Conductors
Power
2 x 24AWG
2 x 22AWG
2 x 20AWG
Length:
2m
3m
5m
Dia
4.8mm
5.0mm
5.2mm
Cable construction - PX0441, PX0442, PX0444
PVC Jacket
Braid
Insulation
SR-PVC
Conductor
2M - 24AWG
3M - 22AWG
5M - 20AWG
Drain Wire
Insulation - Polyofein
Insulation
HD - PE
Conductor
2M - 28AWG
3M - 28AWG
5M - 25AWG
Buccaneer for Data 81
