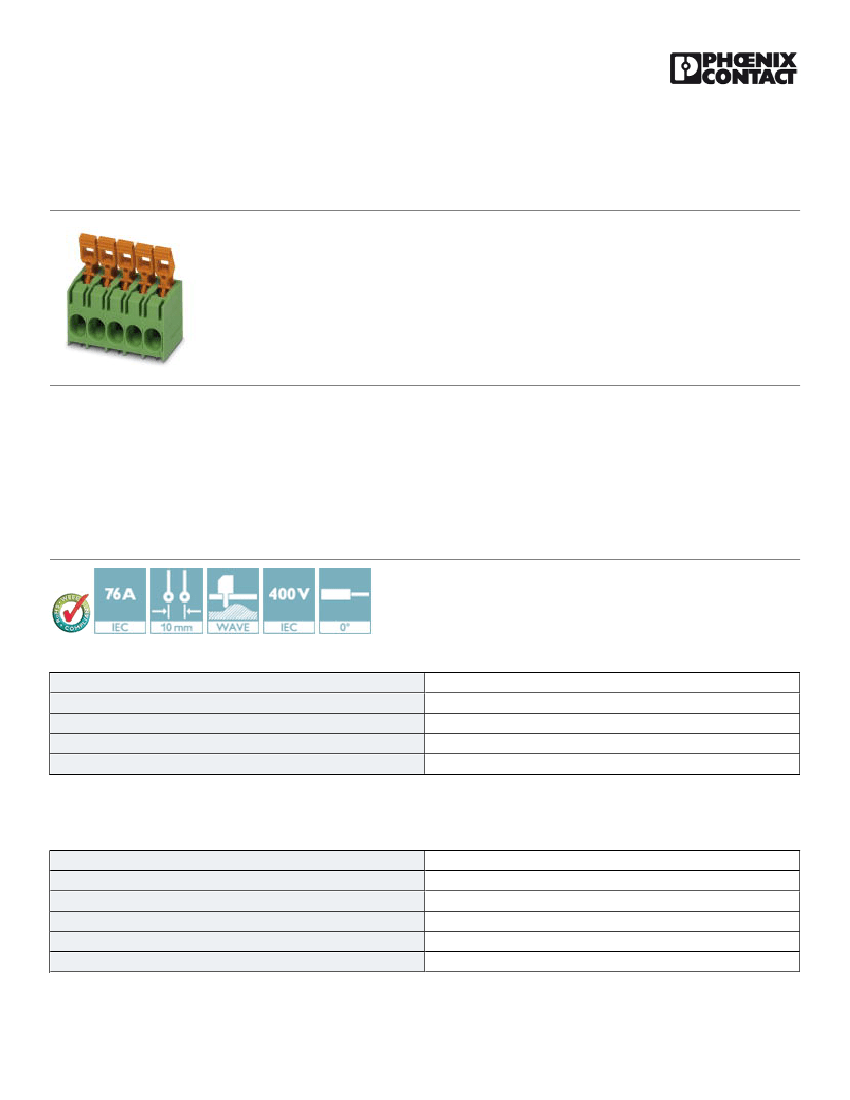

PCB terminal block - PLH 16/ 3-10 - 1770403
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
PCB terminal block, Nominal current: 76 A, Nom. voltage: 400 V, Pitch: 10 mm, Number of positions: 3,
Connection method: Push-lock spring connection, Mounting: Wave soldering, Conductor/PCB connection
direction: 0 °, Color: green
Product Features
■
■
■
■
■
■
Color coding from position to position thanks to terminal blocks that can be mounted side by side and lever colors
Fast connection technology thanks to the tool-free "one-hand tilting lever principle" or direct plug-in technology
Conductor connection direction horizontal to the PCB
Unlimited 600 V UL approval already available with 10 mm pitch with zigzag pinning
Low actuation forces
PLH 16 push-lock spring-cage PCB terminal block with lever operation for conductor cross sections up to 16 mm² and a current carrying capacity
of up to 76 A
Key Commercial Data
Packing unit
Minimum order quantity
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 pc
25 pc
24.0 g
85369010
Germany
Technical data
Dimensions
Pitch
Dimension a
Length of the solder pin
Pin dimensions
Pin spacing
Hole diameter
10.00 mm
20 mm
4.5 mm
1,2 x 1,2 mm
12.5 mm
1.6 mm
04/16/2016 Page 1 / 6
https://www.phoenixcontact.com/us/products/1770403
PCB terminal block - PLH 16/ 3-10 - 1770403
Technical data
General
Range of articles
Insulating material group
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/3)
Rated voltage (III/2)
Rated voltage (II/2)
Nominal current I
N
Nominal cross section
Insulating material
Solder pin surface
Flammability rating according to UL 94
Stripping length
Number of positions
PLH 16/
I
4 kV
4 kV
4 kV
400 V
400 V
800 V
76 A
16 mm²
PA
Sn
V0
18 mm
3
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule without plastic sleeve max.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
Conductor cross section AWG min.
Conductor cross section AWG max.
0.75 mm²
16 mm²
0.75 mm²
25 mm²
0.75 mm²
16 mm²
0.75 mm²
10 mm²
18
4
2 conductors with same cross section, stranded, TWIN ferrules with plastic
0.75 mm²
sleeve, min.
2 conductors with same cross section, stranded, TWIN ferrules with plastic
4 mm²
sleeve, max.
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
UL
V0
04/16/2016 Page 2 / 6
https://www.phoenixcontact.com/us/products/1770403
PCB terminal block - PLH 16/ 3-10 - 1770403
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
27141109
27141109
27141190
27141190
27261101
27440401
27440401
27440401
ETIM
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC001121
EC002643
EC002643
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211801
39121432
39121432
39121432
39121432
Approvals
Approvals
Approvals
UL Recognized / IECEE CB Scheme / VDE Zeichengenehmigung / EAC / EAC
Ex Approvals
Approvals submitted
Approval details
04/16/2016 Page 3 / 6
https://www.phoenixcontact.com/us/products/1770403
PCB terminal block - PLH 16/ 3-10 - 1770403
Approvals
UL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
18-6
51 A
300 V
C
18-6
51 A
150 V
D
18-6
10 A
300 V
IECEE CB Scheme
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
0.75-16
76 A
400 V
VDE Zeichengenehmigung
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
0.75-16
76 A
400 V
EAC
EAC
Drawings
04/16/2016 Page 4 / 6
https://www.phoenixcontact.com/us/products/1770403
PCB terminal block - PLH 16/ 3-10 - 1770403

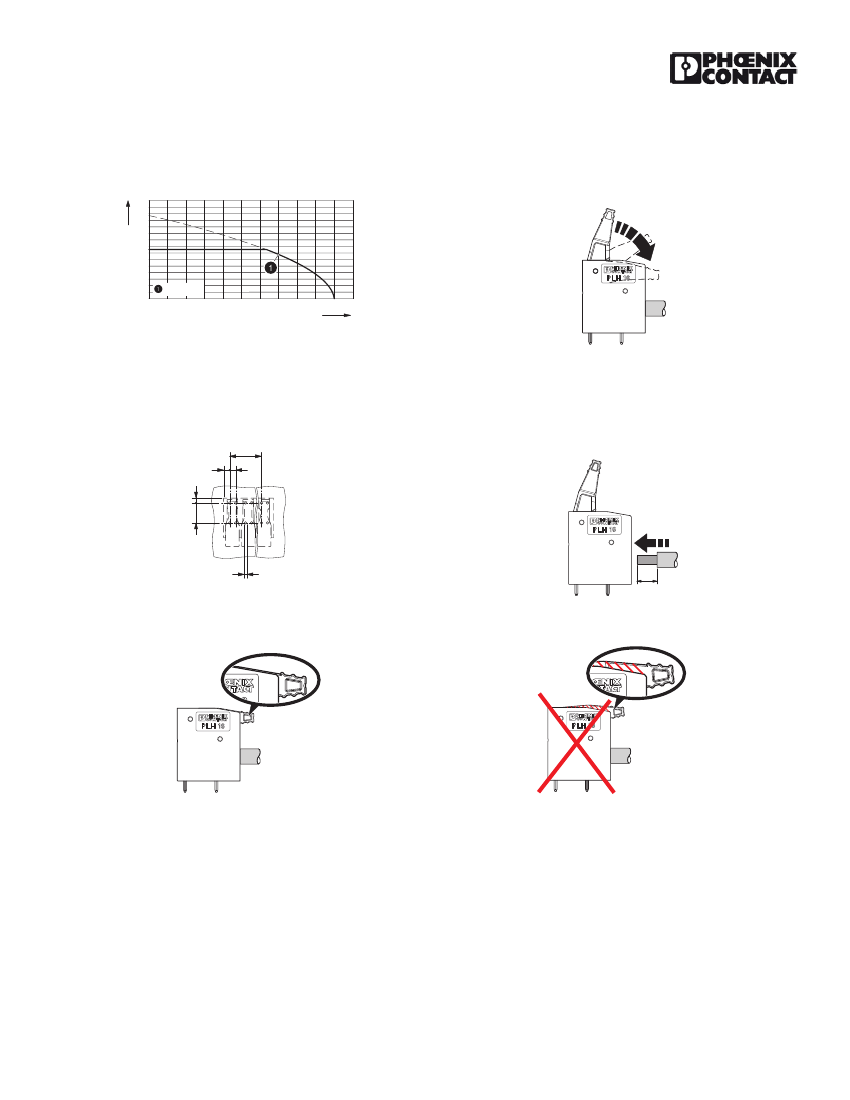

Diagram
Current strength [A]
140
120
100
80
60
Functional drawing
2
= 16 mm
2
0
20
40
60
80
100
40
20
0
Ambient temperature [°C]
Type: PLH 16/...-10
Tested in accordance with DIN EN 60512-5-2:2003-01
No. of positions: 5
Conductor cross section: 16 mm² (exclusively for solid conductors)
Drilling diagram
a
3,6
3,8
Functional drawing
1
12,5
3,1
1,6
18
Functional drawing
Functional drawing
3
04/16/2016 Page 5 / 6
