630-0500: DescriptionDIN Connectors SOCKET NICKEL 5 PIN; CategoryThe connector The connector; File Size212KB，1 Pages; ManufacturerDeltron

Download Datasheet Parametric View All

630-0500 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	630-0500	-	-	View	Buy Now

630-0500 Overview

DIN Connectors SOCKET NICKEL 5 PIN

630-0500 Parametric

Parameter Name	Attribute value
Maker	Deltron
Reach Compliance Code	compliant
subject depth	0.523 inch
Connector type	CIRCULAR DIN CONNECTOR
Contact to complete cooperation	AG
Contact point gender	FEMALE
Contact material	BRASS
Contact resistance	10 mΩ
DIN compliance	YES
Insulation resistance	103000000 Ω
Manufacturer's serial number	630
Installation option 1	LOCKING
Installation method	STRAIGHT
Number of ports	1
Maximum operating temperature	70 °C
Minimum operating temperature	-25 °C
polarization key	POLAR PIN POSITION
Rated current (signal)	2 A
reliability	COMMERCIAL
Shell surface	NICKEL
Terminal length	0.205 inch
Total number of contacts	5
Base Number Matches	1

Preview

Download Datasheet

View All

1

2

3

4

5

6

7

A

B

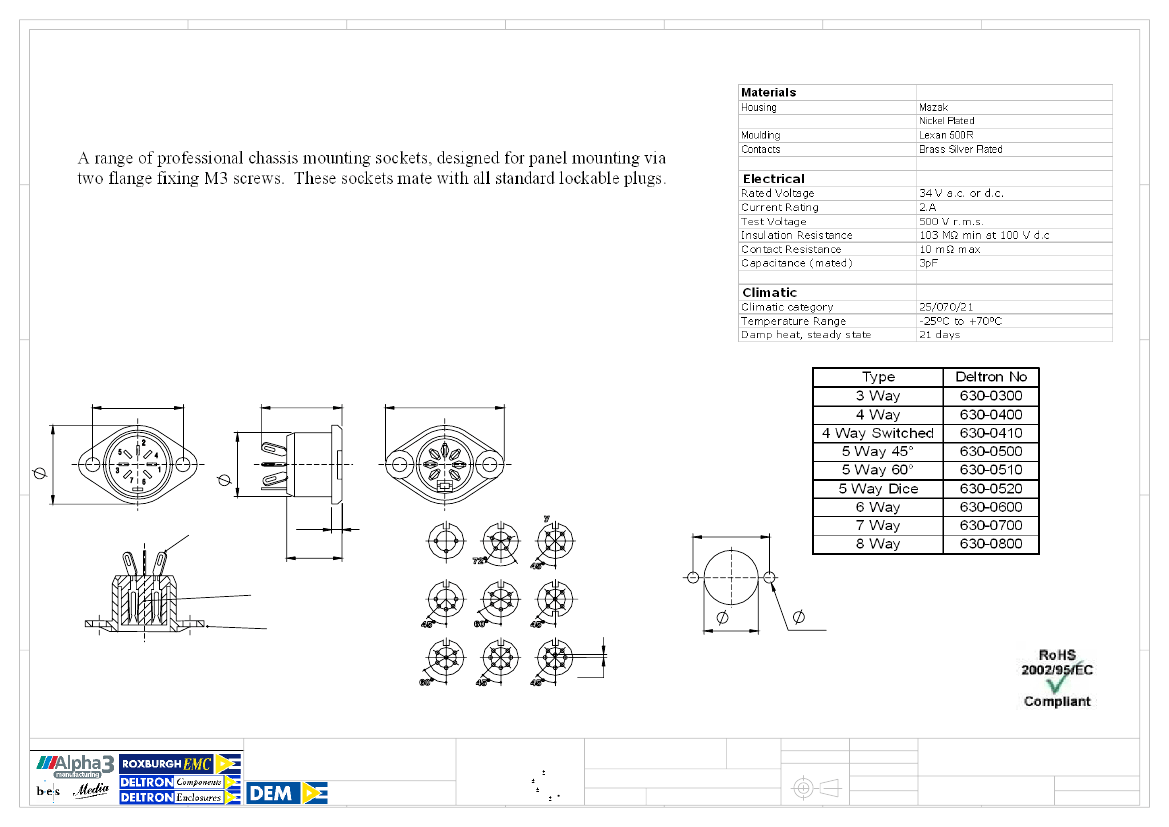

Dimensions

22.2

C

18.5

15.5

28.8

C

19

2

CONTACTS

D

3 Way

4 Way 4 Way Switched

13.3

5 Way 45° 5 Way 60° 5 Way Dice

22.2

D

MOULDING

HOUSING

6 Way

7 Way

16

0.7

PANEL

CUTOUT

3.3

E

Tel No. +44(0)1724 273200 Website www.dem-uk.com

PROPRIETARY AND CONFIDENTIAL

THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF

ALPHA 3 MANUFACTURING.

ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF

ALPHA 3 MANUFACTURING

IS PROHIBITED.

DEM Manufacturing, Deltron Emcon House

Hargreaves Way, Sawcliffe Ind. Park,

Scunthorpe, North Lincolnshire, DN15 8RF, UK

E

UNLESS OTHERWISE SPECIFIED:

DIMENSIONS ARE IN MILLIMETRES

LINEAR TOLERANCE:

NO DECIMAL PLACES 0.5mm

1 DECIMAL PLACE 0.25mm

2 DECIMAL PLACES 0.125mm

ANGULAR TOLERANCE: 1

FINISH

PROFESSIONAL

FLANGED CHASSIS

SOCKET

IF IN DOUBT ASK

DO NOT SCALE DRAWING

DEBURR AND BREAK

SHARP EDGES

DRAWN BY

APPROVED BY

THIRD ANGLE PROJECTION

SPB

WC

SHEET 1 OF 1

SCALE 1:1

TITLE

DRAWING NO.

GENERAL SPECIFICATION

630 SERIES

CHASSIS SOCKET

ISSUE

MATERIAL

SEE NOTE

A4

630 SERIES

Release

09
