74AC11373D datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> 74AC11373D

74AC11373D: DescriptionBus Driver, AC Series, 1-Func, 8-Bit, True Output, CMOS, PDSO24; Categorylogic; File Size194KB，7 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric Compare View All

74AC11373D Overview

Bus Driver, AC Series, 1-Func, 8-Bit, True Output, CMOS, PDSO24

74AC11373D Parametric

Parameter Name	Attribute value
Maker	YAGEO
package instruction	,
Reach Compliance Code	unknown
Is Samacsys	N
series	AC
JESD-30 code	R-PDSO-G24
Logic integrated circuit type	BUS DRIVER
Number of digits	8
Number of functions	1
Number of ports	2
Number of terminals	24
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
propagation delay (tpd)	14.2 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal location	DUAL
Base Number Matches	1

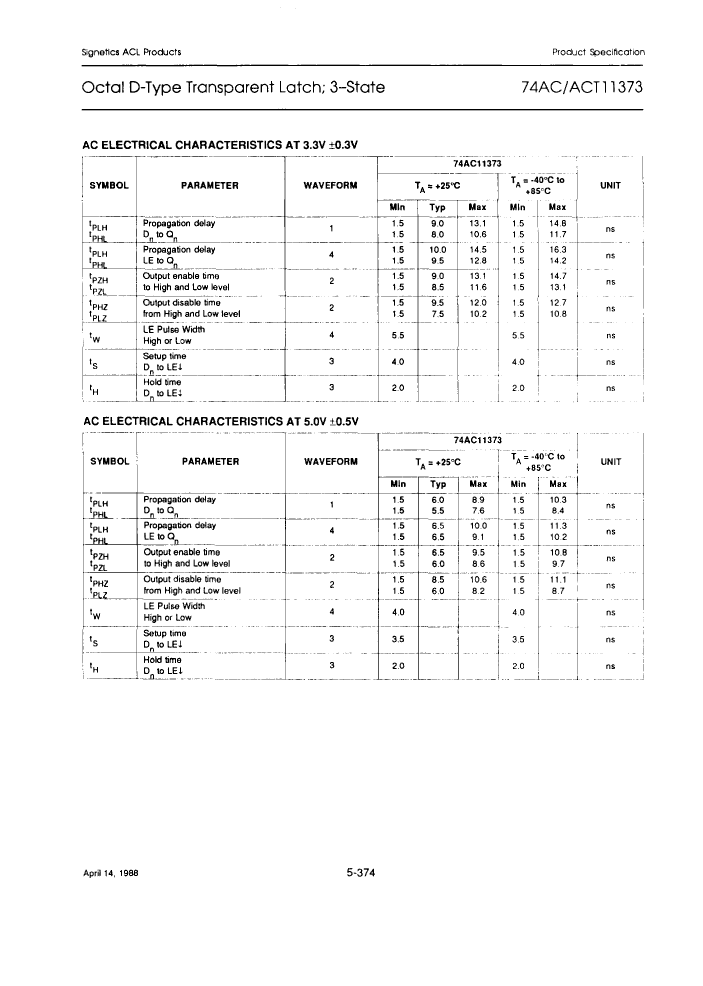

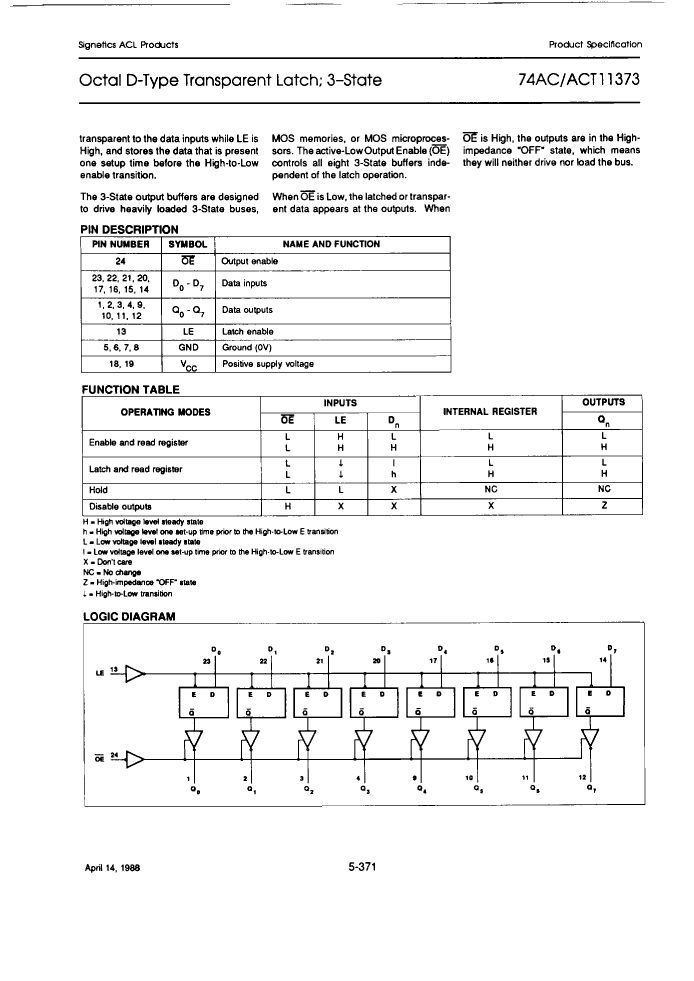

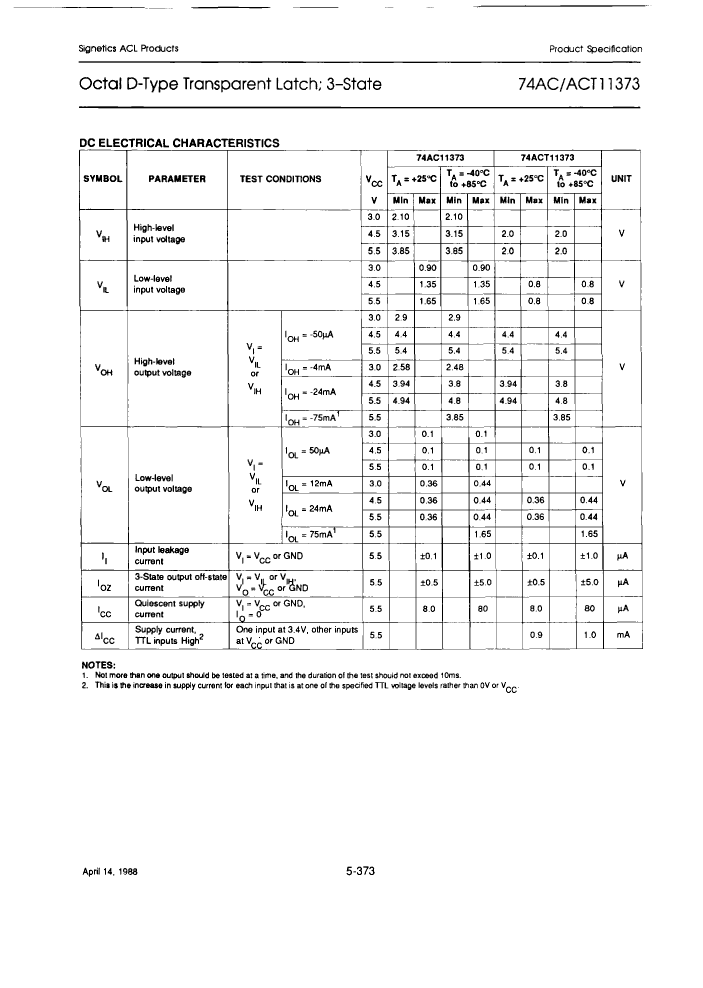

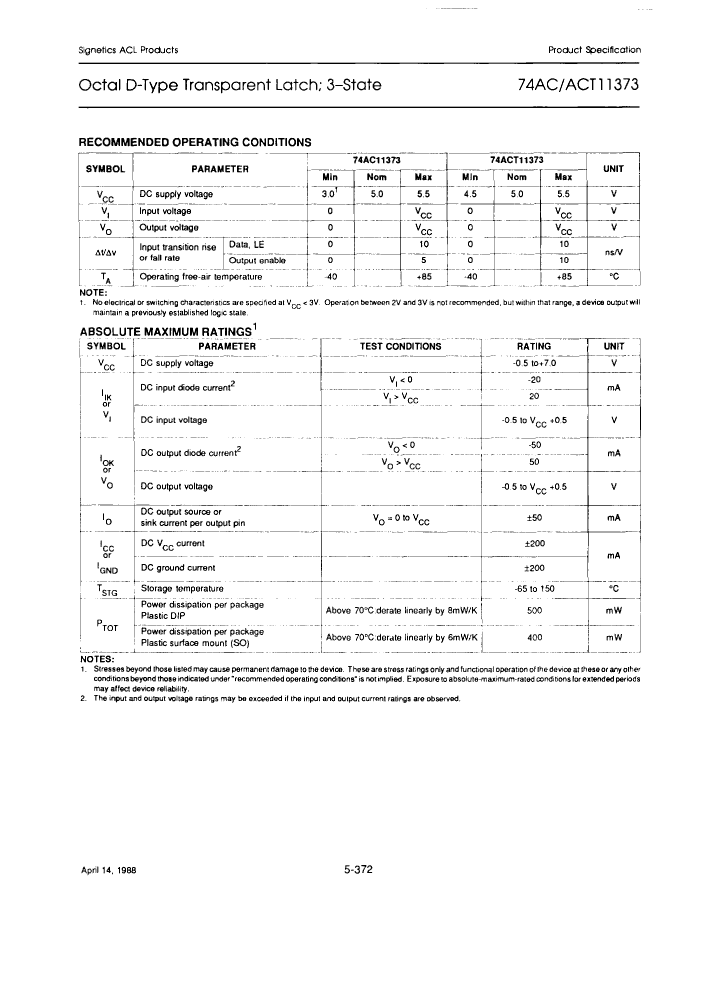

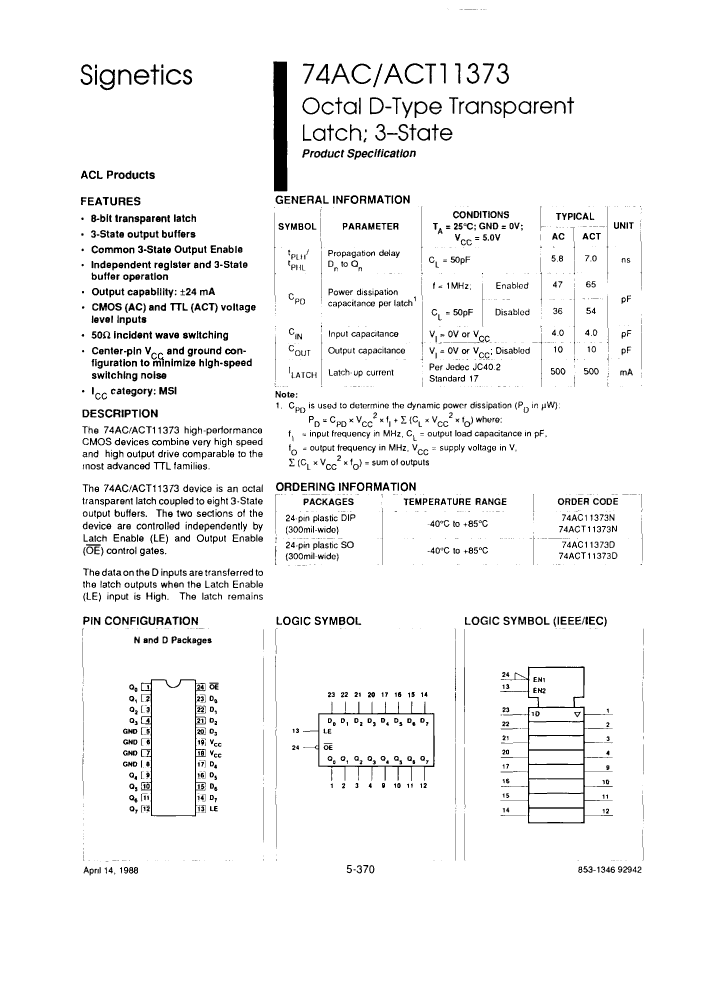

Preview

Download Datasheet

View All

74AC11373D Related Products

	74AC11373D	74AC11373N	74AC11373D-T	74ACT11373D	74ACT11373D-T	74ACT11373N
Description	Bus Driver, AC Series, 1-Func, 8-Bit, True Output, CMOS, PDSO24	Bus Driver, AC Series, 1-Func, 8-Bit, True Output, CMOS, PDIP24	Bus Driver, AC Series, 1-Func, 8-Bit, True Output, CMOS, PDSO24	Bus Driver, ACT Series, 1-Func, 8-Bit, True Output, CMOS, PDSO24	Bus Driver, ACT Series, 1-Func, 8-Bit, True Output, CMOS, PDSO24	Bus Driver, ACT Series, 1-Func, 8-Bit, True Output, CMOS, PDIP24
Maker	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
series	AC	AC	AC	ACT	ACT	ACT
JESD-30 code	R-PDSO-G24	R-PDIP-T24	R-PDSO-G24	R-PDSO-G24	R-PDSO-G24	R-PDIP-T24
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER
Number of digits	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1
Number of ports	2	2	2	2	2	2
Number of terminals	24	24	24	24	24	24
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	IN-LINE
propagation delay (tpd)	14.2 ns	14.2 ns	14.2 ns	12.2 ns	12.2 ns	12.2 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	3 V	3 V	3 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	YES	YES	YES	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	THROUGH-HOLE	GULL WING	GULL WING	GULL WING	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Base Number Matches	1	1	1	1	1	-
