PA4333.152NLT

Description
Fixed Inductors IND, PWR, 7.1X6.5X3 1.5 uH, SMT
CategoryPassive components
File Size367KB,5 Pages
ManufacturerPulse
Environmental Compliance
Download Datasheet Parametric View All

PA4333.152NLT Overview

Fixed Inductors IND, PWR, 7.1X6.5X3 1.5 uH, SMT

PA4333.152NLT Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerPulse
Product CategoryFixed Inductors
RoHSDetails
Termination StyleSMD/SMT
ShieldingShielded
Inductance1.5 uH
Tolerance20 %
Maximum DC Current6 A
Maximum DC Resistance13.8 mOhms
Minimum Operating Temperature- 40 C
Maximum Operating Temperature+ 125 C
Test Frequency1 MHz
Termination-
Mounting StylePCB Mount
Length7.4 mm
Width6.8 mm
Height3.2 mm
ApplicationPower
PackagingCut Tape
PackagingMouseReel
PackagingReel
ProductFixed Inductors
Self Resonant Frequency37 MHz
TypeSMD Inductor
Factory Pack Quantity1000

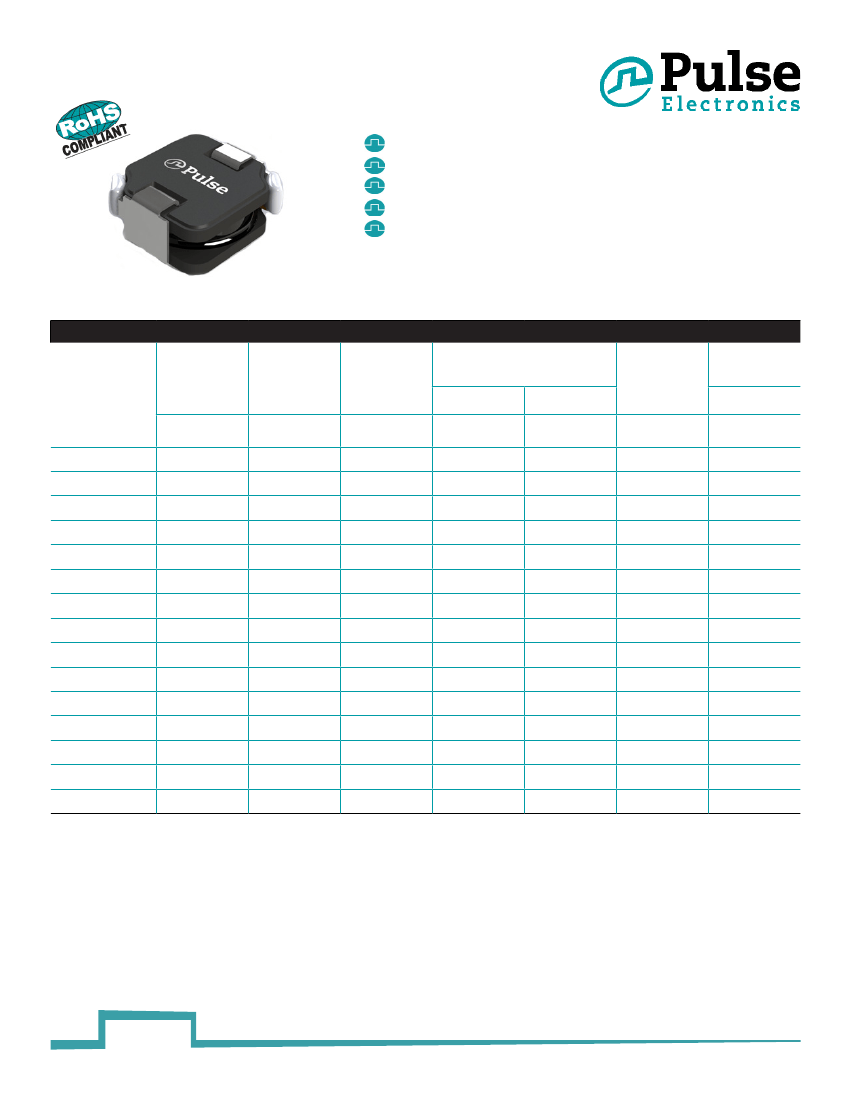

SMT Power Inductor
Shielded Drum Core - PA4333.XXXNLT Series
Height:
3.2mm Max
Footprint:
7.4mm x 6.8mm Max
Current Rating:
up to 14A
Inductance Range:
0.22uH to 22uH
Shielded magnetic circuit reduces leakage flux, Fe
base metal core enables high saturation and
metalized core termination results in excellent shock
resistance.
Electrical Specifications @ 25°C - Operating Temperature -40°C to +125°C
Part
Number
PA4333.221NLT
PA4333.331NLT
PA4333.471NLT
PA4333.681NLT
PA4333.751NLT
PA4333.102NLT
PA4333.152NLT
PA4333.222NLT
PA4333.332NLT
PA4333.472NLT
PA4333.682NLT
PA4333.822NLT
PA4333.103NLT
PA4333.153NLT
PA4333.223NLT
Inductance
1MHz, 1V
uH
±20%
0.22
0.33
0.47
0.68
0.75
1.0
1.5
2.2
3.3
4.7
6.8
8.2
10
15
22
Rated
Current
A
14.00
12.40
11.00
9.50
9.50
9.50
6.00
5.65
4.60
3.80
3.20
3.10
3.00
2.50
1.70
Min.
Self-Resonant
Frequency
MHz
108
78
71
57
55
41
37
24
23
15
14
13
12
11
8
DC
Resistance
MAX.
mΩ
4.0
5.1
6.6
8.7
8.7
8.7
13.8
18.0
30.5
43.5
64.0
69.0
77.4
127.0
177.0
TYP.
mΩ
3.3
4.3
5.5
7.3
7.3
7.3
11.5
15.0
25.5
36.5
53.5
58.0
64.5
106.0
148.0
Saturation
Current
(20½C)
A
18.00
17.00
16.50
12.80
11.50
9.50
8.00
6.50
4.60
3.80
3.20
3.20
3.00
3.00
1.70
Heating
Current
T
40½C
A
14.00
12.40
11.00
9.50
9.50
9.50
6.00
5.65
4.60
3.80
3.20
3.10
3.00
2.50
2.00
Notes:
1. Actual temperature of the component during system operation (ambient plus temperature
rise) must be within the standard operating range.
2. The rated current as listed is either the saturation current (@ 20°C) or the heating current
(∆ T
~
40°C) depending on which value is lower.
3. The saturation current is the current at which the initial inductance drops approximately
30% at the stated ambient temperature. This current is determined by placing the compo-
nent in the specified ambient environment and applying a short duration pulse current (to
eliminate self-heating effect) to the component.
4. The heating current is the DC current required to raise the component temperature by
approximately 40°C. Take note that the components’ performance varies depending on
the system condition. It is suggested that the component be tested at the system level, to
verify the temperature rise of the component during system operation.
5. Maximum voltage across terminals to be limited to <40Vdc
