RP200Q
(SC-88A) is the discontinued product as of January 2017.
RP200x SERIES
3-MODE 300mA LDO REGULATOR
NO.EA-182-170126
OUTLINE
The RP200x Series consist of CMOS-based voltage regulator ICs with high output voltage accuracy, low
dropout voltage and low supply current. These ICs perform with the chip enable function and realize a standby
mode with ultra low supply current. To prevent the destruction by over current, the current limit circuit is included.
The RP200x Series have 3-mode. One is standby mode with CE pin. Other two modes are realized with ECO
Function. Fast Response Mode (Fast Mode) and Fast and Low Power auto-change Mode (Auto ECO Mode) are
alternative with Auto Eco pin (AE pin). Supply current of IC itself at light load is automatically reduced at Auto
ECO Mode compared with Fast Mode. The output voltage is maintained between Fast Mode and Auto ECO Mode.
Without AE pin type is also available. It is an LDO regulator with Auto ECO mode. (RP200Z in WLCSP.)
Since the packages for these ICs are SOT-23-5, SC-88A, thin DFN(PLP)1212-6, and WLCSP-4-P5, high
density mounting of the ICs on boards is possible. RP200Q (SC-88A), RP200K (DFN(PLP)1212-6) and RP200N
(SOT-23-5) has AE pin, then if the AE pin is "H", Fast Mode is available. If the AE pin is set at "L" level, Auto ECO
Mode operation is available.
FEATURES
Supply Current (Low power Mode) .............................. Typ. 1.0A (V
OUT
1.85V)
Supply Current (Fast Mode)......................................... Typ. 55A
Supply Current (Standby Mode) .................................. Typ. 0.1A
Ripple Rejection ........................................................... Typ. 70dB (f½1kHz)
Input Voltage Range .................................................... 1.4V to 5.25V
Output Voltage Range.................................................. 0.8V to 4.0V (0.1V steps)
(
For other voltages, please refer to MARK INFORMATIONS.)
Output Voltage Accuracy..............................................
1.0%
(V
OUT
> 2.0V, T
opt
½25C)
Temperature-Drift Coefficient of Output Voltage .......... Typ.
50ppm/C
Dropout Voltage ........................................................... Typ. 0.23V (I
OUT
½300mA,
V
OUT
½2.8V)
Line Regulation ............................................................ Typ. 0.02%/V
Packages ..................................................................... WLCSP-4-P5, DFN(PLP)1212-6, SC-88A,
SOT-23-5
Built-in Fold Back Protection Circuit ............................ Typ. 50mA (Current at short mode)
Ceramic capacitors are recommended ........................ 1.0F
APPLICATIONS
Power source for portable communication equipment.
Power source for electrical appliances such as cameras, VCRs and camcorders.
Power source for battery-powered equipment.
1

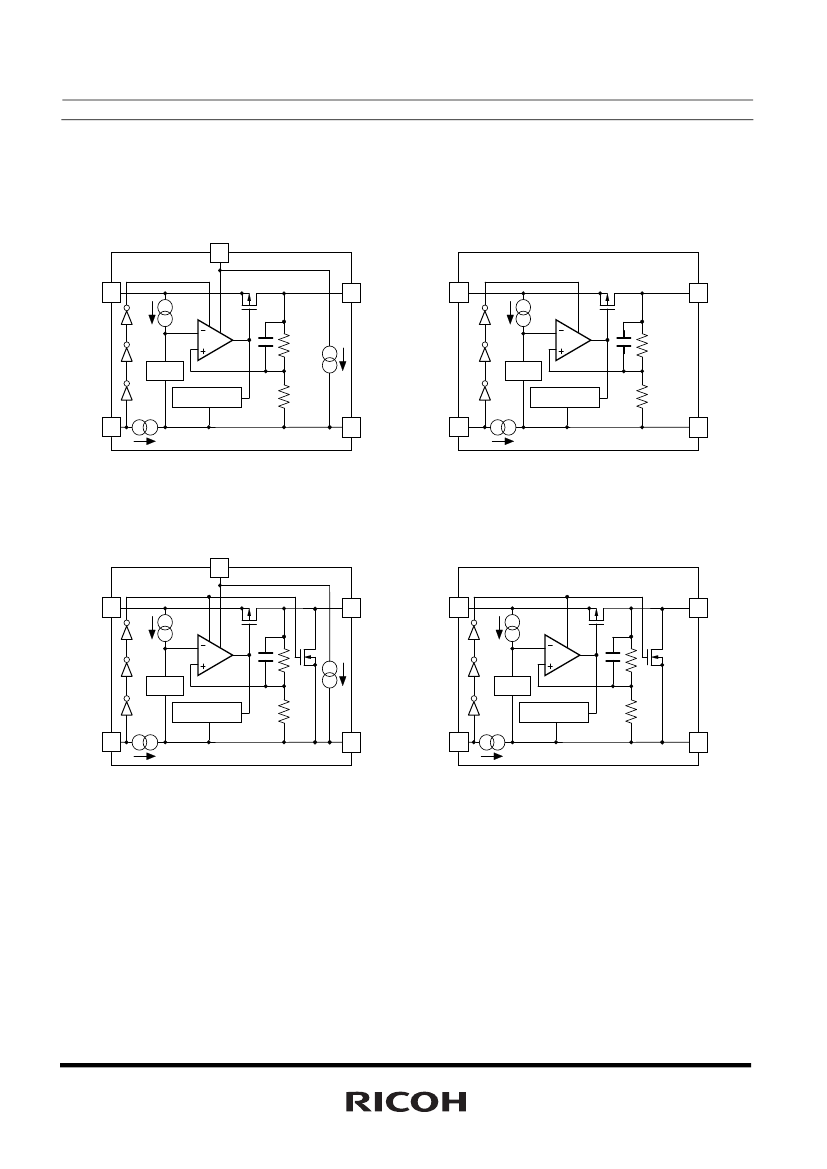

RP200Q
(SC-88A) is the discontinued product as of January 2017.
RP200x
NO.EA-182-170126
SELECTION GUIDE
The output voltage, auto discharge function, and package, etc. for the ICs can be selected at the user’s request.
Product Name
RP200Zxx1-TR-F
RP200Kxx1-TR
RP200Qxx2-TR-FE
RP200Nxx1-TR-FE
Package
WLCSP-4-P5
DFN(PLP)1212-6
SC-88A
SOT-23-5
Quantity per Reel
5,000 pcs
5,000 pcs
3,000 pcs
3,000 pcs
Pb Free
Yes
Yes
Yes
Yes
Halogen Free
Yes
Yes
Yes
Yes
xx : The output voltage can be designated in the range from 0.8V(08) to 4.0V(40) in 0.1V steps.
(For other voltages, please refer to MARK INFORMATIONS.)
: The auto discharge function at off state are options as follows.
(B) without auto discharge function at off state
(D) with auto discharge function at off state
3
